Comparative Efficiency of Plate-Type and Needle-Type Ion Sources

1. Introduction

Ion sources are critical components in static neutralization systems, controlling electrostatic charge on surfaces across industries such as electronics, printing, packaging, and film manufacturing. The two most commonly used ion source types are:

1. Needle-type ion sources (corona needles): Utilize high curvature points to generate localized corona discharge.

2. Plate-type ion sources: Use flat or parallel electrodes to produce a more uniform electric field.

Understanding their comparative efficiency is essential for:

• Selecting appropriate ionizers for specific industrial applications

• Optimizing ion density, neutralization rate, and uniformity

• Minimizing residual charges and enhancing production yield

This article provides a comprehensive analysis of needle-type vs. plate-type ion sources, including physical principles, ion generation efficiency, transport dynamics, modeling approaches, and industrial implementation.

---

2. Fundamental Principles of Needle-Type Ion Sources

2.1 Corona Discharge Mechanism

• Needle electrodes concentrate electric field at their tip.

• The high local field ionizes air molecules, producing positive or negative ions.

• Ion density depends on tip radius, applied voltage, and environmental conditions (humidity, temperature).

2.2 Ion Generation Efficiency

• Efficiency increases with sharper tip radius due to field enhancement.

• Typical ion densities: 105–106 ions/cm310^5–10^6 \text{ ions/cm}^3105–106 ions/cm3 near the tip.

• Limited coverage area; ions must be transported via airflow or field lines to the target surface.

---

2.3 Advantages and Limitations

Advantages:

• High local ion density

• Strong electric field for rapid neutralization of nearby charges

• Flexible placement for targeted ion delivery

Limitations:

• Non-uniform ion distribution over large areas

• Potential for ozone generation due to strong local fields

• Higher maintenance due to needle tip degradation

---

3. Fundamental Principles of Plate-Type Ion Sources

3.1 Uniform Field Ionization

• Parallel plates produce a more uniform electric field across the gap.

• Corona discharge occurs along the plate edge or across dielectric surfaces.

• Ion density is generally lower than needle-type but distributed more evenly.

3.2 Ion Generation Efficiency

• Efficiency depends on applied voltage, plate spacing, and surface geometry.

• Typical ion densities: 104–105 ions/cm310^4–10^5 \text{ ions/cm}^3104–105 ions/cm3 over the plate area.

• Lower peak density, but broader coverage area for uniform neutralization.

---

3.3 Advantages and Limitations

Advantages:

• High spatial uniformity over large surfaces

• Lower ozone generation

• Less sensitive to mechanical degradation

Limitations:

• Lower peak ion density; slower neutralization for strongly charged spots

• Requires larger electrode area for wide surfaces

---

4. Electric Field Distribution Comparison

4.1 Needle-Type Field Concentration

• Strong field at the tip $E\sim V/r$ (r = tip radius)

• Rapid decay with distance from the tip

• Effective ion generation limited to ~10–50 mm from the needle

4.2 Plate-Type Field Uniformity

• Field $E\sim V/d$ across plate gap (d = distance)

• More uniform distribution over distance, but lower peak magnitude

• Suitable for wide-area neutralization

4.3 Implications for Ion Transport

• Needle-type: strong local ion drift, limited lateral spreading

• Plate-type: weaker drift, relies on diffusion or airflow for transport

---

5. Ion Transport and Surface Neutralization

5.1 Governing Mechanisms

1. Drift in electric field: vd=μEv_d = \mu Evd=μE

2. Diffusion due to concentration gradients: Jd=−D∇nJ_d = -D \nabla nJd=−D∇n

3. Airflow convection: Jc=nv⃗airJ_c = n \vec{v}_{\text{air}}Jc=nvair

Total ion flux:

Jtotal=Jd+Jc+nμEJ_{\text{total}} = J_d + J_c + n \mu EJtotal=Jd+Jc+nμE

5.2 Needle vs. Plate Ion Flux Patterns

• Needle-type: High flux near the tip, rapid neutralization of nearby charges, non-uniform over distance

• Plate-type: Moderate flux, more uniform neutralization, slower response for highly charged spots

---

6. Mathematical Modeling of Ion Generation Efficiency

6.1 Needle-Type Corona Model

• Field enhancement factor: $\beta =1+2r/d$

• Ion generation rate: Ii=k(βV−V0)mI_i = k (\beta V - V_0)^mIi=k(βV−V0)m

• $V$: applied voltage

• V0V_0V0: onset voltage

• $m\approx 2–3$ depending on geometry

6.2 Plate-Type Ionization Model

• Uniform field: $E=V/d$

• Ion generation rate: Ii=k(V−V0)mI_i = k (V - V_0)^mIi=k(V−V0)m

• Efficiency lower than needle-type for the same voltage, but area coverage improves overall neutralization rate

---

7. Effect of Electrode Material

7.1 Needle-Type Electrodes

• Tungsten, stainless steel, or platinum tips

• Sharpness and wear resistance affect long-term efficiency

7.2 Plate-Type Electrodes

• Aluminum, stainless steel, or conductive coated plastics

• Surface smoothness and uniformity affect ion production and field uniformity

7.3 Environmental Considerations

• Humidity and temperature affect corona onset voltage

• Needle tips more sensitive to environmental variation

---

8. Voltage Mode and Polarity Effects

8.1 AC vs DC Operation

• Needle-type: DC produces steady ion flux; AC alternates polarity, reducing ozone accumulation

• Plate-type: AC improves coverage uniformity; DC can cause surface bias

8.2 Polarity Balance

• Imbalance leads to residual surface charge

• Needle-type high peak flux can neutralize strongly charged spots efficiently

• Plate-type achieves overall surface balance more effectively

---

9. Experimental Comparison of Efficiency

9.1 Ion Density Measurement

• Faraday cup arrays for absolute ion density

• Needle-type: 1–5×106 ions/cm31–5 \times 10^6 \text{ ions/cm}^31–5×106 ions/cm3 near tip

• Plate-type: 1–2×105 ions/cm31–2 \times 10^5 \text{ ions/cm}^31–2×105 ions/cm3 uniformly over plate

9.2 Surface Neutralization Tests

• Needle-type: rapid decay within 10–50 mm from tip

• Plate-type: uniform decay across large area, slower for high local charge

9.3 Energy Consumption

• Needle-type: higher voltage per tip, lower area coverage

• Plate-type: lower voltage per unit area, larger coverage

---

10. Airflow Effects on Efficiency

• Needle-type: airflow needed to transport ions to distant charges; otherwise neutralization limited to tip vicinity

• Plate-type: moderate airflow sufficient due to broad distribution

• Turbulent flow enhances both types, but plate-type benefits more in uniformity

---

11. Industrial Application Considerations

11.1 Electronics Manufacturing

• Needle-type preferred for localized high-charge spots on PCBs

• Plate-type for wide-area neutralization of boards or panels

11.2 Printing and Packaging

• Plate-type preferred for uniform web neutralization

• Needle-type used for spot correction or high-voltage anomalies

11.3 Film Extrusion

• Combination of both types can achieve rapid neutralization and uniformity

• Placement and airflow optimization critical

---

12. Summary of Comparative Efficiency

Comparative Efficiency of Plate-Type and Needle-Type Ion Sources (Continued)

13. Mathematical Modeling of Needle-Type Ion Sources

13.1 Corona Current Model

The current generated by a needle-type corona can be approximated by Peek’s law for positive corona:

Ic=K(V−V0)mI_c = K (V - V_0)^mIc=K(V−V0)m

Where:

• IcI_cIc is the corona current

• $V$ is applied voltage

• V0V_0V0 is onset voltage (function of tip radius, air density, and humidity)

• $K$ and $m$ are empirical coefficients

• Key insight: small tip radius → lower V0V_0V0 → higher corona current at same voltage

• AC operation reduces ozone accumulation but slightly decreases instantaneous ion density

---

13.2 Ion Flux Distribution

Assuming steady-state, ion density $n(r,z)$ around a single needle tip follows:

∂n∂t=D∇2n−αn2+μE⋅∇n\frac{\partial n}{\partial t} = D \nabla^2 n - \alpha n^2 + \mu E \cdot \nabla n∂t∂n=D∇2n−αn2+μE⋅∇n

• $D$ is ion diffusion coefficient

• $\alpha$ is recombination coefficient

• $\mu E$ represents electric-field drift

Observation: High ion density near tip, decays rapidly with distance (∼1/r2\sim 1/r^2∼1/r2 or faster)

---

13.3 Surface Neutralization Time

For a patch with surface charge density σ0\sigma_0σ0:

σ(t)=σ0e−∫0tJi(t′)ϵdt′\sigma(t) = \sigma_0 e^{- \int_0^t \frac{J_i(t')}{\epsilon} dt'}σ(t)=σ0e−∫0tϵJi(t′)dt′

• Ji(t′)J_i(t')Ji(t′) is the local ion flux

• $ϵ$ is surface permittivity

• Needle-type neutralization is rapid near tip but may leave distant regions partially charged

---

14. Mathematical Modeling of Plate-Type Ion Sources

14.1 Uniform Field Approximation

For a parallel-plate setup:

E=VdE = \frac{V}{d}E=dV

• $d$ is plate separation

• Field uniformity leads to broad but lower peak ion density

14.2 Ion Flux

Steady-state ion flux to surface:

Ji=nμEJ_i = n \mu EJi=nμE

• Uniform across plate area

• Slower neutralization for highly charged spots but excellent spatial coverage

14.3 Neutralization Dynamics

σ(t)=σ0e−nμEϵt\sigma(t) = \sigma_0 e^{- \frac{n \mu E}{\epsilon} t}σ(t)=σ0e−ϵnμEt

• Neutralization is linear and predictable for uniform surfaces

• Better for wide-area industrial applications

---

15. Airflow and Ion Transport Modeling

15.1 Convection–Diffusion–Drift Equation

For both needle and plate sources:

∂n∂t+v⃗air⋅∇n=D∇2n+μ∇⋅(nE⃗)−αn2\frac{\partial n}{\partial t} + \vec{v}_{\text{air}} \cdot \nabla n = D \nabla^2 n + \mu \nabla \cdot (n \vec{E}) - \alpha n^2∂t∂n+vair⋅∇n=D∇2n+μ∇⋅(nE)−αn2

• Needle-type: high local drift dominates, airflow needed to transport ions laterally

• Plate-type: weaker drift, diffusion and airflow aid uniform transport

15.2 Simulation Parameters

• Velocity field (v⃗air\vec{v}_{\text{air}}vair): laminar, turbulent, or pulsed

• Boundary conditions: electrodes, grounded surfaces, open boundaries

• Mesh resolution: finer near electrodes and surface patches to resolve gradients

---

15.3 Effect of Airflow on Efficiency

• Needle-type: strong dependence on airflow to reach distant areas

• Plate-type: moderate airflow sufficient for uniformity

• Turbulence improves uniformity but increases recombination; optimal balance needed

---

16. Environmental Factors Affecting Efficiency

16.1 Humidity

• High humidity increases air conductivity → corona onset voltage increases

• Needle tips more sensitive; plate-type less affected

• Recombination rates increase due to clustering of water molecules with ions

16.2 Temperature and Pressure

• High temperature → lower air density → slightly higher ion mobility

• Low pressure → fewer collisions, longer ion lifetime but lower ion generation rate

16.3 Implications

• Needle-type optimal in controlled environments

• Plate-type more robust for variable conditions

---

17. High-Speed Surface Neutralization

17.1 Moving Surface Effects

For a moving web at speed $v$:

∂σ∂t+v∂σ∂x=−Ji(x,y,t)\frac{\partial \sigma}{\partial t} + v \frac{\partial \sigma}{\partial x} = -J_i(x, y, t)∂t∂σ+v∂x∂σ=−Ji(x,y,t)

• Exposure time decreases → higher ion flux required

• Needle-type: may require multiple tips or airflow assistance

• Plate-type: broad coverage ensures partial neutralization even at high speed

17.2 Optimization Strategies

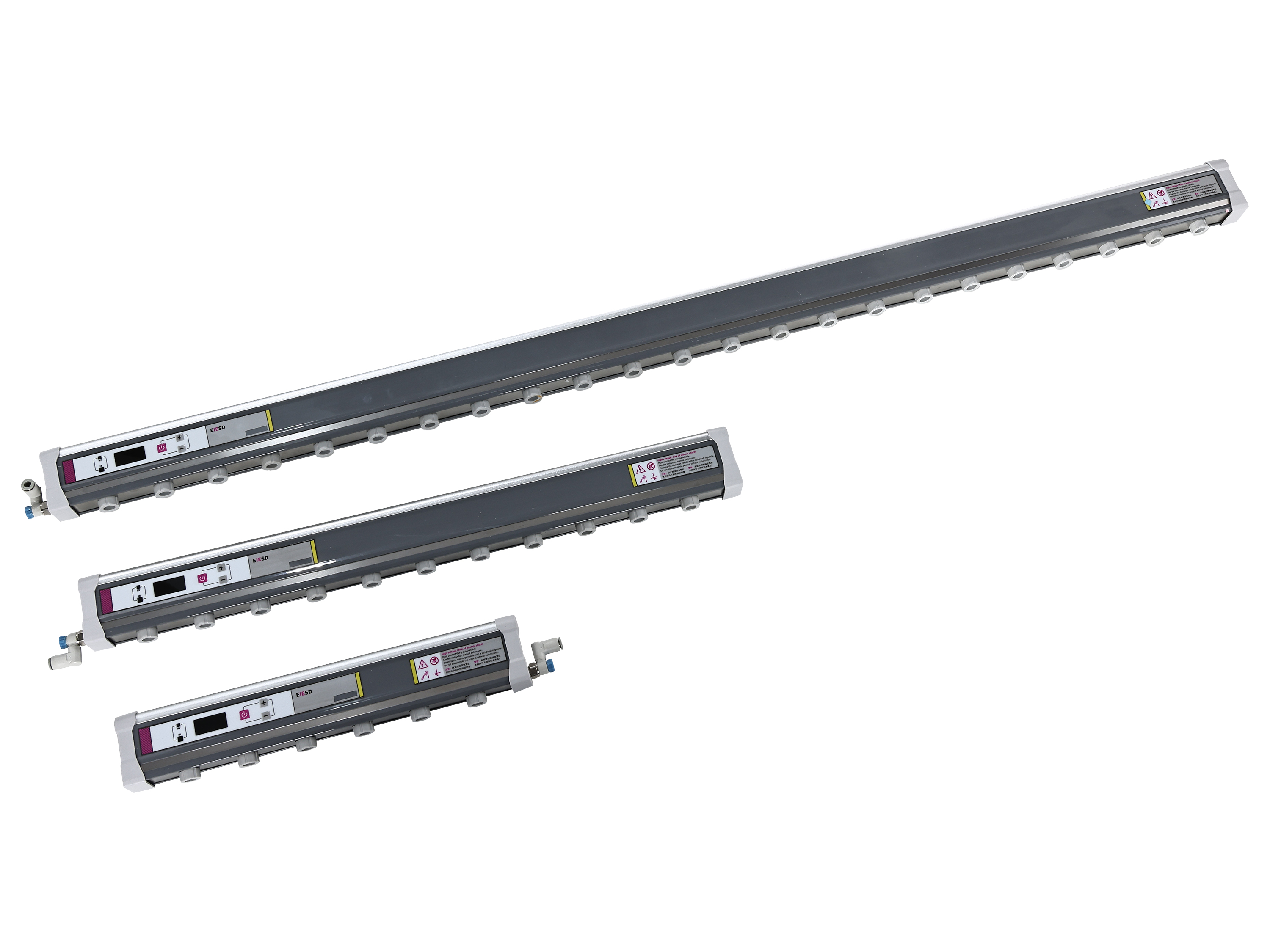

• Overlapping bars or multiple rows

• Directed airflow to reduce dead zones

• AC polarity switching to maintain ion balance

---

18. Experimental Comparison

18.1 Ion Density Measurements

---

18.2 Surface Potential Decay

• Needle-type: rapid drop near tip (< 0.5 s), slower at distance

• Plate-type: slower initial drop (~2–5 s), but uniform across surface

18.3 Energy Efficiency

• Needle-type: higher voltage, smaller area → moderate energy per unit surface

• Plate-type: lower voltage, large area → energy efficient for wide surfaces

---

19. Industrial Case Studies

19.1 PCB Assembly

• Needle-type: used to neutralize localized high-charge areas

• Plate-type: used for overall panel neutralization

19.2 Printing Lines

• Plate-type preferred for uniform web neutralization

• Needle-type used for spot corrections at edges or defects

19.3 Film Extrusion

• Combination of both types reduces total residual charge

• Proper placement and airflow critical

---

20. Maintenance and Durability

• Needle-type: tip wear reduces efficiency over time; periodic replacement required

• Plate-type: more robust, minimal maintenance

• Environmental contamination (dust, moisture) affects needle tips more severely

---

21. Design Recommendations

1. Surface area and coverage: plate-type for large areas, needle-type for targeted neutralization

2. Surface charge intensity: high local charge → needle-type preferred

3. Airflow management: needle-type requires directed airflow, plate-type benefits from moderate laminar or turbulent flow

4. Environmental conditions: plate-type more stable in varying humidity/temperature

5. Maintenance planning: needle-type requires periodic tip inspection

---

22. Key Takeaways

• Needle-type ion sources: high peak density, fast local neutralization, sensitive to airflow and environment

• Plate-type ion sources: uniform coverage, robust, slower peak response, better energy efficiency for large surfaces

• Optimal industrial systems often combine both types, with airflow optimization and polarity control to maximize efficiency and uniformity
