Comparative Study of Multi-Emitter and Single-Emitter Ionization Technologies in Ionizing Air Bars

Abstract

Ionizing air bars are essential tools for electrostatic control in industries such as semiconductor fabrication, electronics assembly, precision coating, printing, packaging, medical manufacturing, and explosive environments. The core mechanism relies on corona discharge from sharp emitter needles to generate bipolar ions that neutralize surface charges. Two major technical architectures dominate modern ionizing air bar design: single-emitter (single-needle) systems and multi-emitter (multi-needle) systems.

This paper presents an in-depth comparative analysis of multi-needle and single-needle ionization technologies, examining discharge physics, ion density distribution, field uniformity, neutralization efficiency, space charge effects, reliability, maintenance, ozone generation, energy efficiency, scalability, and industrial applicability. Mathematical modeling, engineering trade-offs, and practical optimization strategies are discussed to guide system selection and future development.

---

1. Introduction

Electrostatic charge accumulation causes serious problems in high-precision manufacturing:

• Electrostatic discharge (ESD) damage

• Particle attraction and contamination

• Coating defects

• Material sticking

• Operator safety risks

Ionizing air bars mitigate these risks by producing positive and negative ions through corona discharge. The design of the emitter configuration strongly influences performance.

Two dominant approaches exist:

1. Single-Emitter Technology – one discharge needle per ionization unit.

2. Multi-Emitter Technology – multiple discharge needles arranged along a bar.

Although both rely on corona discharge physics, their spatial ionization characteristics and system behaviors differ significantly.

---

2. Fundamental Corona Discharge Principles

2.1 Electric Field at the Needle Tip

The electric field strength near a needle tip is:

E≈VrE \approx \frac{V}{r}E≈rV

Where:

• $V$ = applied voltage

• $r$ = tip radius

When $E$ exceeds the breakdown threshold of air (~3 × 10^6 V/m), ionization begins.

Both single and multi-needle systems use this principle, but their spatial field distributions differ due to geometry and emitter interactions.

---

3. Single-Emitter Ionization Technology

3.1 Structural Characteristics

A single-emitter ionizer typically includes:

• One discharge needle

• High-voltage supply (AC or pulsed DC)

• Airflow nozzle

• Ground reference

3.2 Advantages

1. Simple electrical architecture

2. Lower manufacturing cost

3. Easier voltage control

4. Reduced inter-emitter interference

5. Precise localized ion delivery

3.3 Limitations

1. Limited coverage area

2. Strong spatial ion density gradient

3. Slower neutralization for large surfaces

4. High local electric field intensity

5. Potential uneven charge compensation

Single-emitter systems are best suited for:

• Point static control

• Small components

• Precision micro-assembly

• Laboratory applications

---

4. Multi-Emitter Ionization Technology

4.1 Structural Characteristics

Multi-emitter ionizing bars typically include:

• Multiple needles spaced uniformly

• Shared high-voltage supply

• Balanced bipolar configuration

• Air distribution manifold

Emitter spacing ranges from 10 mm to 40 mm depending on design.

4.2 Advantages

1. Wide-area coverage

2. More uniform ion distribution

3. Faster neutralization time

4. Lower local field intensity per needle

5. Redundancy (failure tolerance)

4.3 Limitations

1. Inter-emitter electric field coupling

2. Space charge interaction

3. Higher manufacturing complexity

4. Increased maintenance points

5. Potential ion imbalance accumulation

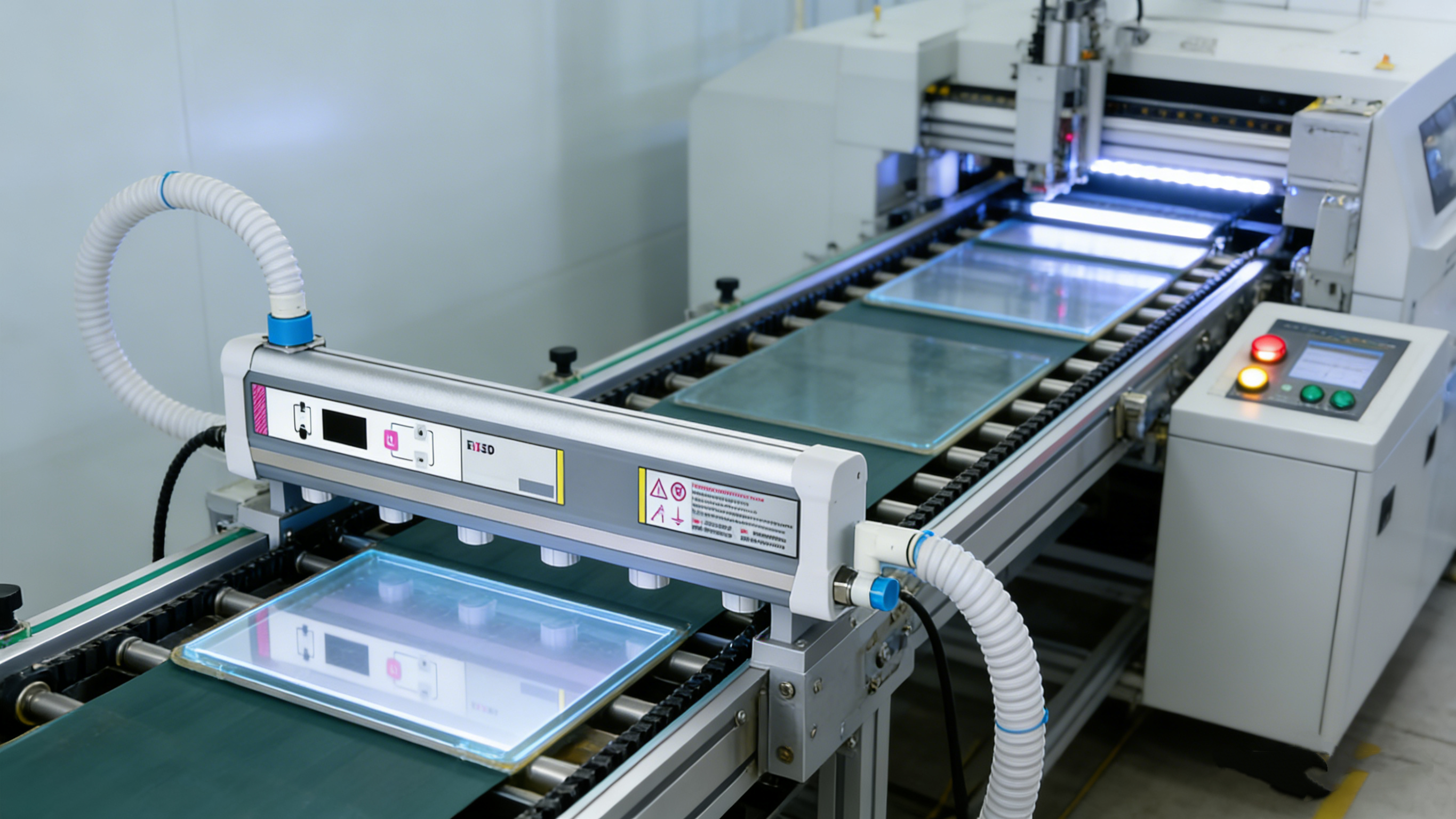

Multi-emitter systems are preferred for:

• Conveyor belts

• Film processing lines

• Large panels

• High-speed production environments

---

5. Electric Field Distribution Comparison

5.1 Single-Emitter Field

The electric field is radially symmetric around the needle:

• High field intensity at tip

• Rapid decay with distance

• Strong gradient

Ion density decreases significantly away from central axis.

---

5.2 Multi-Emitter Field Superposition

For multiple emitters:

Etotal=∑i=1nEiE_{total} = \sum_{i=1}^{n} E_iEtotal=i=1∑nEi

Fields overlap and create a quasi-uniform ionization zone.

However, emitter spacing determines:

• Field reinforcement

• Field cancellation

• Discharge stability

If spacing is too small, field shielding may occur.

---

6. Ion Density and Distribution

6.1 Single Needle

Ion density peaks at central axis and decreases radially.

Neutralization efficiency is highly distance-dependent.

---

6.2 Multi Needle

Multiple ion clouds overlap, producing:

• Flatter ion density profile

• Broader effective range

• Improved surface uniformity

Uniformity improves with optimal emitter spacing and airflow design.

---

7. Neutralization Time Comparison

Neutralization time constant:

τ=CG\tau = \frac{C}{G}τ=GC

Where:

• $C$ = capacitance of charged object

• $G$ = ion conductance

Multi-emitter systems provide higher ion conductance $G$, reducing neutralization time significantly for large-area charges.

Single-emitter systems are effective for small capacitance objects but slower for large surfaces.

---

8. Space Charge and Coupling Effects

8.1 Single Needle

Space charge region forms around one source.

Less internal interference.

---

8.2 Multi Needle

Space charge regions overlap.

Effects include:

• Ion recombination

• Field shielding

• Nonlinear discharge modulation

Advanced designs must optimize:

• Needle spacing

• Voltage phase synchronization

• Airflow velocity

---

9. Ion Balance Stability

Ion balance refers to equality between positive and negative ion output.

Single Needle:

• Easier voltage tuning

• Lower interaction distortion

Multi Needle:

• Phase shift between emitters can occur

• Space charge asymmetry may distort balance

• Requires sophisticated power supply control

Modern pulsed DC systems improve multi-emitter balance control.

---

10. Ozone Generation

Ozone formation is proportional to corona intensity.

Single needle:

• High local intensity

• Localized ozone concentration

Multi needle:

• Distributed discharge

• Lower per-needle intensity

• Overall ozone may increase if total ion output is higher

Proper airflow reduces ozone accumulation in both systems.

---

11. Energy Efficiency

Energy consumption depends on:

• Voltage level

• Current draw

• Ion output requirement

Single-emitter systems are energy-efficient for small targets.

Multi-emitter systems consume more total power but provide higher throughput efficiency per area.

---

12. Reliability and Redundancy

Single-emitter:

• Single point of failure

• Simple maintenance

Multi-emitter:

• Partial failure tolerance

• Requires periodic cleaning of multiple needles

• Higher probability of individual needle contamination

Industrial-grade bars include fault detection circuits for each emitter.

---

13. Maintenance Considerations

Multi-emitter systems require:

• Regular cleaning of each needle

• Inspection for corrosion or blunting

• Uniform spacing verification

Single-emitter systems require less maintenance effort but may need more precise alignment.

---

14. Manufacturing Complexity

Single-emitter:

• Simple insulation structure

• Minimal wiring

• Lower assembly cost

Multi-emitter:

• Complex internal wiring

• Insulation between adjacent needles

• Uniform mechanical alignment critical

---

15. Application-Based Comparison

High-Speed Film Lines

Multi-emitter preferred due to wide coverage and fast neutralization.

Microelectronics Assembly

Single-emitter suitable for targeted static control.

Semiconductor Cleanrooms

Multi-emitter bars with pulsed DC provide stable wide-area neutralization.

Hazardous Environments

Single-emitter may offer simpler intrinsically safe design.

---

16. Advanced Hybrid Designs

Some modern systems integrate:

• Segmented multi-emitter arrays

• Individually controlled emitter groups

• Adaptive voltage control per needle

Hybrid approaches combine advantages of both technologies.

---

17. Mathematical Modeling Comparison

Single Emitter Model

Solve Poisson’s equation in axisymmetric coordinates.

Simpler boundary conditions.

---

Multi Emitter Model

Requires full 3D modeling:

• Field superposition

• Space charge coupling

• Ion transport equations

Finite Element Method (FEM) often used.

---

18. Performance Trade-Off Summary

---

19. Future Development Trends

• Smart multi-emitter bars with closed-loop control

• AI-regulated ion balance

• Nano-structured emitter surfaces

• Low-ozone discharge design

• Modular emitter arrays

---

20. Conclusion

Both single-emitter and multi-emitter ionization technologies have unique strengths and limitations.

Single-emitter systems offer simplicity, precision, and cost efficiency for localized static control. Multi-emitter systems provide superior coverage, uniformity, and speed for large-area and high-throughput applications.

The choice between technologies should consider:

• Target size

• Production speed

• Environmental conditions

• Ion balance requirements

• Maintenance capability

• Budget constraints

Future innovation lies not in choosing one over the other, but in integrating adaptive control, optimized geometry, and intelligent feedback systems to maximize performance in diverse industrial environments.
