The optical coating industry has experienced tremendous growth over the past decades, driven by the demand for high-performance lenses, mirrors, optical filters, and other precision components used in electronics, medical devices, aerospace, and consumer optics. High-quality optical coatings require uniform film thickness, high adhesion, and defect-free surfaces. Even minor contamination or non-uniformity can significantly affect optical performance, causing light scattering, reduced reflectivity, or color distortion.
One of the most critical but often underestimated factors affecting coating quality is electrostatic charge. During handling, cleaning, transfer, or processing, substrates and equipment can accumulate static electricity. This static charge attracts dust, fibers, and other contaminants, which subsequently adhere to the substrate surface. Even in controlled cleanroom environments, electrostatic charges can undermine the efficacy of laminar airflow and particle filtration, leading to defective coatings and reduced yield.

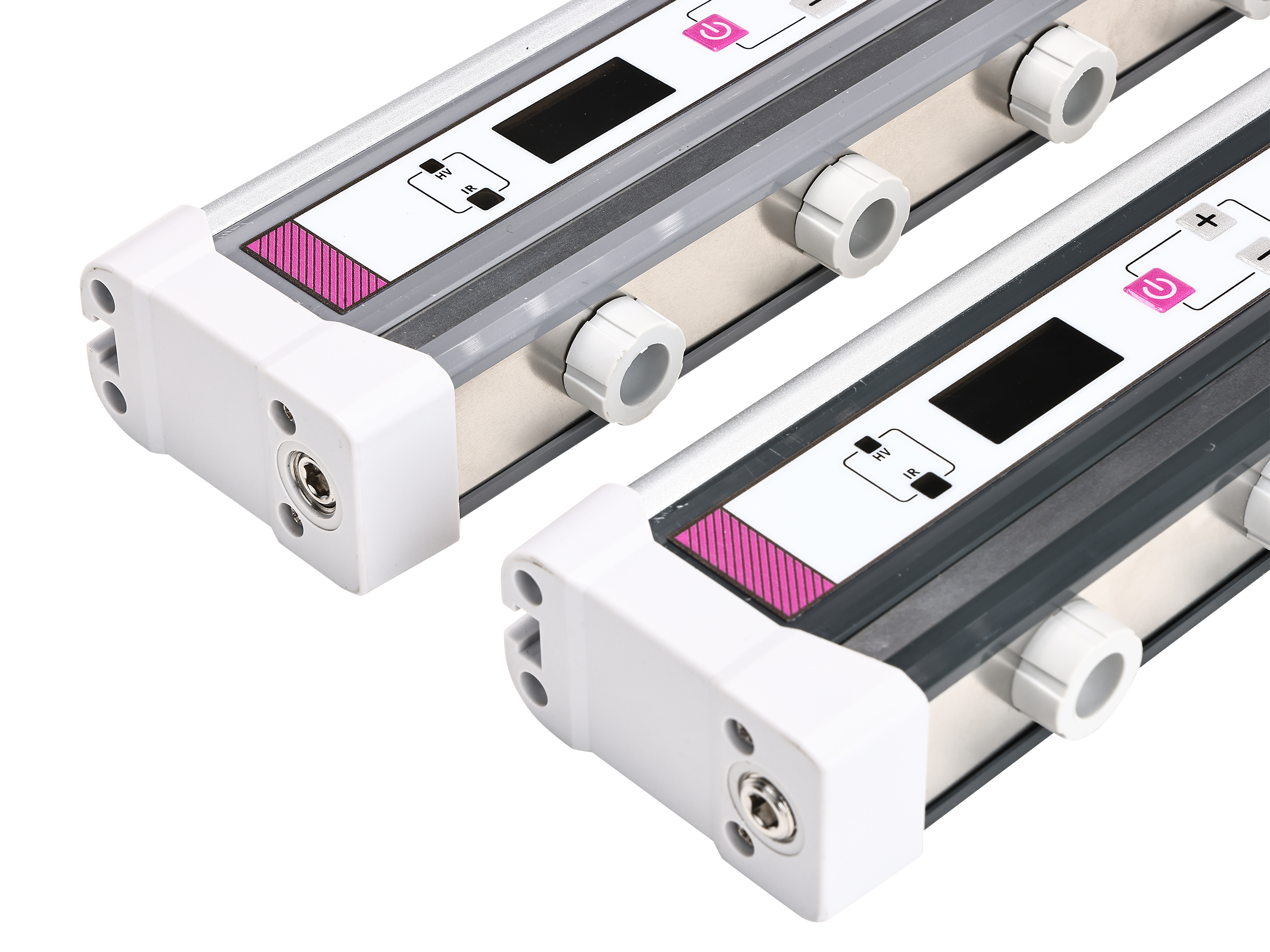

Ionizing bars (also referred to as static eliminators or ionizers) are an effective solution for controlling static charges in optical coating lines. By emitting balanced positive and negative ions, ionizing bars neutralize charges on substrates and surrounding equipment, preventing contamination and ensuring consistent coating quality.
Electrostatic charges pose multiple risks in optical coating lines:
Substrate Attraction of Particles: Charged surfaces attract dust, lint, and airborne particles.
Coating Defects: Pinholes, streaks, uneven thickness, and adhesion failures often result from localized charge accumulation.
Reduced Yield: Scrapped substrates due to defects increase production cost.
Process Instability: Electrostatic forces can affect substrate handling, leading to misalignment and equipment jams.
By implementing ionizing bars properly, manufacturers can maintain stable, neutral surfaces, reduce defects, and improve both process reliability and yield.
| Defect Type | Cause | Impact |
|---|---|---|
| Pinholes | Particle adhesion due to static | Reduced optical performance |
| Streaks | Uneven particle deposition | Non-uniform film thickness |
| Adhesion failure | Electrostatic repulsion between layers | Coating delamination |
| Misalignment | Charged substrates sticking to fixtures | Production stoppage |
| Particulate contamination | Charged airborne particles | Scrapped or reworked parts |
Ionizing bars neutralize static by generating positive and negative ions using high-voltage techniques:
Corona Discharge: High voltage at emitter points ionizes surrounding air molecules, producing ions that migrate to charged surfaces.
Pulse-Balanced Ionization: Alternating high-voltage pulses generate a balanced stream of ions, minimizing offset voltage and preventing overcharging.
Emitter Needle Arrays: Multiple fine needles enhance ion distribution uniformity over wide substrates.
The result is rapid neutralization of static charges, typically within 2–5 seconds for standard optical substrates.
| Type | Characteristics | Application |
|---|---|---|
| Fixed bar | Mounted above conveyor or transfer path | Continuous, precise neutralization for automated lines |
| Adjustable bar | Tiltable or movable | Focused ionization on edges/corners or variable substrate sizes |
| Multi-emitter bar | Multiple needle arrays along length | Wide-area coverage for large substrates |
| Combined with blower | Works with airflow for enhanced coverage | Irregular or large substrates, manual handling |
While ionizing bars provide point-specific, high-efficiency neutralization, ionizing blowers deliver wide-area ionized airflow for irregular or large substrates. Combining both ensures full coverage, particularly in complex optical coating lines.
Diagram 1 (Text Description):
A top-down view of a conveyor carrying glass substrates through a coating chamber. Fixed ionizing bars are mounted parallel above the conveyor, spanning its width. Ionized airflow is indicated by arrows moving downward toward the substrate surface. A complementary ionizing blower is positioned at the loading station to neutralize larger areas and edges.
Charged substrates act as magnets for airborne particles, even in cleanroom environments. These particles adhere to the surface and lead to defects such as pinholes, streaks, and coating irregularities.
Electrostatic charges can cause localized variation in powder or vapor deposition, creating uneven coating thickness. In vacuum deposition systems, charged particles may alter the trajectory of deposited atoms, further reducing uniformity.
Residual static on the substrate can:
Prevent uniform contact between coating layers
Cause repulsion of charged materials (e.g., in powder or electrostatic spraying)
Lead to delamination or peeling during curing or post-processing
Table 1: Static-Related Issues vs. Coating Impact
| Static Issue | Resulting Defect | Critical Impact |
|---|---|---|
| Residual charge on substrate | Particle attraction | Pinholes |
| Uneven charge distribution | Non-uniform deposition | Streaks, thickness variation |
| Charge on fixtures | Substrate sticking | Misalignment, handling issues |
Recommended height above substrate: 200–400 mm, depending on substrate size and material.
Closer placement improves neutralization speed but must not obstruct automated handling.
Adjustable tilt allows focus on edges and corners.
Single bars may suffice for narrow substrates; multiple bars required for wide or multi-layer substrates.
Sequential bar placement along the transfer path ensures continuous charge neutralization.
Optical coating chambers use vertical or horizontal laminar airflow to maintain cleanliness.
Ionizing bars should align with airflow, minimizing turbulence while ensuring ion coverage.
Avoid positioning bars perpendicular to main airflow to prevent particle disturbance.
Edges, corners, and recesses are high-risk for static accumulation.
Adjustable bars or combined bar/blower setups can target these critical zones.
Large substrates (>500 mm width) may require multi-bar arrays with overlapping coverage.
Diagram 2 (Text Description):
Side view of a conveyor transporting large glass panels. Two ionizing bars are mounted above the conveyor, angled slightly toward edges. Arrows indicate ion flow coverage across the substrate surface. A blower is positioned at the side to neutralize tall or irregular areas.
Activate bars before substrates enter the chamber.
Neutralize carriers, trays, and fixtures to prevent transfer of residual charge.
Maintain ionization during substrate transfer, coating, and handling.
Static can accumulate quickly, especially in dry or high-friction environments.
Transparent or insulating substrates (e.g., polymer optics) require closer bar placement.
Conductive substrates (e.g., coated wafers) may tolerate greater distances.
Critical edges and corners are prone to particle accumulation.
Use angled bars or movable emitters for localized neutralization.
Ensure bars do not interfere with robotic arms, pick-and-place systems, or automated conveyors.
Align ion flow with substrate motion for maximum efficiency.
Diagram 3 (Text Description):
Illustration showing automated robotic arm transferring optical substrates under fixed and angled ionizing bars. Edge arrows indicate targeted ion flow for corner neutralization.
| Metric | Target Value |
|---|---|
| Decay time (1000V → 100V) | ≤ 2–3 s (conductive), ≤ 5 s (insulating) |
| Offset voltage | ±10–30 V |
| Coverage | Full substrate width with minimal dead zones |
| Operational stability | Continuous performance at line speed (1–3 m/s) |
Daily: Inspect emitter pins; clean with lint-free cloth.
Weekly: Measure decay time and ion balance.
Quarterly: Verify grounding, alignment, calibration.
Continuous: Online static monitoring for high-speed lines.
Uneven ionization → check bar alignment and distance.
Residual charge → clean emitter points and verify grounding.
High offset voltage → recalibrate or replace damaged emitters.
Diagram 4 (Text Description):
Top view of a coating line with marked static monitoring points at substrate entry, mid-transfer, and exit. Decay times and ion balance sensors are positioned at each point.
Problem: Dust adhesion during substrate transfer.
Solution: Fixed ionizing bars above conveyors; targeted corner ionization.
Result: 40% reduction in pinholes, improved coating uniformity, higher throughput.
Problem: Edge contamination on large mirrors.
Solution: Adjustable bars angled toward corners; complementary blower for height coverage.
Result: Uniform reflective layer, reduced scrap.
Problem: Insulating layers accumulate charge, affecting deposition.
Solution: Sequential bars along line, combined with air-assisted blowers.
Result: Even layer deposition, fewer defects, stable production.
Problem: High friction induces static on plastic lenses.
Solution: Bars along robotic transfer line, focusing on edges and curved surfaces.
Result: Consistent coating adhesion, reduced rejects.
Dynamic Output Adjustment: Adjust ionization based on line speed and substrate material.
Combined Systems: Use bars with blowers to ensure coverage on irregular or large parts.
Environmental Controls: Integrate humidity control to reduce charge accumulation.
Online Monitoring: Implement real-time static sensors for automated feedback.
Reduced Scrap: Fewer defects and rework.
Increased Yield: Stable, defect-free production lines.
Higher Productivity: Faster line speeds without increased contamination.
Cost-Effective: Lower maintenance and scrap costs compared to other static control methods.
Ionizing bars are essential in modern optical coating lines. They neutralize static charges, prevent particle adhesion, and ensure uniform, defect-free coatings. Proper placement, operation, maintenance, and monitoring are critical for optimal performance.
Future trends include:
Intelligent ionization systems with real-time feedback.
Automated line integration with robotics and conveyors.
Advanced environmental controls combining airflow, humidity, and ionization.
Mastering ionizing bar usage is crucial for high-precision, high-yield optical coating production.
