DCZ-20C high-frequency ion air nozzle is a fixed static elimination equipment adopting high-frequency AC technology. It has a built-in high-frequency AC high-voltage module, compact size, and interchangeable air nozzles, specially designed for static electricity and dust removal in narrow spaces. Powered by DC24V, it is safe and reliable.
Adjustable Air Inlet
Universal 24V Input Port
Mounting Holes
Compact Stainless Steel Body

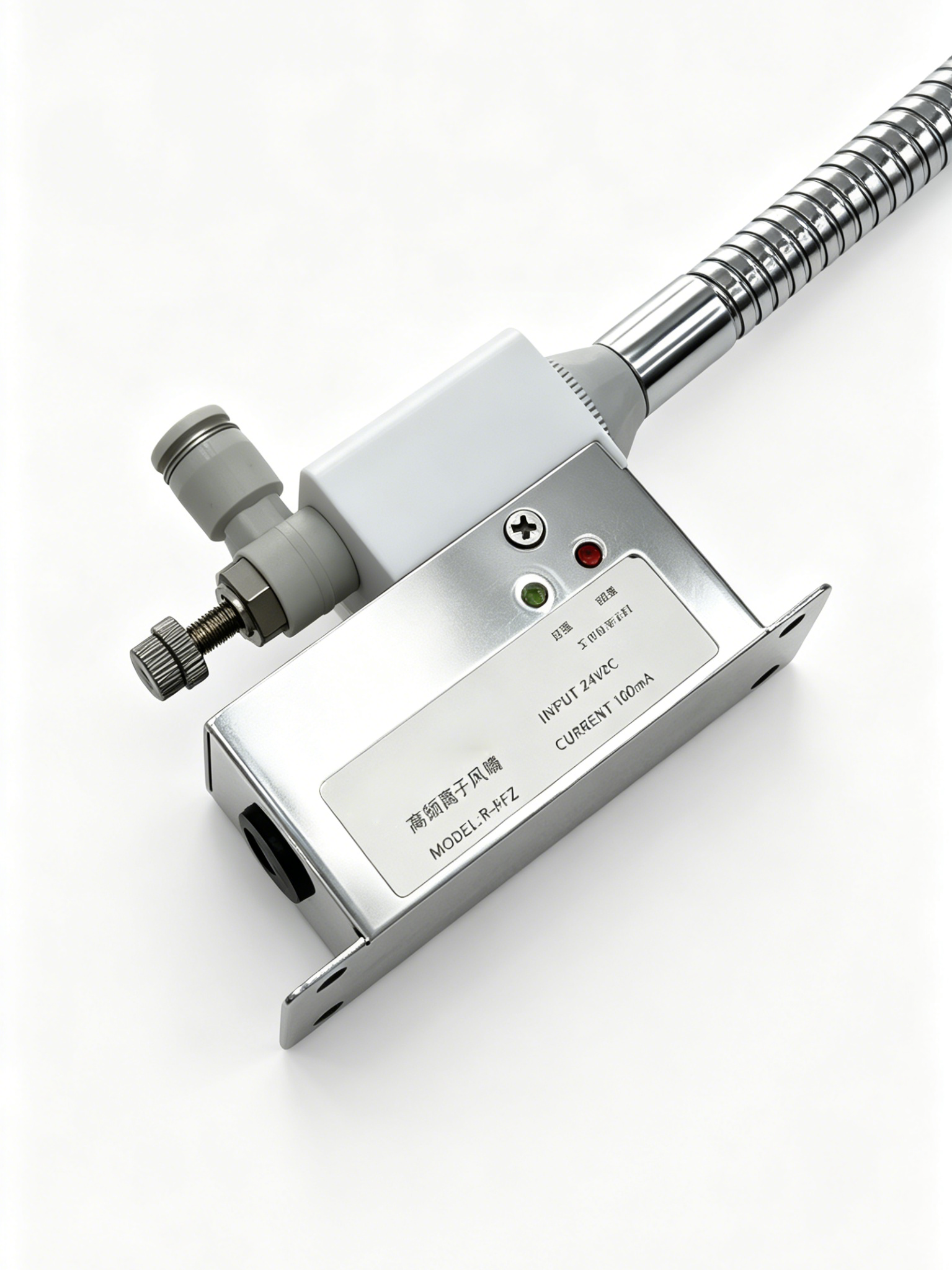

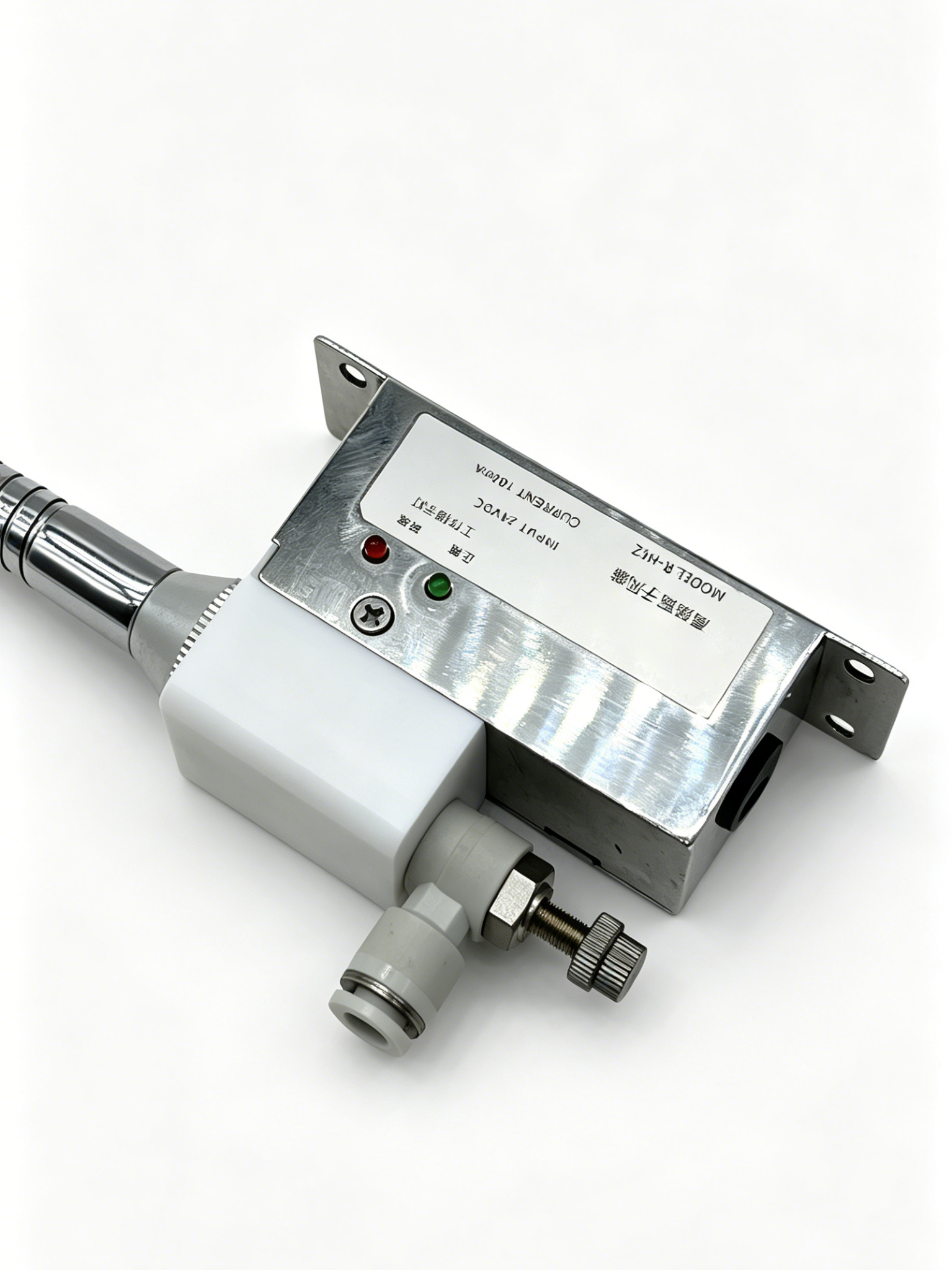

Normal & Fault Indicator Lights
High Temperature & High Voltage Resistant Teflon Components

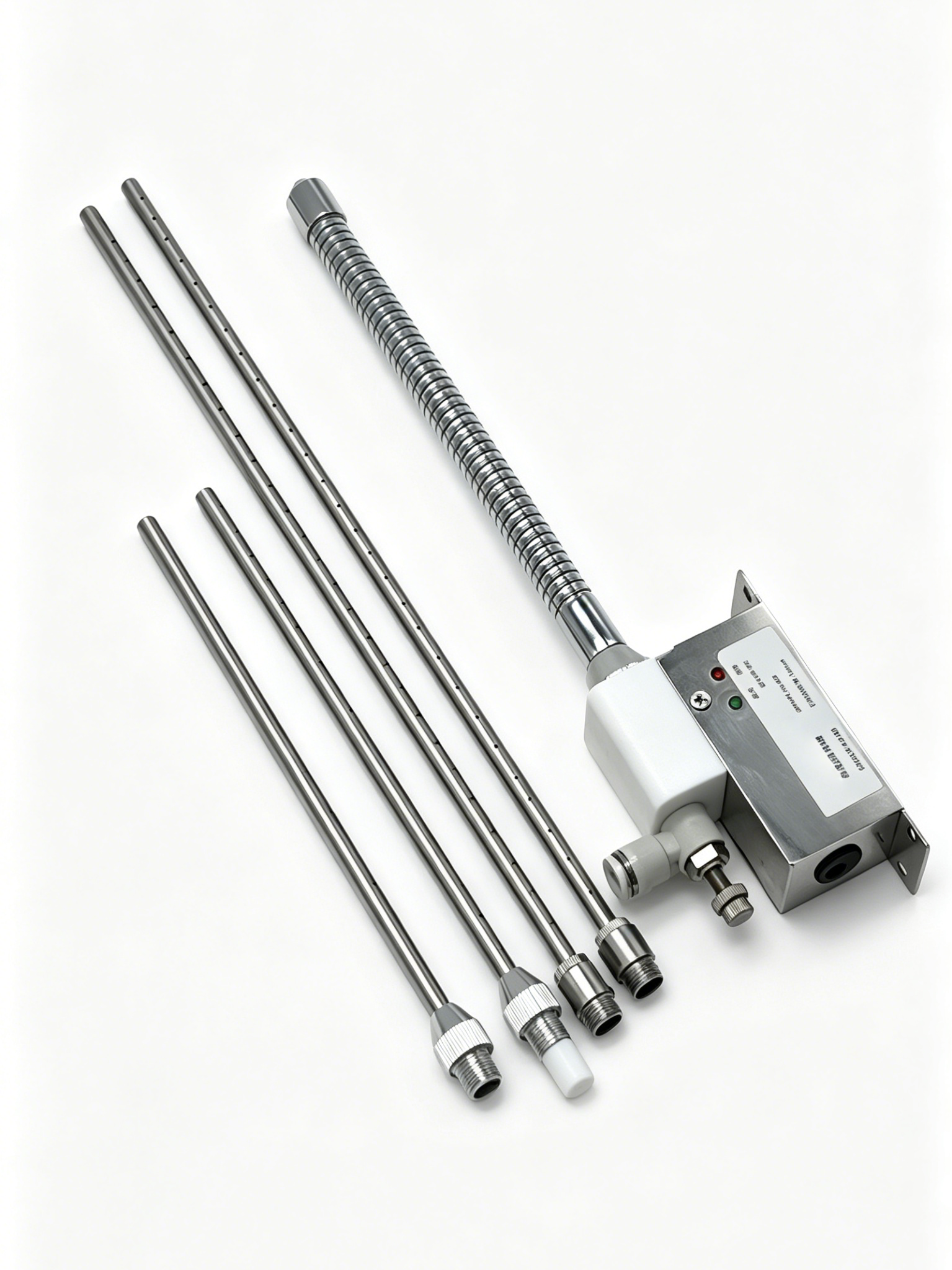

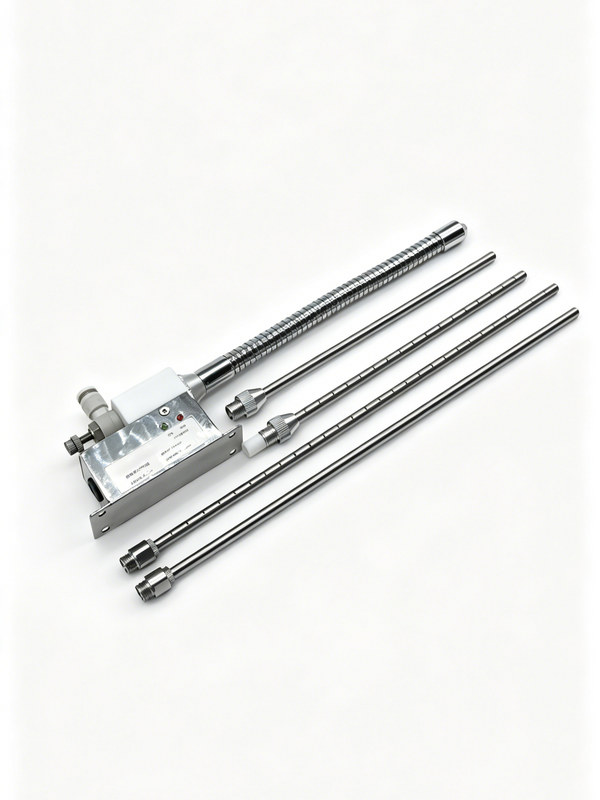

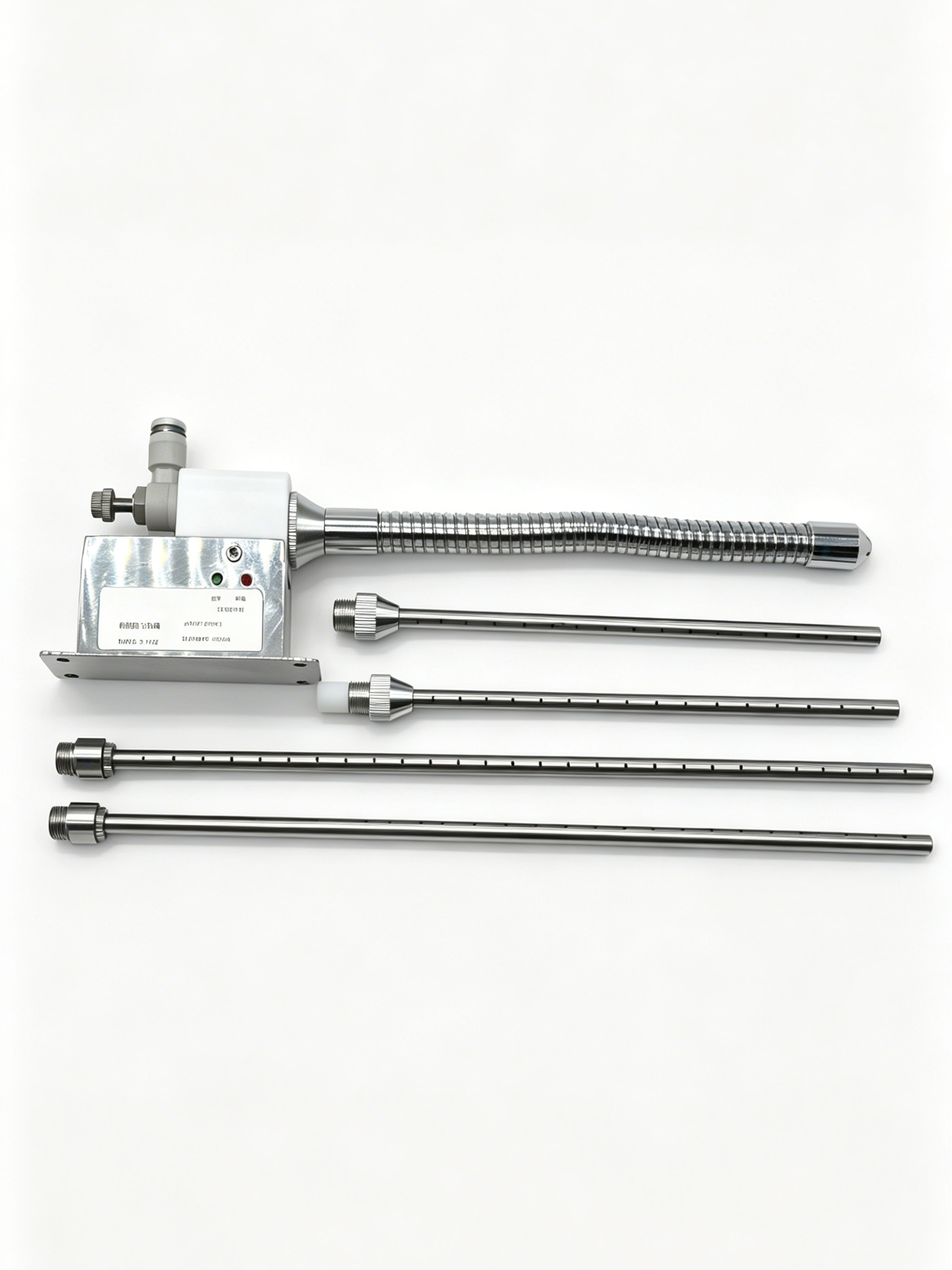

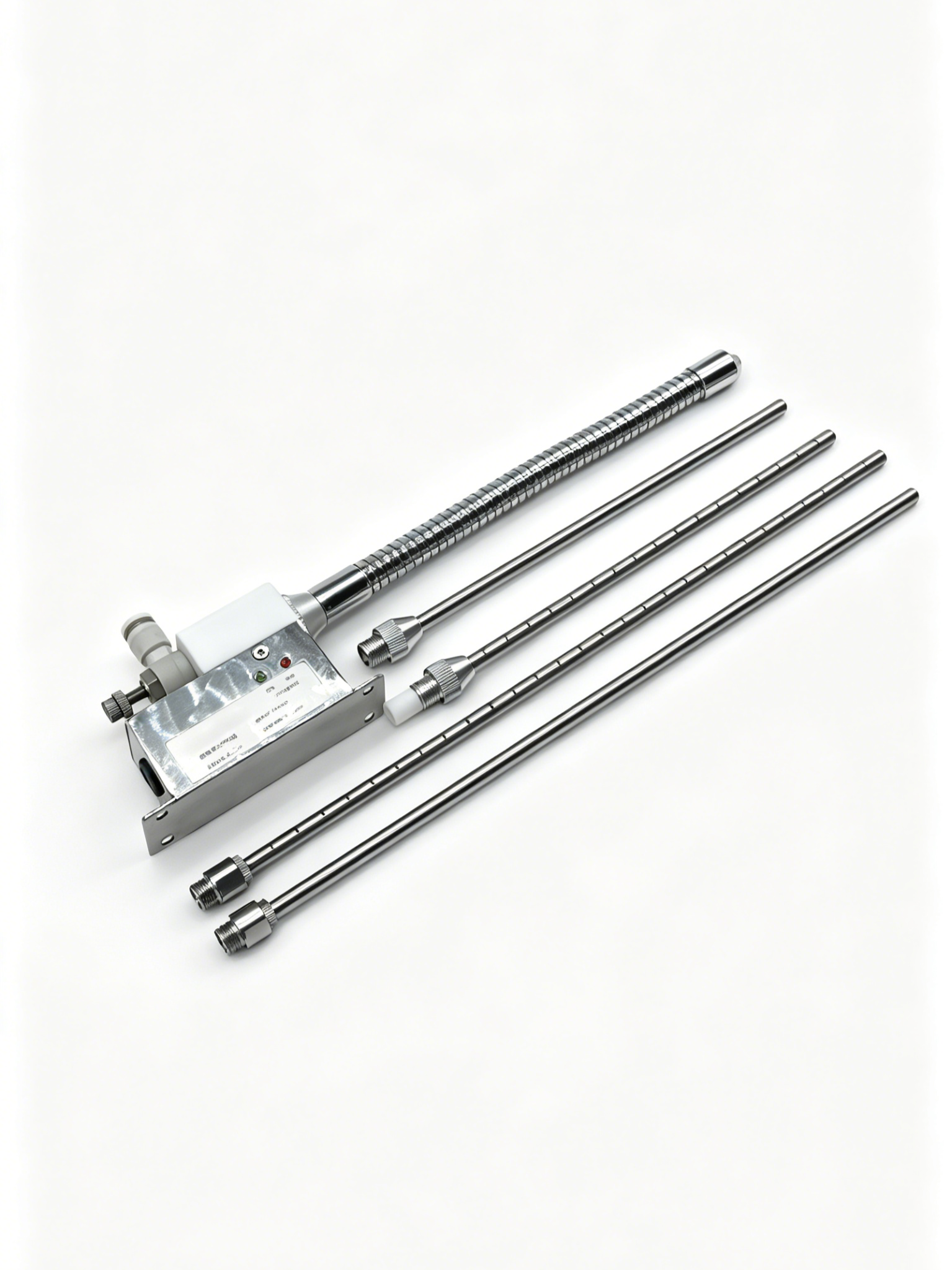

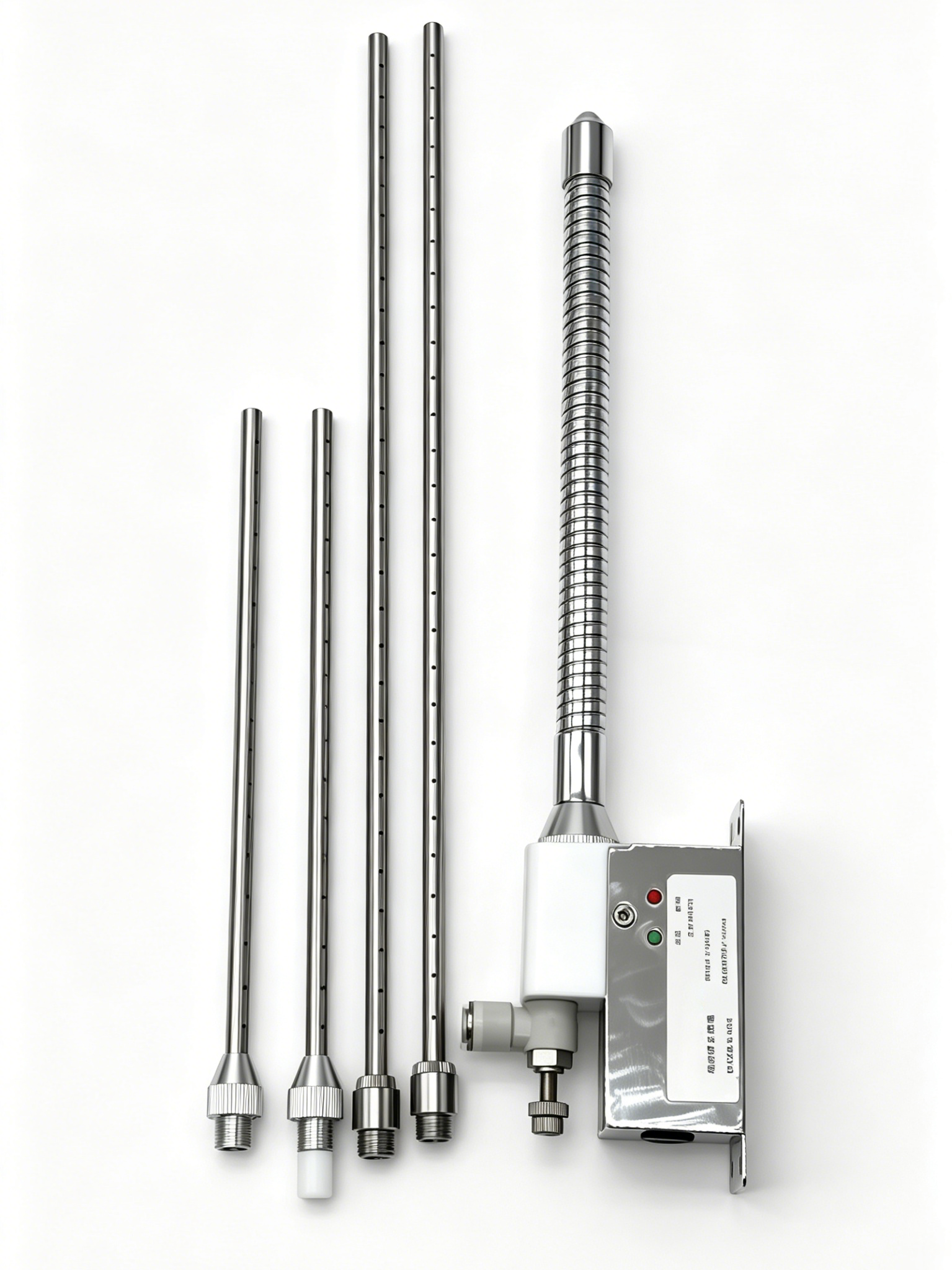

Versatile Nozzle Design (Compatible with Air Ducts, Pipes, Fan Nozzles)
Built-in Tungsten Steel Discharge Needle
Ultra-compact design, currently the smallest static eliminator, suitable for static removal in all kinds of narrow spaces.
Adopts 68kHz high-frequency discharge with stable and consistent performance; ion balance voltage: 0V±15V.
Equipped with titanium alloy discharge needles, delivering high ion density. The electrodes feature oxidation and wear resistance with a service life up to 5 years.
Fitted with indicator lights for static elimination operation and high-voltage fault alarm.
Supports Φ6 / Φ8 air inlet & outlet connectors; adjustable air intake, compatible with straight air ducts, air curtains and hoses to reach confined spaces for static and dust removal.
Robust stainless steel main body paired with Teflon discharge needle components for extended service life.
DC24V input voltage, safe, efficient and with universal interface.
Ultra-low power design, no nozzle burnout under all operating environments.

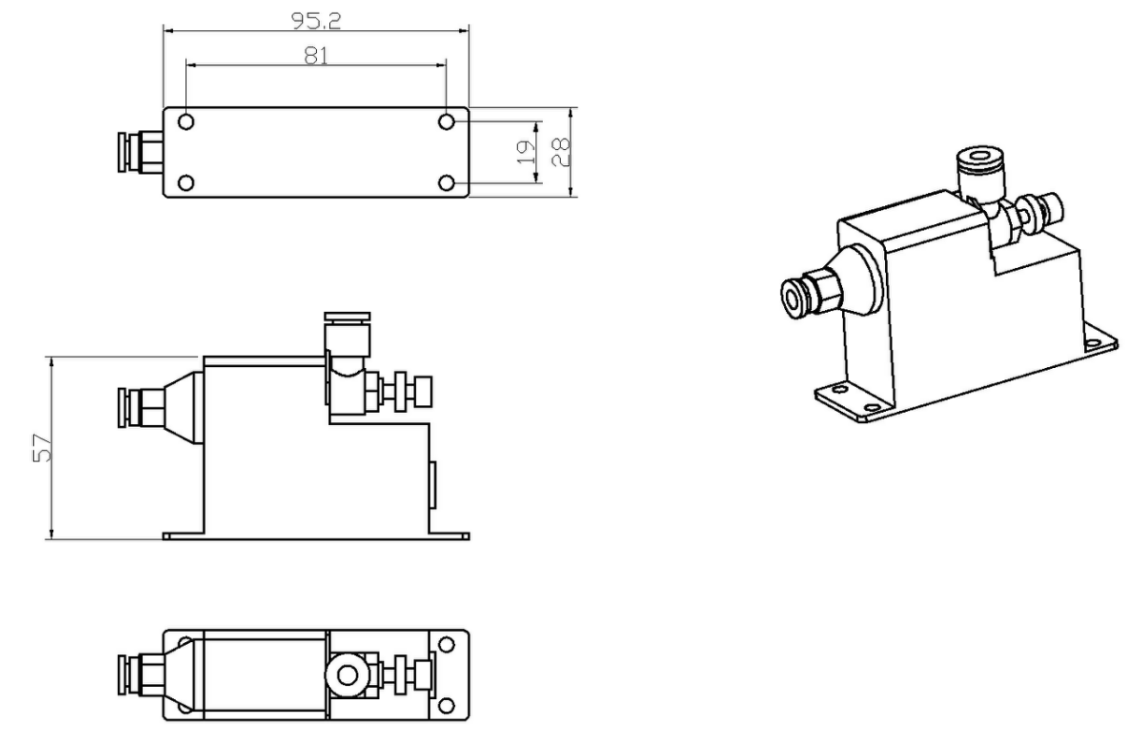

Overall dimension: 95mm (L) × 28mm (W) × 55mm (H)
Precision electronic product manufacturing; electronic assembly lines, microelectronics production, optoelectronics; pharmaceutical assembly lines, printing & packaging; molding of tiny components, plastic film slitting, ring winding & film lamination, mold demolding and other processes.
Item | Specification |
|---|---|
Input Voltage | DC24V |
Output Voltage | High-frequency AC 2.2KV |
Current Consumption | 100mA |
Ozone Concentration | ＜0.04PPM |
Operating Temperature | -20℃ ~ 50℃ |
Overall Size | 95mm(L) × 28mm(W) × 55mm(H) |
Net Weight | 106g |
Output Power | 22W |
Air Pressure | 0.2–0.5MPa |
Ion Balance | 0V±15V |
Air Fitting Size | Φ6, Φ8 |
Effective Working Distance | 500mm |
Test Voltage: 1kV to 20V Operating Voltage: 220V Ambient Temperature: 22℃ Test Humidity: 75%RH
Test Distance | 100mm | 200mm | 300mm | 500mm |
|---|---|---|---|---|
Positive Charge Decay Time | 0.8s | 1.2s | 1.6s | 3s |
Negative Charge Group 1 Decay Time | 1.0s | 1.0s | 1.8s | 5s |
Negative Charge Group 2 Decay Time | 1.0s | 1.1s | 1.6s | 5s |
All test data are measured by ME268A static tester.
Test standard complies with ANSI/ESD STM3.1-2000 ion standard issued by ESD Association of America.
Test performance of the equipment will vary subject to environment, temperature, air temperature and humidity.
