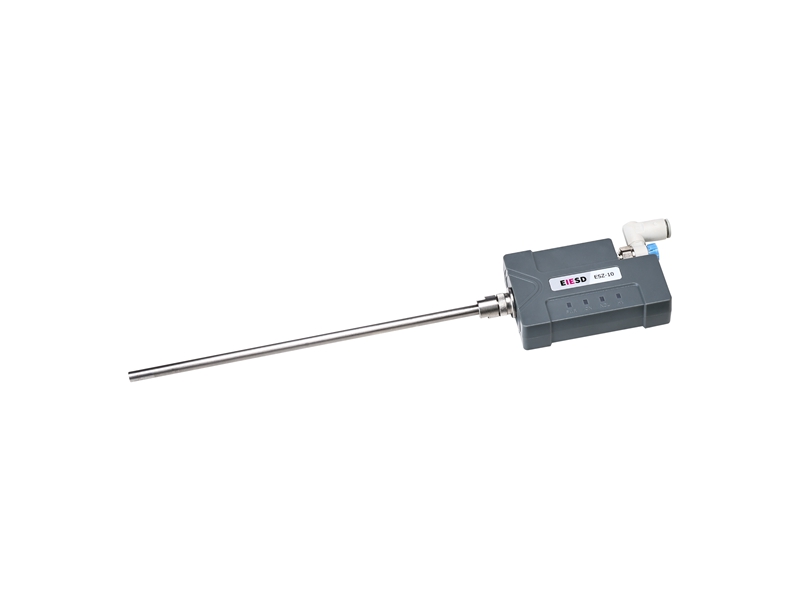

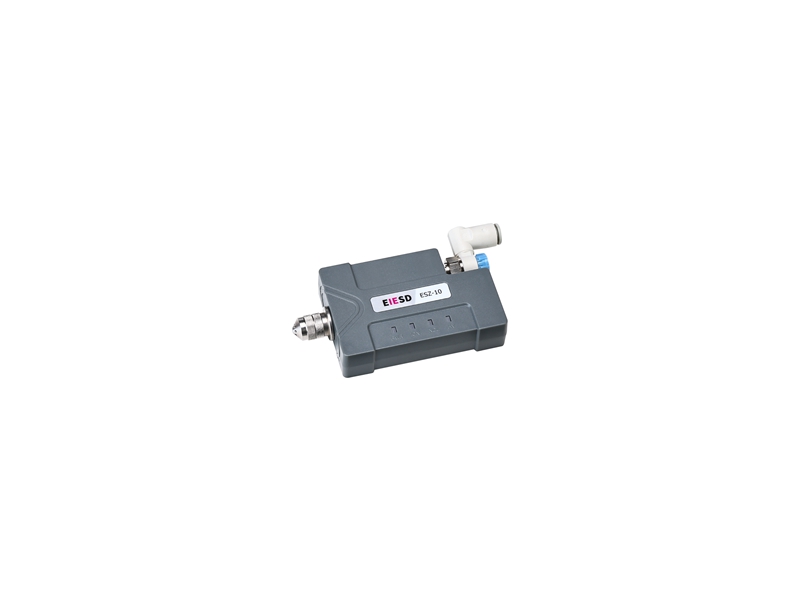

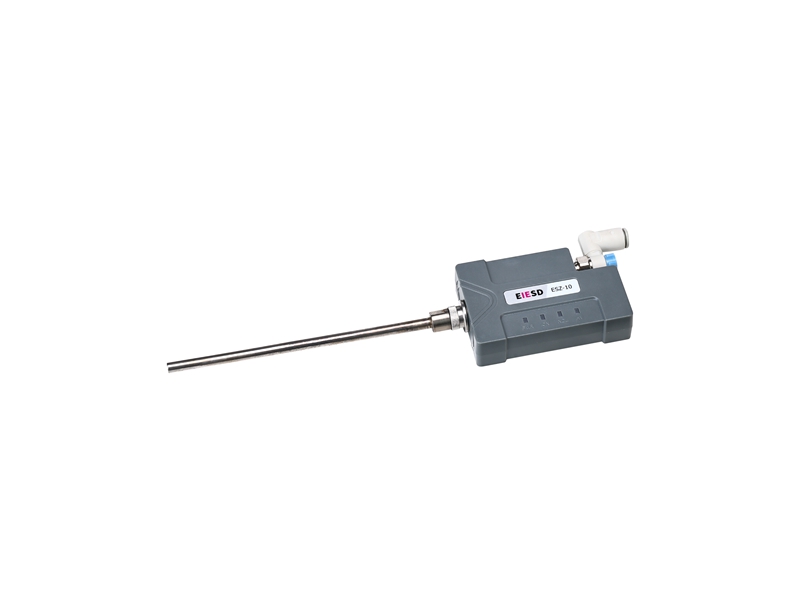

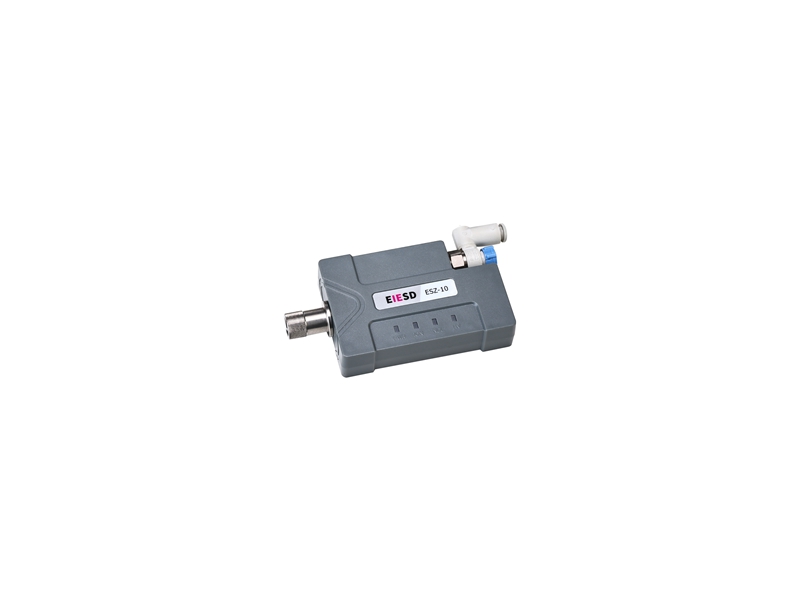

Nozzle type electrostatic eliminator
High frequency AC, gas-electric separation, plug-in discharge needle, PLC linkage, 485 communication, DMA-10E
Low power consumption
Low interference
Linked alarm
PC access
Product Advantages
Plug-in discharge needle: The ion nozzle can replace the discharge needle separately, which is convenient for product maintenance and low in cost (connector, discharge needle)
Gas-electricity separation: The circuit system and the gas supply system are completely independent in structure, which improves the stability and service life of the product
High frequency AC: High voltage working mode, using high frequency AC mode, the ion generation cycle is short and the positive and negative charge balance is good, with good static neutralization effect.
PLC linkage: The ion nozzle signal can be fed back to the PLC port of the customer's equipment to display the current working status. It can also be turned on and off through the PLC machine.
485 communication: can access the status through the PC, set the cleaning time
Multiple warning lights: Equipped with anti-static operation light, high voltage abnormality indicator light, cleaning/maintenance reminder light

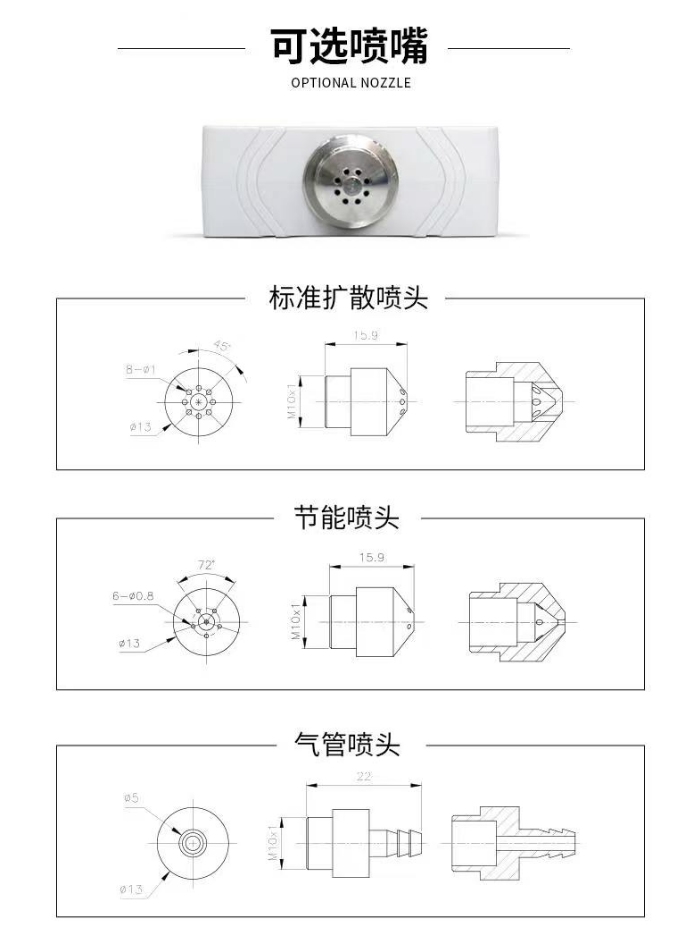

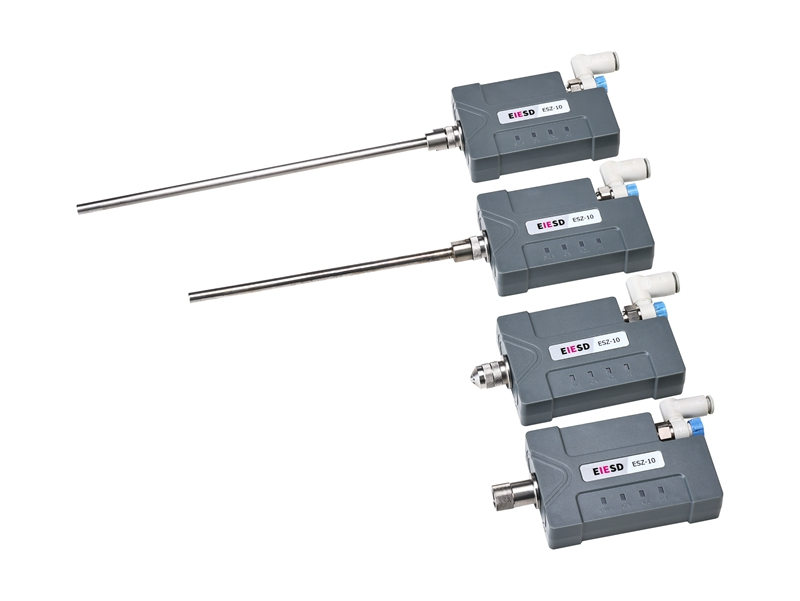

Optional nozzles: Standard diffuser nozzle, Energy-saving nozzle, Air pipe nozzle
Application areas
Semiconductor industry
Display industry
3C industry
Printing industry
Film industry
Pharmaceutical Industry
Plastic industry
Textile industry

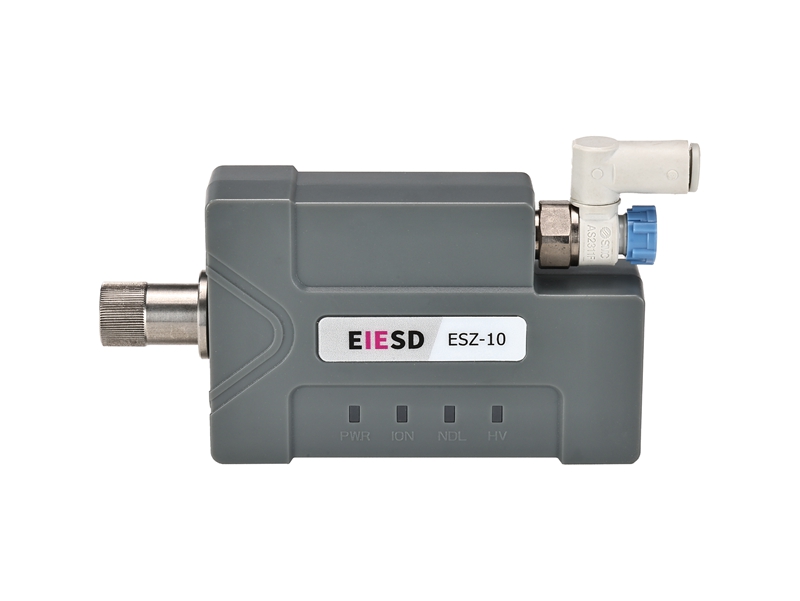

Product details
Nozzle seat
nozzle
shell
SMC regulating valve
Network port

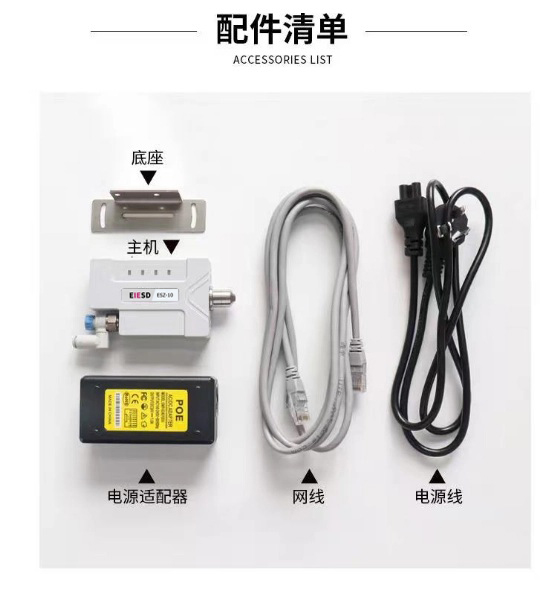

Accessories List
Base
Main part
Power adapter
Network cable
Power cable
Technical Parameters
| Product Model | DMA-10E |
| Working Voltage | DC24V |
| Working Current | 55mA |
| High Voltage Application Method | High Frequency AC ±2300V |
| LED Indicator Lights | PWR: Power Indicator Light (Green) ION: Ion Normal Operation Indicator Light (Blue) NDL: Cleaning Maintenance Indicator Light (Orange) HV: High Voltage Abnormal Alarm Indicator Light (Red) |
| Working Fluid | Clean Air (Excluding Water, Oil, etc.) |
| Air Pressure Range | 0.05-0.5MPa |
| Ion Balance | 0±10V |
| Static Elimination Time | ≤2S (At a Distance of 300mm) |
| Ozone Generation | <0.03ppm |
| Working Environment | Temperature: 0-40°C Humidity: 30-75%RH |
| Cleaning Time Setting | 1-99999 Adjustable |
| Power On/Off Control | 0V Power Control to Turn Off, Power On to Turn On |
| Ion Blower Abnormal Alarm Output | High/Low Voltage Output |
| Communication | 485A, 485B |
| Dimensions | 106.6mm * 57mm * 21mm |
| Weight | 92g |
Product Performance Table
| Test Environment | Temperature: 25±2°C, Humidity: 50±5%RH |
| Operating Voltage | ±1000V--±100V |
| Test Distance | 150mm, 300mm |
| Static Elimination Time | |
| Positive | 0.5S (150mm), 0.9S (300mm) |
| Negative | 0.6S (150mm), 1.0S (300mm) |
| Residual Voltage | <±10V |
