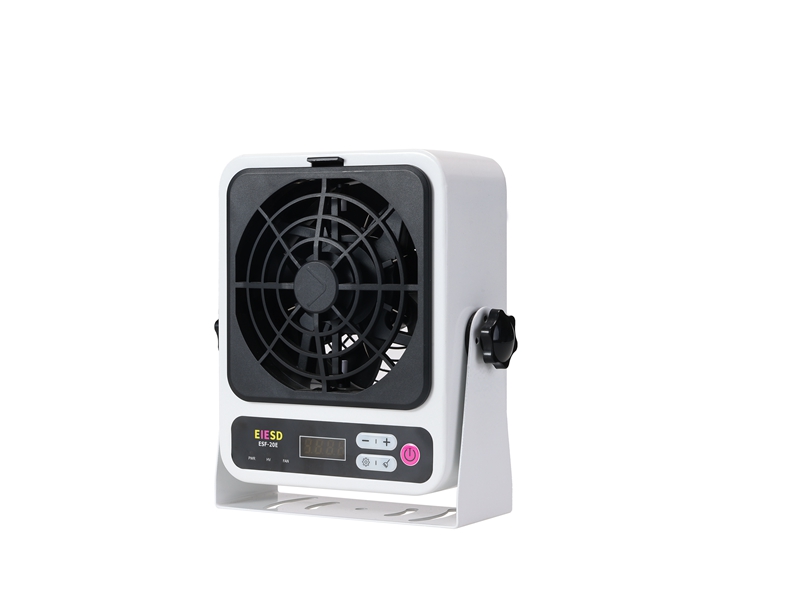

High frequency AC fan type static eliminator
High frequency AC technology
With locking function
Quickly eliminate static electricity
Multi-purpose for hanging/placing
Ion anti-static
Low power consumption
Low interference
Linked alarm
PC access
Metal shell
Front windshield (detachable separately)

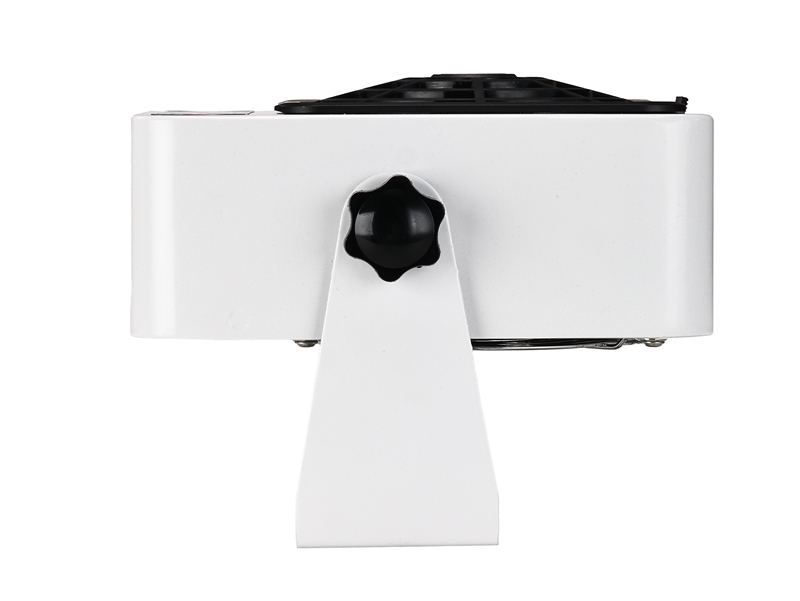

Bracket knob
Discharge needle assembly
Cleaning brush

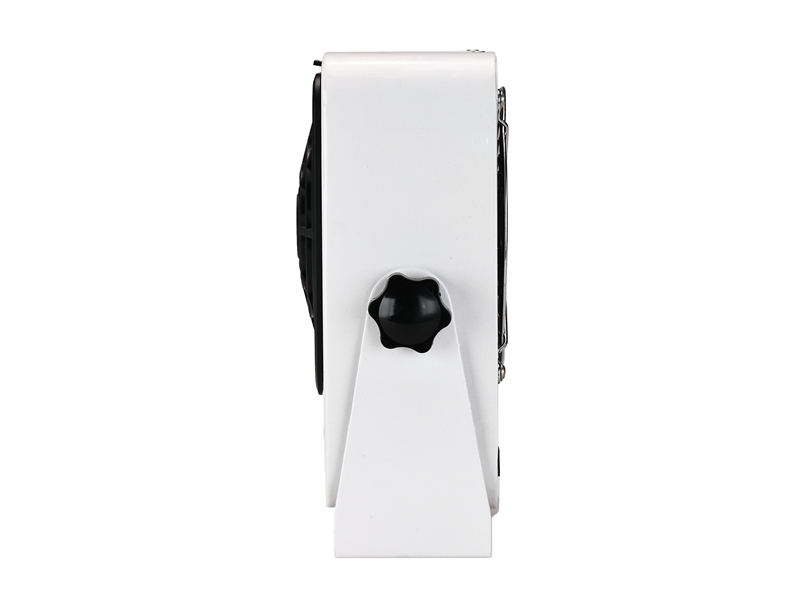

Hanging bracket
Product function description

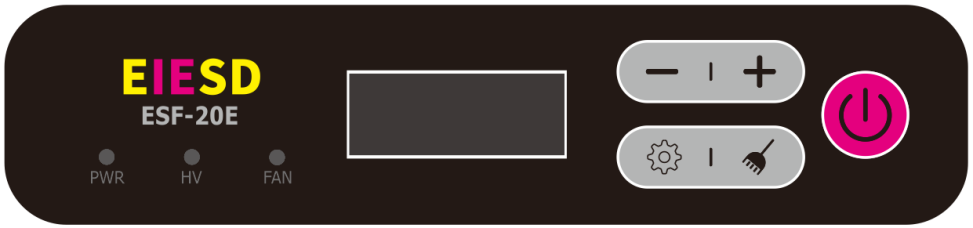

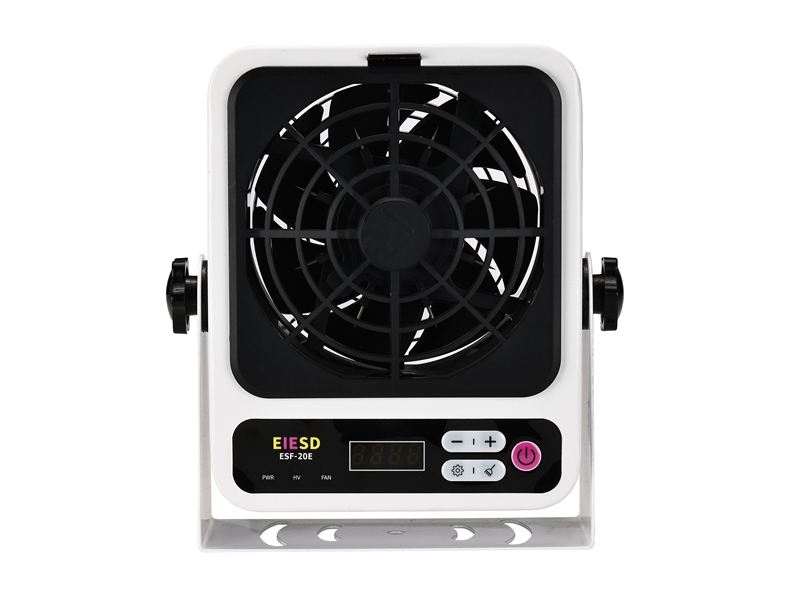

Indicator light, display function description
PWR: Power indicator light, red light on when in standby mode, green light on when in normal operation
HV: High-voltage ion light on when normal, red light on when abnormal
FAN: Fan light on when normal, red light on when abnormal
F-01~F-05: 5 adjustable wind speed levels
H001~H999: 1~999 hours of scheduled cleaning time
CLEA: Cleaning discharge needle
LOCK: The whole machine is locked
PASS: The whole machine is unlocked
E-01: Abnormal operation alarm
Key operation instructions
+-Button: Press +/- button to adjust the fan speed; After pressing the set key, press the +/- key to adjust the timing cleaning time of the discharge needle; In normal working status, after pressing the + and - keys simultaneously for 5 seconds, the whole machine locking function is triggered and the whole machine enters the locking state; In the locked state, press the + and - keys simultaneously for 5 seconds to exit the whole machine locked state.
Setting Buttons: Set the automatic cleaning time of the discharge needle.
Clean button: Manually clean the discharge needle.
Power button: When the power is turned on for the first time, the whole machine is in standby mode, press this button to start.
Solving problems caused by static electricity
Do you have these problems at your site?
Static electricity attracts dust and powder, resulting in poor appearance
Electrostatic discharge damages the internal circuits of ICs and electronic components, causing defects
Product advantages
Pure tungsten discharge needle
The discharge needle is made of pure tungsten metal, which is wear-resistant and can be used for a long time.
Self-cleaning discharge needle
It has the function of automatically cleaning the discharge needle to ensure the static removal performance of the product for long-term use
Ion balance voltage function
With ion balance voltage function, the balance voltage can reach within ±10V
AC High-frequency AC
The high-voltage working mode adopts high-frequency AC mode, with a short ion generation cycle and a good balance of positive and negative charges, and has a good static neutralization effect.
PLC linkage
The ion fan signal can be fed back to the customer's PLC port to display the current working status, and the machine can also be turned on and off through the PLC machine.
Switch control: The input terminal controls the high and low levels through PLC to realize the remote switch function
I/O alarm: When the fan is in abnormal state, the output terminal feeds back the signal to the PLC to realize the I/O alarm function.
485 communication
You can access the status and set the cleaning time through the PC
Product details

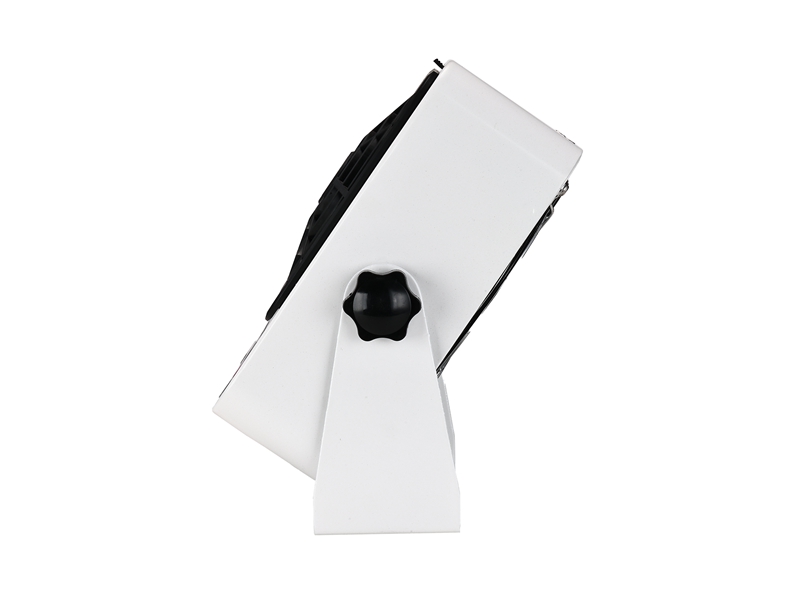

Removable seat frame
Easy to install, 360° adjustable blowing angle
Anti-static running light, Digital display
Ensure normal high voltage output
Normal ion release
Intuitive display of working status
Easy to operate
Wind speed adjustment, one-button start
Automatic/manual cleaning settings
Back metal grille
Small gaps in metal grille
High safety factor
Anti-static effect test
International ESD standard electrostatic protection specification: The residual static electricity of the fan 30CM test is required to be less than 35V
ESF-20E ion fan:
It only takes 1.0S to eliminate 1000V static electricity, and the residual static electricity is less than 10V.
Can quickly eliminate static electricity from products, keeping them away from static electricity damage.
Anti-static test
Test equipment: Trek156a
Test voltage: ±1000V-±100V
Ambient temperature
Ambient humidity: 50%RH±RH
Wind speed level: 5
Test distance/CM 30 60
Anti-static time
1.0S 2.0S
1.2S 2.5S
Residual voltage
<±10V
<±10V
Application areas
Semiconductor industry
Display industry
3C industry
Printing industry
Film industry
Pharmaceutical Industry
Plastic industry
Textile industry
Specifications
| Power Supply | DC24V |
| High Voltage Application Method | High Frequency AC ±2300V |
| LED Display | PWR: Power Indicator Light, Blue Light On When Idle, Green Light On When Operating Normally HV: High Voltage Discharge Indicator Light, Green Light On When High Voltage Discharge Is Normal, Red Light On When Abnormal FAN: Fan Operation Indicator Light, Green Light On When Operating Normally, Red Light On When Abnormal |
| Ion Balance Voltage | ±10V Test Distance 300mm |
| Static Elimination Time | ≤2S Test Distance 300mm |
| Ozone Generation | ≤0.004ppm |
| Operating Environment | Temperature: 0-40°C Humidity: 15-75% RH (No Water Droplet Condensation) |
| Cleaning Time | 1-999 hour |
| Power On/Off Control | 0V Power On/Off Control |
| Ion Fan Abnormal Alarm Output | High/Low Voltage Output |
| Communication | 485A, 485B |

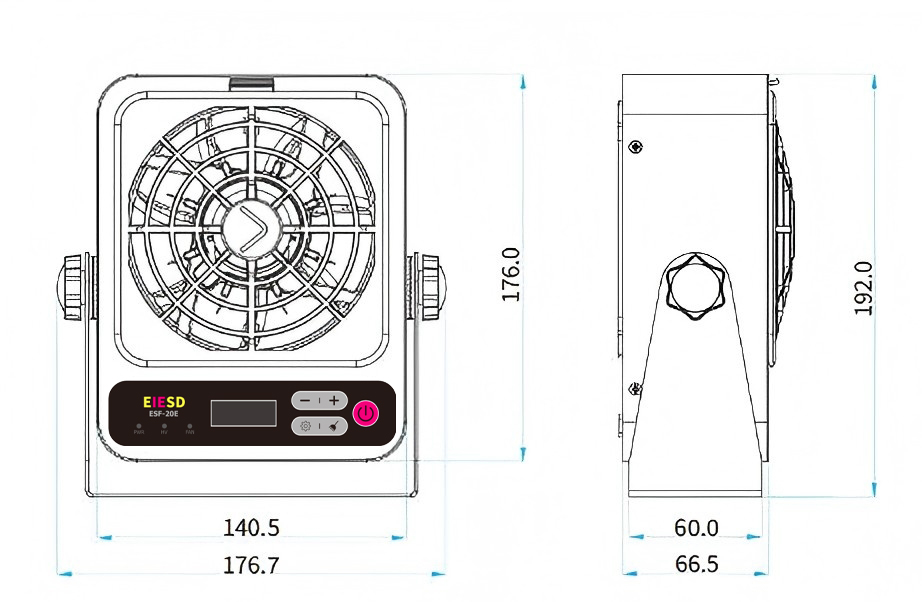

| Dimensions | Width 176.7mm * Height 192mm * Thickness 78mm |
