High voltage ion air bars are widely used in modern industrial production environments where static electricity control is essential for product quality, operational safety, and manufacturing efficiency. Industries such as electronics manufacturing, semiconductor processing, printing, packaging, plastics, textile production, and precision coating increasingly rely on ion air bars to eliminate electrostatic charges generated during high speed operations.
As industrial automation continues to evolve, manufacturers require more reliable and energy efficient ionization systems capable of delivering stable performance under demanding conditions. Understanding the circuit principle and technical parameters of a high voltage ion air bar is important for selecting suitable equipment, optimizing operational efficiency, and ensuring long term reliability.
A high voltage ion air bar operates by generating positive and negative ions through a high voltage power circuit, then using airflow to neutralize static charges on object surfaces. Its performance depends on factors such as output voltage, ion balance, airflow efficiency, discharge distance, and circuit stability.
The internal circuit structure and parameter configuration directly affect ionization efficiency, safety performance, maintenance requirements, and overall lifespan. Engineers and industrial buyers often analyze technical specifications carefully before integrating ion air bars into production systems. Proper understanding of these technical aspects helps reduce electrostatic discharge risks while improving production consistency.
This article provides a comprehensive analysis of the circuit principles, working mechanisms, technical parameters, structural design, application advantages, maintenance requirements, and selection considerations of high voltage ion air bars. It also explains how different configurations influence industrial performance and operational reliability.
A high voltage ion air bar works by converting low voltage electrical energy into high voltage alternating or pulsed current, generating positive and negative ions that neutralize electrostatic charges on material surfaces through directed airflow.
Static electricity is generated when two materials contact and separate during industrial operations. Processes such as film winding, plastic extrusion, paper transportation, and electronic assembly frequently create electrostatic charges. When static charges accumulate, they can attract dust, damage electronic components, create sparks, or interfere with manufacturing precision.
The ion air bar eliminates static electricity by producing corona discharge at emitter needles. High voltage supplied to these emitters ionizes surrounding air molecules, creating large quantities of positive and negative ions. A built in air system or external compressed air then transports these ions toward the charged surface.
When ions contact the charged object, electrostatic charges are neutralized through electron exchange. Positively charged surfaces attract negative ions, while negatively charged surfaces attract positive ions. This neutralization process restores electrical balance and reduces electrostatic accumulation.
The working process typically includes the following stages:
Input power conversion
High voltage generation
Corona discharge formation
Ion production
Airflow assisted ion transport
Static neutralization
The efficiency of the ionization process depends heavily on the stability of the high voltage circuit, emitter design, airflow distribution, and environmental conditions such as humidity and temperature.
The circuit structure of a high voltage ion air bar mainly consists of a power supply module, voltage transformer, oscillation circuit, control system, discharge electrodes, and airflow system.
The power supply module converts standard industrial input voltage into stable low voltage DC power. This section often includes rectifiers, filters, and voltage regulators to ensure consistent operation under fluctuating industrial power conditions.
The oscillation circuit generates high frequency signals required for voltage transformation. In many designs, switching transistors or integrated pulse width modulation controllers regulate oscillation frequency. Stable oscillation is critical because inconsistent frequency may reduce ionization efficiency or create unstable discharge conditions.
The high voltage transformer increases the voltage to several kilovolts. Depending on the design, output voltage may range from 3 kV to 30 kV. Higher voltages generally improve ionization capability but also require stronger insulation and safety protection.
The discharge electrode system usually consists of tungsten or stainless steel emitter needles. These electrodes create corona discharge when exposed to high voltage. Tungsten is commonly preferred because of its excellent wear resistance and stable discharge characteristics.
The airflow system transports generated ions toward target surfaces. Some ion air bars use compressed air, while others integrate internal fans. Uniform airflow distribution is important because uneven airflow may cause inconsistent static elimination across wide production surfaces.
Component | Main Function |
|---|---|
Power Supply Module | Provides stable electrical input |
Oscillation Circuit | Generates high frequency switching signals |
High Voltage Transformer | Boosts voltage for ion generation |
Emitter Needles | Creates corona discharge |
Airflow System | Delivers ions to target surfaces |
Control Circuit | Regulates voltage and safety protection |
Modern designs increasingly adopt intelligent control systems capable of monitoring voltage stability, ion balance, fault conditions, and operating temperature in real time.
The most important technical parameters of a high voltage ion air bar include output voltage, ion balance, airflow volume, static decay time, operating distance, power consumption, and environmental adaptability.
Output voltage determines the ionization capability of the equipment. Higher voltage generally creates stronger corona discharge and more ion production. However, excessively high voltage may increase ozone generation and electrical safety risks.
Ion balance refers to the difference between positive and negative ion output. Good ion balance is essential because imbalance may leave residual charges on the material surface. High precision industrial applications usually require ion balance within a narrow voltage range.
Static decay time measures how quickly the device neutralizes electrostatic charges. Faster decay time indicates higher ionization efficiency and better production performance in high speed manufacturing lines.
Airflow volume influences ion transportation distance and coverage area. Strong airflow improves long distance ion delivery but may also disturb lightweight materials or sensitive components.
The following table summarizes common technical parameters:
Technical Parameter | Typical Range | Impact On Performance |
|---|---|---|
Output Voltage | 3 kV to 30 kV | Determines ion generation capability |
Ion Balance | 0 V ± 30 V | Affects neutralization accuracy |
Static Decay Time | 0.5 s to 3 s | Indicates elimination efficiency |
Operating Distance | 100 mm to 1500 mm | Defines effective working range |
Air Pressure | 0.2 MPa to 0.7 MPa | Controls ion delivery strength |
Power Consumption | 10 W to 100 W | Influences energy efficiency |
Environmental adaptability is another critical parameter. Industrial environments with high humidity, oil vapor, or dust require stronger insulation and contamination resistant designs to maintain stable performance.
The ionization efficiency of a high voltage ion air bar depends on voltage stability, emitter condition, airflow uniformity, environmental humidity, and installation distance.
Voltage stability directly influences corona discharge intensity. Unstable voltage can cause fluctuating ion output, leading to inconsistent static elimination performance. Advanced systems therefore use closed loop voltage regulation to maintain stable operation.
Emitter needle condition significantly affects ion generation efficiency. Dust accumulation or electrode wear reduces discharge capability and increases ion imbalance. Regular cleaning and replacement are necessary for maintaining optimal performance.
Humidity affects air conductivity and ion mobility. Moderate humidity usually improves ion transport efficiency, while extremely dry environments increase static accumulation. In low humidity industrial environments, higher ion output may be necessary to achieve effective neutralization.
Installation distance also plays a major role. Excessive distance reduces ion concentration reaching the target surface, while insufficient distance may create strong localized airflow or electrical interference.
Several factors influencing ionization efficiency include:
High voltage stability
Emitter material quality
Airflow consistency
Environmental cleanliness
Humidity conditions
Operating distance
Maintenance frequency
Industrial production lines often optimize these variables through testing and parameter adjustments to achieve the best electrostatic control performance.
High voltage ion air bars incorporate multiple protection mechanisms including overload protection, short circuit prevention, grounding systems, insulation structures, and discharge monitoring circuits.
Because ion air bars operate at high voltage levels, electrical safety is extremely important. Industrial designs must comply with strict electrical safety standards to prevent accidents and equipment damage.
Grounding systems provide a safe discharge path for abnormal electrical leakage. Proper grounding not only protects operators but also improves ionization stability by maintaining consistent electrical reference potential.
Insulation materials surrounding high voltage components prevent unintended electrical discharge. High quality insulation extends equipment lifespan and reduces maintenance requirements, especially in humid or contaminated industrial environments.
Many modern ion air bars include automatic fault detection systems capable of identifying abnormal voltage conditions, excessive current, overheating, or airflow interruption. Intelligent controllers can shut down the system automatically when unsafe conditions occur.
Important safety mechanisms include:
Overcurrent protection
Short circuit protection
Thermal shutdown protection
Ground fault detection
Insulated housing structures
Arc suppression circuits
Proper operator training and periodic safety inspection further reduce operational risks in industrial environments.
High voltage ion air bars are widely used in electronics, printing, plastics, textiles, packaging, coating, and semiconductor manufacturing industries for effective static elimination.
In electronics manufacturing, static electricity can damage sensitive integrated circuits and semiconductor components. Ion air bars help protect delicate electronic assemblies during automated production processes.

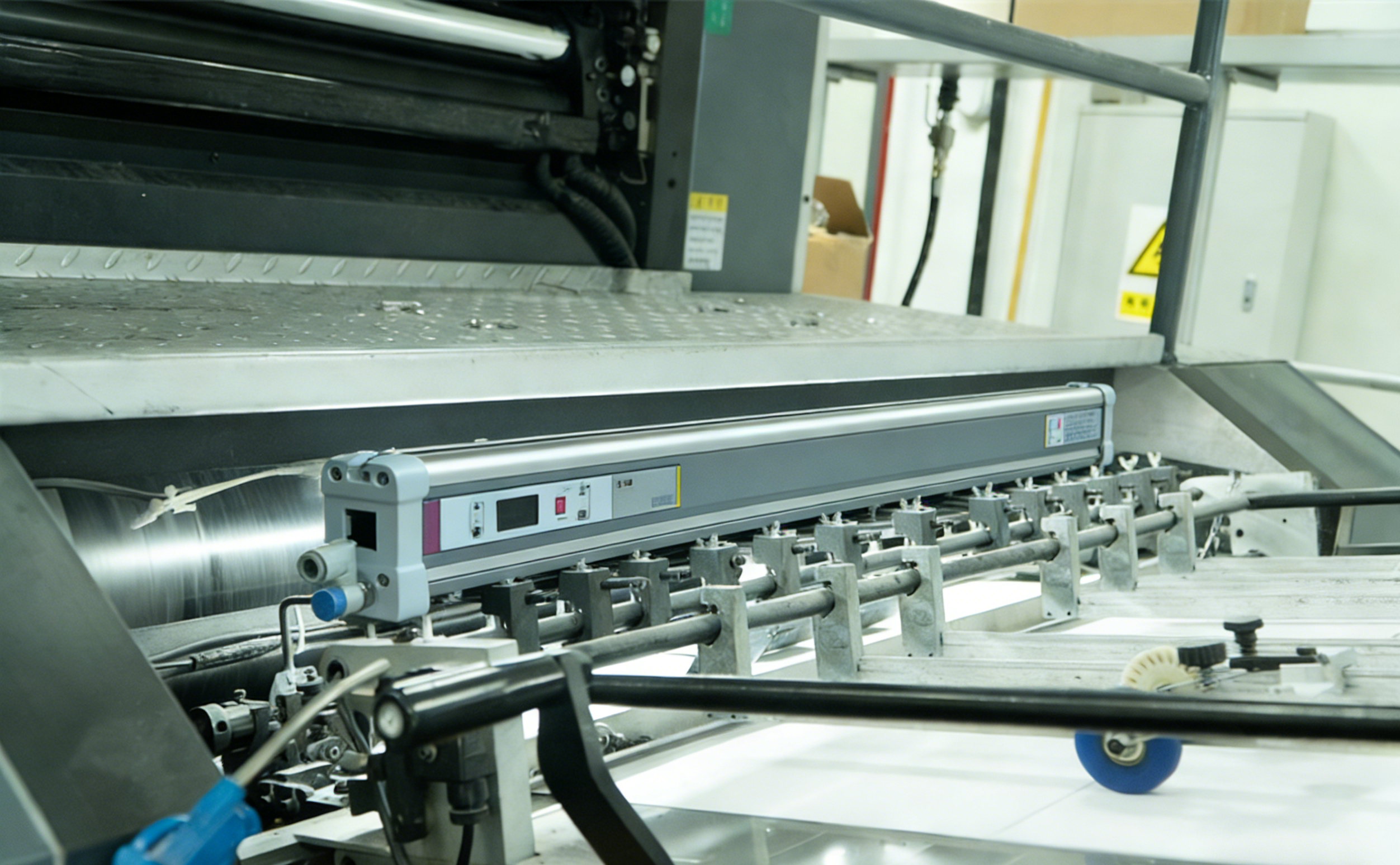

Printing and packaging industries frequently encounter dust attraction and material sticking caused by electrostatic charges. Ionization systems improve printing quality and reduce material handling problems.
Plastic film production lines generate large static charges because of friction during winding and unwinding operations. High voltage ion air bars neutralize these charges and improve operational safety.
Textile manufacturing environments also benefit from electrostatic control. Static charges in fibers may create product contamination, material entanglement, and operator discomfort. Ion air bars improve production stability and product consistency.
Industry | Main Application | Benefits |
|---|---|---|
Electronics | ESD protection | Prevents component damage |
Printing | Dust reduction | Improves print quality |
Packaging | Material separation | Enhances automation efficiency |
Plastic Film | Charge neutralization | Improves safety |
Textiles | Fiber static elimination | Reduces entanglement |
Semiconductors | Cleanroom protection | Improves yield rate |
As automation and production speed continue increasing, demand for efficient ionization solutions is expected to grow steadily across multiple industrial sectors.
Regular cleaning, voltage inspection, airflow verification, and emitter maintenance are essential for maintaining stable performance and extending equipment lifespan.
Emitter needles accumulate dust and contaminants during operation. Dirty emitters reduce ion output and create unstable discharge conditions. Cleaning intervals depend on environmental contamination levels and operating duration.
Voltage inspection ensures that the high voltage generator operates within specified parameters. Voltage instability may indicate transformer aging, circuit damage, or power supply problems.
Airflow systems also require maintenance because blocked air passages reduce ion transport efficiency. Filters and compressed air lines should be inspected regularly to maintain proper airflow performance.
Common troubleshooting methods include:
Checking grounding connections
Inspecting emitter wear
Testing high voltage output
Cleaning discharge electrodes
Verifying airflow pressure
Monitoring ion balance values
Preventive maintenance programs help reduce unexpected downtime and improve long term operational reliability in industrial production environments.
Selecting a suitable high voltage ion air bar requires evaluating application requirements, working distance, airflow needs, environmental conditions, safety standards, and maintenance costs.
Different industrial applications require different ionization capabilities. High speed production lines may require faster static decay times, while cleanroom environments require extremely stable ion balance performance.
Operating distance is one of the most important selection factors. Long distance applications require stronger ion output and optimized airflow systems to maintain effective neutralization.
Environmental conditions also influence equipment selection. Dusty or humid environments require enhanced insulation, corrosion resistant materials, and stronger contamination protection.
Industrial buyers often compare the following factors before purchasing:
Selection Factor | Importance |
|---|---|
Ionization Efficiency | Determines static elimination speed |
Ion Balance Stability | Improves neutralization precision |
Safety Certification | Ensures operational compliance |
Maintenance Requirements | Influences long term operating cost |
Environmental Resistance | Improves durability |
Energy Consumption | Affects operational efficiency |
Careful evaluation of these parameters helps ensure optimal system integration and long term operational performance.
Future high voltage ion air bar technology is developing toward intelligent control, energy efficiency, compact design, low ozone generation, and integrated industrial automation.
Modern industrial environments increasingly require smart manufacturing solutions. Intelligent ion air bars equipped with sensors and communication interfaces can monitor operating conditions in real time and automatically adjust output parameters.
Energy efficiency is becoming more important as manufacturers seek to reduce operational costs and environmental impact. Advanced switching power supplies and optimized circuit designs help lower power consumption while maintaining strong ionization performance.
Low ozone generation technology is another major development direction. Traditional corona discharge systems may generate ozone during operation. Improved electrode design and optimized voltage control help minimize ozone production while maintaining efficient ionization.
Compact and modular designs also support easier installation in modern automated production lines. Smaller equipment footprints allow flexible integration into robotic systems, conveyor systems, and high density manufacturing environments.
Future technological improvements may include:
AI based performance monitoring
Remote diagnostic systems
Automatic self cleaning emitters
Advanced ion balance control
Energy optimized power circuits
Industrial Internet integration
These innovations will continue improving the reliability, efficiency, and intelligence of high voltage ion air bar systems across various industrial applications.
High voltage ion air bars play a critical role in modern industrial electrostatic control systems. Their operating principle is based on high voltage ion generation and airflow assisted charge neutralization, enabling efficient static elimination across a wide range of manufacturing environments.
The overall performance of these systems depends heavily on circuit structure, voltage stability, emitter design, airflow management, and environmental adaptability. Technical parameters such as ion balance, static decay time, and operating distance directly influence operational efficiency and product quality.
As industrial automation continues advancing, high voltage ion air bar technology is evolving toward smarter, safer, and more energy efficient solutions. Understanding the circuit principles and technical parameters of these systems helps manufacturers select appropriate equipment, optimize production performance, and ensure long term operational reliability.
