Ionizing air bars are widely used in industrial environments to eliminate static electricity on surfaces during manufacturing, packaging, printing, electronics assembly, and other precision processes. Despite their effectiveness, ionizing air bars are subject to performance degradation caused by contamination, electrode wear, power supply instability, and environmental changes. These issues often lead to insufficient ion output, polarity imbalance, or complete failure, which can negatively affect product quality, safety, and production efficiency.
This paper presents the design, architecture, and implementation of an automatic alarm and maintenance system for ionizing air bars, aimed at improving operational reliability, reducing unplanned downtime, and enabling predictive maintenance. The proposed system integrates real-time sensing, intelligent diagnostics, alarm mechanisms, and maintenance decision support. By continuously monitoring electrical, environmental, and ionization parameters, the system can detect abnormal conditions, issue timely alarms, and guide maintenance actions before critical failures occur.
The study discusses system requirements, hardware and software architecture, sensing technologies, alarm logic, data processing algorithms, and practical deployment considerations. Case analysis demonstrates that the proposed system significantly enhances ionizing air bar reliability and lowers maintenance costs compared with traditional manual inspection methods.
Keywords: Ionizing air bar, static electricity elimination, automatic alarm system, predictive maintenance, industrial automation
Static electricity is a persistent problem in modern industrial production. In processes involving plastics, films, textiles, paper, electronics, and semiconductor components, static charges can accumulate rapidly due to friction, separation, and material handling. These charges may lead to dust attraction, material adhesion, electrostatic discharge (ESD), product defects, or even fire and explosion hazards.
Ionizing air bars, also known as static eliminator bars, are among the most commonly used devices to neutralize static electricity. By generating balanced positive and negative ions and directing them toward charged surfaces, ionizing air bars effectively neutralize static charges in real time.
However, the performance stability of ionizing air bars is often overlooked. In many factories, these devices are treated as “install-and-forget” components, with maintenance performed only after visible failures occur. This reactive maintenance approach leads to hidden risks and production losses.
Conventional maintenance of ionizing air bars typically relies on:
Periodic manual inspection
Visual observation of discharge electrodes
Occasional ion balance measurements
Operator experience and subjective judgment
These methods suffer from several limitations:
Lack of real-time feedback
Degradation may occur gradually and remain undetected for long periods.
Inconsistent maintenance quality
Results depend heavily on personnel skill and attention.
Delayed fault detection
Performance issues are often discovered only after product quality problems arise.
Inefficient resource utilization
Maintenance may be performed too frequently or too late.
These shortcomings highlight the need for an automated, intelligent maintenance and alarm system.
The purpose of this paper is to propose and analyze an automatic alarm and maintenance system specifically designed for ionizing air bars. The system aims to:
Monitor ionizing air bar operating conditions continuously
Detect abnormalities and degradation trends
Trigger alarms in a timely and reliable manner
Support predictive and condition-based maintenance
The scope of this study includes system design principles, hardware and software architecture, alarm strategies, maintenance logic, and industrial applicability.
Ionizing air bars typically consist of:
High-voltage power supply
Discharge electrodes (emitters)
Insulating housing
Compressed air or natural airflow path
The high-voltage power supply generates alternating or pulsed high voltage, creating corona discharge at the electrode tips. This discharge ionizes surrounding air molecules, producing both positive and negative ions. When directed toward a charged object, the ions neutralize surface charges through recombination.
Despite their simple structure, ionizing air bars are vulnerable to various failure mechanisms:
Electrode contamination
Dust, oil mist, and chemical residues reduce ion generation efficiency.
Electrode wear and erosion
Long-term corona discharge leads to material degradation.
High-voltage power supply instability
Voltage drift or ripple affects ion balance.
Environmental influences
Humidity, temperature, and airflow variations impact performance.
Electrical insulation aging
Leads to leakage currents or breakdown.
Understanding these failure modes is essential for designing an effective monitoring and alarm system.
An automatic alarm and maintenance system for ionizing air bars should meet the following functional requirements:
Continuous monitoring of key parameters
Real-time data acquisition and processing
Abnormal condition detection
Multi-level alarm generation
Maintenance guidance and logging
The system must also satisfy:
High reliability and robustness
Minimal interference with ionization function
Fast response time
Scalability for multiple air bars
Compatibility with industrial control systems
Given industrial deployment, the system should:
Withstand harsh environments
Comply with electrical safety standards
Provide fail-safe operation
Avoid introducing additional ESD risks
The proposed system adopts a modular and layered architecture, consisting of:
Sensing layer
Data acquisition and processing layer
Alarm and decision layer
Human–machine interface (HMI) layer
This structure allows flexible expansion and easy maintenance.
Key monitored parameters include:
High-voltage output level
Discharge current
Ion balance and decay time
Ambient temperature and humidity
Airflow status
Sensors are strategically placed to avoid interference with ionization while ensuring accurate measurement.
A microcontroller or industrial embedded system performs:
Signal conditioning
Analog-to-digital conversion
Noise filtering
Data normalization
Advanced implementations may use edge computing techniques to reduce communication load.
This layer implements:
Threshold-based alarms
Trend analysis
Fault classification logic
Maintenance recommendation algorithms
Machine learning methods may be introduced to improve diagnostic accuracy.
The HMI provides:
Real-time status visualization
Alarm notifications
Historical data access
Maintenance records
Interfaces may include touch screens, indicator lights, audible alarms, and networked dashboards.
Alarms are classified into:
Warning alarms (early degradation)
Fault alarms (performance out of specification)
Critical alarms (safety or functional failure)
This classification helps prioritize maintenance actions.
Simple threshold alarms monitor:
Voltage deviation
Current imbalance
Excessive leakage current
These alarms are easy to implement and highly reliable.
Trend analysis detects gradual degradation by analyzing:
Ion output decline rate
Discharge current drift
Increasing response time
This enables predictive maintenance rather than reactive repair.
Based on detected conditions, the system may recommend:
Electrode cleaning
Electrode replacement
Power supply inspection
Environmental adjustment
All alarms and actions are logged, providing:
Maintenance history
Performance trend records
Compliance documentation
The system can be integrated with:
PLCs
MES systems
SCADA platforms
This enables centralized monitoring and control.

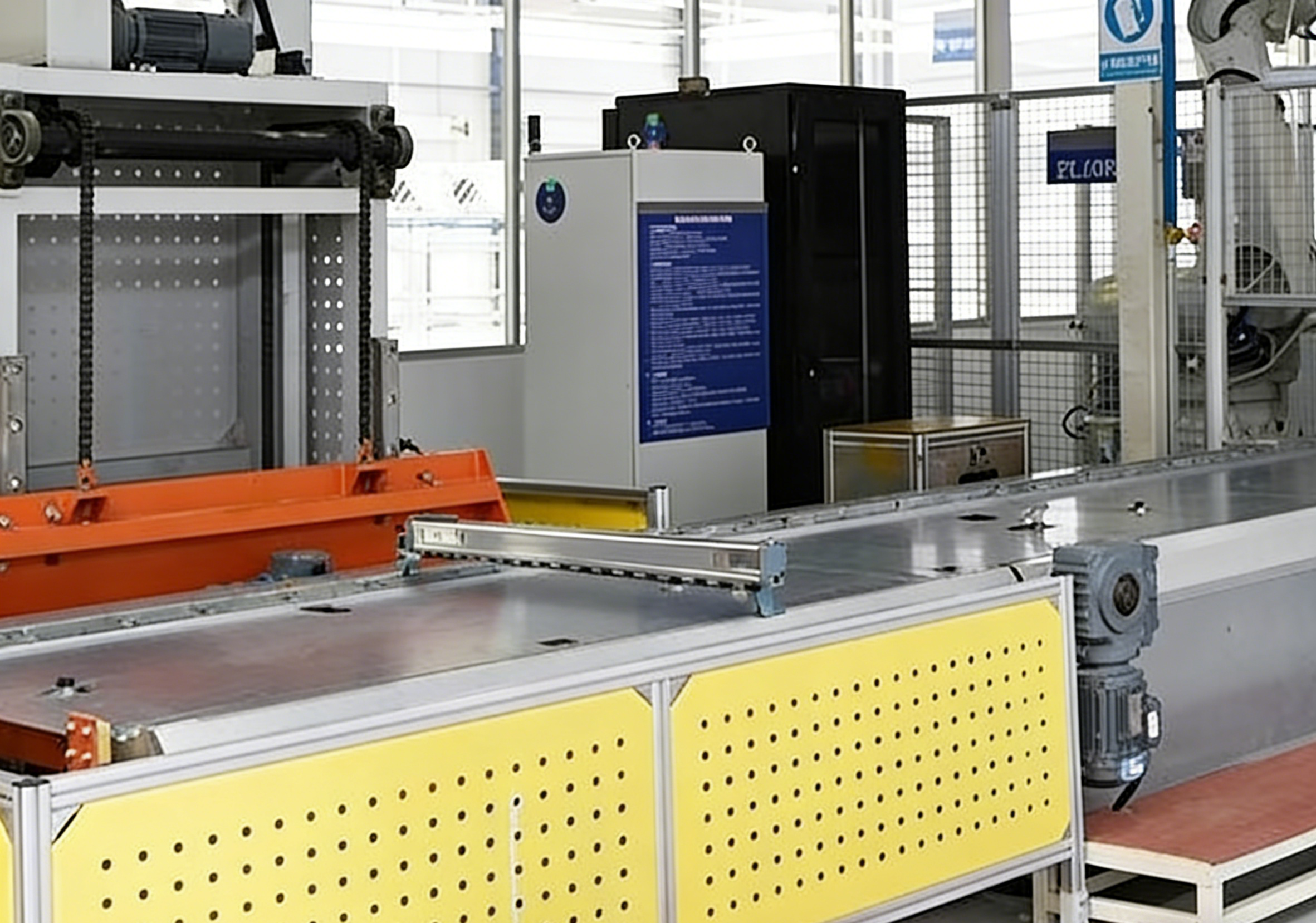

A packaging line using multiple ionizing air bars was equipped with the proposed system. Continuous monitoring revealed gradual electrode contamination previously unnoticed.
Key observed benefits included:
Reduction in unplanned downtime
Improved static elimination consistency
Lower maintenance costs
Enhanced product quality
Sensor calibration stability
Noise immunity
System cost optimization
Future systems may incorporate:
AI-based fault prediction
Wireless sensor networks
Cloud-based analytics
Digital twin models
The automatic alarm and maintenance system for ionizing air bars presented in this paper provides a systematic and intelligent approach to ensuring reliable static elimination in industrial environments. By combining real-time monitoring, intelligent diagnostics, and proactive maintenance support, the system addresses the limitations of traditional manual inspection methods.
The adoption of such systems represents an important step toward smarter, safer, and more efficient industrial static control solutions.
