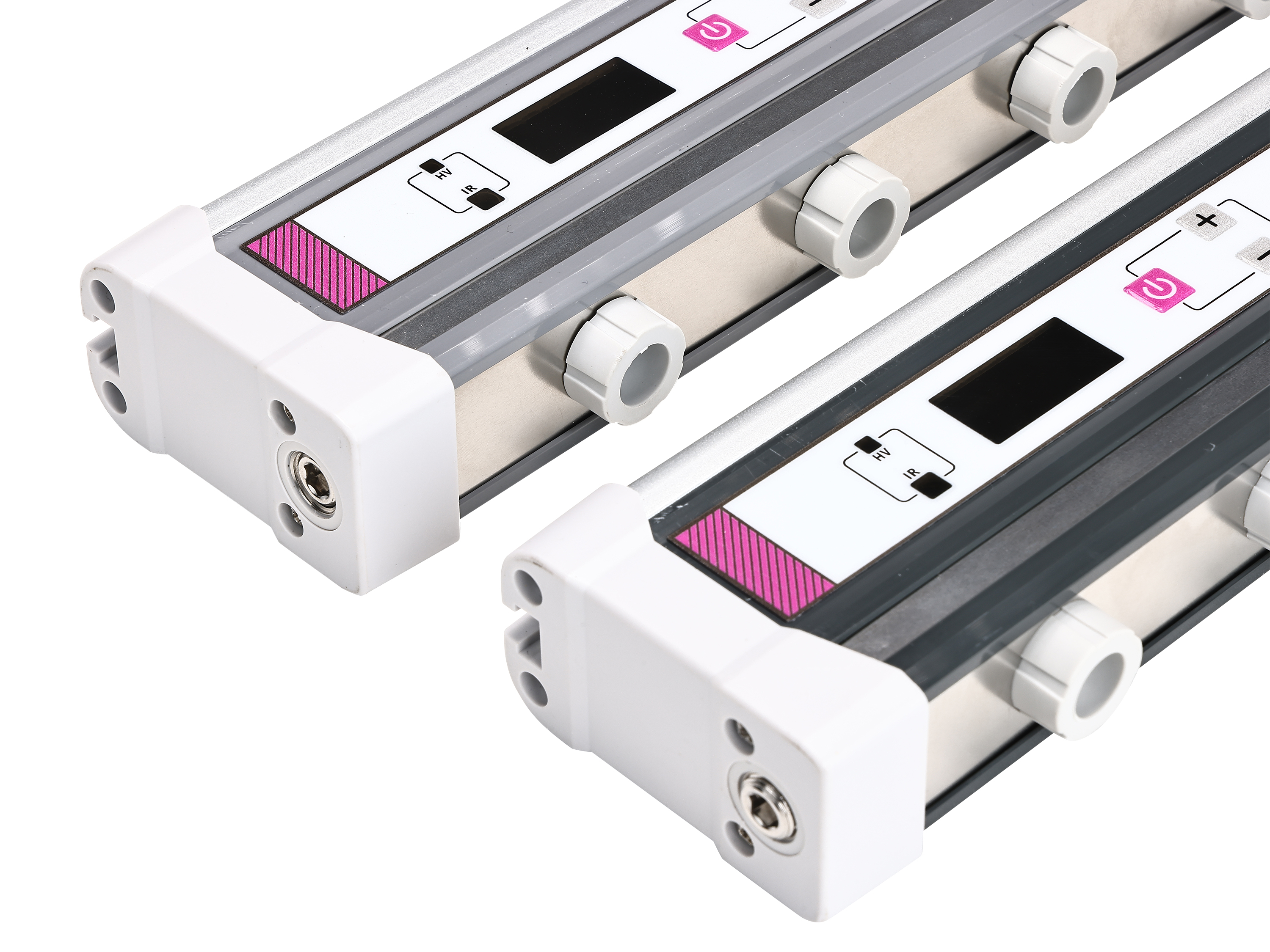

Ion uniformity is a critical performance metric for ionizing air bars, static neutralization systems, and electrostatic discharge (ESD) mitigation equipment. Non-uniform ion distributions can lead to:
Incomplete surface neutralization
Residual charges and hotspots
Product contamination or damage
Inefficient neutralization and increased energy consumption
Airflow patterns are one of the most important determinants of ion uniformity. Even if an ionizer produces a perfectly balanced ion output, the spatial and temporal distribution of ions is strongly influenced by the mode, velocity, and turbulence of the surrounding airflow.
This article presents a comprehensive analysis of how different airflow patterns affect ion uniformity, integrating fundamental physics, mathematical modeling, experimental observations, and engineering implications. The goal is to provide engineers and researchers with guidelines for designing airflow-assisted ionization systems with optimal performance.
Ionizing air bars typically use corona discharge to generate positive and negative ions. Key aspects include:
Pin electrodes: Produce localized high electric fields to ionize air molecules.
Ion generation rate (nin_ini): Depends on voltage, geometry, and environmental factors.
Polarity balance: Crucial for neutralization; any imbalance affects surface charge dissipation.
Once generated, ions are transported by electric fields and airflow, both of which contribute to spatial distribution.
Three primary mechanisms govern ion movement:
Drift under electric field (EEE):
vd=μEv_d = \mu Evd=μE
where μ\muμ is ion mobility.
Diffusion due to concentration gradients:
Jd=−D∇nJ_d = -D \nabla nJd=−D∇n
where DDD is the diffusion coefficient.
Convective transport by airflow (v⃗air\vec{v}_{\text{air}}vair):
Jc=nv⃗airJ_c = n \vec{v}_{\text{air}}Jc=nvair
The total ion flux is the sum:
Jtotal=Jd+Jc+nμEJ_{\text{total}} = J_d + J_c + n \mu EJtotal=Jd+Jc+nμE
In most industrial ionizers, airflow dominates ion transport over distances >10–20 cm, especially in turbulent or high-speed environments.
Airflow patterns significantly impact ion uniformity. Common airflow modes include:
Smooth, parallel layers of air.
Minimal mixing between layers.
Advantages: predictable ion trajectories, reduced recombination.
Challenges: weak lateral diffusion can cause edge effects in wide surfaces.
Chaotic, high-mixing flow with eddies.
Enhances lateral dispersion of ions, improving uniformity.
Challenges: increased recombination due to higher local ion densities, potential uneven neutralization near boundaries.
Periodic acceleration and deceleration of airflow.
Induces complex ion transport patterns.
Can be tuned to enhance mixing over limited distances.
The spatial-temporal evolution of ion concentration is governed by:
∂n∂t+v⃗air⋅∇n=D∇2n+μ∇⋅(nE⃗)−R(n)\frac{\partial n}{\partial t} + \vec{v}_{\text{air}} \cdot \nabla n = D \nabla^2 n + \mu \nabla \cdot (n \vec{E}) - R(n)∂t∂n+vair⋅∇n=D∇2n+μ∇⋅(nE)−R(n)
Where:
n(x,y,z,t)n(x, y, z, t)n(x,y,z,t) is ion density,
v⃗air\vec{v}_{\text{air}}vair is local airflow velocity vector,
DDD is diffusion coefficient,
μE⃗\mu \vec{E}μE is electric-field drift,
R(n)R(n)R(n) is recombination rate (e.g., ion-ion collisions).
This equation is central to predicting ion uniformity under various airflow conditions.
Electrode boundaries: Specify ion generation flux.
Surface boundaries: Include absorption, neutralization, or reflection.
Open boundaries: Allow ions to exit computational domain without artificial accumulation.
Accurate boundary modeling is crucial for predicting realistic ion distribution in industrial settings.
Finite difference / finite volume methods: Solve convection–diffusion–reaction equations in complex geometries.
CFD coupled with ion transport: Simulates airflow and ion movement simultaneously.
Monte Carlo simulations: Track individual ions to assess stochastic effects in turbulent flows.
Simulation results guide design decisions such as airflow rate, electrode spacing, and bar-to-surface distance.
Ions travel in straight paths along airflow lines.
Minimal lateral mixing.
Uniformity decreases near the edges of the flow channel.
Low-velocity boundary layers can result in ion starvation.
Cleanrooms and precision electronics manufacturing where localized airflow control ensures minimal contamination.
Turbulent eddies distribute ions laterally, improving uniformity across wide surfaces.
Higher local ion densities increase the probability of ion–ion collisions, slightly reducing effective ion flux.
Packaging lines, printing operations, and film extrusion benefit from turbulent airflow to neutralize charge over wide moving webs.
Periodic airflow variations induce lateral ion motion.
Can break up stagnant zones and improve uniformity.
Frequency and amplitude of pulses must be matched to the characteristic ion transport timescale:
tair∼Lvairt_{\text{air}} \sim \frac{L}{v_{\text{air}}}tair∼vairL
Where LLL is characteristic distance.
High-speed airflow: Convection dominates; ions follow airflow lines closely.
Low-speed or stagnant air: Diffusion dominates; ions spread slowly, leading to gradients.
Dense ion clouds formed in low-mixing regions can shield electric fields.
Non-uniform airflow exacerbates this effect, creating persistent charge patches.
Ion transport is influenced by electric field drift, airflow convection, and recombination simultaneously.
Laminar flow with strong drift leads to directional transport but poor lateral uniformity.
Turbulent flow with moderate drift improves lateral mixing but may increase recombination losses.
Optimized designs balance airflow speed, turbulence intensity, and ionizer placement.
Select appropriate airflow mode based on surface width and process speed.
Maintain sufficient airflow velocity to transport ions across the target surface.
Avoid excessive turbulence that increases recombination.
Adjust ionizer-to-surface distance to maximize ion coverage while minimizing loss.
Combine multiple bars with overlapping airflow patterns for large surfaces.
Consider pulsed airflow for localized stagnation zones.
Laminar airflow alone caused uneven neutralization at edges.
Turbulent airflow improved uniformity, reducing static-related defects by 60%.
Low-speed laminar airflow maintained precise ion delivery, essential for sensitive components.
Pulsed airflow further minimized localized charge hotspots.
Moving surface at 200 m/min required high-speed airflow and overlapping ion bars.
Simulations predicted uniform ion distribution within ±10% across 1 m width.
The ion density n(x,y,z,t)n(x, y, z, t)n(x,y,z,t) under the influence of airflow can be described by the convection–diffusion–recombination equation:
∂n∂t+v⃗air⋅∇n=D∇2n+μ∇⋅(nE⃗)−αn2\frac{\partial n}{\partial t} + \vec{v}_{\text{air}} \cdot \nabla n = D \nabla^2 n + \mu \nabla \cdot (n \vec{E}) - \alpha n^2∂t∂n+vair⋅∇n=D∇2n+μ∇⋅(nE)−αn2
Where:
v⃗air\vec{v}_{\text{air}}vair is airflow velocity vector
DDD is the diffusion coefficient
μ\muμ is ion mobility under electric field E⃗\vec{E}E
αn2\alpha n^2αn2 represents recombination losses
This nonlinear partial differential equation governs the evolution of ion concentration in real industrial systems.
Convection time: tc=L/vairt_c = L / v_{\text{air}}tc=L/vair
Diffusion time: td=L2/Dt_d = L^2 / Dtd=L2/D
Recombination time: tr=1/(αn)t_r = 1 / (\alpha n)tr=1/(αn)
Where LLL is a characteristic length (e.g., distance between ionizer and target).
High-speed airflow (tc≪tdt_c \ll t_dtc≪td) → convection dominates, ions follow flow lines
Low-speed or stagnant zones (td≪tct_d \ll t_ctd≪tc) → diffusion dominates, leading to slow lateral spreading
Optimizing ion uniformity requires balancing these timescales.
Turbulent airflow introduces eddy diffusion, which can be modeled as an enhanced diffusion coefficient Deff=D+DturbD_{\text{eff}} = D + D_{\text{turb}}Deff=D+Dturb
DturbD_{\text{turb}}Dturb depends on turbulence intensity and length scales
Turbulence improves lateral ion mixing but increases local ion density → recombination risk
Computational Fluid Dynamics (CFD) simulates airflow velocity, turbulence, and pressure
Ion transport equations are solved simultaneously with airflow
Provides 3D maps of ion density over time
Ion source boundary: flux determined by ionizer output
Target surface: neutralization and absorption rates
Open boundaries: outflow conditions preventing artificial accumulation
Accurate boundary modeling ensures realistic prediction of ion uniformity.
Fine mesh near electrodes and target surfaces captures steep gradients
Time step must resolve both fast convection and slower diffusion/recombination dynamics
Adaptive meshing often used for high-gradient regions
Parallel airflow maintains predictable ion trajectories
Lateral mixing is minimal; edge regions receive fewer ions
Suitable for small-width electronics assembly
Simulation results: ±15% variation in ion density across 50 mm width
Lateral uniformity decreases with increasing width
Requires multiple ion bars or controlled lateral airflow
Turbulence increases DeffD_{\text{eff}}Deff by 2–10× compared to molecular diffusion
Ion density becomes more uniform over wide surfaces
High turbulence increases local ion concentration → αn2\alpha n^2αn2 term increases
Optimal turbulence level exists: enough mixing without excessive recombination
Printing line (1 m width, 150 m/min)
Turbulent airflow improved ±5% ion uniformity
Residual charge reduced by 60% compared to laminar flow
Periodic airflow oscillations redistribute ions laterally
Breaks up stagnant zones, especially near walls or corners
Pulse frequency fff should match ion convection time: f∼vair/Lf \sim v_{\text{air}} / Lf∼vair/L
Amplitude must be sufficient to overcome boundary layer limitations
Result: Improved uniformity without excessive recombination
Ion flux decreases with distance due to field attenuation and air dispersion
Optimal distance balances:
Ion coverage (larger distance → broader coverage)
Effective flux density (shorter distance → higher flux, less recombination)
Typical industrial range: 50–150 mm
Moving surfaces introduce additional convection component: v⃗total=v⃗air−v⃗surface\vec{v}_{\text{total}} = \vec{v}_{\text{air}} - \vec{v}_{\text{surface}}vtotal=vair−vsurface
Exposure time reduced → less neutralization per pass
Increase ion density or number of bars
Introduce airflow shaping nozzles to maintain ion coverage
Use staggered or overlapping bar arrangements
Faraday cups for absolute ion density
Electrostatic voltmeters for residual surface potential
Laser-induced fluorescence for 3D ion distribution mapping
Laminar flow: directional ion paths, poor lateral uniformity
Turbulent flow: improved lateral uniformity, slight increase in recombination
Pulsed flow: enhanced distribution in stagnant zones without increasing recombination significantly
Select airflow mode based on surface size, speed, and sensitivity.
Control airflow velocity to ensure sufficient ion transport.
Optimize turbulence intensity to balance mixing and recombination.
Adjust bar spacing and placement for uniform coverage.
Combine laminar main flow with pulsed lateral flows for large surfaces or complex geometries.
Consider bar-to-surface distance and electrode geometry for maximum flux efficiency.
Simulate using CFD + ion transport models to predict uniformity before deployment.
Width: 1.2 m, speed: 200 m/min
Laminar airflow alone → edge residual charge ±30%
Turbulent airflow with moderate pulsing → ±8%
Ionizer bar configuration: 4 overlapping bars, airflow velocity 3 m/s
Laminar flow maintained precise ion delivery → ±5% variation
High-frequency pulsed airflow minimized charge accumulation in corners
Moving web at 150 m/min
Multiple bars with directed turbulent flow achieved ±10% ion uniformity
Residual static <50 V
Airflow patterns critically affect ion uniformity and neutralization efficiency.
Laminar flow: predictable but poor lateral mixing
Turbulent flow: improved uniformity, careful recombination management required
Pulsed or oscillatory flows: useful for stagnant zones and boundary layer penetration
Moving surfaces require higher ion flux or overlapping bars
CFD simulations coupled with ion transport equations are essential for design
