High speed manufacturing improves output, reduces unit production cost, and helps factories respond to growing demand. However, faster production also increases the risk of static electricity problems. Plastic film, paper, labels, electronic components, packaging materials, nonwoven materials, and coated sheets can develop significant electrostatic charges through friction, separation, contact with rollers, peeling, conveying, cutting, and winding. When production speed increases, these charging processes occur more frequently and the available time for static neutralization becomes shorter.
Static electricity in a high speed production environment can cause material attraction, dust contamination, sheet sticking, poor stacking, inaccurate feeding, printing defects, product misalignment, electrostatic discharge, operator discomfort, and even machine stoppages. For this reason, the static elimination system must be selected according to production speed, working distance, material width, charge level, process geometry, airflow, and required residual voltage rather than simply installing a general ionizing device near the production line.
For most high speed production lines, the best static elimination solution is an industrial ionizing air bar installed close to the charged material and positioned immediately after the main static generation point. The system should provide fast static decay, complete treatment width, stable ion balance, sufficient ion output, appropriate airflow, and enough exposure time to neutralize the material before it reaches the next critical process stage. In demanding applications, multiple ionizing air bars may be required at different static generation points.
The correct solution is therefore not determined by one specification alone. A powerful ionizer installed too far away may perform poorly, while a correctly positioned system with suitable coverage can achieve much better neutralization. High speed production requires a combination of fast ion delivery, correct installation, suitable treatment distance, reliable coverage, and process based verification.
This guide explains how to select a static elimination solution for fast production lines, why ionizing air bars are widely used for continuous processes, how production speed affects neutralization performance, where ionizers should be installed, and how to verify whether the selected solution can control static electricity effectively under real manufacturing conditions.
Static electricity is more difficult to control in high speed production because materials generate charge more frequently while spending less time inside the ionization zone, which increases the required neutralization speed.
Electrostatic charge is commonly produced when two different materials contact each other and then separate. This process occurs continuously in manufacturing equipment. A plastic web may pass over multiple rollers, a label may peel from a backing material, a sheet may slide across a guide surface, or a finished package may move rapidly along a conveyor. Each contact and separation event can contribute to charge accumulation.
When production speed increases, the frequency of these events also increases. A surface can accumulate charge rapidly, sometimes reaching a level high enough to cause material handling problems almost immediately. At the same time, the material moves through each treatment position faster, reducing the amount of time available for neutralization.
This creates two challenges simultaneously. The static control system must handle a stronger or more frequently generated electrostatic charge while also working within a shorter treatment period. A system that performs well on a slow production line may therefore become inadequate after the line speed is increased.
The effect of static electricity becomes particularly significant when the process depends on precise material movement. Even a small electrostatic attraction force can affect thin films, lightweight sheets, labels, fibers, or small electronic parts.
An ionizing air bar positioned close to the material and near the main static generation point is generally the most effective solution for continuous high speed production because it can provide wide treatment coverage, continuous ion generation, and rapid neutralization across moving surfaces.
Different static control devices are suitable for different applications. Ionizing air guns are useful for manual cleaning or operator controlled work. Ionizing blowers are useful when a relatively large area needs general ionization. Small ionizing nozzles can be effective for localized treatment. For a continuous web, sheet, conveyor, printing line, or automated process, however, the long and narrow treatment pattern of an ionizing air bar usually matches the production geometry more effectively.
The bar can be installed across the full width of the moving material. Positive and negative ions are generated along the active section and transported toward the charged surface. When ions of the opposite polarity reach the material, they neutralize the excess charge. Because the system operates continuously, each section of the moving material receives treatment as it passes through the ionization zone.
For very demanding applications, a single ionizing bar may not be sufficient. Static electricity can be generated repeatedly at different points in the machine. In these situations, multiple bars installed at several critical locations usually provide more reliable control than attempting to neutralize all charge from one distant position.
| Static Elimination Method | Suitable Application | Coverage | Suitability for Continuous High Speed Lines |
|---|---|---|---|
| Ionizing Air Bar | Film, paper, sheets, conveyors, automated production | Wide and continuous | Very suitable |
| Ionizing Blower | Workstations and larger open areas | Broad | Suitable for some applications |
| Ionizing Nozzle | Localized areas and small parts | Focused | Suitable for specific points |
| Ionizing Air Gun | Manual cleaning and operator processes | Localized and movable | Usually not ideal for continuous automatic lines |
| Grounding | Conductive objects | Depends on contact | Effective only for conductive materials |
The most effective system may combine ionization with proper grounding. Conductive machine structures should be grounded correctly, while insulating materials such as plastic film usually require ionization because their charge cannot easily flow to ground.

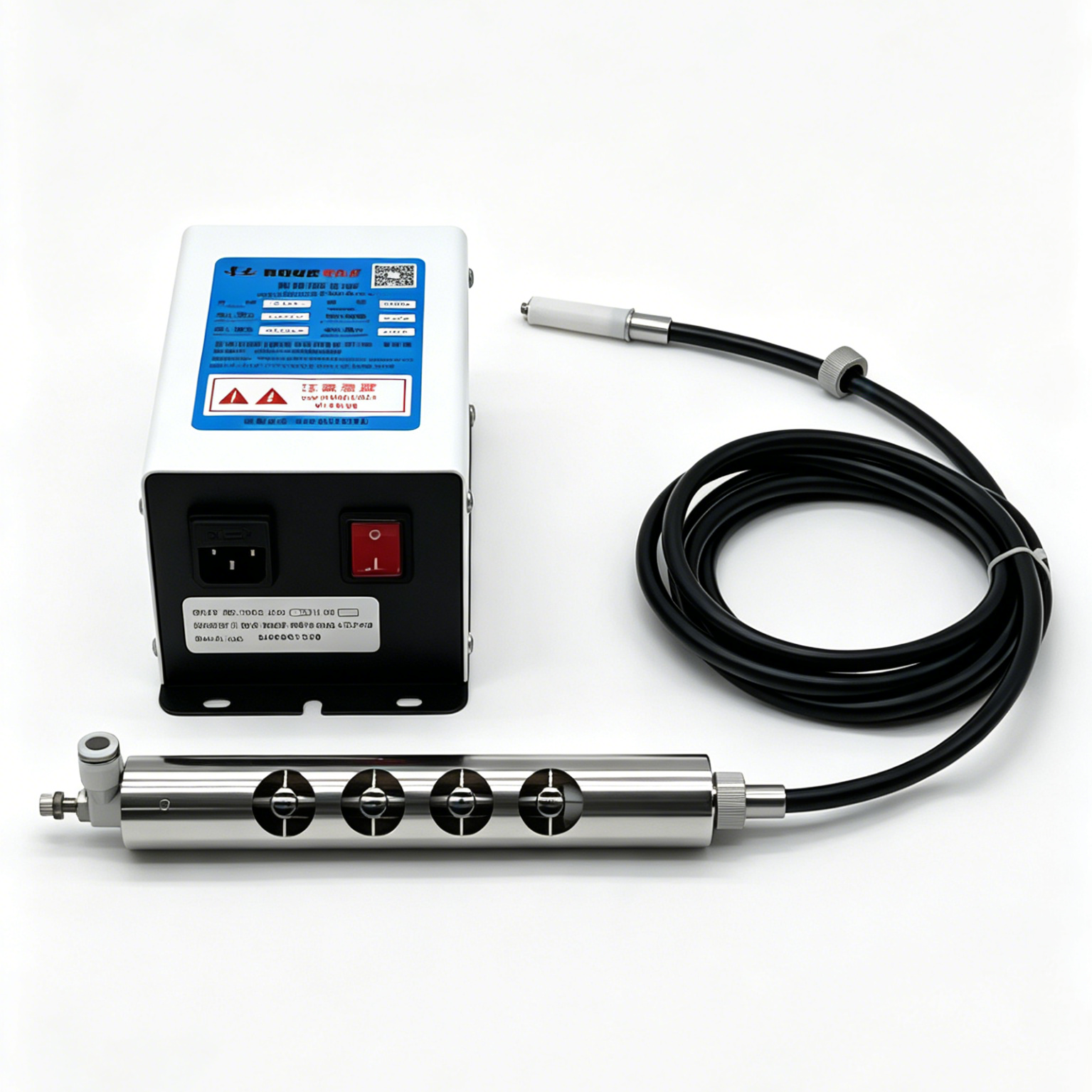

Ionizing air bars are suitable for high speed production because they can treat an entire moving width continuously, deliver ions directly toward the material, and be positioned close to the point where static electricity is generated.
A high speed production line needs continuous treatment. The ionization system cannot depend on manual operation or occasional exposure because every section of material moving through the machine may carry electrostatic charge. An ionizing air bar can operate continuously and provide treatment across the full production width.
Another advantage is the shape of the treatment area. Many industrial materials are processed as wide webs, sheets, panels, or conveyor loads. A long ionizing bar can be installed perpendicular to the direction of travel, allowing one device to treat a broad width at the same time.
Ionizing air bars also provide flexibility in installation. They can often be positioned above, below, or beside the material depending on machine design. In applications where both surfaces accumulate significant charge, one bar can be installed on each side if necessary.
These advantages make the ionizing air bar particularly effective for processes where materials move continuously through rollers, guides, printing sections, cutters, coating stations, laminating sections, or packaging machinery.
As production speed increases, the available ionization time decreases, so the static eliminator must neutralize charge more quickly to achieve the same residual voltage.
One of the most useful ways to evaluate high speed static control is to calculate treatment exposure time. The material only receives ionization while it remains within the effective treatment zone. If the line speed doubles and the treatment zone remains unchanged, the exposure time is reduced by half.
The basic relationship is:
Exposure Time = Effective Treatment Length / Material Speed
For example, suppose a material passes through an effective treatment region that is 0.30 meters long in the direction of movement. If the line speed is 1 meter per second:
Exposure Time = 0.30 / 1 = 0.30 seconds
If the speed increases to 3 meters per second:
Exposure Time = 0.30 / 3 = 0.10 seconds
The system now has only one third of the original treatment time.
| Effective Treatment Length | Material Speed | Exposure Time |
|---|---|---|
| 0.30 m | 0.5 m/s | 0.60 seconds |
| 0.30 m | 1.0 m/s | 0.30 seconds |
| 0.30 m | 2.0 m/s | 0.15 seconds |
| 0.30 m | 3.0 m/s | 0.10 seconds |
| 0.30 m | 5.0 m/s | 0.06 seconds |
This explains why static elimination should always be evaluated at actual production speed. Testing the ionizer while the machine is stopped may show excellent voltage reduction, but that result does not indicate how the system will perform when material passes through the treatment area in a fraction of a second.
The most important specifications are static decay speed, active treatment width, working distance, ion output stability, ion balance, airflow capability, emitter condition, and compatibility with the actual production environment.
Static decay speed is especially important because the ionizer must reduce the charge within the available exposure time. A production process that provides only a short treatment period requires stronger and faster ion delivery than a slow process.
Coverage is equally important. A fast ionizer that treats only the center of a wide web will still leave charge along the edges. The active treatment width should therefore cover the complete material width plus an appropriate allowance for lateral movement.
Ion balance should also be considered in sensitive applications. The ionizer generates positive and negative ions, and the relationship between these ions affects the residual surface voltage. Stable balance becomes particularly important when treating sensitive electronic components or precision manufacturing processes.
| Parameter | Why It Matters |
|---|---|
| Static Decay Speed | Determines whether charge can be reduced within available treatment time |
| Active Treatment Width | Determines whether the full material width is covered |
| Working Distance | Affects ion density and transport time |
| Ion Balance | Influences residual surface voltage |
| Ion Output Stability | Helps maintain consistent performance during long production periods |
| Airflow | Influences ion transport toward the material |
| Emitter Cleanliness | Affects ion generation efficiency |
| Installation Geometry | Determines whether ions can reach the charged surface directly |
The correct system should be selected based on all of these parameters rather than using only bar length or maximum output as the purchasing criterion.
The static eliminator should normally be installed as close as practical to the point where static electricity is generated and before the charged material reaches the next process where static could cause problems.
Static charge is frequently generated during material separation. Examples include film leaving a roller, labels separating from backing material, sheets leaving a stack, or plastic moving away from a guide surface. Installing the ionizer near this point allows the charge to be neutralized before it affects the rest of the process.
Installing a bar too far downstream can allow the charged material to attract dust, stick to another surface, or move incorrectly before neutralization occurs. Therefore, static elimination should be treated as part of process design rather than as a correction applied at any convenient location.
Another consideration is the presence of grounded metal structures. If large grounded components are located between the ionizing air bar and the charged surface, some ions may be attracted to those structures instead of reaching the target. A clear path between the emitter and material usually provides more efficient ion delivery.
The ideal location is often the point between static generation and the process operation that is most sensitive to the resulting charge.
Shorter working distances generally improve ion density and static decay speed, while sufficient bar length ensures that the entire moving material remains inside the effective ionization zone.
As ions travel away from the ionizing bar, they spread through the surrounding air. This can increase the geometric treatment area, but the ion concentration usually decreases with distance. Positive and negative ions may also recombine before reaching the charged material.
For high speed production, excessive distance can be especially problematic because the material is exposed to the ion field for only a short period. If ions require too much time to reach the surface, the material may leave the treatment area before the required neutralization is achieved.
The ionizer should therefore be installed within an effective working range where sufficient ion density reaches the entire material width. The actual position should be verified through static voltage measurements rather than selected only according to physical convenience.
A simple starting formula is:
Required Active Coverage = Maximum Material Width + Left Side Allowance + Right Side Allowance
If the material is 1000 mm wide and the production process requires 50 mm of additional coverage on each side:
Required Active Coverage = 1000 mm + 50 mm + 50 mm = 1100 mm
The ionizing system should therefore provide effective treatment across at least approximately 1100 mm.
Properly directed airflow can transport ions toward moving material more quickly, helping improve static elimination when the working distance is relatively large or the available treatment time is short.
Ion transport speed is important in fast manufacturing. If the ionizer uses air assistance, positive and negative ions can be carried directly toward the target. This can be useful where the bar cannot be positioned very close to the material because of machine structures or moving parts.
Airflow can also help ions reach irregular surfaces. For example, a product with raised areas, recesses, or complex geometry may not receive uniform ionization through natural ion movement alone. Controlled air can distribute ions more effectively around the surface.
However, excessive airflow can create turbulence. Cross airflow from cooling systems, ventilation, exhaust equipment, or nearby pneumatic devices can redirect ions away from the intended treatment area. For this reason, airflow should be evaluated during actual machine operation.
The best airflow configuration is one that delivers ions efficiently toward the charged surface without introducing unnecessary turbulence.
Multiple ionizing air bars are required when one treatment point cannot provide sufficient width, exposure time, surface access, or static neutralization across all important charge generation locations.
A wide production line may require more than one bar if the available active length of a single unit cannot cover the complete material. When bars are installed side by side, the treatment zones should overlap sufficiently to avoid a weak region between them.
Multiple bars can also be positioned sequentially in the direction of product movement. This can increase the effective treatment time because the material receives ionization at more than one location. Sequential treatment can be useful in fast processes where a single bar cannot achieve the required residual voltage within the available exposure period.
Another common reason for using multiple bars is repeated static generation. A film may be neutralized successfully at one point and then become charged again when it passes over another roller. In this case, additional ionization should be installed after the new charging point.
The number of ionizers should therefore be determined according to the complete manufacturing process rather than the width of the production line alone.
High speed static elimination is particularly valuable in industries that process insulating materials, lightweight products, sensitive electronic components, or continuous webs at high production rates.
Plastic film processing is one of the most common applications. Film repeatedly contacts and separates from rollers, generating significant electrostatic charge. Static can cause the film to cling to equipment, attract dust, or create difficulties during winding and converting.
Printing and packaging processes also benefit because paper, plastic, labels, and laminated structures often move quickly through several contact and separation points. Static can interfere with feeding, alignment, printing quality, stacking, and final packaging.
Electronics production has different requirements but similar principles. Electrostatic charge can damage sensitive components or attract contamination. Ionization is especially useful when insulating materials cannot be grounded directly.
| Industry | Common Static Problem | Typical Ionization Position |
|---|---|---|
| Plastic Film Processing | Film sticking and dust attraction | After rollers and before winding |
| Printing | Sheet feeding and stacking problems | Before printing and before delivery |
| Packaging | Film adhesion and product attraction | Before forming, sealing, or stacking |
| Label Production | Static after peeling and separation | Near separation points |
| Electronics Manufacturing | Electrostatic discharge risk | Before sensitive handling steps |
| Nonwoven Processing | Material attraction and unstable movement | After rollers and cutting sections |
| Paper Converting | Sheet sticking and poor stacking | Before cutting and stacking |
| Coating and Laminating | Dust attraction and layer adhesion issues | Before coating and bonding processes |
The same engineering principle applies to all of these applications: neutralize the charge as close as practical to its source and before it interferes with the next critical production stage.
Static elimination performance should be tested by measuring electrostatic voltage before and after ionization at several positions across the material while the machine operates at normal and maximum production speeds.
A static elimination system should not be judged only by whether static appears to be reduced. Quantitative measurement provides a much more reliable basis for determining whether the selected system meets process requirements.
Testing should begin by measuring the charge level before the ionizing bar. A second measurement should then be taken after treatment. Comparing these values indicates how effectively the system reduces electrostatic voltage under real production conditions.
Measurements should also be made across the complete material width. Testing only at the center can hide weak edge performance. For a wide web, measurements can be taken at the left edge, left center, center, right center, and right edge.
Performance should also be checked periodically because contamination on emitter points can reduce ion output over time. A system that performs correctly after installation may gradually become less effective without proper cleaning and maintenance.
The most common mistakes are installing the ionizer too far from the material, treating the wrong process location, ignoring line speed, using insufficient coverage, allowing obstructions in the ion path, and failing to maintain the emitter points.
One common installation error is positioning the ionizer where mounting is convenient rather than where the static charge is generated. If the charged material travels a long distance before reaching the treatment point, it may already have attracted dust or caused a feeding problem.
Another mistake is selecting an ionizing bar based only on its physical length. The active ionization area must cover the complete treatment width. If the bar does not extend far enough beyond the material edges, residual static can remain near the sides.
Maintenance is also frequently overlooked. Emitter points can accumulate dust and contamination, which changes ion generation and reduces performance. High speed lines may be particularly sensitive because they already operate with limited neutralization time.
| Problem | Possible Effect | Recommended Action |
|---|---|---|
| Excessive working distance | Slow static decay | Move the ionizer closer where practical |
| Incorrect treatment location | Static causes problems before neutralization | Install closer to the static generation point |
| Insufficient coverage | Residual static near material edges | Increase active treatment width |
| High production speed | Insufficient exposure time | Improve ion delivery or add treatment points |
| Emitter contamination | Reduced ion output | Clean emitter points regularly |
| Cross airflow | Uneven ion distribution | Adjust airflow or bar position |
| Grounded obstruction | Ions diverted away from material | Improve the ion path to the target |
A systematic review of these factors can often solve performance problems without unnecessary changes to the entire production line.
A high speed static control system can be optimized by minimizing working distance, maximizing useful treatment time, positioning ionizers near charge generation points, ensuring complete width coverage, controlling airflow, and verifying performance under maximum production conditions.
The first optimization step is to identify where static is actually generated. This can be done by measuring the material at several positions along the machine. Once the major charging points are known, ionizers can be installed where they provide the greatest benefit.
The next step is to optimize installation distance. Moving the bar closer to the material can improve ion density and reduce ion travel time. However, sufficient clearance must remain for moving components, material movement, maintenance, and safe operation.
Coverage should also include a practical allowance beyond the normal product width. Flexible materials can shift during operation, especially at high speed. If the static control system works only when the material is perfectly centered, production performance may become inconsistent.
Optimization should be treated as an ongoing process. Manufacturing conditions change over time. Production speed may increase, material formulations may change, machine layouts may be modified, or additional equipment may alter airflow. Any of these changes can affect static control performance.
Regular measurement provides the best way to determine whether the ionization system continues to meet production requirements. Static control should therefore be integrated into routine machine inspection and process quality monitoring.
For most continuous high speed manufacturing processes, an industrial ionizing air bar installed close to the charged material and positioned near the main static generation point provides one of the most effective static elimination solutions. The system must provide sufficient active width, rapid static decay, stable ion output, appropriate working distance, and enough exposure time to neutralize the moving material before it reaches the next critical process.
High speed production creates a demanding static control environment because faster material movement reduces treatment time while friction, contact, separation, peeling, and roller movement may continue generating significant electrostatic charge. Selecting an ionizer based only on physical length or nominal output can therefore lead to inadequate performance.
A complete engineering approach should begin by measuring the material width, production speed, initial static voltage, available working distance, and static generation locations. Required treatment width can then be calculated by adding suitable allowances to the maximum product width.
Required Active Coverage = Maximum Material Width + Left Side Allowance + Right Side Allowance
For moving production processes, exposure time should also be considered:
Exposure Time = Effective Treatment Length / Material Speed
As line speed increases, exposure time decreases. This is why fast static decay and correct ionizer positioning become increasingly important at higher production speeds. When one treatment point cannot provide sufficient neutralization, multiple ionizing air bars can be installed across the material width or at different process stages.
The final system should always be verified through actual electrostatic measurements. Voltage should be measured before and after ionization, across several positions, and at normal as well as maximum production speed. This makes it possible to identify weak edge coverage, excessive working distance, inadequate ion output, airflow interference, or newly generated static downstream.
By combining correct equipment selection, suitable installation distance, complete treatment coverage, proper airflow, regular maintenance, and performance measurement, manufacturers can achieve reliable static control even on demanding high speed production lines. Effective static elimination can reduce dust attraction, material sticking, feeding errors, electrostatic discharge risks, process interruptions, and product quality problems while supporting stable and efficient manufacturing.
