Static electricity is a common production challenge in industries such as electronics manufacturing, plastic processing, printing, packaging, converting, semiconductor production, and automated assembly. When electrostatic charges accumulate on films, sheets, components, or machine surfaces, they can attract dust, cause materials to stick together, interfere with positioning, generate electrostatic discharge events, and reduce overall production stability.

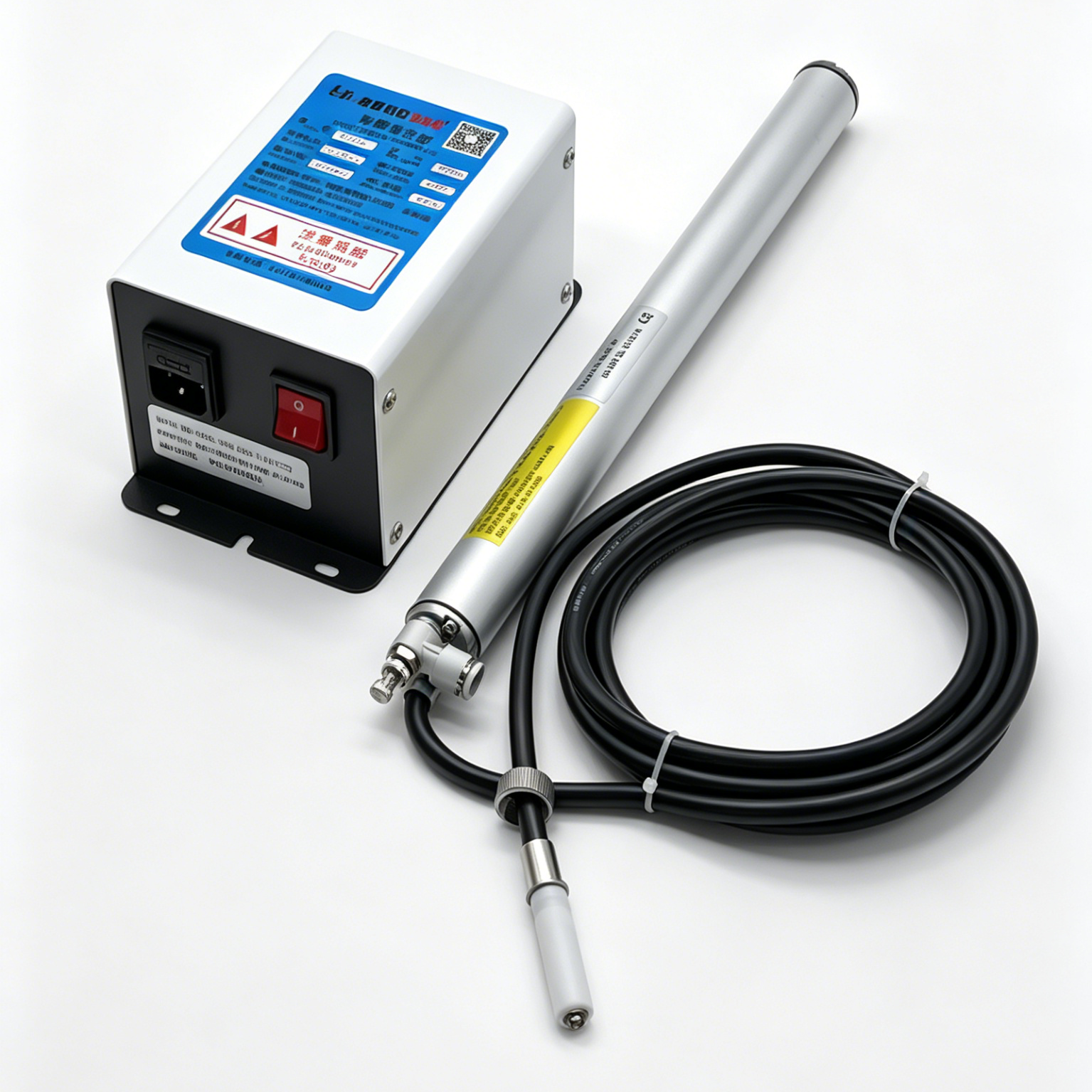

Ionizing air bars provide an effective method for controlling these charges. They generate positive and negative ions that are transported toward the charged surface, where opposite polarity ions neutralize the accumulated electrostatic charge. However, an ionizing air bar can only perform effectively when its ionization zone properly covers the area that needs static neutralization.
To calculate ionizing air bar coverage, first determine the maximum width of the material or process area, add sufficient coverage margin on both sides, and then select an ionizing air bar whose effective active ionization length covers that total width. Installation distance, line speed, airflow, ion distribution, static decay performance, and machine geometry must also be considered because physical bar length alone does not determine effective static elimination coverage.
For many industrial applications, the preliminary calculation can be expressed as:
Required Active Coverage = Maximum Target Width + Left Side Margin + Right Side Margin
For example, if a production line processes a 1000 mm wide plastic film and requires a 50 mm coverage margin on each side, the ionization system should provide at least 1100 mm of effective coverage. This simple calculation provides a useful starting point, but the final installation should always be verified under actual operating conditions.
This guide explains how ionizing air bar coverage is calculated, how working distance affects ion distribution, how production speed influences static decay performance, when multiple ionizing bars may be necessary, and how to verify whether the complete target area is being neutralized effectively.
Ionizing air bar coverage refers to the effective area in which the ionizer can deliver enough positive and negative ions to reduce electrostatic charge to an acceptable level within the available treatment time.
Coverage should not be confused with the overall mechanical length of an ionizing air bar. A bar may have an overall length of 1000 mm, but part of that length may consist of end caps, electrical connections, mounting structures, or other non-ionizing components. The actual active ionization section can therefore be shorter than the total mechanical length.
Another important distinction is between geometric coverage and effective coverage. Positive and negative ions disperse as they move away from the emitter points. This means ions may physically reach an area wider than the active length of the bar. However, the ion concentration becomes lower as the treatment distance increases.
Therefore, the fact that ions can reach a particular location does not necessarily mean that sufficient ion density is available to neutralize the static charge quickly enough.
For industrial applications, effective coverage should be evaluated according to the required static reduction. If the center of a plastic web is successfully neutralized but significant electrostatic voltage remains along both edges, the ionizing system does not provide complete coverage.
| Coverage Parameter | Description | Importance |
|---|---|---|
| Overall Bar Length | Total mechanical length of the ionizing air bar | Important for machine installation |
| Active Ionizing Length | Length containing active ion emitters | Important for initial coverage calculation |
| Geometric Coverage | Area that ions may physically reach | Useful for preliminary system planning |
| Effective Coverage | Area receiving sufficient ion density for required neutralization | Most important for actual static control |
When selecting an ionizing air bar, engineers should therefore focus on active ionizing length, effective working distance, ion distribution, and static decay performance instead of considering mechanical dimensions alone.
The required treatment width is calculated from the maximum width of the charged material or process area plus additional allowance for material movement, positioning tolerance, and edge coverage.
The first step is to measure the widest area requiring static neutralization. For a roll to roll production line, this is usually the maximum web width. For a conveyor system, it may be the maximum product distribution width rather than simply the conveyor width. For electronics manufacturing, the treatment width may be determined by PCB dimensions, carrier trays, fixtures, or component handling areas.
Using only nominal product width can create problems because materials rarely remain perfectly centered during continuous production. Plastic film can wander laterally because of tension variation, roller alignment, temperature, or web guiding accuracy. Products on conveyors can also shift from the centerline.
Additional coverage should therefore be provided beyond the maximum expected product position.
Required Treatment Width = Maximum Product Width + Left Side Allowance + Right Side Allowance
Consider a plastic film with a maximum width of 1200 mm. If an additional 50 mm treatment allowance is provided on each side:
Required Treatment Width = 1200 mm + 50 mm + 50 mm = 1300 mm
The ionization system should therefore provide approximately 1300 mm or more of effective coverage.
Providing sufficient edge margin helps prevent a situation where the center of the material receives strong ionization while the edges remain charged.
The required ionizing air bar length should normally be based on the maximum treatment width plus an appropriate coverage margin, with the active ionizing section extending across the complete area requiring static neutralization.
A useful preliminary formula is:
Lbar ≥ Wtarget + 2M
Where:
For example, consider a production line processing an 800 mm wide sheet. If a 50 mm treatment margin is required on both sides:
Lbar ≥ 800 mm + 50 mm + 50 mm
Lbar ≥ 900 mm
The ionizing system should therefore provide at least approximately 900 mm of active treatment coverage.
| Product Width | Margin Per Side | Minimum Active Coverage |
|---|---|---|
| 300 mm | 30 mm | 360 mm |
| 500 mm | 50 mm | 600 mm |
| 800 mm | 50 mm | 900 mm |
| 1000 mm | 75 mm | 1150 mm |
| 1200 mm | 75 mm | 1350 mm |
| 1500 mm | 100 mm | 1700 mm |
These values are calculation examples rather than universal specifications. The appropriate margin depends on material movement, machine configuration, working distance, process requirements, and the actual ion distribution characteristics of the ionizing equipment.
Installation distance directly affects ionizing air bar coverage because increasing the distance allows ions to spread over a larger area while generally reducing the ion concentration reaching the target surface.
When positive and negative ions leave the emitter points, they begin spreading through the surrounding air. At relatively short working distances, ion concentration can remain high, allowing rapid static neutralization. At greater distances, the ion cloud may cover a wider area, but ion density usually decreases.
This creates an important engineering tradeoff. A larger installation distance can increase apparent coverage, but the lower ion density can increase static decay time. As a result, mounting the ionizing air bar farther away should not be used simply as a method of compensating for insufficient bar length.
Environmental factors can further affect ion transport. Grounded machine structures may attract ions before they reach the target. Air currents may redirect them. Positive and negative ions may also recombine during transportation, reducing the number of ions available for neutralization.
A conceptual model of ion spreading can be expressed as:
Weffective ≈ Lactive + 2D tan(θ)
Where:
This formula is useful for understanding the geometric relationship, but it should not be treated as a universal performance formula. Actual ion distribution depends on emitter design, electrical characteristics, airflow, environmental conditions, and surrounding equipment.
| Installation Distance | Ion Concentration | Coverage Area | Expected Static Decay |
|---|---|---|---|
| Short | Higher | Relatively concentrated | Generally faster |
| Medium | Moderate | Balanced | Suitable for many applications |
| Long | Lower | Potentially wider | Generally slower |
The installation distance should therefore remain within the recommended operating range of the selected ionizing system.
Higher production speed reduces the amount of time a charged material remains within the ionization zone, so line speed must be considered together with coverage width when calculating ionizing air bar requirements.
Static neutralization is not instantaneous. Ions need time to travel from the emitter points to the charged surface and neutralize the accumulated charge. In a stationary application, sufficient treatment time may be relatively easy to provide. In high speed manufacturing, however, the available exposure time can become extremely short.
The relationship can be calculated using:
Exposure Time = Effective Treatment Length ÷ Material Speed
Or:
t = L / v
Where t is exposure time, L is the effective ionization zone in the direction of movement, and v is material velocity.
For example, assume that a material passes through an effective treatment zone measuring 0.3 m while moving at 1.5 m/s:
Exposure Time = 0.3 ÷ 1.5 = 0.2 seconds
If production speed increases to 3 m/s:
Exposure Time = 0.3 ÷ 3 = 0.1 seconds
The available neutralization time has been reduced by half even though the ionizing air bar and material width remain unchanged.
Static decay performance describes how quickly an ionization system can reduce an electrostatic potential under specified test conditions. For high speed applications, the required charge reduction should occur within the treatment time available on the production line.
If the exposure time is too short, possible engineering adjustments include reducing the working distance, optimizing airflow, increasing the treatment zone, repositioning the ionizer, or installing additional ionizing bars at appropriate process locations.
Airflow affects ionizing air bar coverage by transporting positive and negative ions toward the charged surface, but uncontrolled airflow can also redirect ions and create uneven static neutralization.
Ion transport is strongly influenced by surrounding air movement. In some applications, the natural movement of ions is sufficient because the working distance is short. In others, controlled airflow can improve ion transportation over greater distances.
Air assisted ionization can be particularly useful for irregular objects, recessed areas, or installations where the ionizing bar cannot be positioned close to the target. The moving air helps transport ions toward areas that would otherwise receive insufficient ion density.
However, machine airflow can also interfere with ionization. Cooling fans, extraction systems, compressed air, cleanroom ventilation, and fast moving materials may redirect ions away from the intended treatment area.
Coverage should therefore be verified while all normal production airflow systems are operating.
The required number of ionizing air bars depends on total treatment width, available active bar length, material geometry, static generation points, production speed, and whether multiple surfaces require neutralization.
If the required treatment width exceeds the practical active coverage of one ionizing bar, multiple bars can be installed. A simplified calculation is:
Number of Bars = Required Treatment Width ÷ Effective Coverage Per Bar
The result should be rounded upward to the next whole number.
For example, if a machine requires 2400 mm of treatment width and one ionizing section provides 1200 mm of verified effective coverage:
Number of Bars = 2400 ÷ 1200 = 2
When multiple ionizing bars are installed side by side, engineers should consider the ion distribution near the connection between the two treatment zones. A suitable overlap may be necessary to avoid creating a weak ionization area.
Multiple bars may also be required even when one bar is wide enough. A process can generate static electricity at several different stages, meaning that neutralizing the material at only one location may not solve the entire problem.
The number of ionizing bars should therefore be determined according to the entire static generation process rather than material width alone.
A practical ionizing air bar coverage calculation should combine maximum target width, movement tolerance, safety margin, working distance, production speed, and required residual static level.
Consider a plastic film production line processing material with a maximum width of 1000 mm. During production, the film can move approximately 20 mm laterally in either direction. The engineer also wants an additional 30 mm safety margin beyond the maximum expected film position.
The total allowance on each side is:
20 mm + 30 mm = 50 mm
The required treatment width becomes:
1000 mm + 50 mm + 50 mm = 1100 mm
The ionization system should therefore provide at least approximately 1100 mm of effective active coverage under the intended working conditions.
A conveyor is 600 mm wide, and products may occupy almost the entire conveyor surface. An additional 50 mm coverage allowance is required on each side.
Required Coverage = 600 mm + 50 mm + 50 mm = 700 mm
The selected ionization system should provide at least 700 mm of reliable active treatment coverage.
A film processing machine handles a 1600 mm wide web. The engineering team determines that 75 mm of additional coverage is required on each side.
Required Coverage = 1600 mm + 75 mm + 75 mm = 1750 mm
The ionizing system should therefore provide at least approximately 1750 mm of effective treatment width.
A 1200 mm wide film travels at 3 m/s. The effective ionization zone in the direction of movement is approximately 300 mm.
Exposure Time = 0.3 m ÷ 3 m/s = 0.1 seconds
The system therefore has approximately 0.1 seconds to reduce the electrostatic charge while the film passes through the treatment area. In this situation, verifying static decay performance is just as important as checking physical width.
Ionizing air bar coverage should be verified by measuring electrostatic voltage or static decay performance at multiple positions across the entire target area while the production equipment operates under representative conditions.
Calculations are necessary for system design, but practical measurements determine whether the installation actually works. Real production environments contain grounded structures, rollers, guards, airflow, dust, humidity variations, different materials, and other variables that can influence ion distribution.
Testing only the center of the material is not sufficient. Measurements should also be taken near both edges and at intermediate positions.
For a wide web, a useful measurement pattern may include the left edge, left center, center, right center, and right edge. Critical applications may require more measurement points.
A charged plate monitor can also be used when ion balance and decay time need to be evaluated according to a formal ESD control procedure.
The most common mistakes include matching bar length exactly to product width, confusing total bar length with active ionizing length, installing the bar too far from the target, and ignoring production speed, airflow, edge coverage, and actual static measurements.
One frequent mistake is selecting a bar that has exactly the same nominal length as the material width. This provides little tolerance for lateral movement and may leave the edges inadequately treated.
Another mistake is attempting to increase coverage simply by increasing installation distance. Although ions can spread over a larger geometric area, ion density decreases with distance and static decay can become slower.
Production speed is also frequently overlooked. A system that performs well when the machine is stopped or running slowly may become inadequate when the line reaches maximum production speed.
| Common Mistake | Possible Problem | Recommended Solution |
|---|---|---|
| Bar length equals exact product width | Insufficient edge coverage | Add suitable coverage margin |
| Using total mechanical length | Actual ionizing area is smaller | Check active ionization length |
| Excessive installation distance | Lower ion concentration | Use an appropriate working distance |
| Ignoring line speed | Insufficient neutralization time | Calculate exposure time |
| Ignoring airflow | Uneven ion distribution | Test during actual operation |
| Testing only the center | Edge static remains undetected | Measure across the complete width |
| Ignoring emitter contamination | Performance decreases over time | Establish regular cleaning and testing |
Ionizing air bar coverage can be optimized by selecting sufficient active length, maintaining an appropriate working distance, providing adequate exposure time, controlling airflow, avoiding physical obstructions, and regularly maintaining the emitter points.
Correct positioning is one of the most important optimization measures. The active ionization area should cover the complete target, including expected product movement. For wide web applications, the ionizing bar should normally be positioned so that both edges remain within the verified treatment zone.
Working distance should also be optimized. Excessive distance can reduce ion density, while an unsuitable short distance may create installation or process limitations. The appropriate distance should be selected according to the ionization system's tested working range and the machine configuration.
Engineers should also inspect the space between the ionizing bar and target. Metal guards, rollers, machine frames, brackets, and other grounded objects can intercept ions and reduce the amount reaching the charged surface.
Ionizing air bar coverage should also be reviewed whenever a production process changes. Increasing product width, increasing machine speed, changing materials, modifying machine guards, or changing ventilation conditions can affect static control performance.
Calculating ionizing air bar coverage requires more than matching ionizing bar length to product width. Effective coverage depends on target dimensions, active ionization length, edge margin, installation distance, ion density, airflow, line speed, exposure time, machine geometry, and the required static reduction.
For initial selection, engineers can use the following basic formula:
Required Active Coverage = Maximum Target Width + Left Side Margin + Right Side Margin
For moving production lines, the available treatment time should also be calculated:
Exposure Time = Effective Treatment Length ÷ Material Speed
For example, a 1000 mm wide material with a 50 mm margin on each side requires approximately 1100 mm of effective coverage. However, this value should not automatically be interpreted as the required mechanical length of the ionizing air bar. Active ionizing length, working distance, ion distribution, and actual neutralization performance must also be considered.
The most reliable approach is to combine coverage calculation, correct ionizer selection, proper installation, and actual electrostatic measurement. After installation, static voltage should be checked at multiple positions across the complete treatment area and under normal production speed and airflow conditions.
By using this method, manufacturers can design a more reliable static elimination system, improve edge coverage, reduce residual electrostatic charge, prevent dust attraction and material handling problems, and maintain more consistent production performance across the entire working area.
