Static electricity is a persistent challenge in many industrial processes, especially where plastic film, paper, electronic components, labels, packaging materials, molded parts, or other insulating materials are handled at high speed. Excessive electrostatic charge can attract dust, cause materials to stick together, interfere with feeding and positioning, increase contamination risks, and create electrostatic discharge problems. To control these issues, manufacturers commonly consider ionizing air bars and air knives as part of their static control system.
Although both devices can be used to deliver ions toward charged surfaces, they are designed for different working conditions. An ionizing air bar generally provides direct ionization across a defined width and is often installed relatively close to the target. An ionizing air knife combines ionization with a stronger and more concentrated airflow, making it especially useful when ions must travel farther, cover irregular surfaces, remove particles, or reach moving products that cannot be positioned close to the ionizer.
Choose an ionizing air bar when the primary requirement is efficient static neutralization over a relatively flat and accessible area with a suitable installation distance. Choose an ionizing air knife when the application requires stronger airflow, longer ion transport, simultaneous particle removal, treatment of irregular surfaces, or static control from a greater distance. The correct choice should be based on working distance, target geometry, production speed, airflow requirements, contamination control, compressed air consumption, installation space, and required static decay performance.
In many applications, neither technology is automatically better than the other. An ionizing air bar may provide excellent static neutralization with lower air consumption in a web processing line, while an ionizing air knife may perform better on molded products, containers, conveyor parts, or surfaces where dust must be removed at the same time as static charge.
The following guide explains the key differences between ionizing air bars and air knives, how each technology works, where each solution is most suitable, what parameters should be compared, and how manufacturers can make a practical selection based on real production requirements.
The main difference is that an ionizing air bar focuses primarily on generating and distributing positive and negative ions for static neutralization, while an ionizing air knife combines ionization with a stronger directed airflow that transports ions toward the target and can also help remove dust or particles.

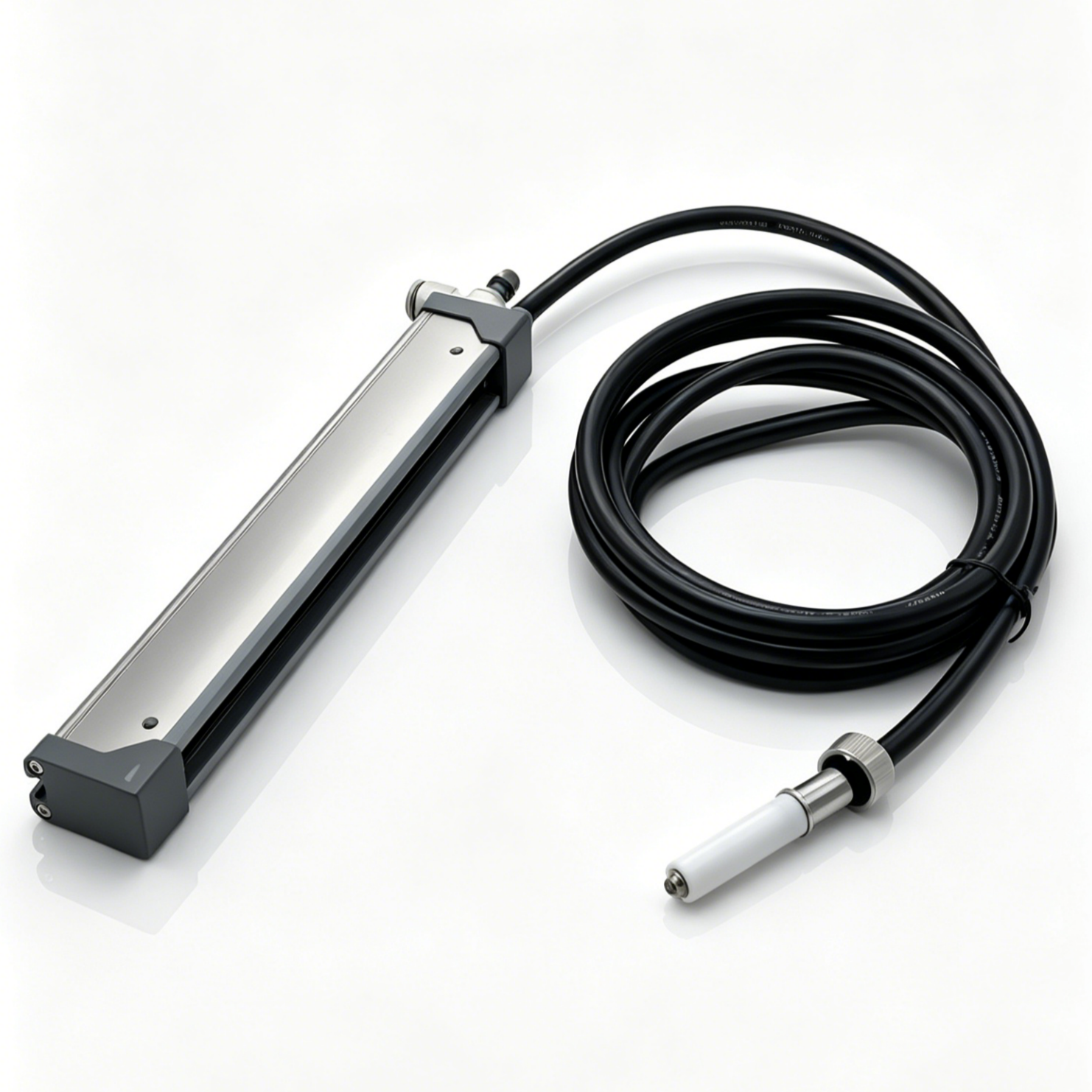

An ionizing air bar normally contains a series of emitter points distributed along a linear body. These emitter points generate positive and negative ions that neutralize electrostatic charges on nearby materials. The ionizing bar is commonly positioned across a web, conveyor, sheet, or production area so that ions can reach the charged surface evenly.
An air knife designed for static control usually creates a continuous curtain of ionized air. The airflow increases ion transport speed and allows the ionization effect to reach targets located farther from the device. This strong air stream can also disturb and remove dust, fibers, lightweight particles, and contamination that may remain attached to a surface because of static attraction.
The choice therefore depends on whether the process requires mainly static neutralization or a combination of static neutralization and high velocity air treatment. If the charged material is close to the ionizer and there is no requirement to blow particles away, an ionizing air bar may be the simpler solution. If distance, product geometry, dust removal, or rapid ion transport is important, an air knife may provide a more effective treatment method.
| Comparison Factor | Ionizing Air Bar | Ionizing Air Knife |
|---|---|---|
| Main Function | Static neutralization | Static neutralization with directed airflow |
| Airflow Requirement | Low or moderate depending on design | Usually higher |
| Working Distance | Best for relatively close treatment | Suitable for longer distance treatment |
| Dust Removal | Limited without additional airflow | Usually stronger |
| Target Geometry | Ideal for flat and accessible surfaces | Useful for irregular or three dimensional targets |
| Compressed Air Consumption | Can be low depending on configuration | Generally higher |
| Noise Level | Usually lower when little airflow is used | Can be higher because of stronger air movement |
| Typical Applications | Film, sheets, webs, conveyors, electronics | Parts cleaning, molding, containers, irregular products |
An ionizing air bar works by producing positive and negative ions along a linear emitter section and allowing those ions to travel toward a charged surface, where they neutralize the electrostatic charge.
Static electricity develops when materials gain or lose electrons through contact, separation, friction, peeling, movement, or induction. Insulating materials such as plastic film can retain these charges for relatively long periods because the charge cannot easily flow to ground.
An ionizing air bar creates a controlled region containing both positive and negative ions. If the target surface carries a negative electrostatic charge, positive ions are attracted toward it. If the target carries a positive charge, negative ions move toward the surface. As ions of opposite polarity reach the material, the net surface charge is reduced.
The linear configuration makes ionizing air bars especially effective for continuous materials. A bar can be positioned across the width of a film, sheet, conveyor, paper web, or production path so that the entire working width receives ionization. This makes the technology particularly suitable for processes where the target is predictable in position and relatively close to the ionizer.
One important benefit is that an ionizing air bar can often be installed near the exact location where static electricity is generated. For example, a bar can be positioned immediately after a film separates from a roller or immediately before a material enters a sensitive processing stage. Treating the charge near its generation point often provides better results than attempting to neutralize it much farther downstream.
An ionizing air knife creates a continuous stream or curtain of ionized air that carries positive and negative ions rapidly toward a charged surface, combining static neutralization with strong airflow.
The operating principle is similar to that of an ionizing bar because positive and negative ions are generated to neutralize static charge. The major difference is the way those ions are transported. An air knife uses airflow to move ions quickly across the gap between the ionizer and the target.
This can improve treatment in applications where the ionizer cannot be mounted close to the product. Strong airflow increases the movement of ions and can help overcome some of the natural losses caused by distance, surrounding air movement, or complex product geometry.
The airflow can also provide a cleaning effect. Static electricity often causes dust to adhere strongly to plastic parts, film, containers, molded products, and other insulating surfaces. Simply blowing ordinary air at the surface may not remove this contamination effectively because the electrostatic attraction remains. By neutralizing the charge while delivering airflow, an ionizing air knife can reduce the electrostatic attraction and physically move the released particles away.
The stronger airflow also means that air knives require additional consideration of energy consumption, noise, process disturbance, and air pressure. Lightweight products or thin films can sometimes be moved by excessive airflow, so the air volume and pressure should be adjusted according to the application.
Choose an ionizing air bar when the primary objective is static neutralization, the target is relatively flat and accessible, the device can be mounted within an effective working distance, and strong cleaning airflow is not required.
Ionizing air bars are particularly effective in processes involving continuous materials such as plastic film, paper, foil, laminates, printed webs, labels, sheets, and other wide materials. Because emitter points are distributed along the length of the bar, the ionization zone can extend across the complete material width.
They are also suitable where the charged surface is relatively close to the ionizer. A shorter travel distance generally allows more useful ions to reach the material before recombination or interception by surrounding structures. This can provide faster and more efficient charge neutralization without requiring large volumes of compressed air.
Another reason to select an ionizing air bar is process stability. Strong airflow may not be desirable when treating lightweight film, thin labels, delicate components, or accurately positioned materials. In these situations, using an ionizing bar with controlled or minimal airflow can reduce static electricity without disturbing product movement.
An ionizing air bar is often the preferred solution when static electricity is the dominant problem and dust removal is secondary. It can provide a focused and energy efficient approach to static control without adding unnecessary airflow to the production process.
Choose an ionizing air knife when the process requires strong airflow to transport ions over a greater distance, remove dust, clean product surfaces, or reach complex and irregular objects.
An air knife becomes particularly valuable when physical installation constraints prevent the ionizer from being positioned close to the charged surface. Machine guards, moving mechanisms, robotic systems, product shapes, or safety requirements may create a large gap between the ionizer and the target.
In these situations, strong directional airflow helps carry ions toward the target. This can improve ion transport and reduce the time required for ions to reach moving surfaces. The air curtain also allows treatment to cover products passing through a defined zone on a conveyor.
Particle removal is another major reason for using an ionizing air knife. In plastic molding, packaging, coating, printing, automotive component production, and other processes, dust can cause quality defects. Neutralizing static helps release the particles, while the air stream carries them away from the surface.
If a production problem involves both electrostatic attraction and visible contamination, an ionizing air knife may address both problems simultaneously, reducing the need for separate static neutralization and air cleaning systems.
Ionizing air bars are generally more suitable for relatively close and predictable treatment distances, while ionizing air knives are often preferred when the target is farther away or when a stronger ionized air curtain is needed to maintain effective coverage.
Working distance is one of the most important selection parameters. Ions become less concentrated as they move farther away from their source. Positive and negative ions can also recombine, and surrounding grounded structures can attract ions before they reach the charged material.
When the target is close to the ionizer, an ionizing air bar can provide efficient neutralization because the ions have only a short distance to travel. This is often the situation in film processing, paper converting, electronics assembly, and web handling systems.
When the target is farther away, relying only on natural ion movement may produce slower static decay. An air knife provides directional airflow that carries ions toward the target, making longer working distances more practical in many applications.
| Condition | Ionizing Air Bar | Ionizing Air Knife |
|---|---|---|
| Short Working Distance | Highly suitable | Suitable but may provide unnecessary airflow |
| Medium Working Distance | Suitable depending on ion output | Highly suitable |
| Long Working Distance | Performance must be carefully verified | Often more practical |
| Flat Wide Surface | Highly suitable | Suitable |
| Irregular Surface | May require multiple positions | Often more suitable |
Coverage should also be considered across the complete target width. An ionizing air bar should have sufficient active ionization length to cover the material, while an air knife should create a sufficiently wide and uniform air curtain. Edge regions should always be checked because poor treatment at the ends of the ionizer can leave residual static.
An ionizing air knife generally provides stronger airflow and faster ion transport, while an ionizing air bar can provide effective static decay with less airflow when installed close enough to the charged surface.
Static decay performance depends on how quickly sufficient opposite polarity ions reach a charged object. Airflow influences this process because moving air transports ions faster than natural diffusion alone. This is why strong airflow can be advantageous in applications where treatment time is limited.
For high speed conveyors or rapidly moving products, the material may remain in the ionization area for only a fraction of a second. In such conditions, increased ion transport may help achieve meaningful neutralization before the product leaves the treatment zone.
However, stronger airflow should not automatically be interpreted as better static control. If the bar is already positioned close to the target, additional airflow may provide little benefit and could disturb lightweight materials. The most suitable configuration is the one that achieves the required static decay without introducing unnecessary process problems.
Static decay should ideally be measured under actual operating conditions. A device that performs well in a stationary test may behave differently when the production line is moving at maximum speed and all ventilation, exhaust, and cooling systems are operating.
Ionizing air bars often require simpler installation and can operate with lower air consumption, while ionizing air knives may require greater compressed air capacity, airflow control, additional piping, and more attention to noise and energy use.
Installation cost is not limited to the purchase of the ionizer itself. Engineers should also consider electrical connections, air supply, mounting structures, maintenance access, compressed air quality, piping, pressure regulation, and available machine space.
An ionizing air bar used primarily for static neutralization may require little or no high volume compressed air depending on its design. This can make it attractive for continuous processes where energy efficiency is important. Lower airflow can also reduce production noise and avoid disturbing lightweight materials.
An air knife uses stronger airflow to create its treatment curtain. This can provide significant performance advantages, but the air supply becomes an important operating cost. Compressed air is generally an expensive industrial utility, so systems using continuous high airflow should be evaluated carefully for efficiency.
| Factor | Ionizing Air Bar | Ionizing Air Knife |
|---|---|---|
| Mechanical Installation | Generally simple | May require additional air connections |
| Compressed Air Demand | Low to moderate depending on design | Generally higher |
| Air Piping | May be limited | Usually important |
| Noise | Often lower | Can be higher |
| Energy Consumption | Often lower when little air is used | May be higher because of airflow demand |
| Cleaning Capability | Limited without strong air | Strong |
| Maintenance Access | Usually straightforward | Should include emitter and air system access |
For long term production, total operating cost should therefore be considered along with initial equipment cost. A solution that provides more airflow than the process actually requires may increase utility expenses without improving product quality.
Ionizing air bars are usually better for continuous flat materials and close range static control, while ionizing air knives are generally better for surface cleaning, irregular products, long distance treatment, and applications requiring strong ion transport.
Different industries generate static electricity in different ways. Plastic film develops charge during rolling, unwinding, friction, and separation. Electronics manufacturing is concerned with electrostatic discharge damage to sensitive devices. Molded plastic components may attract dust because of high surface charge. Each situation requires a different treatment strategy.
Film processing is a good example of an application where ionizing air bars are often suitable. The web follows a predictable path and the bar can normally be mounted directly across the material. Strong airflow may not be desirable because it can cause thin film to vibrate or move.
For molded components moving along a conveyor, an air knife may be more practical. The objects may have irregular shapes and may carry dust on several surfaces. A curtain of ionized air can neutralize charge while simultaneously removing particles.
| Application | Generally Preferred Solution | Main Reason |
|---|---|---|
| Plastic Film | Ionizing Air Bar | Wide flat material and close installation |
| Paper Web | Ionizing Air Bar | Continuous linear coverage |
| Printing Line | Ionizing Air Bar | Controlled static neutralization |
| Electronics Assembly | Ionizing Air Bar | Controlled airflow and localized treatment |
| Molded Plastic Parts | Ionizing Air Knife | Irregular surfaces and dust attraction |
| Container Cleaning | Ionizing Air Knife | Static neutralization and particle removal |
| Surface Preparation | Ionizing Air Knife | Cleaning before processing |
| Wide Conveyor | Depends on product geometry | Both width and airflow must be considered |
| Long Distance Treatment | Ionizing Air Knife | Stronger ion transport |
These recommendations are general guidelines rather than universal rules. Final selection should always be based on actual static measurements, equipment geometry, material speed, working distance, and process requirements.
Before choosing between an ionizing air bar and an air knife, compare working distance, treatment width, static decay time, ion balance, airflow, air consumption, pressure requirement, installation space, environmental conditions, maintenance requirements, and production speed.
Working distance should be evaluated first because it determines whether ions can reach the target efficiently. If the ionizer can be positioned close to the surface, an ionizing air bar may be sufficient. If the installation point is much farther away, an air knife may offer better ion transport.
Treatment width is equally important. The active ionization section or air curtain should cover the complete target, including positioning variation and edge allowance. A system that treats only the center of the material may leave significant residual charge near the edges.
Static decay time is another essential performance parameter. The device must neutralize the charge within the available exposure time. This is especially important on high speed production lines where products move rapidly through the ionization zone.
A complete comparison of these parameters provides a stronger basis for equipment selection than simply comparing bar length or air pressure.
The most common mistakes are choosing only according to purchase price, assuming stronger airflow is always better, ignoring working distance, overlooking compressed air cost, failing to consider product movement, and selecting equipment without measuring actual static performance.
One common mistake is selecting an air knife simply because it appears more powerful. Strong airflow is useful in many applications, but it can also create unwanted movement, noise, and energy consumption. If the target is close and only static neutralization is required, an ionizing air bar may be more appropriate.
The opposite mistake is choosing an ionizing bar for a target that is too far away. If the ions cannot travel efficiently across the working distance, static decay may be too slow. Moving the bar closer may solve the problem, but if machine geometry prevents this, an ionizing air knife may be the better option.
Another frequent mistake is ignoring the actual static generation location. Static should ideally be neutralized as close as practical to the point where it is generated. Installing a high performance ionizer far downstream may be less effective if the charge has already attracted contamination or interfered with material handling.
| Selection Mistake | Potential Problem | Recommended Solution |
|---|---|---|
| Selecting only by price | Incorrect equipment for the process | Compare total performance requirements |
| Using excessive airflow | Product movement and higher energy use | Use only the airflow required |
| Ignoring working distance | Slow static decay | Evaluate ion transport distance |
| Ignoring target width | Incomplete edge treatment | Calculate total required coverage |
| Ignoring air cost | Higher operating expense | Evaluate long term air consumption |
| Ignoring production speed | Insufficient treatment time | Verify decay at maximum speed |
| Not measuring static | Performance cannot be verified | Measure before and after treatment |
A practical selection process should therefore focus on solving the actual electrostatic problem rather than choosing the device with the highest apparent power or airflow.
Make the final selection by defining the static problem, measuring the treatment area, checking working distance, determining whether cleaning airflow is required, evaluating production speed, comparing operating costs, and verifying expected static decay performance under real production conditions.
The first step is to identify whether the primary problem is static electricity, dust contamination, or both. If the main objective is simply to neutralize static across a flat accessible surface, an ionizing air bar is often the logical starting point. If dust must also be physically removed, an air knife becomes more attractive.
Next, evaluate the installation distance and machine geometry. Determine whether the ionizer can be mounted close enough to the target. If mechanical limitations create a large gap, stronger airflow may be needed to transport the ions effectively.
Finally, consider the entire operating cost. Compressed air demand, electrical consumption, maintenance, noise, installation complexity, and cleaning frequency all influence the long term value of the system.
If the application has a flat target, short working distance, predictable material path, and no major cleaning requirement, an ionizing air bar will often provide the more efficient solution.
If the process involves a longer working distance, irregular product geometry, dust contamination, recessed areas, or the need to move particles away from the product, an ionizing air knife will often provide greater flexibility.
The choice between an ionizing air bar and an air knife depends primarily on working distance, target geometry, required airflow, dust removal requirements, treatment width, production speed, static decay performance, installation conditions, and operating cost.
Ionizing air bars are particularly suitable for continuous and relatively flat materials such as plastic film, paper, labels, electronic assemblies, and sheets. They can provide effective static neutralization across a defined width while minimizing unnecessary airflow. This can make them attractive for applications where the ionizer can be installed reasonably close to the target and product movement must remain stable.
Ionizing air knives are especially useful when ions must be transported across a greater distance or when electrostatic neutralization must be combined with surface cleaning. Their stronger airflow can help neutralize irregular parts, remove dust, reach complex surfaces, and create a continuous ionized air curtain across products moving on conveyors.
Neither technology should be selected only by physical size, airflow strength, or initial purchase cost. The correct solution should be based on the complete production process, including where static is generated, how much charge is present, how fast the product moves, how far the ionizer is from the surface, whether the product can tolerate strong airflow, and whether contamination must also be removed.
A practical decision can be summarized as follows: use an ionizing air bar when efficient direct static neutralization is the main requirement, and use an ionizing air knife when stronger ion transport and surface cleaning are also required.
After installation, the system should be evaluated under normal operating conditions. Electrostatic voltage should be measured before and after treatment, and the measurements should be repeated across the complete target area at normal production speed. This verification confirms whether the selected ionizer provides sufficient coverage, ion balance, and decay performance.
By comparing ionizing air bars and air knives according to real process requirements rather than only equipment appearance, manufacturers can design a more reliable static control system, reduce dust attraction, improve material handling, protect sensitive products, lower unnecessary energy consumption, and achieve more consistent production quality.
