Static electricity is a common but often invisible production problem in electronics manufacturing, semiconductor processing, printing, packaging, plastics converting, textile production, coating, pharmaceutical operations, and many other industrial environments. A charged surface can attract dust, cause materials to stick together, interrupt feeding, create operator shocks, damage sensitive components, or produce an uncontrolled electrostatic discharge.
Because static electricity cannot be evaluated reliably through visual inspection alone, manufacturers need a repeatable measurement method. Static voltage measurements help identify where charge is generated, determine how strong it is, evaluate the performance of an ionizing air bar, and confirm whether a process remains within its electrostatic control requirements.
To measure static voltage, use a suitable calibrated noncontact electrostatic field meter, establish the required measurement distance, aim the sensing area directly at the charged surface, maintain consistent geometry, record the voltage polarity and magnitude, and repeat the measurement at relevant points before and after static neutralization.
Accurate measurement involves more than pointing a meter at a material. The reading can be affected by distance, target size, operator position, nearby grounded metal, material movement, humidity, airflow, and the electrical condition of the instrument. If these variables are not controlled, two measurements of the same process may produce very different results.
This guide explains how static voltage is measured, which instruments are suitable, how to prepare the production area, how to perform a repeatable test, how to interpret results, and how to avoid common measurement errors.
This guide covers the complete industrial static voltage measurement process, from selecting the correct instrument to interpreting results and documenting corrective actions.
The first sections explain what static voltage represents and why it should be measured. They also compare common instruments used for surface voltage, electrostatic field, and ionizer performance testing.
The middle sections describe preparation, distance control, target size, measurement procedure, moving material, environmental influences, and safety. These factors determine whether the measured value accurately represents the process.
The final sections explain how to interpret readings, evaluate ionizing air bar performance, troubleshoot inconsistent results, define test frequency, and create useful measurement records.
Static voltage is the electrical potential associated with an accumulation or imbalance of electrical charge on an object, material, or surface.
Static charge commonly develops when two materials contact and then separate. During this process, electrons may transfer from one surface to the other. One material becomes positively charged because it has lost electrons, while the other becomes negatively charged because it has gained electrons.
Friction can increase contact and separation, but it is not the only source of static electricity. Film unwinding, sheet separation, label peeling, conveyor movement, protective liner removal, liquid flow, powder handling, and contact with rollers can all generate significant charge.
Conductive objects can normally release charge when they are connected to ground. Insulating materials such as plastic film, paper with certain coatings, foam, textiles, and composite products can retain localized charge for longer periods. A single sheet may therefore contain positive, negative, and relatively neutral areas at the same time.
A static voltage reading describes the electrical condition detected under a specific measurement geometry. It should not be interpreted independently of distance, target size, and surrounding objects.
Static voltage may range from a relatively low value near sensitive electronic components to many thousands of volts on fast moving insulating materials. The level that becomes problematic depends on the application, product sensitivity, available discharge energy, and process environment.
Static voltage measurement is important because it identifies charge sources, quantifies process risk, verifies static control performance, supports troubleshooting, and provides objective evidence for quality and safety decisions.
Static electricity is invisible until it creates an observable effect. Operators may notice dust attraction, material sticking, shocks, or electrical discharge, but these symptoms do not reveal where the charge was generated or how strong it is. Measurement turns an invisible condition into useful process data.
By taking readings at several points along a production line, technicians can identify where voltage increases. This often reveals the main charge generation event, such as film separating from a roll, a sheet leaving a stack, or a product passing over a particular roller.

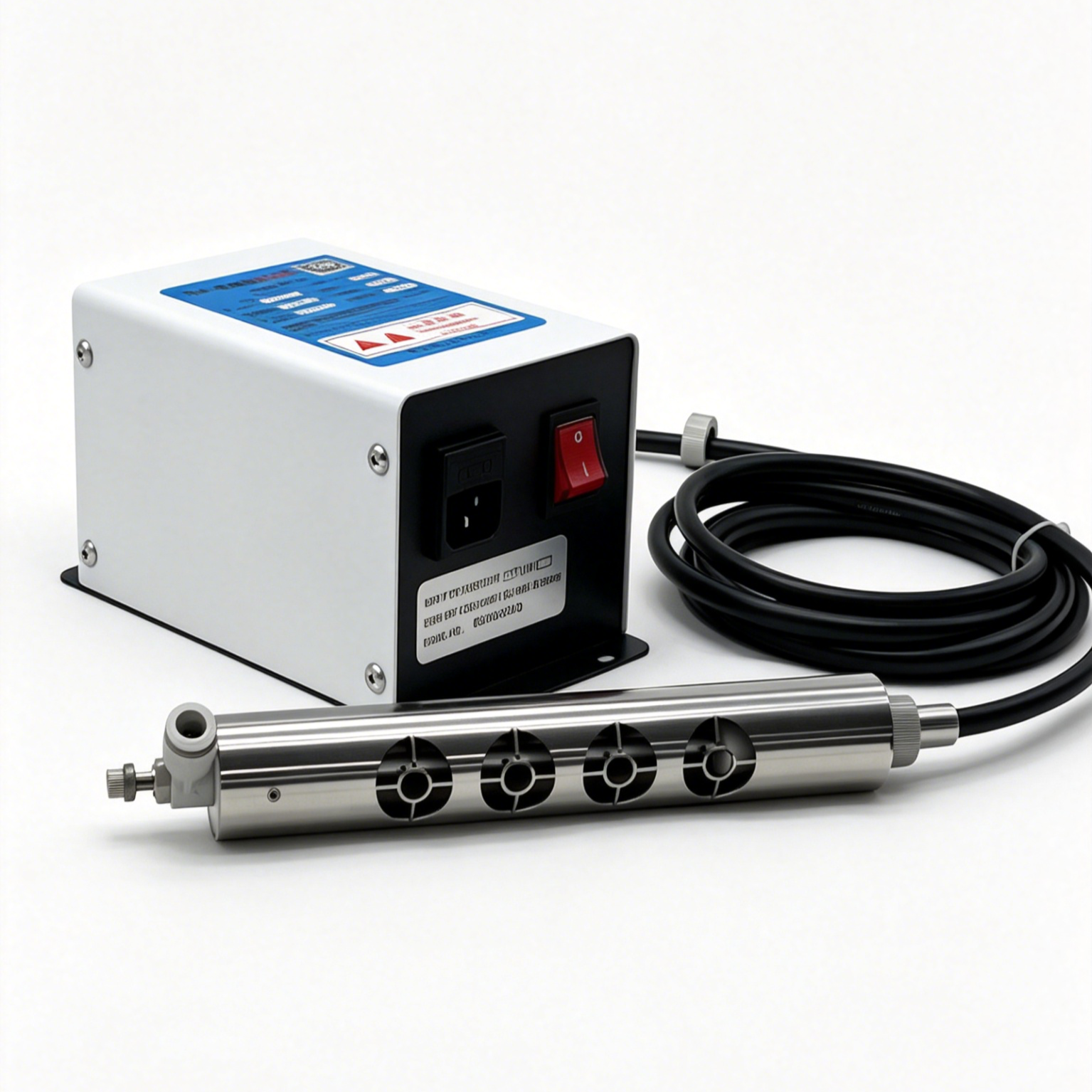

Measurements before and after an ionizing air bar show whether static neutralization is effective. If the voltage falls substantially immediately after the treatment area but rises again downstream, the ionizer may be working correctly while the process generates a new charge later.
Measurement results can also support equipment selection. Knowing the incoming voltage, production speed, material width, and required residual charge helps determine the appropriate ionizer type, active length, mounting distance, and treatment location.
A calibrated noncontact electrostatic field meter is normally used to estimate static voltage on industrial surfaces, while a charged plate monitor is used to evaluate ionizer decay time and ion balance.
A noncontact electrostatic field meter senses the electrical field produced by a charged object. The instrument converts the detected field into a voltage estimate based on a defined measurement distance. It does not need to touch the charged surface.
Noncontact measurement is especially useful for insulating materials because physical contact may change or remove the charge. It is also suitable for moving film, paper, textiles, molded plastic parts, and other products that cannot be connected directly to a measuring circuit.
A charged plate monitor serves a different purpose. It uses an isolated conductive plate to evaluate how quickly an ionizer neutralizes a known charge and whether positive and negative ion output is balanced. Although both instruments measure voltage related values, they should not be treated as interchangeable.
| Instrument | Primary Purpose | Typical Application |
|---|---|---|
| Electrostatic field meter | Estimates static voltage or field strength | Measuring charge on products and materials |
| Charged plate monitor | Measures static decay and ion balance | Verifying ionizer performance |
| Contact voltmeter | Measures electrical potential through contact | Special controlled measurements on suitable objects |
| Continuous static sensor | Monitors process charge over time | Automated production control and trend monitoring |
The selected instrument should have a measurement range, resolution, response time, accuracy, and environmental rating suitable for the application. It should also have valid calibration status according to the organization’s quality system.
Prepare by defining the measurement objective, selecting suitable test points, checking the instrument, confirming safe access, stabilizing production conditions, and removing unnecessary influences from the measurement area.
Begin by deciding what the measurement must determine. The objective may be to locate a charge source, evaluate an ionizer, compare materials, investigate a defect, or verify process compliance. A clear objective helps determine where and when readings should be taken.
Inspect the instrument before use. Confirm its calibration status, battery condition, sensing surface cleanliness, display operation, zero function, and distance indicators. A dirty sensing area or weak power supply can produce unstable or inaccurate results.
Review the machine and process hazards. Measurements near moving webs, rollers, conveyors, cutting systems, high voltage equipment, or robotic machinery require appropriate safe access. The operator should never enter a hazardous area only to obtain a closer reading.
Production conditions should be allowed to stabilize before readings are recorded. Starting, stopping, accelerating, and changing material rolls may create temporary charge conditions that do not represent normal operation.
Measurement distance is critical because a noncontact field meter converts the detected electrical field into a voltage estimate using a specified distance between the sensor and the charged surface.
If the instrument is held closer than the specified distance, the displayed value may be higher than the actual value expected under the instrument’s calibration geometry. If it is held farther away, the reading may be lower or may include electrical influence from a larger surrounding area.
Many field meters provide optical or visual distance guides. The operator should use these guides according to the instrument procedure. Measuring distance by eye without a reference often creates significant variation between technicians.
The sensor should normally face the target directly. Tilting the instrument changes the effective distance and sensing geometry. For repeatable results, the angle should remain consistent during every measurement.
| Condition | Possible Effect | Correct Practice |
|---|---|---|
| Meter too close | Reading may appear higher than expected | Move to the specified distance |
| Meter too far away | Reading may appear lower or include surrounding fields | Use the defined measurement distance |
| Distance changes during reading | Display becomes unstable | Use a stable support or steady hand position |
| Meter is tilted | Measurement geometry changes | Face the sensor directly toward the target |
| Material moves toward and away from sensor | Voltage appears to fluctuate | Control material position or record the range |
Distance must be recorded with the voltage value. A statement such as “the film measured 10,000 volts” is incomplete without the measurement distance, instrument type, material condition, and production state.
Check and zero the meter, position it at the required distance, aim the sensor directly at the target, allow the reading to stabilize, record polarity and magnitude, and repeat the test at all defined process locations.
Switch on the instrument in an area where it can be zeroed correctly. Follow the applicable zeroing procedure. If the reading cannot be returned to zero, check for nearby charged objects, instrument contamination, incorrect grounding, or an instrument problem.
Move the meter to the first measurement location while maintaining safe access. Position the sensor at the required distance from the product. Keep your hands, clothing, tools, and body away from the sensing area as much as practical.
Aim the sensor directly at the charged surface and allow the displayed value to stabilize. Record both the polarity and magnitude. A positive and negative reading of the same numerical size describe different electrical conditions and should not be recorded without the polarity sign.
Repeatability should be confirmed by taking more than one reading under the same conditions. Large differences may indicate changing material charge, unstable geometry, process variation, operator influence, or an instrument issue.
Measure moving materials by fixing the instrument at a safe and consistent distance, using a suitable response setting, recording the normal range, and keeping production speed and material position stable.
Moving film, paper, textiles, labels, and webs may carry different charges across their width and length. A single brief observation may not represent the complete process. The operator should monitor the reading long enough to identify the normal level and any repeated peaks.
A stable instrument mount can improve repeatability and safety. It prevents hand movement from changing the measurement distance and keeps personnel away from moving machinery. The mount should be nonintrusive and should not significantly alter the local electrical field.
Material vibration and web flutter can change the distance between the surface and the sensor. If movement cannot be controlled, record the observed voltage range rather than selecting only the highest or lowest value.
| Factor | Possible Measurement Effect | Recommended Control |
|---|---|---|
| Production speed | Changes charge generation | Record and maintain normal speed |
| Web flutter | Changes sensor distance | Stabilize the material or record a range |
| Width variation | Creates different charge zones | Measure the center and both edges |
| Roll changes | May change material and charge conditions | Record the roll and material identification |
| Instrument response | May miss rapid voltage changes | Select a suitable response mode |
| Operator movement | Changes distance and surrounding field | Use a fixed support when practical |
Measurements should be taken during normal operation and, where useful, at several production speeds. If static voltage rises sharply at high speed, the process may generate charge faster than the installed ionizer can neutralize it.
Static voltage should be measured before and after suspected charge generation points, immediately before and after ionization, and at the process location where static causes a quality or handling problem.
Measuring at only one location cannot reveal how charge develops through the process. A measurement map should follow the material from entry to exit and include every major contact, separation, friction, peeling, and winding event.
Before and after readings around an ionizing air bar show the immediate reduction in charge. A third downstream reading determines whether the material becomes charged again after additional roller contact or separation.
For wide sheets and webs, measure at the left side, center, and right side. Static charge may be concentrated at edges because of trimming, tension, alignment, or differences in roller contact.
| Measurement Location | Purpose | Information Obtained |
|---|---|---|
| Before material separation | Establishes the incoming condition | Baseline charge level |
| After material separation | Evaluates charge generation | Voltage created by separation |
| Before an ionizing air bar | Measures the incoming charge | Neutralization challenge |
| Immediately after ionization | Measures treatment effectiveness | Immediate residual voltage |
| Farther downstream | Checks for new charge generation | Process charge after treatment |
| Critical assembly area | Evaluates product risk | Voltage at the point of concern |
| Left, center, and right positions | Checks full width uniformity | Localized charge variation |
Measurement points should be marked or documented so future technicians can repeat the test. Consistent locations make trend analysis and before and after comparisons much more meaningful.
Interpret readings by considering polarity, magnitude, distance, target size, process location, material behavior, production conditions, and the applicable static control limit.
A positive reading indicates a net positive charge relative to the measurement reference, while a negative reading indicates a net negative charge. The magnitude shows the approximate strength of the electrical potential under the defined geometry.
A high voltage reading does not by itself describe the available discharge energy or the complete electrostatic risk. Small objects may have high voltage but limited stored energy, while larger conductive objects can store more energy. Product sensitivity and process conditions must be considered.
The most useful interpretation often comes from comparison. Readings taken before and after separation show charge generation. Readings taken before and after ionization show neutralization. Measurements taken over time show whether performance is stable.
| Measurement Pattern | Possible Meaning | Recommended Investigation |
|---|---|---|
| Low before separation and high after separation | Separation is generating charge | Treat close to the separation point |
| High before ionization and low after ionization | Ionizer is reducing charge effectively | Continue routine performance checks |
| High before and high after ionization | Ionizer performance may be inadequate | Check distance, emitters, airflow, and coverage |
| Low after ionization but high downstream | New charge is generated later | Identify the downstream charge source |
| Center is low but edges are high | Treatment coverage may be incomplete | Inspect bar length, alignment, and edge emitters |
| Polarity changes across the surface | Charge distribution is nonuniform | Create a detailed measurement map |
Acceptance limits should be defined according to process sensitivity and risk. The same voltage may be acceptable for general material handling but unsuitable near sensitive electronic components or critical powder processes.
Evaluate an ionizing air bar by comparing static voltage before treatment, immediately after treatment, and at the protected downstream process location under normal production conditions.
The first measurement establishes the incoming charge. Without this value, the technician cannot determine the challenge presented to the ionizer. A relatively low residual voltage may represent excellent performance when the incoming charge is extremely high.
The second measurement shows the immediate effect of the ionizing air bar. It should be taken at a consistent point after treatment, allowing for the material movement and safe measurement access.
The downstream measurement confirms whether the process remains controlled where protection is needed. If voltage rises again, the material may pass through another charge generation event after leaving the ionized area.
Static voltage measurement should be combined with charged plate testing when detailed ionizer verification is required. Product voltage shows the result on the actual material, while decay time and ion balance provide controlled measurements of ionizer behavior.
The most common errors are using the wrong distance, measuring a target that is too small, changing the meter angle, allowing operator influence, ignoring nearby grounded objects, and failing to record production conditions.
Distance variation is one of the largest sources of error. If two technicians hold the meter at different distances, their readings may not be comparable even when the material charge is unchanged.
Target size also matters. The instrument senses an area rather than an infinitely small point. If the charged object is smaller than the required sensing area, nearby grounded structures may reduce the reading.
The operator’s body, clothing, tools, and movement can influence the electrical field. Holding the meter with the other hand close to the sensor or leaning over the target may change the displayed value.
| Measurement Error | Effect on Result | Correction |
|---|---|---|
| Incorrect distance | Reading may be too high or too low | Use the specified distance guide |
| Changing meter angle | Unstable sensing geometry | Face the sensor directly toward the target |
| Target too small | Surrounding objects influence the reading | Follow the minimum target size requirement |
| Nearby grounded metal | Field is distorted | Document geometry and measure consistently |
| Dirty sensor | Reading may drift or become unstable | Clean according to the instrument procedure |
| Unrecorded speed change | Charge generation changes | Record and control production speed |
| Ignoring polarity | Important electrical information is lost | Record both polarity and magnitude |
| Single brief reading | Temporary peaks may be missed | Observe and record a representative range |
Measurement procedures should be written clearly and technicians should receive practical training. Consistency between operators is essential when readings are used for quality acceptance or long term trend analysis.
Humidity, temperature, airflow, dust, nearby electrical equipment, and changing production conditions can affect static generation and the stability of measured voltage.
Low humidity often allows charge to remain on insulating surfaces for longer periods. A process may therefore show much higher voltage during dry conditions than during humid weather. Measurements should include humidity when seasonal changes are significant.
Airflow can move charged lightweight materials and change the measurement distance. It can also affect ion transport from an air bar. Extraction systems, cooling fans, air knives, and ventilation should remain in their normal operating state when production performance is being evaluated.
Dust and surface contamination can change electrical behavior. A clean material may generate or retain charge differently from a material coated with moisture, oil, or process residue. The product condition should be documented.
| Variable | Possible Effect | Recommended Action |
|---|---|---|
| Low humidity | Charge persists longer | Record humidity and test under demanding conditions |
| High humidity | Some surfaces dissipate charge more quickly | Do not assume static risk has disappeared |
| Strong airflow | Moves material and redirects ions | Test with normal airflow operating |
| Temperature variation | Changes process and material behavior | Record temperature when relevant |
| Surface contamination | Changes charge retention | Document material condition |
| Electrical equipment | May create field interference | Use consistent measurement geometry |
Environmental data is especially useful when an intermittent problem cannot be reproduced. Comparing voltage records with humidity, temperature, material batch, and production speed may reveal a clear pattern.
Static voltage must be measured from a safe position using a noncontact method, without entering hazardous machine areas, touching charged conductors, or approaching flammable and explosive environments without an approved procedure.
A high voltage reading does not automatically mean that touching the object is safe because static current is normally low. Stored energy depends on capacitance and the complete electrical condition. Large conductive objects can store more energy than small insulating surfaces.
Measurement near moving machinery requires particular care. Operators should keep the instrument, hands, clothing, and supports away from rollers, webs, conveyors, cutters, robots, and automated mechanisms.
Static electricity can ignite certain flammable vapors, gases, powders, and dust clouds. Measurement work in such environments requires specialized risk assessment, suitable equipment, and approved operating procedures. General measurement instruments should not be used unless they are suitable for the classified environment.
Safety requirements always take priority over obtaining a measurement at the ideal location. If a point cannot be reached safely during operation, a fixed sensor, protected mounting arrangement, or alternative test method should be considered.
Static voltage should be measured during commissioning, after process changes, following ionizer maintenance, at scheduled intervals, and whenever static related defects or abnormal material behavior appear.
New installations benefit from frequent measurements while the process baseline is being established. This helps identify normal variation associated with production speed, material type, humidity, and emitter contamination.
Critical electronics or clean production processes may require more frequent verification than general material handling applications. The interval should reflect the sensitivity of the product and the consequences of inadequate static control.
Maintenance activities should trigger additional measurements. Cleaning emitters, changing air pressure, moving a bar, replacing a cable, or adjusting machine airflow can change the voltage observed on the product.
Historical measurements should be reviewed to determine whether the frequency remains suitable. If voltage approaches the limit before each scheduled test, the interval should be shortened or the underlying process should be improved.
Records should include the voltage magnitude, polarity, distance, target location, material, production speed, environmental conditions, instrument identification, ionizer status, acceptance limit, and corrective action.
A voltage value without context cannot be reproduced or compared reliably. Future technicians need to know exactly where the sensor was positioned and how the process was operating.
Each measurement location should have a clear name or reference. For wide material, separate values should be recorded for the left side, center, and right side rather than combining them into a single average.
Before and after values are particularly useful when evaluating ionization. They show both the incoming challenge and the residual voltage. A downstream value helps determine whether new charge is generated after treatment.
| Record Field | Information Required |
|---|---|
| Date and time | When the measurement was completed |
| Technician | Person responsible for the test |
| Instrument | Identification and calibration status |
| Production line | Machine and process location |
| Material | Type, width, and batch when relevant |
| Measurement point | Exact process and width location |
| Distance | Sensor distance from the target |
| Voltage | Magnitude and polarity |
| Production condition | Speed, tension, and machine status |
| Ionizer condition | Power, airflow, distance, and settings |
| Environment | Humidity and temperature when relevant |
| Acceptance decision | Acceptable or requiring action |
| Corrective action | Cleaning, adjustment, repair, or further testing |
Trend charts can show gradual increases in static voltage before defects become visible. They can also demonstrate whether maintenance intervals and ionizer settings remain effective over time.
Accurate static voltage measurement requires a suitable calibrated instrument, correct distance, stable geometry, safe access, representative process conditions, multiple test locations, and complete documentation.
A noncontact electrostatic field meter helps manufacturers identify charge generation sources and determine how static changes through a production process. Measurements should include both polarity and magnitude because positive and negative charges may behave differently.
Distance, target size, meter angle, operator position, nearby grounded objects, material movement, humidity, and airflow can all influence the reading. These variables should be controlled or recorded so that results remain repeatable.
Measurements before and after an ionizing air bar provide direct evidence of static reduction on the actual material. Charged plate testing can then provide additional information about decay time and ion balance.
By using a structured measurement procedure, industrial users can detect static problems earlier, optimize ionizer installation, reduce dust attraction and material handling failures, protect sensitive products, and maintain more reliable electrostatic control throughout production.
