Ion balance is one of the most important performance indicators for ionizing air bars, ionizing blowers, ionizing nozzles, and other industrial static neutralization equipment. It shows whether an ionizer supplies positive and negative ions in a sufficiently balanced manner. If one polarity is produced in excess, a surface may retain a residual voltage even after static neutralization.
Reliable ion balance is especially important in electronics manufacturing, semiconductor processing, precision assembly, cleanrooms, medical device production, printing, coating, and other applications where residual charge can attract particles, disturb lightweight materials, or expose sensitive components to electrostatic discharge risks.
To test ion balance, position a calibrated charged plate monitor at a defined distance from the operating ionizer, allow the reading to stabilize, record the residual plate voltage, repeat the measurement at all important treatment positions, and compare the results with the approved process limits.
Testing requires more than placing an instrument near an ionizing air bar and reading a voltage. Working distance, airflow, plate position, humidity, nearby grounded objects, production conditions, instrument condition, and emitter cleanliness can all influence the result. These variables must be controlled or recorded if measurements are to be repeatable.
This guide explains what ion balance means, which instruments are required, how to prepare the test area, how to conduct the measurement, how to interpret results, and how to troubleshoot unacceptable or unstable readings.
This guide covers the complete ion balance testing process, including measurement principles, instrument preparation, test setup, operating procedure, result interpretation, troubleshooting, and documentation.
The first sections explain the meaning and importance of ion balance. Understanding the measurement principle helps technicians distinguish between ion balance, static voltage, and static decay time.
The middle sections describe the instruments, test conditions, measurement positions, and practical testing sequence. They also explain how airflow and environmental conditions can affect results.
The final sections provide guidance for interpreting measured values, investigating unstable balance, setting test frequencies, and creating consistent records for quality control and preventive maintenance.
Ion balance is the residual voltage measured on an isolated conductive plate after it has been exposed to the positive and negative ions produced by an ionizer.

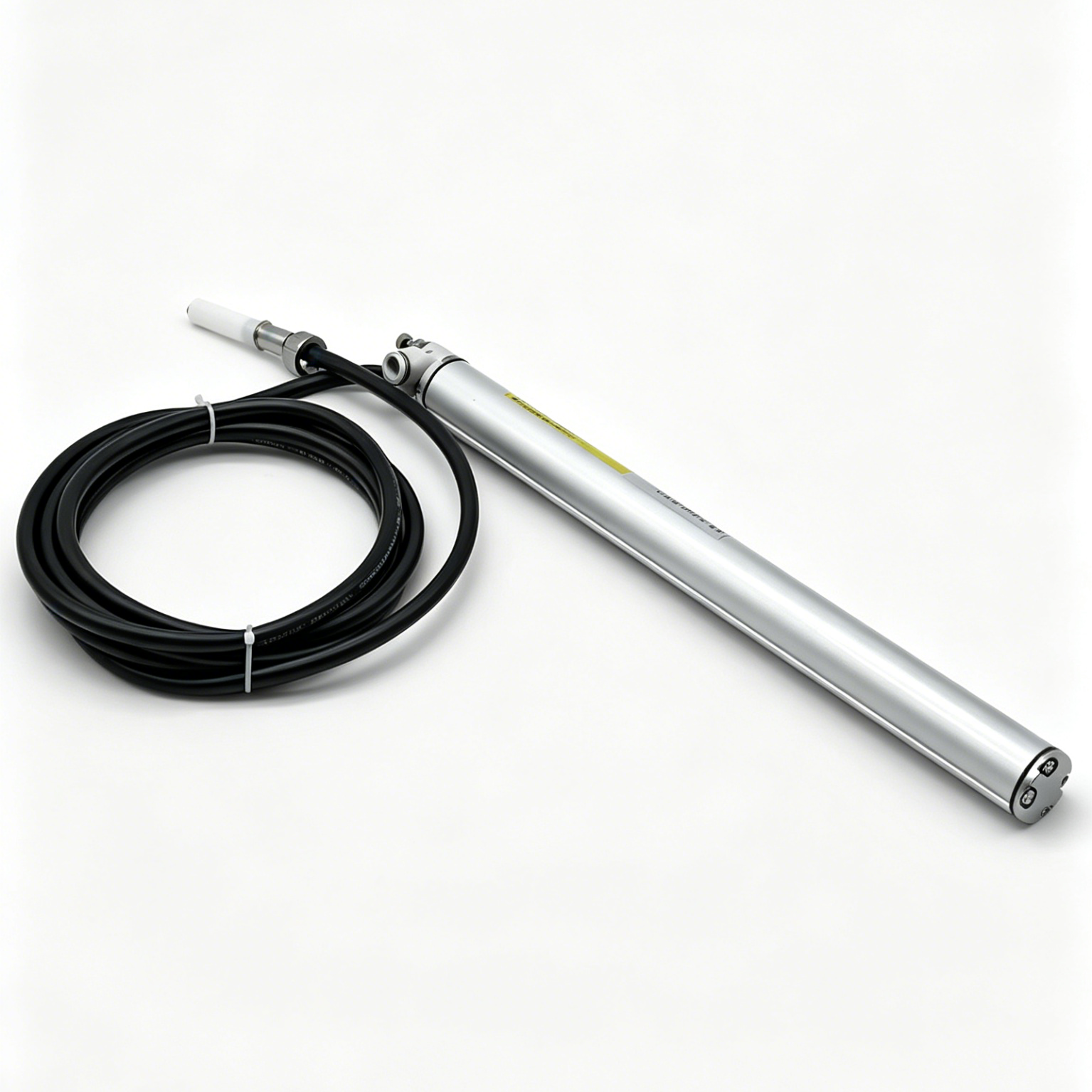

An ionizing air bar generates both positive and negative ions. A negatively charged surface attracts positive ions, while a positively charged surface attracts negative ions. When the correct ions reach the surface, they reduce the excess electrical charge and move the surface voltage toward neutral.
If the ionizer supplies more positive ions than negative ions at the test position, the isolated plate may develop a positive residual voltage. If negative ions dominate, the plate may develop a negative residual voltage. A reading close to zero indicates that the positive and negative ion delivery is relatively balanced at that location.
Ion balance is normally expressed in volts. The acceptable voltage range depends on the sensitivity of the process, the type of ionizer, the working distance, and the organization’s electrostatic control requirements. A general industrial material handling application may tolerate a wider range than a process involving highly sensitive electronic components.
Ion balance does not describe how many ions are produced or how quickly a charge is neutralized. It describes the residual electrical tendency created by the relationship between positive and negative ion delivery.
The measured balance applies to the test location and operating condition. A good result at the center of an ionizing air bar does not prove that the balance is equally good at both edges or at a different distance.
Ion balance testing is important because an ionizer can appear to operate normally while leaving an unacceptable positive or negative residual voltage on the treated object.
Power indicators, airflow, and visible cleanliness cannot confirm ion balance. An ionizer may be energized and producing ions, but uneven emitter contamination, incorrect settings, component aging, or airflow disturbance can cause one polarity to dominate at the target.
In electronics production, excessive residual voltage may increase the risk of electrostatic attraction or discharge involving sensitive components. Ion balance measurement provides objective evidence that the ionizer is operating within the requirements of the electrostatic control program.
In printing, packaging, coating, and plastics processing, poor balance may cause lightweight products to remain attracted to machine parts or continue collecting dust. The process may show fewer static problems than before ionization was installed, but it may still fail to achieve the best possible result.
Testing is also valuable after cleaning, adjustment, repair, or relocation. Comparing measurements before and after maintenance shows whether the action restored acceptable performance.
A calibrated charged plate monitor is the primary instrument required for accurate ion balance testing, supported by suitable positioning tools and environmental measuring equipment where necessary.
A charged plate monitor uses an isolated conductive plate connected to a voltage measurement circuit. When the plate is exposed to an ionized field, the instrument measures the residual voltage created by the positive and negative ion flow.
The instrument should have a suitable measurement range, resolution, accuracy, and plate size for the test method. It should also have current calibration status that can be traced according to the organization’s quality requirements.
A field meter can measure static voltage on products and materials, but it is not always a substitute for a charged plate monitor during formal ion balance testing. A field meter measures the electrical field associated with an existing charge, while a charged plate monitor evaluates the effect of the ionizer on an isolated conductive plate.
| Equipment | Purpose | Important Requirement |
|---|---|---|
| Charged plate monitor | Measures ion balance and decay time | Valid calibration and suitable measurement range |
| Nonconductive support | Positions the instrument without disturbing the field | Stable and suitable for the working environment |
| Distance measuring tool | Confirms the ionizer to plate distance | Appropriate accuracy for the test method |
| Temperature and humidity meter | Records environmental conditions | Useful when conditions influence static behavior |
| Air pressure indicator | Confirms pneumatic operating conditions | Measured while the ionizer is operating |
| Test record | Documents conditions and results | Consistent fields and acceptance criteria |
The monitor should be inspected before use. The plate must be clean, undamaged, and free from fingerprints or conductive residue. Batteries, cables, grounding connections, displays, and controls should also be checked according to the instrument instructions.
Prepare the test area by cleaning and inspecting the ionizer, confirming its installation, stabilizing operating conditions, removing unnecessary electrical influences, and defining the exact measurement position.
Begin by inspecting the ionizing air bar. Dirty or damaged emitter points may produce misleading results or reveal that maintenance is already required. If cleaning is necessary, isolate the system and follow the approved cleaning procedure before testing.
Confirm that the ionizer is installed at its normal working distance and angle. Check mounting brackets, cables, grounding, air hoses, filters, and connectors. The test should represent the condition used during production unless the purpose is to investigate a specific installation variable.
For an air assisted ionizer, set the normal operating pressure and allow the supply to stabilize. The pressure should be measured while air is flowing because the static pressure observed with the air supply closed may not represent actual operating conditions.
Personnel should avoid standing too close to the plate during measurement. Clothing and body movement can introduce electrical fields that affect sensitive readings. The operator should follow a repeatable position and movement sequence during every test.
Position the charged plate monitor at the defined location, zero the instrument, operate the ionizer under normal conditions, allow the plate voltage to stabilize, record the residual value, and repeat the measurement to confirm consistency.
Place the monitor so that the center of its plate is aligned with the required treatment point. The plate surface should face the ion flow in the same way that the product surface is treated. Measure and record the distance between the emitter area and the plate.
Switch on the ionizer and establish the normal airflow, settings, and production conditions. Allow sufficient stabilization time according to the test method. Some systems may require a short operating period before measurements become representative.
Zero the charged plate monitor according to its operating procedure. The starting value should be confirmed before the balance measurement begins. If the instrument cannot return to an acceptable zero condition, investigate plate contamination, nearby charge, instrument grounding, or an instrument problem.
A stable result does not always mean the display remains completely motionless. Small voltage changes may occur because ions arrive individually and airflow varies slightly. The test procedure should define how the final value is determined, such as an average reading or a permitted stable range over a defined period.
If the first and second measurements differ significantly, do not average them immediately. Investigate changes in airflow, operator position, nearby equipment, plate cleanliness, grounding, and environmental conditions. Repeatability is an important part of measurement quality.
Ion balance should be measured at the actual target distance and at enough positions to represent the center, edges, overlap zones, and critical product locations within the complete treatment area.
Testing only at the center of an ionizing air bar is a common mistake. Emitter contamination, air outlet blockage, installation angle, and edge effects can create different results across the active length.
For a long bar treating film or sheet, measurements should normally include the left side, center, and right side. More points may be required for wide materials, sensitive processes, or installations using several ionizers.
If two treatment areas overlap, the junction should be tested. A physical overlap does not always guarantee uniform ion distribution. Airflow from the two units may interact, and nearby machine structures may create a weak or biased area.
| Position | Reason for Testing | Possible Problem Identified |
|---|---|---|
| Center of the bar | Provides a general reference value | Overall balance condition |
| Left treatment edge | Confirms edge coverage | Weak output or excessive positive bias |
| Right treatment edge | Confirms edge coverage | Weak output or excessive negative bias |
| Overlap between two bars | Confirms continuous treatment | Interaction or untreated gaps |
| Critical product location | Represents actual process risk | Residual voltage near sensitive components |
| Maximum working distance | Evaluates the most difficult geometry | Balance loss at greater distance |
Measurement positions should be marked or documented so later tests can be repeated accurately. A small difference in plate location can produce a noticeable difference when the treatment area contains strong airflow or nearby grounded structures.
A result within the approved positive and negative voltage limits indicates acceptable balance at that test position, while an excessive or unstable value requires investigation and corrective action.
A positive reading means that positive ion influence dominates at the plate, while a negative reading means that negative ion influence dominates. The absolute value indicates how far the residual voltage is from zero.
The best result is not always an exact zero reading. Small variations are normal because ion generation and transport are dynamic processes. The important requirement is that the measured range remains within the established process limit and is repeatable.
Acceptance limits should be based on the sensitivity of the product and the requirements of the electrostatic control plan. They should not be selected only because a particular result is easy to achieve.
| Observed Result | Possible Meaning | Recommended Response |
|---|---|---|
| Stable and within limits | Acceptable balance at the test position | Record and continue testing other positions |
| Stable positive value outside limits | Positive ion influence is excessive | Inspect emitters, settings, airflow, and geometry |
| Stable negative value outside limits | Negative ion influence is excessive | Inspect emitters, settings, airflow, and geometry |
| Reading changes continuously | Unstable ion output or changing test conditions | Check airflow, grounding, contamination, and interference |
| Center acceptable but edges unacceptable | Uneven output or incomplete coverage | Inspect edge emitters and installation alignment |
| Good after cleaning but poor again quickly | Recurring contamination source | Investigate air quality and process contamination |
Results should be evaluated together with decay time. Good balance with very slow decay means that the ionizer produces a balanced relationship but may not deliver enough ions quickly enough for the application.
Ion balance measurements can be affected by working distance, airflow, emitter condition, humidity, plate position, nearby grounded objects, operator movement, ionizer settings, and instrument condition.
Distance is a critical variable because positive and negative ions may not travel or recombine in exactly the same manner. A balance result measured close to the bar may differ from the result measured at the actual product location.
Airflow can change ion distribution across the plate. Compressed air pressure, ventilation, extraction, cooling fans, and air knives may all influence the reading. Testing with the machine stopped may not represent full production conditions.
Humidity affects charge retention and may influence the surrounding environment. Although ion balance is a property of ion delivery at the plate, environmental variation can affect measurement stability and contamination behavior.
| Variable | Possible Effect | Control Method |
|---|---|---|
| Working distance | Changes ion distribution at the plate | Measure and document the exact distance |
| Plate angle | Changes exposure to ion flow | Use a consistent mounting orientation |
| Air pressure | Changes ion transport | Record pressure during operation |
| Process airflow | Redirects ions | Test under normal production conditions |
| Emitter contamination | Creates uneven polarity output | Inspect and clean before formal testing |
| Nearby grounded objects | Attract ions away from the plate | Document the production geometry |
| Operator movement | Introduces changing electrical fields | Maintain a consistent operator position |
| Instrument condition | Creates inaccurate or unstable readings | Check calibration, cleanliness, and power |
A reliable test method controls as many variables as practical and records the rest. This allows technicians to distinguish real ionizer deterioration from changes in the measurement environment.
Troubleshoot unacceptable ion balance by confirming the test method, inspecting emitter cleanliness, checking airflow and grounding, reviewing the installation geometry, and evaluating settings or component condition.
First, confirm that the measurement is valid. Check the monitor calibration, plate cleanliness, zero condition, working distance, position, and operator procedure. Repeat the test to determine whether the result is consistent.
Next, inspect the ionizing air bar after following the approved safety procedure. Uneven dust, oil, fibers, or adhesive deposits can affect one polarity more than the other. Clean the complete emitter area rather than only the section nearest the failed measurement point.
Check airflow across the full active length. Blocked outlets, unstable pressure, air leakage, or strong external airflow may disturb the balance at certain positions. If the reading changes when ventilation equipment starts, ion transport is probably being affected.
If the balance changes gradually over time, component aging or repeated contamination may be involved. Historical test records can reveal whether the drift is continuous, seasonal, or associated with specific maintenance events.
Protection functions should not be bypassed, and internal adjustments should only be performed through an approved procedure by qualified personnel. An acceptable reading obtained through uncontrolled adjustment may not remain stable during production.
Ion balance measures residual voltage caused by unequal positive and negative ion delivery, while decay time measures how quickly the ionizer reduces a known positive or negative charge.
These measurements evaluate different aspects of performance. An ionizer may have excellent balance but produce too few ions, resulting in slow decay. It may also have fast decay but leave an unacceptable residual voltage because one polarity is dominant.
Decay testing normally charges the isolated monitor plate to a defined positive or negative voltage and measures the time required to reduce that voltage to a lower level. Both positive and negative decay tests are important because the two polarities may not perform identically.
Balance testing allows the uncharged isolated plate to respond to the positive and negative ions at the test position. The stabilized residual voltage indicates the polarity tendency of the ionizer.
| Measurement | What It Evaluates | Typical Question Answered |
|---|---|---|
| Ion balance | Residual polarity tendency | Does the ionizer leave a positive or negative bias? |
| Positive decay time | Speed of neutralizing positive charge | How quickly are negative ions delivered? |
| Negative decay time | Speed of neutralizing negative charge | How quickly are positive ions delivered? |
| Static voltage measurement | Charge present on the actual product | Is the production material adequately neutralized? |
A complete ionizer verification program should normally include balance, positive decay, negative decay, and product voltage measurements. Together, they show whether the system is balanced, fast enough, and effective in the real application.
Ion balance should be tested at installation, after maintenance or repair, at scheduled intervals, and whenever static related defects, alarms, process changes, or unusual performance are observed.
The correct interval depends on process sensitivity, contamination level, operating hours, equipment stability, and internal control requirements. A critical electronics process may require frequent verification, while a general industrial dust control application may use a longer interval.
New installations should be tested more frequently at first. This establishes a performance trend and reveals how quickly emitter contamination affects balance. The interval can then be adjusted using actual measurement history.
Testing should also be completed after emitter cleaning, bar relocation, cable replacement, controller adjustment, machine modification, or airflow change. These activities can influence ion delivery even when the ionizer appears to operate normally.
The chosen frequency should ensure that unacceptable drift is detected before it creates product risk. Historical data should be reviewed periodically to determine whether the interval remains suitable.
Test records should include equipment identification, instrument information, measurement positions, operating settings, environmental conditions, results, acceptance limits, corrective actions, and final approval status.
A voltage value without test conditions has limited value. Future technicians need to know where the plate was positioned, how far it was from the ionizer, which airflow setting was used, and whether the machine was operating.
Records should include each position across the treatment area. If only the average is retained, an unacceptable edge reading may be hidden by good center results. Individual values provide better evidence of uniform performance.
Before and after maintenance values are especially useful. They show whether cleaning or adjustment improved balance and help establish a suitable preventive maintenance interval.
| Record Field | Information to Include |
|---|---|
| Equipment identification | Ionizer number, location, and production line |
| Test date | Date and time of measurement |
| Technician | Name or approved identification |
| Test instrument | Instrument number and calibration status |
| Measurement position | Center, edge, overlap, or critical product area |
| Working distance | Distance from emitter area to plate |
| Operating conditions | Air pressure, settings, and machine status |
| Environment | Temperature and humidity when relevant |
| Ion balance | Polarity and measured residual voltage |
| Decay performance | Positive and negative decay times when tested |
| Acceptance limits | Approved minimum and maximum values |
| Corrective action | Cleaning, adjustment, repair, or replacement |
| Final decision | Accepted, rejected, or requiring further evaluation |
Trend charts can help identify gradual balance drift. If values move consistently toward one limit, maintenance can be scheduled before the ionizer fails its acceptance test.
Accurate ion balance testing requires a calibrated charged plate monitor, a repeatable test position, controlled operating conditions, multiple measurement points, clear acceptance limits, and complete documentation.
Ion balance confirms whether positive and negative ion delivery produces an acceptable residual voltage at the target. It cannot be verified through a power indicator, visible airflow, or emitter appearance alone.
The monitor should be positioned at the actual working distance and orientation. Measurements should include the center, edges, overlap areas, and critical product locations. Airflow, grounding, emitter cleanliness, humidity, nearby metal structures, and operator movement should be controlled or recorded.
Balance testing should be combined with positive decay, negative decay, and product voltage measurements. These tests evaluate different aspects of static control and provide a more complete understanding of ionizer performance.
By following a structured measurement procedure and reviewing results over time, manufacturers can detect performance drift early, improve preventive maintenance, reduce residual charge, protect sensitive products, and maintain reliable static neutralization throughout production.
