Microelectromechanical systems, commonly known as MEMS devices, are essential components in modern industrial and electronic applications. These miniature systems combine mechanical and electrical elements on a microscopic scale, enabling advanced sensing, actuation, and signal processing capabilities. MEMS devices are widely used in automotive sensors, medical instruments, telecommunications equipment, aerospace systems, industrial automation, and consumer electronics.
Despite their advantages in miniaturization and performance, MEMS devices face significant reliability challenges. Among the most critical reliability concerns are electrostatic failures, which can severely impact device functionality, manufacturing yield, operational stability, and long term durability. Because MEMS structures operate at micro and nano scales, even small electrostatic forces can cause catastrophic damage.
Electrostatic failures in MEMS devices occur when uncontrolled electrostatic discharge or electrostatic attraction damages delicate microstructures, leading to stiction, dielectric breakdown, structural deformation, signal instability, or complete device malfunction. Effective design optimization, material selection, grounding strategies, and environmental control are essential to reducing electrostatic risks in MEMS applications.
As industries continue to demand smaller, faster, and more reliable electronic systems, understanding electrostatic failure mechanisms in MEMS has become increasingly important. Manufacturers and engineers must implement comprehensive reliability strategies throughout design, fabrication, packaging, transportation, and operational stages to minimize electrostatic vulnerability.
This article explores the causes, mechanisms, effects, prevention methods, testing standards, and future trends related to electrostatic failures in MEMS devices. The discussion also highlights practical engineering approaches that improve device reliability and operational lifespan.
Understanding Electrostatic Failures in MEMS Devices
Main Causes of Electrostatic Damage in MEMS Structures
Common Failure Modes in MEMS Devices
Impact of Electrostatic Failures on Industrial Applications
Materials and Design Factors Affecting Electrostatic Reliability
Electrostatic Discharge Protection Techniques for MEMS
Environmental Influences on Electrostatic Behavior
Testing and Reliability Evaluation Methods
Manufacturing Challenges and Packaging Considerations
Future Trends in MEMS Electrostatic Protection
Conclusion
Electrostatic failures in MEMS devices refer to physical or electrical damage caused by electrostatic forces, electrostatic discharge, or charge accumulation that disrupts the normal operation of microscopic mechanical and electrical structures.
MEMS devices contain extremely small movable structures such as beams, cantilevers, membranes, and suspended electrodes. Due to their tiny dimensions and low mechanical stiffness, these structures are highly sensitive to electrostatic interactions. Even minimal charge accumulation can generate electrostatic forces strong enough to deform or permanently damage the device.
Electrostatic failures generally originate from two major mechanisms. The first is electrostatic discharge, commonly known as ESD, where sudden electrical discharge transfers energy into the MEMS structure. The second mechanism is electrostatic attraction, where static charges cause movable components to adhere together, a phenomenon called stiction.
In many industrial environments, electrostatic charge can accumulate during manufacturing, packaging, transportation, or normal device operation. Friction between materials, dry environmental conditions, improper grounding, and inadequate handling procedures all contribute to charge buildup.
The complexity of MEMS devices further increases electrostatic sensitivity because these systems integrate both mechanical and semiconductor functions. A single electrostatic event may simultaneously damage conductive pathways, dielectric layers, and moving mechanical components.
MEMS electrostatic reliability is not only an electrical engineering challenge but also a multidisciplinary issue involving materials science, mechanical engineering, semiconductor fabrication, and environmental control.
The primary causes of electrostatic damage in MEMS devices include electrostatic discharge, charge accumulation, dielectric charging, surface contamination, improper grounding, and environmental humidity variations.
Electrostatic discharge remains one of the most dangerous threats to MEMS reliability. ESD events occur when two objects with different electrical potentials suddenly exchange charges. In MEMS fabrication facilities, operators, tools, packaging materials, and conveyor systems can all generate electrostatic charges.
Charge accumulation is another major contributor to electrostatic failure. Since MEMS structures often contain insulating layers and suspended elements, static charges may remain trapped within the device. Over time, accumulated charges alter device behavior and increase the likelihood of failure.
Dielectric charging occurs when electric fields inject charges into insulating materials. This phenomenon is particularly problematic in capacitive MEMS devices such as accelerometers, gyroscopes, and RF switches. Long term dielectric charging can shift operational parameters and eventually lead to device instability.
Surface contamination also increases electrostatic vulnerability. Dust particles, moisture residues, and organic contaminants modify local electrical properties and promote charge concentration. These contaminants may create localized electric field enhancement points that accelerate breakdown processes.
Failure Source | Description | Potential Consequences |
|---|---|---|
Electrostatic Discharge | Sudden transfer of static electricity | Circuit burnout and structural damage |
Charge Accumulation | Static charge trapped in device structures | Operational instability |
Dielectric Charging | Charge injection into insulating layers | Parameter drift and stiction |
Low Humidity | Dry air promotes static buildup | Higher ESD risk |
Surface Contamination | Particles and residues alter electric fields | Localized breakdown |
Common electrostatic failure modes in MEMS devices include stiction, dielectric breakdown, electrical short circuits, structural deformation, fatigue cracking, and signal degradation.
Stiction is one of the most recognized MEMS failure mechanisms. Electrostatic attraction forces cause movable components to stick to adjacent surfaces. Once adhesion occurs, the restoring mechanical force may be insufficient to separate the structures, resulting in permanent failure.
Dielectric breakdown occurs when electric fields exceed the insulating capability of dielectric materials. High voltage conditions can create conductive paths through insulating layers, permanently damaging device functionality.
Electrical short circuits frequently result from conductive particle contamination or damaged insulating barriers. In MEMS switches and sensors, short circuits can interrupt signal transmission and disable operational functions.
Mechanical deformation caused by electrostatic forces can alter device geometry. Since MEMS structures are extremely small, even microscopic deformation significantly affects device calibration and sensitivity.
Repeated electrostatic stress may also induce fatigue cracking. Cyclic electrostatic loading generates mechanical stress concentrations that eventually produce structural fractures in suspended components.
Stiction between movable surfaces
Dielectric layer breakdown
Electrical pathway burnout
Mechanical beam collapse
Surface charge induced instability
Signal drift and calibration errors
Thermal damage from discharge currents
Electrostatic failures reduce MEMS device reliability, increase production costs, shorten operational lifespan, and compromise performance in critical industrial systems.
MEMS devices are widely integrated into safety critical applications such as automotive airbag sensors, aerospace navigation systems, industrial pressure monitors, and medical diagnostic instruments. Electrostatic failure in these environments may result in operational disruptions or safety hazards.
In the automotive sector, MEMS accelerometers and gyroscopes support advanced driver assistance systems. Electrostatic instability can lead to inaccurate sensing data, affecting vehicle safety performance.
Industrial automation systems also rely heavily on MEMS pressure sensors and flow sensors. Electrostatic damage may produce false readings, reducing process efficiency and increasing maintenance requirements.
In telecommunications applications, RF MEMS switches are particularly sensitive to electrostatic charging. Signal distortion and insertion loss caused by electrostatic degradation can negatively affect communication reliability.
Medical applications require exceptionally high reliability standards. Electrostatic failure in implantable or diagnostic MEMS devices may compromise patient safety and equipment accuracy.
Reduced manufacturing yield
Increased maintenance expenses
Higher warranty replacement costs
Decreased product lifespan
Lower operational accuracy
Unexpected system downtime
Safety and compliance risks
Material properties, structural geometry, surface coatings, and electrical design significantly influence the electrostatic reliability of MEMS devices.
Material conductivity plays a major role in charge dissipation. Conductive materials allow static charges to disperse more effectively, reducing charge accumulation risks. Insulating materials, while necessary for many MEMS structures, often increase electrostatic sensitivity.
Surface roughness and coating characteristics also affect electrostatic behavior. Smooth surfaces may promote stronger adhesion forces during stiction events, while specialized coatings can reduce surface energy and minimize sticking probability.
Structural geometry strongly influences electric field distribution. Sharp corners and narrow gaps create electric field concentration points that increase breakdown risk. Optimized geometric design helps distribute electrostatic forces more evenly.
Mechanical stiffness is another critical factor. Flexible structures are more vulnerable to electrostatic attraction and deformation. Engineers must carefully balance sensitivity requirements with mechanical robustness.
Design Factor | Influence on Electrostatic Reliability |
|---|---|
Material Conductivity | Improves charge dissipation |
Surface Coatings | Reduces adhesion and contamination |
Gap Distance | Affects electric field strength |
Mechanical Stiffness | Improves resistance to deformation |
Structural Geometry | Controls field concentration |

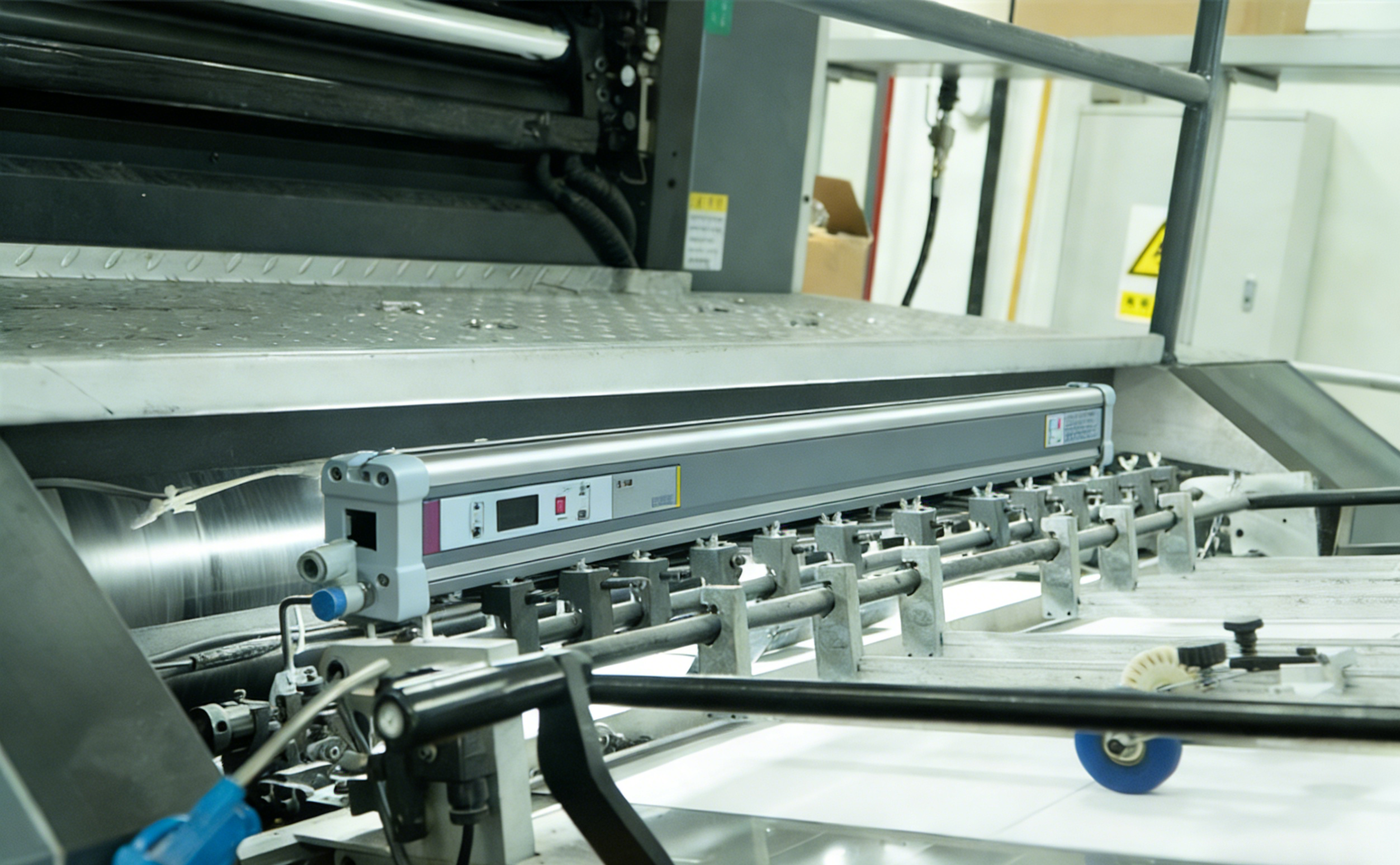

Effective electrostatic protection techniques include grounding systems, shielding methods, antistatic materials, circuit protection components, humidity control, and optimized device packaging.
Grounding is one of the most important ESD prevention strategies. Proper grounding dissipates accumulated charges before they reach sensitive MEMS structures. Manufacturing facilities typically implement grounded workstations, conductive flooring, and grounded handling equipment.
Shielding methods protect devices from external electric fields. Conductive enclosures and Faraday shielding structures reduce exposure to electrostatic interference during transportation and operation.
Antistatic materials are commonly used in packaging and handling systems. These materials prevent excessive charge buildup and reduce discharge risk during logistics and assembly processes.
Circuit level protection is also essential. Engineers integrate protection diodes, current limiting structures, and voltage suppression elements to minimize electrical overstress during ESD events.
Environmental humidity control significantly improves electrostatic safety. Moderate humidity levels reduce static electricity generation by increasing surface conductivity and promoting charge leakage.
Implement comprehensive grounding systems
Use conductive packaging materials
Control humidity in manufacturing areas
Reduce surface contamination
Optimize device geometry for lower field concentration
Apply protective surface coatings
Integrate ESD suppression circuits
Environmental conditions such as humidity, temperature, airborne contamination, and mechanical vibration strongly affect electrostatic behavior in MEMS devices.
Low humidity environments significantly increase electrostatic charge generation. Dry air reduces surface conductivity, allowing charges to accumulate more easily. Semiconductor fabrication facilities therefore maintain carefully controlled humidity levels.
Temperature variations also influence electrostatic reliability. Thermal expansion may alter gap spacing between MEMS structures, changing electric field intensity and electrostatic attraction forces.
Airborne particles and contaminants contribute to localized electric field enhancement. Dust accumulation on MEMS surfaces increases the probability of dielectric breakdown and charge concentration.
Mechanical vibration can worsen electrostatic effects by changing structural alignment and increasing frictional charge generation. Vibrational environments in industrial machinery require additional electrostatic protection considerations.
Environmental stability is particularly important for outdoor and aerospace applications where devices experience rapidly changing atmospheric conditions.
MEMS electrostatic reliability is evaluated through ESD testing, dielectric stress analysis, environmental simulation, failure analysis, and long term operational testing.
ESD testing simulates electrostatic discharge events under controlled laboratory conditions. Engineers measure device tolerance levels and identify failure thresholds using standardized testing procedures.
Human body model testing and charged device model testing are commonly used to evaluate ESD sensitivity. These methods replicate realistic electrostatic scenarios encountered during manufacturing and handling.
Environmental simulation testing exposes MEMS devices to varying humidity, temperature, and contamination conditions. Such testing helps predict operational reliability in real world environments.
Microscopic failure analysis techniques allow engineers to identify physical damage mechanisms. Scanning electron microscopy and focused ion beam analysis are widely used for detailed structural inspection.
Test Method | Purpose |
|---|---|
ESD Stress Testing | Evaluate discharge tolerance |
Humidity Exposure | Analyze environmental sensitivity |
Thermal Cycling | Study temperature effects |
Failure Microscopy | Identify structural damage |
Operational Lifetime Testing | Predict long term reliability |
Manufacturing and packaging processes significantly influence the electrostatic reliability and long term stability of MEMS devices.
MEMS fabrication involves multiple sensitive semiconductor processing steps including lithography, etching, deposition, and wafer bonding. Each stage introduces opportunities for electrostatic charge accumulation and device damage.
Packaging is especially critical because MEMS devices contain movable structures that require environmental protection while maintaining operational freedom. Improper packaging design may increase electrostatic field exposure or trap contaminants inside the package.
Wafer level packaging technologies improve electrostatic protection by minimizing handling exposure and reducing contamination risks. Advanced hermetic sealing methods also stabilize environmental conditions around MEMS structures.
Automated assembly systems require careful electrostatic control because robotic handling equipment can generate static charges during high speed production processes.
Manufacturers increasingly implement cleanroom electrostatic monitoring systems to continuously measure environmental charge levels and reduce production related failures.
Future MEMS electrostatic protection technologies will focus on advanced materials, intelligent monitoring systems, nanoscale coatings, and AI driven reliability optimization.
Nanostructured surface coatings are emerging as highly effective solutions for reducing stiction and charge accumulation. These coatings modify surface energy properties while maintaining MEMS performance.
Self monitoring MEMS devices are also under development. Integrated sensing capabilities allow devices to detect abnormal electrostatic conditions and initiate protective responses before failure occurs.
Artificial intelligence and machine learning technologies are increasingly used for predictive reliability analysis. AI algorithms analyze operational data to identify early warning signs of electrostatic degradation.
Advanced conductive polymers and hybrid material systems may further improve electrostatic dissipation capabilities while preserving MEMS sensitivity and miniaturization advantages.
As MEMS devices continue shrinking toward nanoscale dimensions, electrostatic reliability engineering will become even more important for future high performance electronic systems.
Electrostatic failures remain one of the most significant reliability challenges affecting MEMS devices across numerous industries. Due to the microscopic scale of MEMS structures, even small electrostatic forces can produce severe mechanical and electrical damage.
Understanding the causes of electrostatic failures, including ESD events, charge accumulation, dielectric charging, and environmental influences, is essential for improving device reliability. Engineers must combine optimized structural design, material selection, environmental control, and advanced protection strategies to reduce electrostatic risks.
Modern industries increasingly rely on MEMS technologies for automotive systems, industrial automation, telecommunications, medical devices, and aerospace applications. As a result, electrostatic reliability has become a critical factor in ensuring operational safety, manufacturing efficiency, and long term product performance.
Future advancements in intelligent monitoring systems, advanced coatings, AI based reliability analysis, and next generation materials will continue improving electrostatic protection capabilities. Companies that prioritize MEMS electrostatic reliability engineering will gain significant advantages in product quality, durability, and market competitiveness.
