Semiconductor manufacturing is one of the most precision driven industries in the world. Modern semiconductor devices contain microscopic circuit structures that can be permanently damaged by even a small electrostatic discharge. As chip geometries continue to shrink and manufacturing processes become increasingly advanced, Electrostatic Discharge (ESD) protection standards have become a critical part of factory operations.

In semiconductor factories, static electricity can originate from personnel movement, equipment friction, packaging materials, conveyor systems, or environmental conditions. Without effective ESD control measures, manufacturers may experience reduced production yield, latent product failures, equipment downtime, and expensive quality issues. Therefore, semiconductor facilities rely on internationally recognized ESD standards to ensure product integrity, operational reliability, and long term business success.

ESD protection standards for semiconductor factories are systematic guidelines and technical requirements designed to prevent electrostatic discharge damage during semiconductor manufacturing, assembly, testing, storage, and transportation. These standards define procedures for grounding, personnel control, environmental monitoring, equipment design, packaging, and factory management to minimize static related failures and improve production reliability.

As semiconductor technology evolves toward smaller nodes and higher integration density, ESD sensitivity increases significantly. Semiconductor factories must therefore implement comprehensive ESD control programs that combine engineering controls, employee training, continuous monitoring, and strict compliance management. Understanding the major ESD standards and best practices is essential for manufacturers seeking higher yields, improved product quality, and global customer confidence.

This article explores the most important ESD protection standards for semiconductor factories, including industry regulations, factory requirements, testing methods, compliance strategies, and future trends in electrostatic control systems.

Table of Contents

• Why ESD Protection Is Critical in Semiconductor Manufacturing

• Main International ESD Standards for Semiconductor Factories

• Key Components of an ESD Control Program

• ESD Protected Areas in Semiconductor Facilities

• Personnel Grounding and Employee Safety Requirements

• ESD Safe Materials and Equipment Standards

• Environmental Controls for Static Reduction

• ESD Monitoring and Compliance Testing

• Common ESD Risks in Semiconductor Production Lines

• Benefits of Implementing ESD Protection Standards

• Future Trends in Semiconductor ESD Protection

• Conclusion

Why ESD Protection Is Critical in Semiconductor Manufacturing

ESD protection is critical in semiconductor manufacturing because electrostatic discharge can instantly damage sensitive electronic components, reduce production yield, and create hidden reliability failures that may appear long after products reach customers.

Semiconductor devices are extremely vulnerable to electrostatic discharge because their internal structures are incredibly small and delicate. A static discharge as low as several volts may damage integrated circuits, transistors, memory chips, or wafer structures. Human beings can generate thousands of volts of static electricity simply by walking across a floor or handling materials, even though they may not feel the discharge.

The financial consequences of poor ESD control are substantial. Semiconductor factories operate in high value production environments where a single damaged wafer lot can represent significant financial loss. In addition to direct product damage, latent defects caused by ESD may remain undetected during testing and only appear after products are deployed in the field. These failures can damage customer trust and increase warranty costs.

Modern semiconductor manufacturing environments contain numerous sources of static electricity, including:

• Automated handling systems

• Plastic packaging materials

• Personnel clothing and movement

• Robotic equipment

• Conveyor belts

• Dry air conditions

• Insulating surfaces

As semiconductor technology advances toward smaller process nodes, device sensitivity to ESD continues to increase. Manufacturers must therefore adopt increasingly sophisticated ESD protection systems to maintain acceptable yield rates and comply with customer requirements.

Main International ESD Standards for Semiconductor Factories

The primary international ESD standards for semiconductor factories establish technical requirements for electrostatic control systems, grounding procedures, testing methods, personnel safety, and facility management to ensure consistent protection against static discharge.

Several globally recognized standards are widely used throughout the semiconductor industry. These standards provide detailed guidance for establishing and maintaining effective ESD control programs across manufacturing facilities.

ANSI ESD S20.20

ANSI ESD S20.20 is one of the most widely adopted ESD standards for electronics and semiconductor manufacturing environments. It defines the administrative and technical requirements necessary to establish a comprehensive ESD control program.

The standard addresses critical areas such as:

• Grounding systems

• Personnel grounding devices

• Workstation requirements

• Packaging standards

• Compliance verification

• Training procedures

• Documentation management

Many semiconductor manufacturers require suppliers and subcontractors to comply with ANSI ESD S20.20 as part of supply chain quality assurance programs.

IEC 61340 Series

The IEC 61340 series is an international standard developed for electrostatic control in electronic manufacturing environments. It provides globally harmonized technical guidance for ESD prevention and testing.

IEC 61340 standards include:

These standards are widely recognized across Europe and Asia and are commonly integrated into semiconductor factory management systems.

JEDEC Standards

JEDEC standards focus specifically on semiconductor device sensitivity and testing methods. They help manufacturers classify component sensitivity levels and establish handling requirements.

Common JEDEC ESD standards include:

• Human Body Model testing

• Charged Device Model testing

• Machine Model testing

• Latch up testing

These standards are particularly important during semiconductor product development and qualification stages.

Key Components of an ESD Control Program

An effective ESD control program combines engineering controls, administrative procedures, monitoring systems, personnel training, and continuous verification to minimize electrostatic risks throughout semiconductor production.

A successful ESD program requires a systematic approach rather than isolated protective measures. Semiconductor factories must establish organization wide procedures that address every stage of material handling and manufacturing.

Administrative Controls

Administrative controls define the operational framework for ESD management. These controls include written procedures, employee responsibilities, inspection schedules, and compliance documentation.

Factories typically create detailed ESD manuals covering:

• Workstation setup procedures

• Equipment grounding instructions

• Personnel entry requirements

• Material handling protocols

• Audit procedures

• Emergency response measures

Engineering Controls

Engineering controls physically reduce static generation and discharge risks within manufacturing areas. Examples include conductive flooring, grounded workstations, ionization systems, and humidity control equipment.

Advanced semiconductor facilities often integrate automated ESD monitoring systems into production equipment. These systems continuously verify grounding conditions and generate alerts when abnormal conditions occur.

Training Programs

Employee training is essential because human activity is one of the largest sources of static generation in semiconductor factories. Workers must understand ESD risks, proper grounding techniques, and safe handling procedures.

Training programs typically include:

• Basic electrostatic principles

• Proper use of wrist straps

• Garment requirements

• Equipment handling procedures

• Packaging standards

• Compliance responsibilities

ESD Protected Areas in Semiconductor Facilities

ESD Protected Areas are specially controlled environments designed to minimize static electricity and safely handle sensitive semiconductor devices during manufacturing and testing operations.

An ESD Protected Area, often called an EPA, is one of the most important concepts in semiconductor ESD management. These areas establish controlled environments where static sensitive devices can be safely processed.

EPA design typically includes conductive flooring, grounded furniture, antistatic work surfaces, controlled access systems, and environmental monitoring equipment. All conductive elements within the area are connected to a common grounding system to eliminate potential differences.

Personnel entering an EPA must comply with strict requirements, including:

• Wearing grounded wrist straps

• Using ESD safe footwear

• Wearing static dissipative garments

• Passing grounding verification tests

• Avoiding prohibited materials

Semiconductor factories usually divide EPAs into multiple operational zones based on device sensitivity and production processes. Wafer fabrication areas, assembly lines, and testing stations may each require different levels of electrostatic control.

Access control systems are commonly installed to prevent unauthorized entry into critical ESD protected environments. Many factories integrate automated wrist strap and footwear testing systems at EPA entrances to ensure compliance before personnel enter production areas.

Personnel Grounding and Employee Safety Requirements

Personnel grounding requirements ensure that employees handling semiconductor devices remain electrically connected to ground, preventing static charge accumulation and reducing the risk of electrostatic discharge damage.

Human beings are one of the most significant generators of static electricity in manufacturing environments. Walking, sitting, clothing friction, and routine movement can create dangerous voltage levels capable of damaging semiconductor devices.

Wrist straps are among the most common grounding devices used in semiconductor factories. These devices connect workers to a common ground point through conductive materials and current limiting resistors. Continuous monitoring systems are often installed to verify proper grounding during production activities.

ESD footwear and conductive flooring systems provide additional grounding protection. Together, they create a path that safely dissipates static charges generated by employee movement throughout the facility.

Employee safety is also an important consideration. ESD grounding systems must balance electrostatic protection with electrical safety requirements. Current limiting resistors are therefore incorporated into grounding devices to prevent electrical hazards during accidental contact with live equipment.

ESD Safe Materials and Equipment Standards

ESD safe materials and equipment standards ensure that tools, furniture, packaging, and production equipment minimize static generation and safely dissipate electrostatic charges.

Semiconductor factories use specialized ESD safe materials throughout production environments. These materials are designed with controlled electrical resistance properties that prevent rapid discharge while safely dissipating accumulated charges.

ESD safe work surfaces are commonly made from conductive or dissipative laminates connected to grounding systems. Chairs, carts, shelves, and storage containers are also designed to meet specific electrical resistance requirements.

Packaging materials play a critical role in semiconductor protection during transportation and storage. Standard plastic packaging can generate high static voltages, making it unsuitable for sensitive semiconductor devices.

Common ESD packaging solutions include:

• Shielding bags

• Conductive trays

• Dissipative foam

• Conductive boxes

• Antistatic reels

Manufacturing equipment must also comply with ESD standards. Robotic handlers, conveyors, and automated testing systems require proper grounding and static control design to prevent charge accumulation during operation.

Regular verification testing is necessary because material performance can degrade over time due to wear, contamination, or environmental exposure.

Environmental Controls for Static Reduction

Environmental controls reduce static generation in semiconductor factories by regulating humidity, airflow, contamination levels, and ionization conditions within manufacturing areas.

Environmental conditions strongly influence electrostatic behavior. Low humidity environments significantly increase static charge generation because dry air reduces natural charge dissipation.

Semiconductor factories therefore maintain carefully controlled humidity levels, typically within defined operational ranges that balance ESD protection with cleanroom requirements. Excessively high humidity may create contamination or corrosion risks, so precise environmental management is essential.

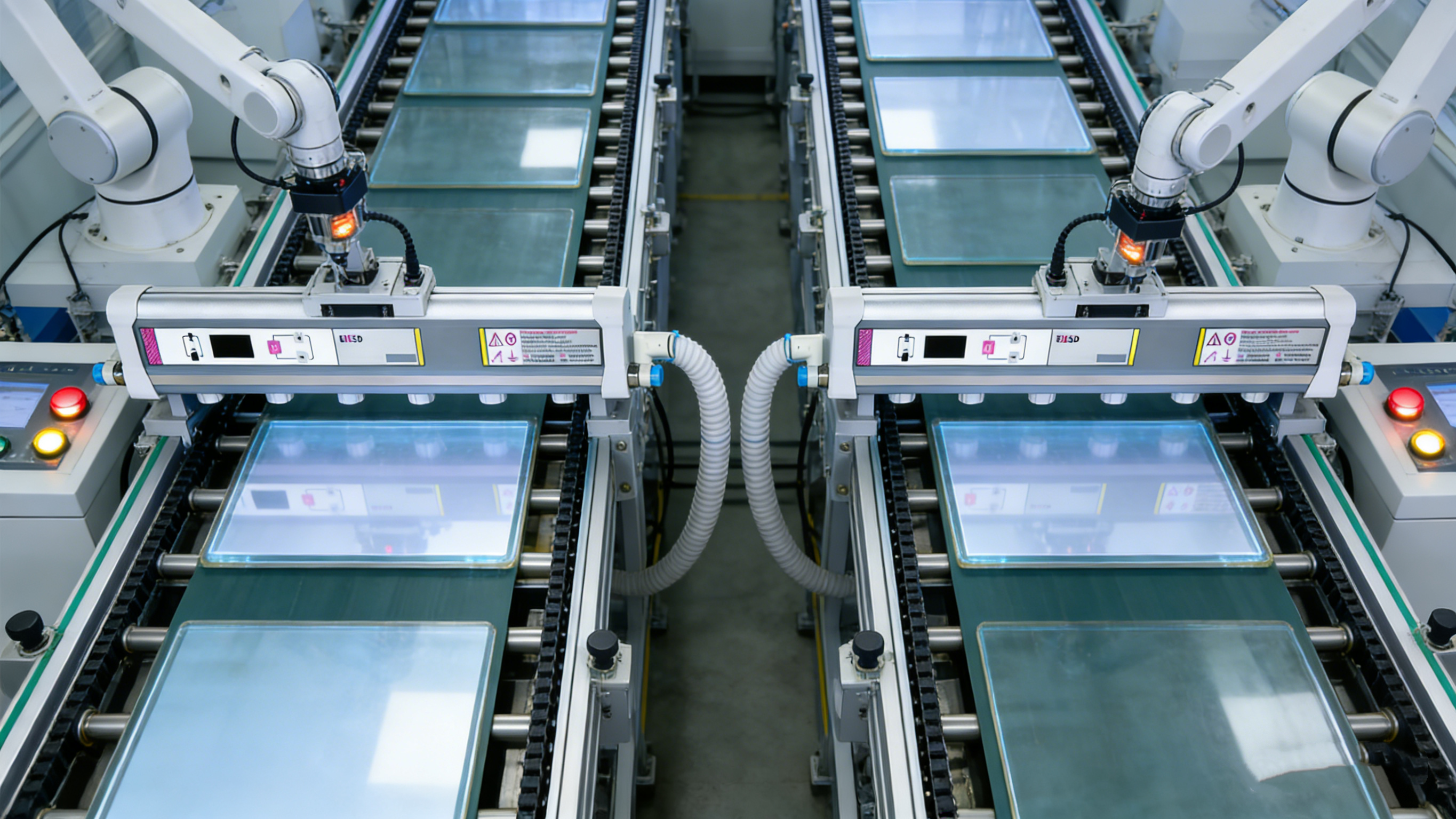

Ionization systems are widely used in areas where insulating materials cannot be eliminated. These systems generate balanced positive and negative ions that neutralize static charges on surfaces and airborne particles.

Airflow management is another important consideration. High speed air movement can generate static charges through friction, especially when combined with insulating materials. Cleanroom ventilation systems must therefore be designed to minimize electrostatic risks while maintaining contamination control.

Environmental monitoring systems continuously measure:

• Relative humidity

• Temperature

• Ionization balance

• Airflow conditions

• Surface voltage levels

Automated alarm systems help facilities respond quickly to abnormal environmental conditions before semiconductor products are exposed to elevated ESD risks.

ESD Monitoring and Compliance Testing

ESD monitoring and compliance testing verify that semiconductor factory protection systems continue operating within required standards and effectively prevent electrostatic discharge events.

Continuous monitoring is essential because ESD protection systems can degrade over time. Grounding connections may fail, materials may wear out, and environmental conditions may fluctuate during production operations.

Semiconductor factories conduct regular verification testing using calibrated instruments and standardized procedures. Testing frequency often depends on customer requirements, production sensitivity, and applicable industry standards.

Common ESD compliance tests include:

• Ground resistance measurements

• Wrist strap continuity testing

• Floor resistance testing

• Ionizer balance verification

• Surface resistance measurements

• Static field measurements

Many advanced facilities use real time monitoring systems integrated with factory automation networks. These systems continuously monitor critical ESD parameters and automatically log compliance data for quality management purposes.

Audit programs are also essential for maintaining certification compliance. Internal audits help identify procedural weaknesses, while external audits verify compliance with international standards and customer expectations.

Common ESD Risks in Semiconductor Production Lines

Common ESD risks in semiconductor production lines include personnel generated static, equipment charging, material friction, inadequate grounding, environmental instability, and improper packaging practices.

Despite advanced protection systems, semiconductor production environments still face numerous ESD risk factors. Understanding these risks is necessary for developing effective prevention strategies.

One major risk involves automated equipment. Robotic handling systems and conveyor mechanisms can generate electrostatic charges through repetitive movement and friction. Without proper grounding and ionization controls, these systems may damage semiconductor wafers or packaged devices.

Improper material selection is another frequent issue. Insulating plastics, tapes, and containers may accumulate high static voltages if introduced into controlled production areas without adequate safeguards.

Human error remains a significant contributor to ESD incidents. Common procedural failures include:

1. Failure to wear grounding devices correctly

2. Using unauthorized materials inside EPAs

3. Bypassing monitoring systems

4. Improper packaging during transport

5. Ignoring environmental alarms

Latent failures are particularly dangerous because damaged semiconductor devices may initially pass inspection and testing procedures. These hidden defects can later cause product malfunction in customer applications, leading to reliability concerns and reputational damage.

Benefits of Implementing ESD Protection Standards

Implementing ESD protection standards helps semiconductor factories improve product quality, increase manufacturing yield, reduce operational costs, strengthen customer trust, and enhance long term competitiveness.

One of the most important benefits of strong ESD control is improved manufacturing yield. By reducing electrostatic damage during production, factories can achieve higher percentages of functional semiconductor devices and reduce scrap rates.

Improved reliability also strengthens customer satisfaction. Semiconductor customers expect consistent product performance, especially in industries such as automotive electronics, telecommunications, industrial automation, and medical devices where failures can have serious consequences.

ESD control programs also reduce operational costs associated with:

• Product rework

• Warranty claims

• Production downtime

• Failure analysis investigations

• Customer returns

• Quality audits

Compliance with recognized international standards can also improve supply chain opportunities. Many global semiconductor customers require suppliers to maintain certified ESD programs as part of vendor qualification processes.

Furthermore, comprehensive ESD management supports continuous improvement initiatives by providing measurable operational data that can be analyzed for process optimization and risk reduction.

Future Trends in Semiconductor ESD Protection

Future semiconductor ESD protection trends focus on automation, intelligent monitoring systems, advanced materials, predictive analytics, and tighter integration between ESD management and smart factory technologies.

As semiconductor manufacturing becomes more automated and complex, ESD protection technologies are evolving rapidly. Factories are increasingly adopting intelligent monitoring systems capable of real time analytics and predictive maintenance.

Artificial intelligence based monitoring platforms can analyze environmental conditions, grounding performance, and equipment behavior to identify potential ESD risks before failures occur. These systems help manufacturers improve response speed and reduce operational disruptions.

Advanced materials are also being developed to provide improved static control performance while supporting modern cleanroom requirements. New conductive polymers and nanomaterial coatings offer enhanced durability and better electrostatic dissipation characteristics.

Industry trends also include greater integration between ESD systems and Industry 4.0 manufacturing platforms. Smart factories increasingly connect ESD monitoring devices with centralized manufacturing execution systems to improve operational visibility and compliance management.

Future semiconductor devices may become even more sensitive to electrostatic discharge due to continued miniaturization and advanced packaging technologies. As a result, ESD standards will likely become stricter and require more precise control methods across the entire semiconductor supply chain.

Conclusion

Semiconductor factories operate in highly sensitive manufacturing environments where electrostatic discharge can cause severe product damage, yield loss, and long term reliability issues. ESD protection standards provide the technical foundation necessary to control electrostatic risks throughout semiconductor production, testing, storage, and transportation processes.

International standards such as ANSI ESD S20.20, IEC 61340, and JEDEC specifications establish comprehensive requirements for grounding systems, personnel safety, environmental control, packaging, equipment design, and compliance verification. By implementing robust ESD control programs, semiconductor manufacturers can improve operational efficiency, reduce product failures, and strengthen customer confidence.

As semiconductor technologies continue to advance toward smaller and more complex structures, the importance of ESD protection will continue to grow. Manufacturers that invest in modern ESD management systems, continuous monitoring, employee training, and intelligent automation will be better positioned to maintain high quality production and remain competitive in the global semiconductor industry.
