EIESD Ion Air Bar: ESD Risks in Back-End Semiconductor Assembly

The semiconductor industry relies on highly sensitive electronic components that can be permanently damaged by electrostatic discharge (ESD). In back end semiconductor assembly, where wafers are separated, packaged, tested, and prepared for final integration, ESD represents one of the most critical manufacturing risks. Even a small static discharge invisible to the human body can compromise device reliability, reduce yield rates, and increase operational costs.

As semiconductor packages become smaller, denser, and more advanced, ESD control has evolved from a basic factory requirement into a strategic manufacturing priority. Companies involved in semiconductor assembly and packaging must implement comprehensive ESD protection systems to maintain product integrity, ensure customer satisfaction, and meet strict quality standards.

ESD risks in back end semiconductor assembly can cause latent defects, immediate device failures, reduced production yield, reliability issues, and significant financial losses if proper electrostatic control measures are not implemented throughout the manufacturing process.

Back end semiconductor assembly environments involve multiple handling steps, automated equipment interactions, material transfers, and human operations that all contribute to electrostatic charge generation. Without effective grounding, monitoring, environmental control, and operator training, static electricity can easily damage highly sensitive semiconductor devices.

This article explores the major ESD risks in back end semiconductor assembly, the causes of electrostatic discharge, vulnerable production stages, preventive strategies, industry standards, and best practices for improving manufacturing reliability.

Table of Contents

• Understanding ESD in Semiconductor Assembly

• Major ESD Risks in Back End Semiconductor Assembly

• Critical Assembly Processes Vulnerable to ESD

• How ESD Affects Yield and Product Reliability

• Common Sources of Electrostatic Discharge

• ESD Prevention Methods in Semiconductor Packaging Facilities

• Importance of ESD Safe Equipment and Materials

• Employee Training and Continuous Monitoring

• Industry Standards for ESD Protection

• Future Challenges of ESD Control in Advanced Packaging

• Conclusion

Understanding ESD in Semiconductor Assembly

Electrostatic discharge in semiconductor assembly refers to the sudden transfer of static electricity between objects with different electrical potentials, which can severely damage sensitive semiconductor devices during manufacturing and handling.

Electrostatic discharge occurs when two materials come into contact and then separate, causing electrons to transfer between surfaces. This process creates an imbalance of electrical charges. When the accumulated charge suddenly discharges, it can generate high voltage spikes capable of damaging microscopic semiconductor structures.

In back end semiconductor assembly, ESD sensitivity has become increasingly critical because modern semiconductor devices use smaller transistor geometries and thinner insulating layers. Advanced integrated circuits may be damaged by electrostatic voltages as low as several volts, well below the threshold detectable by human operators.

The back end assembly process includes wafer dicing, die attach, wire bonding, molding, encapsulation, testing, marking, and final packaging. During each step, semiconductor devices are exposed to mechanical handling, automated systems, and environmental conditions that can generate static electricity.

There are generally three major ESD damage categories in semiconductor manufacturing:

Latent defects are especially dangerous because damaged devices may initially pass inspection and testing but fail later during customer usage. This creates warranty risks, customer dissatisfaction, and long term reliability concerns.

Major ESD Risks in Back End Semiconductor Assembly

The primary ESD risks in back end semiconductor assembly include device damage during handling, automated equipment discharge, improper grounding, material charging, environmental instability, and insufficient operator protection.

One of the most common risks comes from direct human contact with semiconductor components. Operators walking across factory floors, handling trays, or interacting with equipment can accumulate thousands of volts of static charge. Without proper grounding systems such as wrist straps or conductive footwear, this charge may discharge directly into sensitive devices.

Automated assembly equipment also introduces significant ESD risks. Robotic arms, conveyor belts, pick and place systems, and testing stations can generate electrostatic charges through friction and material movement. If these systems are not properly grounded or ionized, static discharge events may occur repeatedly throughout production.

Packaging materials used during semiconductor assembly can become major static generators. Plastic trays, tapes, carriers, and protective films often accumulate electrostatic charges during transportation and storage. Non conductive materials increase the probability of uncontrolled discharge events.

Environmental conditions further influence ESD risks. Low humidity environments are especially dangerous because dry air reduces natural charge dissipation. Semiconductor facilities operating below recommended humidity levels often experience increased static accumulation.

The following factors significantly increase ESD exposure:

• Low relative humidity

• Insufficient grounding systems

• Improper operator handling

• Non conductive packaging materials

• Poor workstation design

• Lack of ionization systems

• Inadequate ESD auditing

• Improper maintenance procedures

As semiconductor devices become more advanced, their tolerance to electrostatic discharge continues to decline. This means manufacturing facilities must continuously upgrade ESD control measures to maintain acceptable defect levels.

Critical Assembly Processes Vulnerable to ESD

Several back end semiconductor assembly processes are highly vulnerable to ESD damage, including wafer dicing, die attach, wire bonding, testing, and final packaging operations.

Wafer dicing is one of the earliest stages where ESD threats emerge. During wafer separation, individual semiconductor dies are exposed and become highly sensitive to electrostatic discharge. Mechanical motion, vacuum systems, and material contact can all generate static charges.

Die attach operations also involve elevated ESD risks because semiconductor chips are transferred and bonded onto substrates or lead frames. Automated placement systems may generate triboelectric charging during repeated movement cycles.

Wire bonding processes require extremely delicate electrical connections between the semiconductor die and external package leads. Electrostatic discharge during bonding can damage bond pads, weaken electrical integrity, or create latent reliability defects.

Semiconductor testing introduces another major vulnerability point. Test handlers, sockets, contactors, and automated insertion equipment repeatedly interact with sensitive devices at high speed. Improper grounding during electrical testing can create discharge paths directly into integrated circuits.

Final packaging and shipment preparation continue to present ESD concerns. Even after successful manufacturing and testing, devices may still be damaged during labeling, tray loading, tape and reel packaging, or transportation.

Each production stage requires customized ESD control strategies based on device sensitivity, process complexity, and equipment configuration.

How ESD Affects Yield and Product Reliability

ESD negatively affects semiconductor manufacturing yield by causing direct failures, hidden latent defects, reliability degradation, customer returns, and increased production costs.

Semiconductor manufacturers operate in highly competitive markets where production yield directly influences profitability. Even small increases in defect rates can lead to substantial financial losses due to the high value of semiconductor wafers and advanced packaging processes.

Catastrophic ESD failures are relatively easier to identify because devices fail electrical testing immediately. However, latent defects represent a more serious long term challenge. These partially damaged devices may continue functioning temporarily before failing in customer applications.

Field failures caused by latent ESD damage can severely impact supplier reputation and customer trust. Industries such as automotive electronics, industrial automation, aerospace systems, and medical electronics demand extremely high reliability standards. A single semiconductor failure may compromise entire systems.

ESD related reliability issues can include:

• Gate oxide breakdown

• Metal interconnect damage

• Junction leakage increases

• Reduced switching performance

• Thermal instability

• Premature aging effects

• Intermittent operational failures

The financial impact of ESD extends beyond direct scrap costs. Manufacturers may face additional expenses related to warranty claims, root cause investigations, production downtime, customer audits, and corrective actions.

Facilities with weak ESD programs often experience:

Effective ESD management directly contributes to operational efficiency, consistent product quality, and stronger customer relationships.

Common Sources of Electrostatic Discharge

Electrostatic discharge in semiconductor assembly commonly originates from personnel movement, non conductive materials, automated machinery, environmental conditions, and improper grounding systems.

Human operators remain one of the largest sources of electrostatic charge generation. Simple actions such as walking, changing positions, or handling plastic materials can generate several thousand volts of static electricity. Without proper ESD protective equipment, operators can unknowingly damage semiconductor devices.

Insulating materials are another major concern. Plastics, adhesives, tapes, packaging films, and synthetic fabrics frequently accumulate static charges because they do not easily dissipate electricity. Many traditional manufacturing materials are unsuitable for ESD sensitive environments.

Automated equipment creates additional risks through friction, airflow, and repetitive motion. Conveyor systems moving trays and components generate triboelectric charging continuously during operation. High speed automation increases static generation rates.

Environmental control deficiencies also contribute to electrostatic buildup. Air conditioning systems that excessively dry the production environment may significantly increase ESD events. Relative humidity below recommended levels reduces charge dissipation efficiency.

Common ESD generation mechanisms include:

1. Contact and separation of materials

2. Friction between surfaces

3. Induction from nearby electric fields

4. Movement of insulating materials

5. Airflow across non conductive surfaces

6. Improper grounding connections

Manufacturing facilities must identify all potential ESD sources through detailed risk assessments and continuous monitoring programs.

ESD Prevention Methods in Semiconductor Packaging Facilities

Effective ESD prevention in semiconductor assembly requires integrated control measures including grounding systems, ionization equipment, environmental control, antistatic materials, and continuous monitoring.

Grounding forms the foundation of any ESD protection program. All conductive surfaces, equipment, workstations, and operators must be electrically connected to a controlled ground reference. This prevents uncontrolled charge accumulation and safely dissipates static electricity.

Personnel grounding systems typically include wrist straps, heel grounders, conductive footwear, and ESD safe garments. Operators handling semiconductor devices should remain continuously grounded throughout production activities.

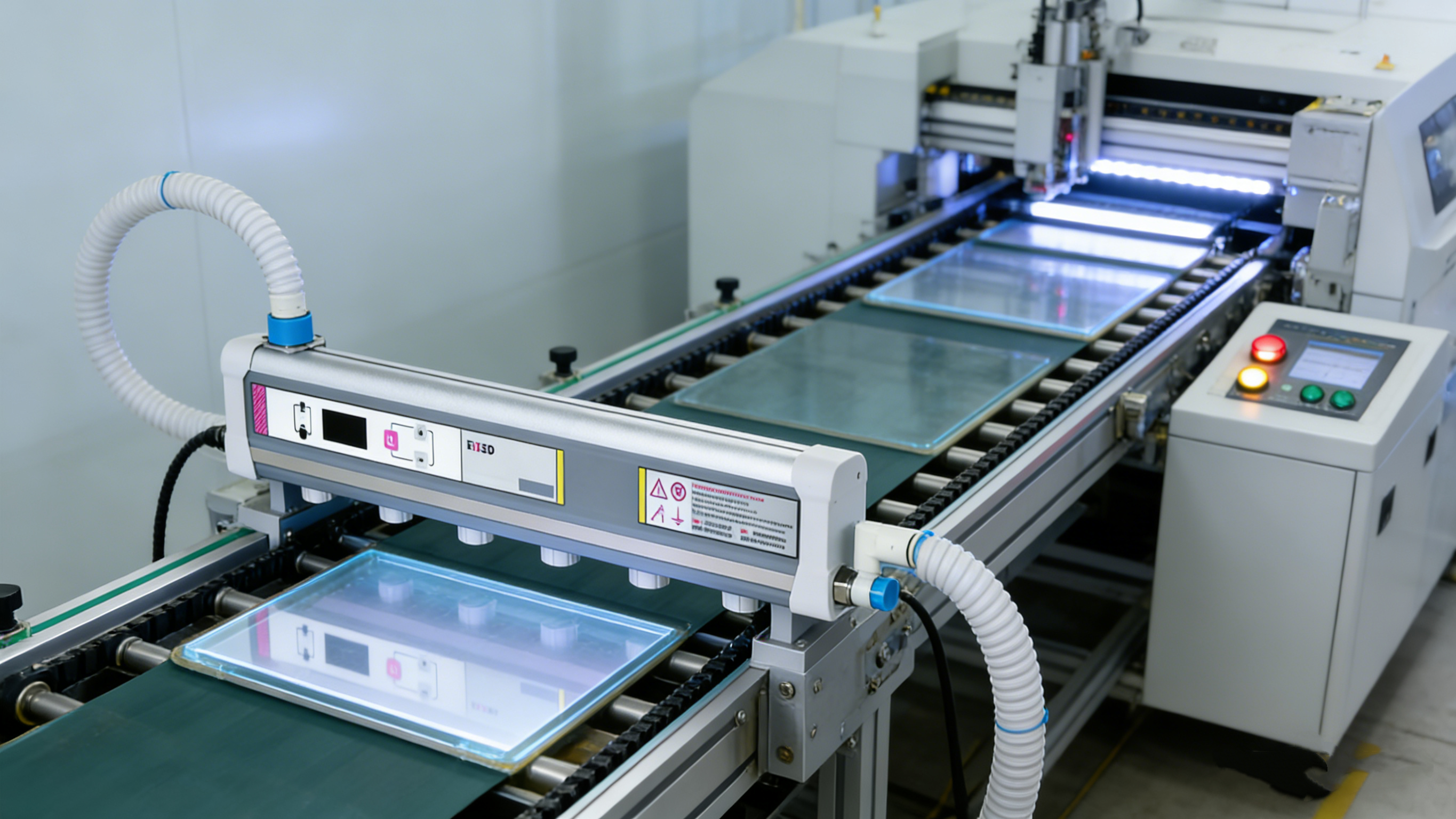

Ionization systems are widely used in areas where insulating materials cannot be eliminated. Ionizers generate balanced positive and negative air ions that neutralize static charges on surfaces and airborne particles.

Humidity control also plays a critical role in ESD prevention. Maintaining stable relative humidity levels helps reduce electrostatic charge generation naturally. However, humidity alone should never replace comprehensive grounding systems.

Key ESD prevention measures include:

• Grounded workstations

• Conductive flooring systems

• Antistatic packaging materials

• Continuous wrist strap monitoring

• Ionized airflow systems

• Regular equipment testing

• Humidity management

• ESD safe clothing

Many facilities implement dedicated ESD protected areas where strict handling procedures apply. Access controls, warning signage, and inspection routines help maintain compliance.

Advanced monitoring systems now provide real time ESD event detection and data analysis. These systems help identify process weaknesses before major yield losses occur.

Importance of ESD Safe Equipment and Materials

Using ESD safe equipment and materials is essential for minimizing static charge generation and protecting semiconductor devices throughout assembly and packaging operations.

Semiconductor manufacturing equipment must be specifically designed or modified for electrostatic control. Standard industrial equipment often contains insulating surfaces, ungrounded components, or friction generating mechanisms unsuitable for sensitive semiconductor environments.

ESD safe workstations typically use conductive or dissipative table surfaces connected to ground systems. These surfaces safely drain accumulated charges away from sensitive devices.

Packaging materials also require careful selection. Traditional plastic containers may generate dangerous electrostatic charges during handling and transportation. Antistatic trays, conductive carriers, and shielding bags help protect semiconductor components from electrostatic exposure.

Manufacturing tools such as tweezers, vacuum pickups, and handling fixtures should also possess ESD safe properties. Even small handheld tools can become discharge sources if improperly designed.

Regular verification and maintenance of ESD safe equipment are equally important. Damaged grounding systems or worn materials may lose protective effectiveness over time.

Employee Training and Continuous Monitoring

Employee awareness and continuous ESD monitoring are critical for maintaining long term electrostatic protection effectiveness in semiconductor assembly facilities.

Even the most advanced ESD control systems can fail if employees do not understand proper handling procedures. Human behavior remains one of the most significant variables in electrostatic risk management.

Training programs should educate employees about the physics of electrostatic discharge, device sensitivity levels, proper grounding techniques, workstation procedures, and emergency response protocols. Operators must understand why ESD rules are important rather than simply following instructions mechanically.

Regular refresher training ensures continued compliance and helps employees adapt to evolving manufacturing technologies. As semiconductor devices become more sensitive, ESD handling procedures may require continuous updates.

Continuous monitoring systems provide additional protection by detecting grounding failures, environmental changes, or abnormal discharge events in real time. Modern ESD monitoring solutions may include:

• Wrist strap testers

• Continuous personnel monitors

• Surface resistance measurement tools

• Ionizer performance analyzers

• Humidity monitoring systems

• ESD event detectors

Audit programs help identify weaknesses before they lead to production losses. Many facilities conduct daily workstation inspections, monthly compliance reviews, and annual program certifications.

Strong ESD cultures are typically built through management commitment, employee accountability, standardized procedures, and continuous process improvement initiatives.

Industry Standards for ESD Protection

Industry standards provide structured guidelines for establishing effective ESD control programs in semiconductor manufacturing and assembly environments.

International ESD standards help semiconductor manufacturers maintain consistent protection levels across global production facilities. These standards define requirements for grounding, materials, personnel safety, workstation design, packaging, and compliance verification.

One widely recognized framework establishes requirements for ESD control programs in electronics manufacturing environments. It outlines technical limits for resistance measurements, grounding systems, ionization performance, and auditing procedures.

Semiconductor manufacturers often integrate ESD requirements into broader quality management systems to support customer expectations and regulatory compliance. Automotive and aerospace sectors especially demand strict ESD process control due to high reliability requirements.

Typical ESD program elements defined by industry standards include:

1. ESD protected area requirements

2. Personnel grounding specifications

3. Equipment grounding verification

4. Packaging and transportation controls

5. Compliance testing procedures

6. Training and certification requirements

7. Documentation and traceability

Compliance with recognized ESD standards provides multiple operational benefits:

Facilities that fail to maintain proper ESD controls may face customer complaints, certification issues, or reduced competitiveness in high reliability markets.

Future Challenges of ESD Control in Advanced Packaging

Future semiconductor packaging technologies will face increasing ESD challenges due to smaller device geometries, higher integration density, advanced materials, and more complex assembly processes.

The semiconductor industry continues to push toward miniaturization and higher performance. Advanced packaging technologies such as heterogeneous integration, wafer level packaging, three dimensional stacking, and chiplet architectures introduce new electrostatic vulnerabilities.

As transistor dimensions shrink further, semiconductor devices become increasingly sensitive to lower voltage discharge events. Traditional ESD protection methods may no longer provide sufficient safety margins for future technologies.

Artificial intelligence hardware, high performance computing systems, automotive electronics, and advanced communication devices all require highly complex semiconductor packages with extremely high reliability expectations.

New packaging materials also create emerging ESD concerns. Some advanced polymers and ultra thin substrates exhibit unique electrostatic behaviors that require updated control methodologies.

Future ESD control challenges may include:

• Ultra low voltage sensitivity

• Complex multi chip package handling

• Higher automation speeds

• Smaller interconnect dimensions

• Advanced substrate materials

• Increased data driven process control

• Smart factory integration requirements

To address these challenges, semiconductor manufacturers are investing in advanced monitoring technologies, automated compliance systems, artificial intelligence based analytics, and predictive maintenance strategies.

The future of ESD management will likely combine traditional grounding principles with intelligent factory systems capable of real time risk prediction and automated corrective actions.

Conclusion

ESD risks in back end semiconductor assembly remain one of the most important reliability challenges in modern electronics manufacturing. As semiconductor technologies become increasingly advanced and miniaturized, electrostatic sensitivity continues to rise, making comprehensive ESD protection essential for maintaining production quality and operational efficiency.

From wafer dicing and die attach to testing and final packaging, every stage of back end semiconductor assembly introduces potential electrostatic hazards. Without proper grounding systems, antistatic materials, environmental control, equipment maintenance, and employee training, manufacturers face increased yield loss, latent defects, customer complaints, and long term financial risks.

Successful semiconductor assembly operations require a combination of technical controls, industry standard compliance, continuous monitoring, and strong organizational commitment. Facilities that invest in robust ESD management programs can significantly improve device reliability, reduce manufacturing costs, and strengthen customer confidence in highly competitive semiconductor markets.

As future packaging technologies continue evolving, ESD protection strategies must also advance to address lower voltage sensitivities and more complex manufacturing environments. Continuous innovation in electrostatic control will remain a critical factor in achieving reliable semiconductor production and long term industry success.
