EIESD Ion Air Bar: ESD Sensitivity of Advanced Semiconductor Nodes

As semiconductor manufacturing continues to move toward smaller process geometries, electrostatic discharge (ESD) protection has become one of the most critical reliability challenges in modern electronics. Advanced semiconductor nodes deliver higher transistor density, lower power consumption, and faster switching speeds, but these improvements also make integrated circuits increasingly vulnerable to electrostatic events during manufacturing, assembly, transportation, and field operation.

In highly scaled technologies, even a relatively small electrostatic discharge can permanently damage delicate gate oxides, interconnect structures, and sensitive transistor junctions. As a result, semiconductor manufacturers, electronics assemblers, and industrial equipment suppliers must implement stricter ESD control strategies than ever before.

Advanced semiconductor nodes are significantly more ESD sensitive because shrinking device geometries reduce oxide thickness, lower breakdown voltages, and increase current density, making modern integrated circuits more vulnerable to electrostatic discharge damage during fabrication, assembly, testing, and real-world operation.

The growing adoption of artificial intelligence hardware, automotive electronics, high performance computing, telecommunications infrastructure, and Internet of Things devices has accelerated the transition to advanced semiconductor processes. However, the reliability risks associated with ESD events have also increased dramatically. Understanding how ESD sensitivity evolves with process scaling is essential for semiconductor manufacturers, electronics assembly facilities, cleanroom operators, and industrial engineers.

This article explores the relationship between advanced semiconductor nodes and ESD sensitivity, examines the underlying physical mechanisms, discusses major industry challenges, and outlines practical ESD control methods for modern semiconductor environments.

Table of Contents

1. What Is ESD in Semiconductor Manufacturing?

2. Why Advanced Semiconductor Nodes Are More ESD Sensitive

3. How Device Scaling Impacts ESD Robustness

4. Common Types of ESD Failures in Advanced Nodes

5. ESD Models Used in Semiconductor Reliability Testing

6. Challenges of ESD Protection in FinFET and Gate All Around Technologies

7. The Role of Materials and Interconnect Structures in ESD Sensitivity

8. Manufacturing Risks Associated With ESD Damage

9. ESD Control Strategies for Advanced Semiconductor Facilities

10. Cleanroom Design Requirements for ESD Sensitive Devices

11. Best Practices for Handling Advanced Semiconductor Components

12. Future Trends in Semiconductor ESD Protection

13. Conclusion

What Is ESD in Semiconductor Manufacturing?

Electrostatic discharge in semiconductor manufacturing refers to the sudden transfer of electrical charge between objects with different electrical potentials, which can damage sensitive semiconductor devices and reduce product reliability.

Electrostatic discharge occurs when accumulated static electricity rapidly moves from one surface or object to another. In semiconductor manufacturing environments, static charges can build up through human movement, equipment operation, material handling, airflow, and friction between insulating materials. When the voltage difference becomes sufficiently high, a sudden discharge can occur through a semiconductor device.

Modern semiconductor devices contain extremely small transistor structures and ultra thin insulating layers. These microscopic features are highly sensitive to electrical overstress. Even low voltage ESD events that are undetectable to humans can create permanent defects within integrated circuits.

There are several common sources of ESD within semiconductor facilities:

• Human body charge accumulation

• Automated equipment movement

• Plastic packaging materials

• Conveyor systems

• Dry air environments

• Wafer handling tools

• Robotic assembly systems

• Ion imbalance in cleanrooms

ESD damage may appear immediately as catastrophic device failure or remain hidden as latent defects. Latent defects are especially dangerous because devices may initially pass testing but fail later during customer use or field deployment.

ESD related failures are among the most expensive reliability problems in semiconductor manufacturing because they often escape early detection and create long term product reliability risks.

Why Advanced Semiconductor Nodes Are More ESD Sensitive

Advanced semiconductor nodes are more ESD sensitive because process scaling reduces physical dimensions, lowers dielectric strength, and concentrates electrical stress into increasingly smaller device structures.

As semiconductor technology progresses from larger process nodes toward sub 10 nanometer geometries, transistor structures become dramatically smaller. Gate oxides become thinner, metal interconnect spacing decreases, and current density increases. While these changes improve performance and power efficiency, they also reduce the tolerance of devices to electrical overstress.

One of the primary reasons for increased ESD sensitivity is the reduction in gate oxide thickness. Thin oxide layers can break down at lower voltages during electrostatic discharge events. Once dielectric breakdown occurs, transistor functionality may be permanently destroyed.

Another critical factor is current crowding. In advanced semiconductor nodes, smaller conductive paths force discharge current into narrower regions. This creates localized heating and increases the likelihood of thermal damage, metal migration, or junction failure.

In older semiconductor technologies, devices could often tolerate relatively large ESD events without permanent damage. However, in advanced nodes, even small discharges may exceed the safe operating limits of device structures.

How Device Scaling Impacts ESD Robustness

Device scaling impacts ESD robustness by reducing physical protection margins, increasing electric field intensity, and limiting the ability of semiconductor structures to dissipate discharge energy safely.

Semiconductor scaling is driven by the need for greater computational power, lower energy consumption, and higher integration density. However, the same scaling principles that improve device performance also create significant ESD challenges.

As channel lengths shrink, electric fields within transistors become more concentrated. During an ESD event, these intense electric fields can exceed the critical breakdown limits of semiconductor materials. This can lead to gate rupture, junction burnout, or interconnect melting.

Advanced semiconductor nodes also operate at lower supply voltages. While reduced operating voltage improves power efficiency, it narrows the safe operating window between normal device function and catastrophic electrical failure.

The impact of scaling on ESD robustness can be summarized in several ways:

1. Reduced oxide thickness decreases voltage tolerance

2. Smaller contact areas increase thermal stress

3. Complex device geometries complicate current distribution

4. Lower capacitance changes discharge dynamics

5. Increased integration density raises cumulative risk exposure

In many advanced technologies, conventional ESD protection structures occupy too much silicon area or negatively impact signal performance. Designers therefore face difficult tradeoffs between ESD protection capability, chip performance, and manufacturing cost.

Common Types of ESD Failures in Advanced Nodes

Common ESD failures in advanced semiconductor nodes include gate oxide breakdown, junction damage, metal interconnect melting, latch up events, and latent reliability defects.

ESD failures can manifest in multiple forms depending on the discharge energy, device architecture, and affected circuit region. Some failures produce immediate catastrophic damage, while others generate subtle degradation that becomes visible only after prolonged operation.

Gate oxide breakdown is one of the most common failure mechanisms in advanced nodes. Thin dielectric layers cannot tolerate high transient voltages, causing permanent conductive paths through the oxide.

Another major issue is junction burnout. During high current discharge events, localized heating may exceed the thermal limits of semiconductor junctions, resulting in irreversible structural damage.

Latent defects are particularly problematic because they may not appear during production testing. Devices with hidden ESD damage can fail later under thermal cycling, electrical stress, or normal field operation.

ESD Models Used in Semiconductor Reliability Testing

Semiconductor reliability testing uses standardized ESD models to simulate different real world discharge scenarios and evaluate device robustness.

The semiconductor industry relies on several standardized ESD test models to assess device sensitivity and qualification performance. These models reproduce different discharge conditions that may occur during manufacturing, assembly, or customer handling.

The Human Body Model simulates electrostatic discharge from a charged person touching a device. Historically, this was one of the most widely used ESD qualification standards in semiconductor manufacturing.

The Charged Device Model has become increasingly important for advanced semiconductor nodes because modern automated manufacturing environments often generate device charging conditions. In this model, the semiconductor component itself becomes charged and discharges rapidly when contacting grounded surfaces.

Charged Device Model testing is especially critical for advanced nodes because discharge rise times are extremely fast and current peaks can be very high. These characteristics closely resemble real manufacturing conditions in highly automated production lines.

Challenges of ESD Protection in FinFET and Gate All Around Technologies

FinFET and Gate All Around semiconductor technologies create new ESD protection challenges due to their three dimensional transistor structures and highly scaled architectures.

Traditional planar transistor designs have gradually been replaced by three dimensional device architectures such as FinFET and Gate All Around structures. These advanced technologies improve electrostatic control and reduce leakage current, but they also complicate ESD protection design.

FinFET devices use vertical fin structures to improve transistor channel control. However, these narrow fins can experience severe current crowding during ESD events. Thermal dissipation also becomes more difficult because the active regions are physically smaller.

Gate All Around technologies introduce even greater structural complexity. Surrounding the transistor channel with gate material improves switching performance, but it also creates new pathways for electrical overstress and localized breakdown.

Major ESD challenges in advanced transistor architectures include:

• Limited silicon area for protection structures

• Higher parasitic resistance

• Reduced thermal dissipation capability

• Complex current flow behavior

• Increased design verification difficulty

• Signal integrity constraints

Engineers must carefully optimize ESD protection networks while maintaining overall device performance. Excessive protection circuitry may negatively impact speed, capacitance, or power efficiency.

The Role of Materials and Interconnect Structures in ESD Sensitivity

Material selection and interconnect design strongly influence ESD sensitivity because conductive properties, thermal behavior, and dielectric characteristics determine how devices respond to electrostatic stress.

Advanced semiconductor manufacturing increasingly relies on specialized materials to improve device performance. High dielectric constant materials, copper interconnects, cobalt structures, and ultra low dielectric insulators all affect ESD behavior differently.

Copper interconnects offer lower resistance than traditional aluminum structures, but they may also experience electromigration under intense transient current conditions. Similarly, low dielectric constant materials reduce parasitic capacitance but often possess lower mechanical and electrical robustness.

Interconnect scaling creates additional reliability concerns. Narrow metal lines carry large transient current densities during electrostatic discharge events, increasing the probability of localized melting or structural degradation.

Material related ESD considerations include:

1. Dielectric breakdown strength

2. Thermal conductivity

3. Current carrying capability

4. Electromigration resistance

5. Mechanical stress tolerance

6. Interface reliability

Modern semiconductor reliability engineering therefore requires close collaboration between process engineers, materials scientists, device designers, and manufacturing specialists.

Manufacturing Risks Associated With ESD Damage

ESD damage during semiconductor manufacturing can reduce yield, increase production costs, create latent defects, and compromise long term product reliability.

Semiconductor manufacturing environments contain numerous opportunities for electrostatic charge generation. Automated wafer transport systems, robotic handling tools, packaging materials, and personnel movement can all contribute to electrostatic buildup.

One of the greatest risks associated with ESD damage is yield loss. Even a small number of electrostatic events can destroy high value semiconductor wafers or packaged devices, resulting in significant financial losses.

Latent ESD defects are often even more expensive than catastrophic failures because they may escape quality control testing. Products containing hidden ESD damage can fail months or years later in customer applications, generating warranty claims and damaging supplier reputation.

As semiconductor manufacturing costs continue to rise, effective ESD prevention becomes increasingly important for operational efficiency and profitability.

ESD Control Strategies for Advanced Semiconductor Facilities

Advanced semiconductor facilities require comprehensive ESD control strategies that combine grounding, ionization, humidity management, conductive materials, monitoring systems, and operator training.

Modern semiconductor cleanrooms implement multilayered ESD protection programs to minimize electrostatic risks throughout manufacturing operations. These programs are designed to control charge generation, prevent charge accumulation, and safely dissipate static electricity.

Grounding is one of the most fundamental ESD control methods. Workstations, equipment, flooring systems, and personnel grounding devices help equalize electrical potential and prevent dangerous discharge events.

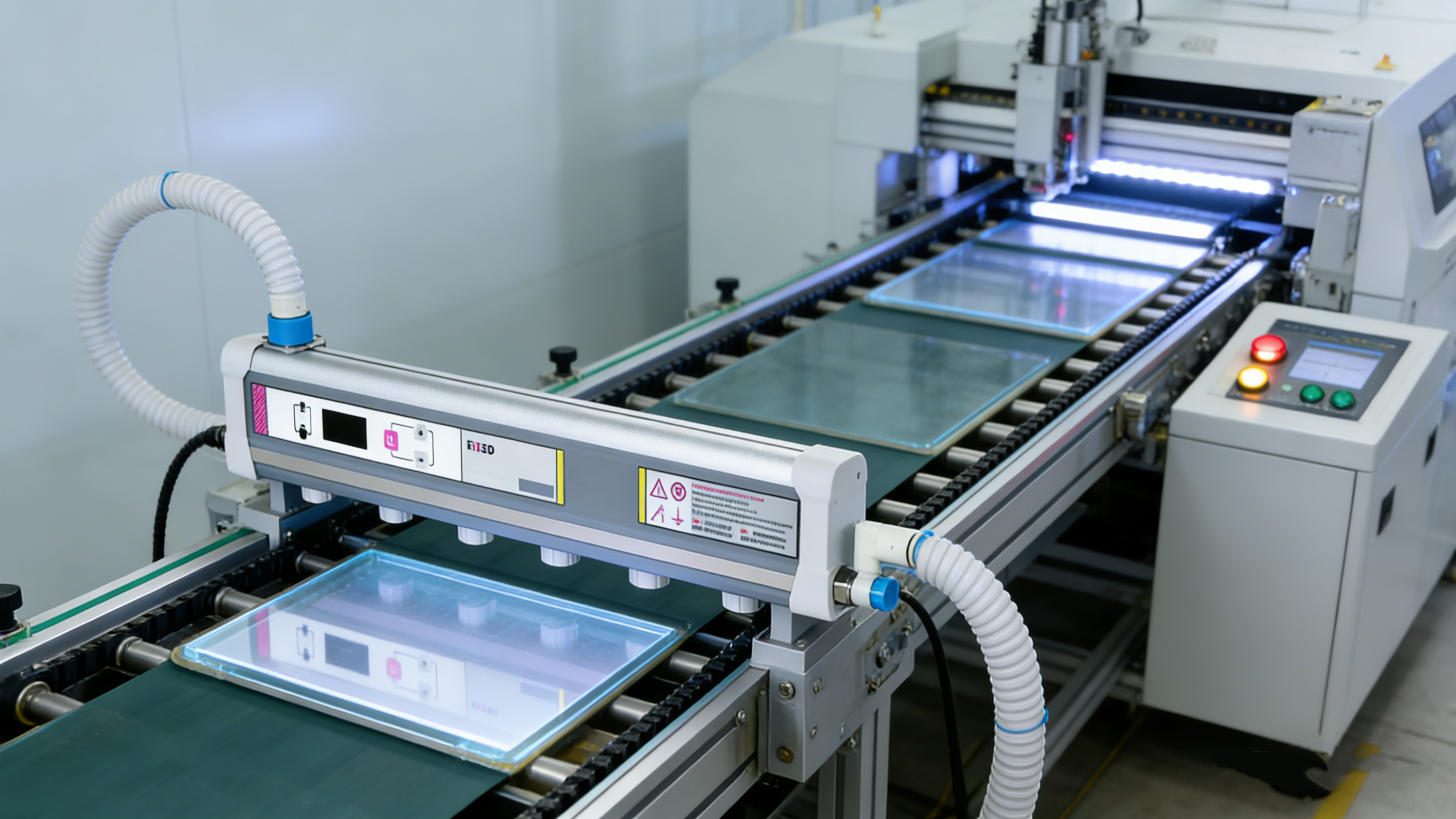

Ionization systems are also widely used in advanced semiconductor manufacturing. These systems generate balanced positive and negative ions that neutralize electrostatic charges on non conductive surfaces and isolated objects.

Key ESD control measures include:

• Conductive flooring systems

• Grounded work surfaces

• Ionization equipment

• ESD safe packaging materials

• Continuous monitoring systems

• Humidity control systems

• Personnel grounding straps

• Regular compliance auditing

Comprehensive ESD programs also require strict process discipline. Even highly advanced technical controls may fail if personnel do not consistently follow approved handling procedures.

Cleanroom Design Requirements for ESD Sensitive Devices

Cleanrooms for advanced semiconductor manufacturing must integrate ESD protection directly into facility design through controlled materials, airflow management, grounding infrastructure, and environmental monitoring.

Semiconductor cleanrooms are carefully engineered environments designed to minimize contamination and electrostatic hazards simultaneously. ESD protection must be considered during facility construction, equipment installation, and operational planning.

Flooring systems in semiconductor cleanrooms are typically conductive or dissipative to prevent static charge accumulation. Personnel entering controlled areas often pass through grounding verification stations to ensure proper electrical grounding.

Airflow management also plays an important role in ESD prevention. Extremely dry air increases static electricity generation, so humidity control systems help maintain stable electrostatic conditions.

Important cleanroom design elements include:

1. Grounded conductive flooring

2. Static dissipative furniture

3. Ionized airflow systems

4. Environmental monitoring sensors

5. Shielded transport containers

6. Controlled humidity levels

As semiconductor nodes continue to shrink, cleanroom ESD requirements become more demanding. Facilities manufacturing advanced logic or memory devices often require extremely tight electrostatic control standards.

Best Practices for Handling Advanced Semiconductor Components

Proper handling of advanced semiconductor components requires strict adherence to ESD safe procedures throughout storage, transportation, assembly, testing, and field service operations.

Even the most advanced semiconductor devices remain vulnerable to electrostatic damage after leaving the fabrication facility. Therefore, ESD protection must extend throughout the entire electronics supply chain.

Personnel handling semiconductor components should always use grounded wrist straps or equivalent grounding systems. ESD safe gloves, garments, and footwear further reduce electrostatic risk.

Packaging materials are also extremely important. Conductive or static dissipative packaging helps protect components from external electrostatic fields and accidental discharge events during transportation.

Recommended handling practices include:

• Use grounded handling equipment

• Store components in ESD safe containers

• Avoid unnecessary physical contact

• Maintain controlled humidity conditions

• Inspect grounding systems regularly

• Train personnel continuously

• Monitor electrostatic conditions in real time

Organizations that implement rigorous ESD handling standards typically achieve better manufacturing yield, improved product reliability, and lower warranty costs.

Future Trends in Semiconductor ESD Protection

Future semiconductor ESD protection technologies will focus on intelligent monitoring, advanced materials, improved simulation tools, and optimized protection architectures for increasingly scaled devices.

As semiconductor technology advances toward even smaller process nodes, traditional ESD protection approaches may become insufficient. Future solutions will require new materials, innovative circuit designs, and more precise electrostatic control methods.

Artificial intelligence based monitoring systems are expected to improve ESD event detection and predictive maintenance capabilities in semiconductor manufacturing facilities. Real time analytics may help identify hidden electrostatic risks before product damage occurs.

Advanced simulation technologies are also becoming increasingly important. High accuracy modeling tools allow engineers to analyze transient current flow, thermal effects, and structural reliability in complex semiconductor architectures.

Several future development trends are emerging:

The semiconductor industry will continue balancing device performance, manufacturing efficiency, and ESD reliability as process technologies become increasingly sophisticated.

Conclusion

Advanced semiconductor nodes have fundamentally transformed the relationship between device performance and ESD sensitivity. As transistor geometries shrink and device architectures become more complex, electrostatic discharge protection has evolved into a critical reliability challenge across the semiconductor industry.

Smaller process nodes offer substantial advantages in computational power, energy efficiency, and integration density, but they also reduce electrical tolerance margins and increase vulnerability to electrostatic overstress. Thin gate oxides, narrow interconnect structures, lower operating voltages, and advanced transistor architectures all contribute to heightened ESD sensitivity.

To address these challenges, semiconductor manufacturers must implement comprehensive ESD control programs that combine facility design, environmental control, equipment grounding, ionization systems, advanced testing methodologies, and rigorous handling procedures.

As future semiconductor technologies continue pushing the boundaries of scaling and performance, effective ESD protection will remain essential for ensuring product reliability, manufacturing yield, and long term operational success throughout the global electronics industry.
