Electrostatic discharge has become one of the most critical reliability challenges in the semiconductor industry. As electronic devices continue to shrink in size while increasing in complexity and performance, semiconductor components become more sensitive to even minor electrostatic events. Among the various electrostatic discharge testing standards, the Human Body Model (HBM) remains one of the most widely used methods for evaluating semiconductor device robustness.
Manufacturers, electronics assemblers, and industrial buyers must understand how HBM-related ESD risks affect semiconductor reliability, production yield, product quality, and long term operational stability. Without proper ESD protection strategies, organizations may face hidden failures, increased warranty claims, costly production downtime, and customer dissatisfaction.
The Human Body Model (HBM) is a standardized electrostatic discharge testing method that simulates the discharge generated when a human touches an electronic component, helping manufacturers evaluate semiconductor vulnerability to ESD damage and implement effective protection measures.
Modern semiconductor devices operate at lower voltages and contain increasingly smaller transistor geometries, making them significantly more susceptible to electrostatic damage than earlier technologies. Even a discharge too small for humans to feel can permanently damage integrated circuits or reduce their operational lifespan.
Understanding HBM and semiconductor ESD risks is essential not only for semiconductor manufacturers but also for PCB assemblers, electronics integrators, automotive suppliers, medical equipment producers, aerospace manufacturers, and industrial automation companies. A comprehensive ESD control strategy can dramatically reduce production losses and improve product reliability across the supply chain.
What Is the Human Body Model in Semiconductor ESD Testing?
Why Semiconductor Devices Are Vulnerable to ESD Damage
How HBM Testing Works in Semiconductor Qualification
Common Types of Semiconductor ESD Failures
HBM Classification Levels and Industry Standards
Factors That Increase Semiconductor ESD Risks
ESD Protection Methods for Semiconductor Manufacturing
Importance of ESD Control in Electronics Assembly
How Semiconductor Packaging Influences HBM Performance
Future Trends in HBM and Semiconductor ESD Protection
Conclusion
The Human Body Model is an ESD simulation method designed to replicate the electrostatic discharge that occurs when a charged person touches a semiconductor device or electronic component.
The Human Body Model is one of the earliest and most commonly adopted ESD testing standards in the semiconductor industry. It was developed to evaluate how semiconductor devices respond when exposed to sudden electrostatic discharge events generated by human contact. In industrial environments, operators walking across floors, handling packaging materials, or touching equipment can accumulate thousands of volts of static electricity.
When a charged person touches a semiconductor component, the stored electrostatic energy rapidly transfers into the device. This discharge may occur within nanoseconds, yet it can generate enough electrical stress to damage sensitive internal circuitry. HBM testing reproduces this scenario in a controlled laboratory environment.
The standard HBM test circuit typically consists of:
A high voltage power supply
A capacitor representing the human body's stored charge
A resistor simulating body resistance
A switching mechanism for controlled discharge
The semiconductor device under test
HBM testing plays a major role during semiconductor qualification because it provides manufacturers with measurable data regarding device robustness. Semiconductor buyers often review HBM ratings before selecting components for high reliability applications.
The following table summarizes key HBM characteristics:
Parameter | Description |
|---|---|
Simulation Target | Human electrostatic discharge event |
Typical Resistance | 1500 ohms |
Typical Capacitance | 100 pF |
Primary Purpose | Evaluate semiconductor ESD robustness |
Industry Application | Semiconductor qualification and reliability testing |
Semiconductor devices are highly vulnerable to electrostatic discharge because modern integrated circuits contain extremely small and sensitive structures that can be damaged by relatively low voltage events.
As semiconductor technology advances toward smaller process nodes, transistor gate oxides become thinner and more delicate. While miniaturization improves speed and power efficiency, it also reduces tolerance to electrical overstress. Even an electrostatic discharge below human perception can exceed the safe operating limits of microscopic semiconductor structures.
Static electricity can originate from many common manufacturing activities, including:
Walking across synthetic flooring
Handling plastic trays or packaging
Movement of conveyor systems
Contact between insulating materials
Dry environmental conditions
One of the most dangerous aspects of ESD damage is that failures may not appear immediately. Some semiconductor devices suffer latent defects rather than catastrophic destruction. In such cases, the component continues operating temporarily but experiences reduced reliability and premature field failure later.
Industries that rely heavily on high reliability semiconductors are particularly concerned about ESD vulnerability. These include:
Industry | ESD Sensitivity Concern |
|---|---|
Automotive Electronics | Safety critical systems |
Medical Devices | Long term operational stability |
Aerospace | Extreme reliability requirements |
Industrial Automation | Continuous operational uptime |
Consumer Electronics | High volume manufacturing yield |
As semiconductor integration density increases, ESD control becomes a strategic manufacturing priority rather than a simple quality management task.
HBM testing applies controlled electrostatic pulses to semiconductor devices to determine the maximum discharge level the device can withstand without failure.
During HBM qualification testing, semiconductor devices are subjected to progressively higher electrostatic discharge voltages. Engineers monitor the device before and after each test pulse to determine whether electrical characteristics remain within acceptable limits.
The testing process generally includes several stages:
Initial electrical characterization
Application of controlled HBM pulses
Post stress electrical verification
Failure analysis if damage occurs
Final device classification
HBM testing is typically performed on every pin combination of an integrated circuit. Since electrostatic discharge can occur between multiple terminals, comprehensive testing ensures broader protection coverage.
Failure criteria may include:
Leakage current increase
Functional malfunction
Threshold voltage shift
Short circuit formation
Permanent electrical degradation
Semiconductor manufacturers use HBM results to improve device design and optimize internal protection structures. Enhanced ESD protection circuits can absorb discharge energy before sensitive internal regions become damaged.
HBM qualification is often combined with additional ESD testing models such as:
ESD Model | Primary Simulation |
|---|---|
HBM | Human contact discharge |
CDM | Charged device discharge |
MM | Machine related discharge |
System Level ESD | End product operational exposure |
Semiconductor ESD failures may appear as catastrophic damage, latent defects, leakage problems, or complete functional failure depending on the severity and location of the electrostatic event.
Catastrophic failure occurs when the ESD event immediately destroys internal semiconductor structures. This type of damage is relatively easy to identify because the device stops functioning entirely. Burned junctions, melted metal traces, and short circuits are common indicators.
Latent failure is more difficult and expensive to manage. In this scenario, the semiconductor remains operational after the ESD event but experiences weakened internal structures. Over time, thermal stress and normal operating conditions worsen the damage until the component eventually fails in the field.
Common ESD failure mechanisms include:
Gate oxide rupture
Metal interconnect melting
Junction breakdown
Silicon substrate damage
Thermal hotspot formation
The economic consequences of latent ESD damage can be severe because failures may occur after product shipment. This leads to:
Warranty replacement costs
Customer dissatisfaction
Brand reputation damage
Production recalls
Increased service expenses
Failure analysis laboratories often use advanced inspection techniques such as electron microscopy, thermal imaging, and curve tracing to locate microscopic ESD damage within semiconductor devices.
HBM classification levels define the voltage thresholds semiconductor devices can tolerate during standardized ESD testing procedures.
Industry standards organizations establish HBM classification systems to create consistency across semiconductor qualification programs. These classifications help manufacturers, distributors, and customers evaluate device robustness.
HBM ratings are usually expressed in voltage ranges. Higher classifications indicate stronger ESD tolerance. However, achieving extremely high HBM ratings may require larger protection structures that increase device size or reduce performance.
The following table illustrates common HBM classification ranges:
HBM Class | Voltage Range | Risk Level |
|---|---|---|
Class 0 | Below 250 V | Very high sensitivity |
Class 1A | 250 V to 500 V | High sensitivity |
Class 1B | 500 V to 1000 V | Moderate sensitivity |
Class 1C | 1000 V to 2000 V | Improved robustness |
Class 2 | 2000 V to 4000 V | Strong protection |
Class 3 | Above 4000 V | Very strong protection |
Manufacturers commonly reference international ESD standards during qualification and production processes. These standards define testing methods, calibration requirements, waveform specifications, and pass or fail criteria.
Consistent adherence to recognized standards improves supply chain communication and helps electronics manufacturers establish unified ESD handling procedures.
Environmental conditions, manufacturing materials, operator behavior, and inadequate grounding systems all contribute to increased semiconductor ESD risks.
One of the most significant environmental risk factors is low humidity. Dry air promotes static electricity accumulation because moisture normally helps dissipate electrical charges. Manufacturing facilities operating in low humidity environments often experience higher ESD incidents.
Insulating materials also create substantial ESD risks. Plastic containers, synthetic clothing, foam packaging, and non conductive surfaces can accumulate high electrostatic charges through friction and movement.
Human activity represents another major source of electrostatic generation. Employees moving through production areas can generate thousands of volts without realizing it. Without proper grounding measures, this accumulated charge may discharge directly into sensitive semiconductor devices.
The following list identifies major ESD risk contributors:
Improper grounding systems
Insufficient operator training
Lack of conductive flooring
Uncontrolled packaging materials
Poor humidity management
Inadequate workstation protection
Modern automated manufacturing environments also introduce additional ESD concerns. Robotic handling systems, conveyor belts, automated test equipment, and high speed assembly machines may generate electrostatic charges during continuous operation.
Effective semiconductor ESD protection requires a comprehensive strategy involving grounding, environmental controls, personnel training, protective equipment, and continuous monitoring systems.
One of the most fundamental ESD protection measures is grounding. Grounded workstations, wrist straps, conductive flooring, and grounded tools provide controlled pathways for electrostatic charges to dissipate safely.
ESD protected areas are commonly established within semiconductor manufacturing facilities. These controlled environments regulate materials, personnel access, and workstation configurations to minimize electrostatic hazards.
Essential ESD control equipment may include:
Grounded wrist straps
Conductive footwear
ESD safe garments
Ionization systems
Conductive work surfaces
ESD storage containers

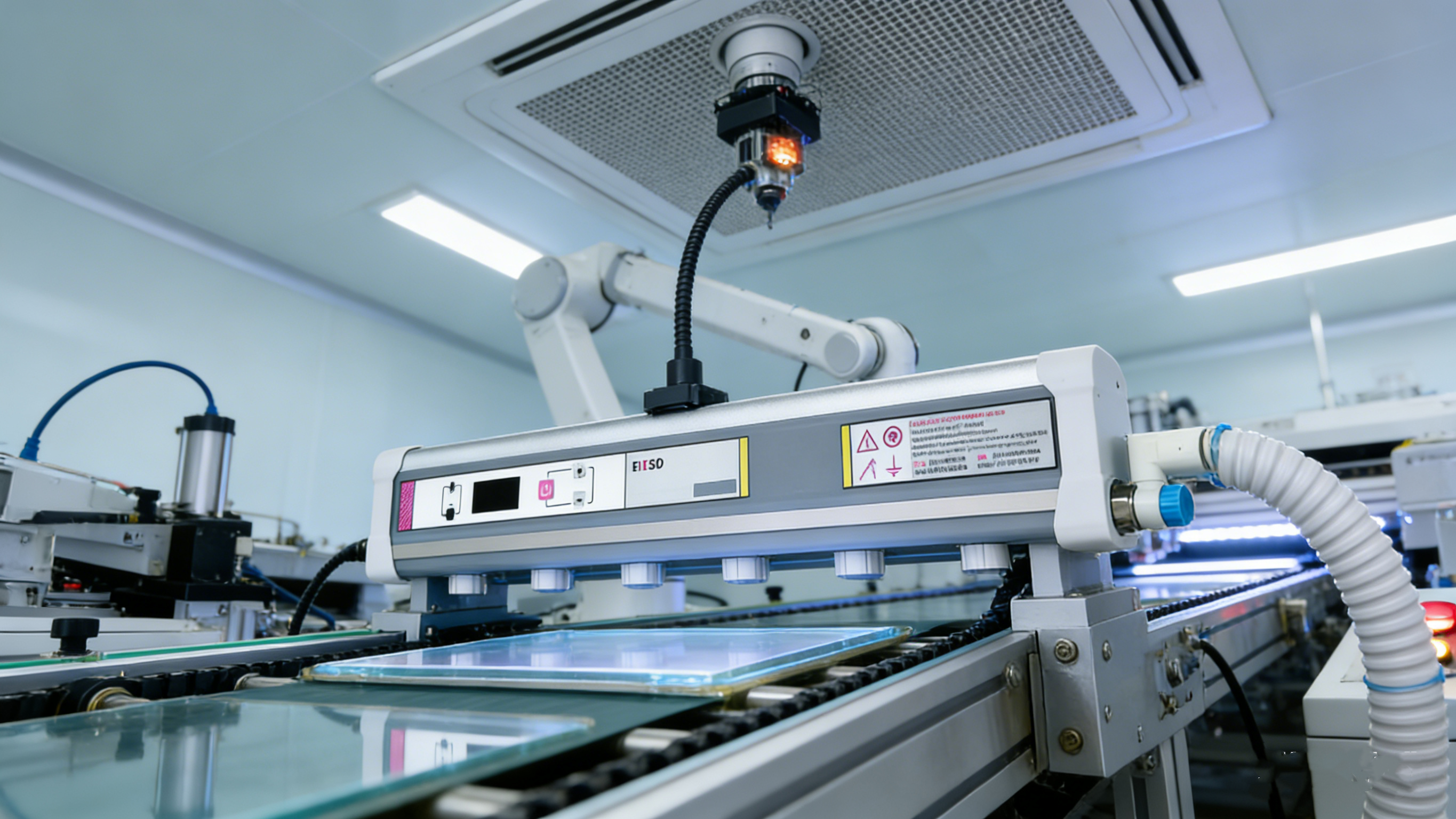

Ionization technology plays a particularly important role when handling insulating materials that cannot be grounded directly. Ionizers generate balanced positive and negative ions that neutralize static charges on nearby surfaces.
Training programs are equally important. Employees must understand:
How static electricity forms
Why semiconductor devices are sensitive
Correct handling procedures
Proper grounding techniques
Inspection and maintenance protocols
Continuous monitoring systems further improve ESD control reliability by detecting grounding failures, equipment malfunctions, or unsafe workstation conditions before damage occurs.
ESD control in electronics assembly is essential for maintaining product quality, preventing hidden failures, improving production yield, and protecting long term reliability.
Semiconductor devices pass through numerous handling stages during electronics assembly. Each transfer, inspection step, soldering operation, or packaging process introduces potential electrostatic exposure.
Printed circuit board assembly facilities must establish strict ESD management procedures to protect sensitive components throughout the manufacturing process. Even a single uncontrolled workstation can compromise overall production quality.
Effective ESD control provides measurable operational benefits:
Benefit | Operational Impact |
|---|---|
Higher Production Yield | Reduced component failure rates |
Improved Reliability | Lower field failure incidents |
Reduced Warranty Costs | Fewer customer returns |
Better Product Stability | Longer operational lifespan |
Lower Manufacturing Waste | Reduced scrap and rework |
In highly regulated industries such as automotive and medical electronics, ESD control is often integrated into broader quality management and reliability compliance systems.
As electronic systems continue becoming more compact and functionally advanced, the importance of comprehensive ESD management continues to grow across global electronics manufacturing operations.
Semiconductor packaging significantly affects HBM performance by influencing electrostatic discharge pathways, heat dissipation capability, and overall device protection efficiency.
Packaging technology serves as both a physical and electrical interface between semiconductor dies and external environments. Proper package design can reduce ESD vulnerability by distributing discharge energy more effectively.
Advanced packaging structures often incorporate dedicated ESD protection features such as:
Integrated protection diodes
Enhanced grounding structures
Improved thermal conductivity
Optimized pin configurations
Low impedance discharge paths
Package materials also influence static charge accumulation behavior. Certain insulating materials may increase electrostatic risk if not properly controlled. Conductive or dissipative packaging solutions help reduce charge buildup during transportation and handling.
Smaller semiconductor packages introduce additional engineering challenges because limited physical space restricts the size of internal ESD protection structures. Engineers must balance:
Electrical performance
Thermal efficiency
Package size
Manufacturing cost
ESD robustness
The growing adoption of advanced packaging technologies such as multi chip integration and high density interconnects continues driving innovation in semiconductor ESD protection strategies.
Future semiconductor ESD protection strategies will focus on advanced materials, intelligent monitoring systems, smaller process technologies, and improved integrated protection architectures.
Semiconductor scaling continues reducing transistor dimensions, increasing device density, and lowering operating voltages. While these advancements improve performance and energy efficiency, they also create greater ESD sensitivity challenges.
Artificial intelligence, electric vehicles, industrial automation, and high speed communication systems are driving demand for increasingly sophisticated semiconductor devices. These applications require both higher performance and greater reliability.
Emerging ESD protection trends include:
Real time ESD event monitoring
Smart factory ESD management systems
Advanced ionization technologies
Nanoscale protection structures
Enhanced simulation modeling tools
Manufacturers are also investing in predictive analytics systems capable of identifying ESD risk patterns before failures occur. By combining environmental monitoring, equipment diagnostics, and production analytics, facilities can proactively reduce electrostatic hazards.
As semiconductor technology evolves, collaboration between device designers, packaging engineers, manufacturing facilities, and electronics assemblers will become increasingly important for maintaining effective ESD protection across the entire supply chain.
Human Body Model testing remains one of the most important tools for evaluating semiconductor electrostatic discharge robustness. As semiconductor devices become smaller, faster, and more complex, ESD sensitivity continues increasing across nearly every electronics industry segment.
HBM testing enables manufacturers to simulate realistic human generated electrostatic events and assess semiconductor reliability under controlled conditions. Understanding HBM classifications, failure mechanisms, environmental risk factors, and protection methods is essential for improving product quality and reducing costly failures.
Organizations that implement comprehensive ESD control programs can achieve substantial operational advantages, including improved manufacturing yield, enhanced product reliability, lower warranty costs, and stronger customer confidence.
In the future, continued advancements in semiconductor technology will require even more sophisticated ESD protection strategies. Companies that prioritize electrostatic control today will be better positioned to maintain reliability, competitiveness, and long term manufacturing success in the evolving electronics market.
