Views: 0 Author: Site Editor Publish Time: 2026-07-09 Origin: Site
Plastic film manufacturing is one of the industries most affected by static electricity. Whether producing polyethylene (PE), polypropylene (PP), PET, PVC, BOPP, or multilayer laminated films, manufacturers frequently encounter electrostatic charges generated during extrusion, winding, slitting, printing, coating, and packaging. These charges not only attract airborne dust and contaminants but also reduce product quality, create production interruptions, increase waste, and pose safety hazards in facilities handling flammable materials.
As production lines continue to become faster and more automated, effective static control has become an essential part of maintaining high product quality and operational efficiency. Among today's industrial static elimination technologies, ionizing air bars have become one of the most effective and reliable solutions for neutralizing electrostatic charges throughout the plastic film production process.
Ionizing air bars eliminate static electricity by generating balanced positive and negative ions that neutralize charged plastic film surfaces, reducing dust attraction, improving product quality, increasing production efficiency, and protecting both equipment and operators throughout the manufacturing process.
This article explains how ionizing air bars work in plastic film production, where they should be installed, what benefits they provide, how to select the appropriate equipment, and the best practices for maximizing long-term performance.
Why Static Electricity Is a Major Problem in Plastic Film Production
How Ionizing Air Bars Work
Applications Throughout Plastic Film Manufacturing
Benefits of Installing Ionizing Air Bars
Selecting the Right Ionizing Air Bar
Installation Best Practices
Maintenance and Cleaning Procedures
Performance Comparison with Other Static Control Methods
Frequently Asked Questions
Conclusion
Plastic film naturally accumulates static electricity because insulating materials continuously rub against rollers, guides, air, and other surfaces during manufacturing.
Plastic materials are excellent electrical insulators. During extrusion and downstream processing, friction continuously separates electrical charges between contacting materials. Since plastic cannot easily dissipate these charges, they remain on the film surface for extended periods.
The problem becomes even more severe as production speeds increase. Modern film production lines often operate at several hundred meters per minute, generating significant electrostatic charges that increase proportionally with speed.
Common problems caused by static electricity include:
Dust contamination
Film sticking together
Poor winding quality
Printing defects
Coating imperfections
Operator electric shocks
Electronic equipment interference
Fire and explosion risks
Production Process | Typical Static Voltage |
|---|---|
Film Extrusion | 5 kV to 20 kV |
Corona Treatment | 10 kV to 30 kV |
Slitting | 8 kV to 25 kV |
Rewinding | 5 kV to 15 kV |
Printing | 3 kV to 10 kV |
Ionizing air bars neutralize static charges by producing balanced positive and negative ions that combine with charged surfaces and restore electrical neutrality.

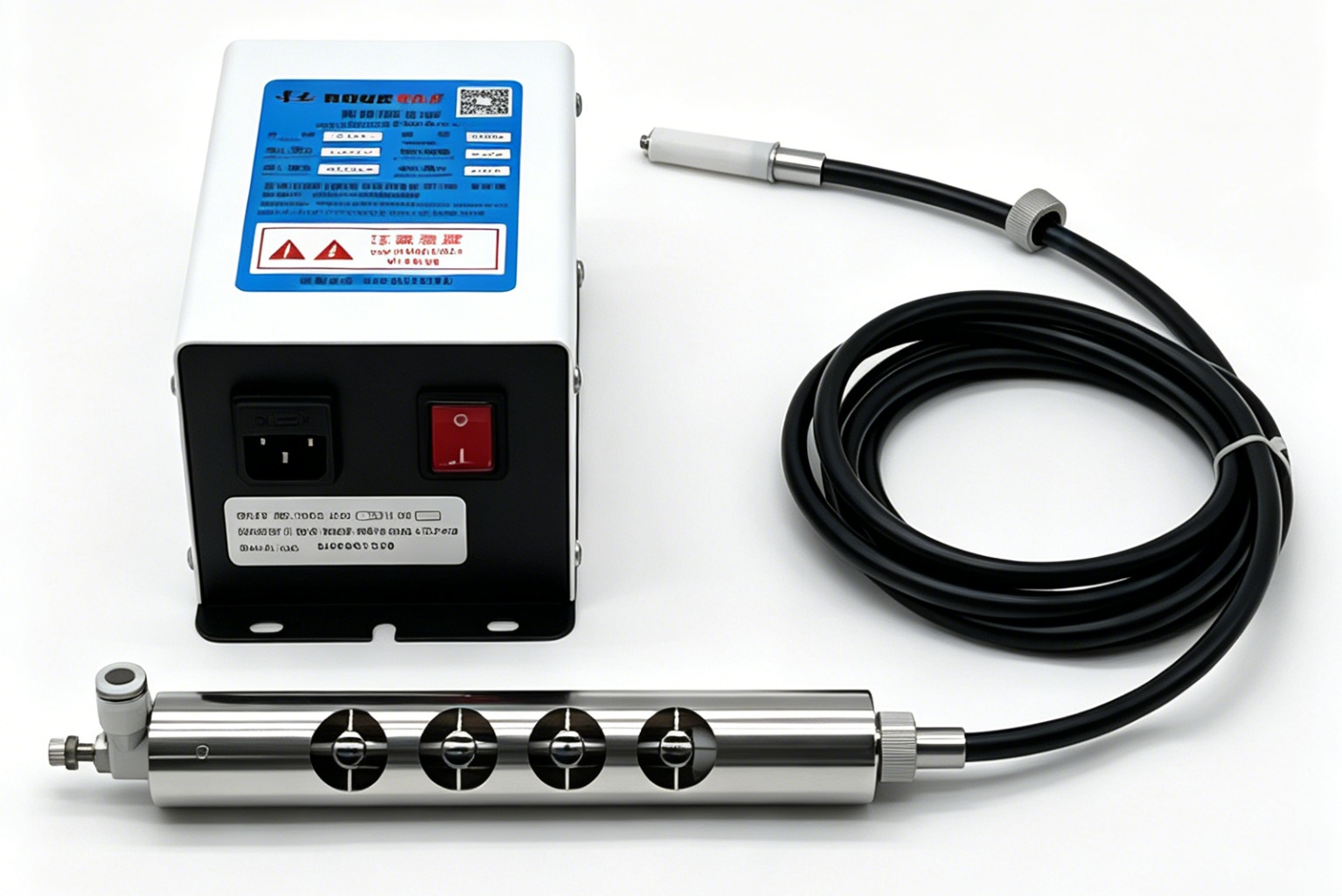

Inside every ionizing air bar, a high-voltage power supply energizes multiple emitter needles. These emitters ionize surrounding air molecules, producing both positive and negative ions.
When charged plastic film passes through the ionized air field, the ions migrate toward the oppositely charged surface. Positive ions neutralize negatively charged areas, while negative ions neutralize positively charged regions.
This process occurs continuously without touching the plastic surface, making ionizing air bars suitable for delicate films.
High voltage energizes emitter points.
Air molecules become ionized.
Positive and negative ions are generated.
Ions travel toward the charged film.
Surface charges are neutralized.
Static electricity disappears.
Ionizing air bars can be installed at multiple production stages to prevent static accumulation before it affects product quality.
Rather than installing a single ionizer, many production lines use multiple ionizing air bars positioned at key process points.
Immediately after extrusion, plastic film begins generating static as it cools and contacts rollers. Installing ionizing bars near chill rollers prevents excessive charge buildup.
Corona treatment improves surface adhesion but also generates additional electrostatic charge. Ionizers installed after corona treatment restore electrical balance before subsequent processing.
Printing quality depends heavily on dust-free surfaces. Ionizing air bars remove static before printing to reduce contamination and improve ink adhesion.
Static can trap microscopic particles between laminated layers, causing bubbles and defects. Neutralization significantly improves laminate quality.
High-speed slitting generates significant friction. Ionizers reduce film blocking, improve winding quality, and minimize roll defects.
Production Stage | Main Benefit |
|---|---|
Extrusion | Initial charge removal |
Cooling | Dust prevention |
Corona Treatment | Charge balancing |
Printing | Cleaner image quality |
Coating | Uniform coating thickness |
Slitting | Improved roll quality |
Packaging | Reduced dust attraction |
Ionizing air bars improve productivity, product quality, equipment reliability, workplace safety, and long-term manufacturing efficiency.
Perhaps the most visible benefit is cleaner products. Dust particles are no longer electrostatically attracted to the film surface, resulting in higher-quality finished products.
Production becomes more stable because operators spend less time removing contaminants or correcting winding problems.
Improved static control also increases machine uptime by reducing web breaks, film sticking, and material handling issues.
Reduced contamination
Higher production yield
Improved print quality
Better coating consistency
Reduced product rejection
Improved operator safety
Lower maintenance costs
Reduced downtime
Greater customer satisfaction
The best ionizing air bar depends on production speed, film width, installation distance, environmental conditions, and required static elimination performance.
Production speed is one of the first considerations. Faster lines generate more static and require higher ion output.
Film width determines bar length. The ionizing area should fully cover the material width to ensure consistent neutralization.
Environmental conditions also affect equipment selection. Cleanrooms require low-particle designs, while dusty facilities benefit from easy-to-clean constructions.
Factor | Importance |
|---|---|
Production Speed | Very High |
Film Width | Very High |
Installation Distance | High |
Humidity | Medium |
Operating Temperature | Medium |
Maintenance Access | High |
Power Supply Compatibility | High |
Correct installation ensures maximum ion coverage, fast static neutralization, and consistent long-term performance.
The ionizing bar should be mounted parallel to the moving web with sufficient clearance to avoid mechanical interference.
The working distance typically ranges from 50 mm to 300 mm depending on the application and air bar design.
Airflow should remain unobstructed to allow ions to reach the film surface efficiently.
Mount securely to minimize vibration.
Ensure full web coverage.
Maintain recommended operating distance.
Keep emitter points unobstructed.
Provide easy maintenance access.
Use proper grounding.
Regular cleaning maintains ion output, extends equipment life, and ensures reliable static elimination.
Emitter needles gradually accumulate dust, oil vapor, and production residues that reduce ion generation efficiency.
Routine inspection helps identify contamination before performance declines significantly.
Cleaning frequency depends on environmental cleanliness and operating hours.
Task | Recommended Interval |
|---|---|
Visual Inspection | Weekly |
Emitter Cleaning | Monthly |
Ion Balance Test | Quarterly |
Complete Performance Inspection | Annually |
Ionizing air bars provide more comprehensive and reliable static neutralization than passive grounding or humidification methods.
Grounding effectively removes charges only from conductive materials, whereas plastic films are insulating materials that retain electrostatic charges.
Increasing humidity may reduce static generation but cannot eliminate high-voltage charges during high-speed production.
Ionizing air bars actively neutralize static regardless of film material, making them suitable for modern automated production.
Method | Effectiveness | Suitable for Plastic Film |
|---|---|---|
Grounding | Low | No |
Humidity Control | Medium | Limited |
Anti Static Chemicals | Medium | Temporary |
Ionizing Air Bars | Excellent | Yes |
In properly designed systems, ionizing air bars can reduce surface static to levels that no longer interfere with production or product quality.
The exact residual voltage depends on installation distance, production speed, environmental conditions, and equipment configuration. Under optimized conditions, many systems achieve residual voltages of less than ±50 V, which is sufficient for most film converting, printing, and packaging applications.
No. Ionizing air bars are non-contact devices and do not physically touch the film surface.
They neutralize electrostatic charges through ionized air rather than mechanical contact, making them suitable even for thin, delicate, or high-value films used in electronics, medical packaging, and optical applications.
Usually not. Large or high-speed production lines benefit from multiple ionizing air bars positioned at critical process stages.
Static charges are generated continuously as the film contacts rollers, passes through corona treatment, is slit, rewound, or printed. Installing ionizers at several locations provides more consistent protection and prevents charge buildup throughout the process.
No. While higher humidity can reduce the amount of static generated, it cannot fully neutralize electrostatic charges on insulating plastic films.
Many manufacturing environments also require controlled humidity levels for product quality or equipment protection. Ionizing air bars provide active static elimination regardless of seasonal or environmental humidity changes.
Cleaning frequency depends on the production environment, but regular preventive maintenance is essential.
Facilities with high dust levels, oil mist, or airborne particles may require monthly cleaning, while cleaner environments can often extend maintenance intervals. Routine inspections help ensure stable ion output and consistent static elimination performance.
Static electricity remains one of the most significant challenges in plastic film manufacturing, affecting every stage from extrusion to final packaging. Left uncontrolled, electrostatic charges attract contaminants, reduce print and coating quality, create winding defects, interrupt production, and introduce safety risks that ultimately increase operating costs.
Ionizing air bars provide a proven, non-contact solution by continuously generating balanced positive and negative ions that neutralize charged film surfaces. When strategically installed throughout the production line, they improve cleanliness, enhance product consistency, reduce downtime, and support higher manufacturing yields.
As production speeds continue to increase and quality requirements become more demanding, investing in effective static control is no longer optional. Properly selected, installed, and maintained ionizing air bars help plastic film manufacturers achieve reliable performance, greater operational efficiency, and long-term competitive advantages in today's advanced manufacturing environment.
