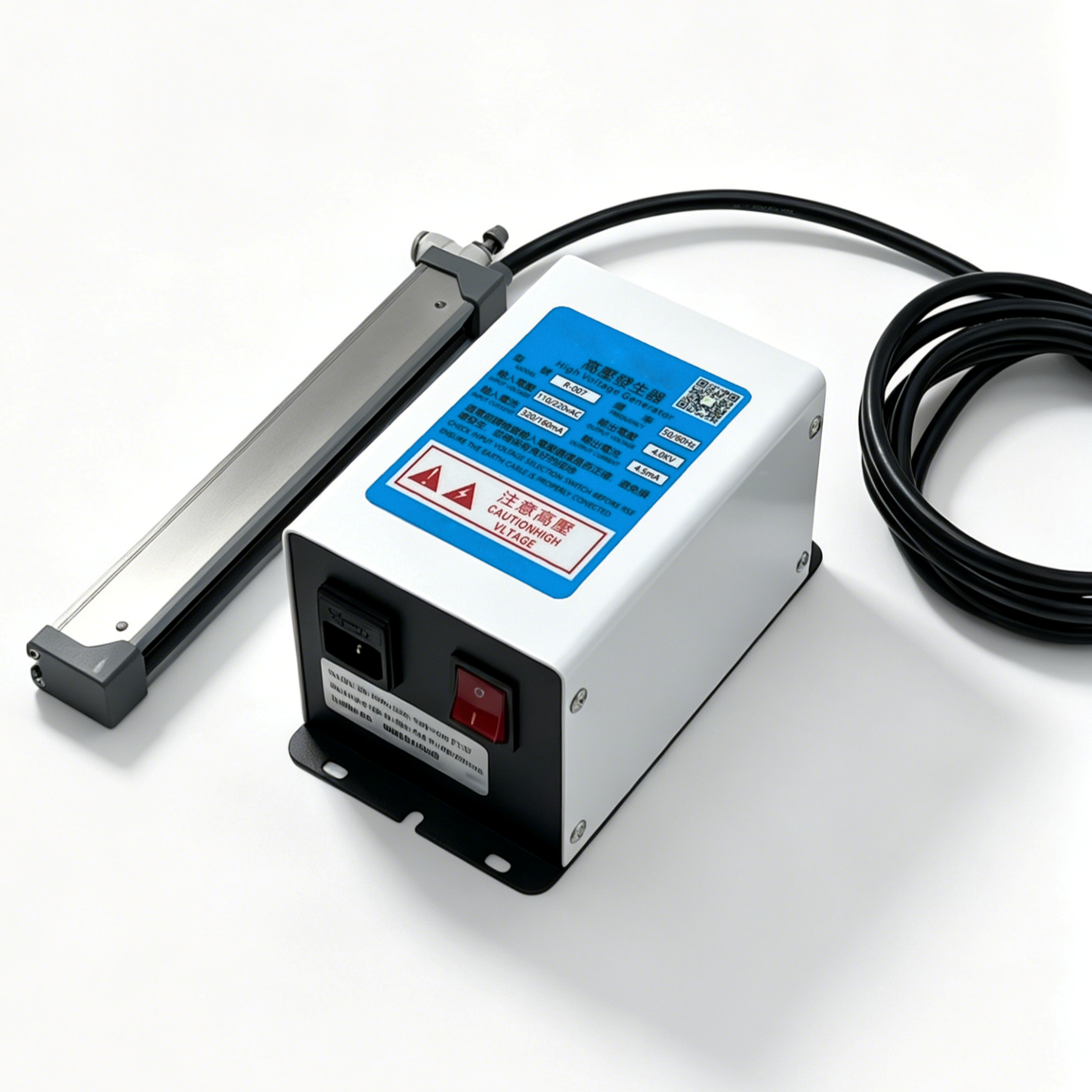

Ionizing air bars are widely used in electronics manufacturing, plastic processing, printing, packaging, film converting, semiconductor production, clean manufacturing, coating, labeling, and automated assembly. Their primary purpose is to generate positive and negative ions that neutralize electrostatic charges on materials, components, and production surfaces. When an ionizing air bar works correctly, it can help reduce dust attraction, material adhesion, electrostatic discharge risks, unstable feeding, product contamination, and production interruptions.
Like other industrial static control equipment, an ionizing air bar requires regular inspection and maintenance. Dust, oil, adhesive residue, fibers, and other contaminants can accumulate around the emitter points and housing. Over time, contamination can reduce ion output, increase static decay time, affect ion balance, and cause inconsistent neutralization across the treatment area. A structured maintenance program is therefore essential for maintaining stable performance.
The most important maintenance tips for ionizing air bars are to clean the emitter points regularly, inspect the bar for contamination and physical damage, check electrical connections, verify installation position, test static neutralization performance, monitor ion balance where required, maintain airflow systems, and document maintenance results. Maintenance frequency should be determined by the operating environment, contamination level, production schedule, and performance requirements.
A clean ionizing air bar usually performs more consistently than one covered with production residue. However, cleaning alone is not enough. Effective maintenance also requires checking whether the ionizer remains correctly positioned, whether surrounding airflow has changed, whether cables and power components are secure, and whether the static control performance still meets the process requirement.
This guide explains practical maintenance procedures for industrial ionizing air bars, including inspection frequency, emitter cleaning, safe cleaning methods, performance testing, troubleshooting, preventive maintenance planning, and common maintenance mistakes.
Regular maintenance is important because contamination, emitter wear, electrical problems, incorrect positioning, and environmental changes can gradually reduce ionizing air bar performance even when the equipment still appears to be operating normally.
The emitter points are among the most critical components of an ionizing air bar. These points generate ions through electrical discharge. During operation, airborne dust, fibers, oil mist, adhesive particles, powder, and other production residues can collect around them. Once contamination builds up, the electric field around the emitter can change, which may reduce ion generation efficiency.
This reduction is not always immediately obvious. The power indicator may remain on, airflow may still be present, and the ionizing bar may appear normal. However, static decay time can gradually increase, leaving more residual electrostatic charge on the product. This can result in intermittent quality problems that are difficult to identify if maintenance records are unavailable.
Regular maintenance also helps improve process consistency. Static control systems are often installed to solve problems such as dust attraction, film adhesion, feeding errors, component damage, or unstable material handling. If ionization performance deteriorates, these original production problems can gradually return.
For critical electronics and semiconductor processes, maintenance is especially important because even relatively small changes in static control performance can influence electrostatic discharge risk and contamination control.
Ionizing air bar maintenance frequency should be based on contamination level, production environment, operating hours, static control requirements, and measured performance rather than relying on one universal maintenance interval.
A clean production environment may allow relatively long intervals between emitter cleaning, while a printing or converting machine containing paper dust, adhesive particles, ink mist, or film residue may require much more frequent attention. The same ionizing air bar can therefore require very different maintenance schedules depending on where it is installed.
Maintenance frequency should initially be established through observation. During the first weeks of operation, inspect the emitter points regularly and record how quickly contamination builds up. Compare the physical condition with static neutralization measurements. This information can then be used to establish a practical maintenance interval.
Maintenance should also be performance based. If static decay time becomes noticeably longer or residual static voltage increases before the planned cleaning date, the interval may be too long. Conversely, if repeated inspections show very little contamination and stable performance, the maintenance schedule can be reviewed according to process requirements.
| Operating Environment | Contamination Level | Suggested Inspection Approach |
|---|---|---|
| Clean electronics production | Low | Periodic visual and performance inspection |
| General automated assembly | Low to moderate | Regular inspection based on operating hours |
| Plastic film processing | Moderate | Frequent emitter inspection |
| Printing and paper processing | Moderate to high | Shorter cleaning intervals |
| Adhesive or coating process | High | Frequent contamination checks |
| Dust producing environment | High | Frequent cleaning and performance verification |
The table should be treated as a planning reference rather than a fixed requirement. Actual maintenance intervals should be determined from production conditions and measured static performance.
Emitter points should be cleaned carefully with the ionizing air bar powered off, using a suitable soft cleaning tool and an approved cleaning method that removes contamination without bending, scratching, or damaging the emitter tips.
Before cleaning, power should be disconnected according to the applicable equipment safety procedure. Ionizing air bars use high voltage internally to generate ions, so maintenance should not be performed while the equipment is energized unless the equipment documentation specifically requires a controlled energized test by qualified personnel.
Once power is safely isolated, inspect the emitter points visually. Look for dust deposits, fibers, dark residue, adhesive contamination, oil film, or other material around each point. Contamination may appear as a small ring or deposit around the emitter area and may not always be obvious from a distance.
Use a soft brush, suitable swab, or other non damaging cleaning tool to remove deposits. The cleaning movement should be controlled so that the emitter point is not bent or subjected to excessive force. Sharp emitter geometry is important for stable ion generation, so mechanical damage during cleaning can create additional performance problems.
Cleaning should be thorough but gentle. Aggressive scraping may remove contamination quickly but can damage emitter surfaces and reduce long term consistency.
Cleaning materials should remove contamination effectively without leaving conductive residue, damaging plastic components, attacking insulation, or altering the shape of the emitter points.
The correct cleaning material depends on the type of contamination. Loose dust and fibers may be removable with a soft dry brush. More persistent oil, adhesive, or process residue may require a compatible cleaning liquid and suitable swab or cloth.
Any cleaning liquid should be compatible with the materials used in the ionizing air bar. The housing may contain engineering plastics, insulation materials, seals, labels, cables, and other components that can react differently to solvents. A cleaner that removes oil effectively may also damage plastic surfaces or weaken insulation if it is not compatible.
Cleaning tools should also be selected carefully. Metal tools should generally be avoided around emitter tips unless specifically required by an approved maintenance procedure. Hard scraping tools can deform the emitter point and can also damage surrounding insulation.
| Cleaning Method | Possible Advantage | Important Consideration |
|---|---|---|
| Soft dry brush | Simple removal of loose dust | May not remove oily residue |
| Lint free swab | Good control around emitter points | Should not leave fibers behind |
| Cleaning liquid | Can remove persistent contamination | Must be compatible with materials |
| Dry air | Can remove loose particles | Should not spread contamination into sensitive areas |
The cleaning process should always aim to restore emitter cleanliness without creating a new contamination or damage risk.
The housing should be kept clean, dry, free from heavy process residue, and regularly inspected for cracks, deformation, blocked openings, damaged mounting points, or contamination that could affect electrical insulation and airflow.
Although the emitter points usually receive the greatest attention, the external housing also requires maintenance. Dust and production residue can accumulate along the bar body, especially near air openings, mounting brackets, cable connections, and emitter locations.
Heavy contamination can make visual inspection difficult and may affect insulation surfaces. In air assisted models, blocked openings can also change airflow distribution. Uneven airflow may cause different sections of the treatment area to receive different ion concentrations.
Cleaning the housing also makes it easier to identify mechanical damage. Cracks, loose mounting parts, damaged cable entry points, and deformation should be investigated before the ionizer is returned to normal production.
A clean housing does not directly guarantee good static neutralization, but it supports safer inspection, stable airflow, and better long term equipment condition.
Electrical connections should be inspected for looseness, cable damage, contamination, abnormal heating, damaged insulation, and secure connection to the required power components.
Ionizing air bars depend on a stable electrical supply to generate ions consistently. Loose connectors, damaged cables, poor contact, or contamination around electrical interfaces can cause intermittent operation. These problems may appear as inconsistent static elimination rather than complete equipment failure.
Inspect cables along their entire accessible length. Look for crushing, sharp bends, abrasion, cuts, damaged insulation, excessive tension, and contact with moving machine parts. Cables should be routed so that normal machine movement does not repeatedly stress the same location.
Connections should also be checked for secure attachment. Vibration from conveyors, printing machines, cutting equipment, and automated production lines can gradually loosen mechanical and electrical connections. If a connection repeatedly becomes loose, the source of vibration or cable strain should be investigated.
Electrical maintenance should be performed by appropriately trained personnel in accordance with the safety procedure used at the facility.
The ionizing air bar should be inspected regularly to confirm that its mounting position, working distance, angle, and coverage remain suitable for the target material and have not changed because of vibration, maintenance activity, or machine adjustment.
Even a clean ionizing air bar may perform poorly if it has moved away from the intended position. Production equipment is exposed to vibration, mechanical adjustments, cleaning activity, product changeovers, and maintenance work. Mounting brackets can shift gradually, changing the distance between the ionizer and the charged surface.
Working distance is important because ion concentration generally decreases as ions travel farther from the emitter area. If the bar moves too far from the material, static decay may become slower. If it is moved into an unsuitable position, machine components may block the ion path.
The bar should also remain properly aligned across the full target width. In wide web applications, one end of the bar can sometimes become closer to the material than the other. This can create uneven treatment even though the center position appears correct.
After mechanical adjustments, static performance should be measured again rather than assuming that the new position is automatically acceptable.
Airflow systems should be kept clean and unobstructed, with filters, air passages, fans, and compressed air supplies inspected regularly to ensure that ion transport remains stable across the complete treatment area.
Some ionizing air bars rely primarily on electrical ion generation, while others use airflow to transport ions toward the target. In air assisted systems, airflow becomes an important part of static control performance.
Blocked air openings, contaminated filters, reduced compressed air pressure, worn fans, or changed airflow direction can reduce ion transport. The ionizer may continue generating positive and negative ions, but fewer useful ions may reach the product.
Uneven airflow is particularly important for long bars. If one section receives less air than another, static neutralization can vary across the material width. Regular airflow inspection can therefore help identify performance differences that might otherwise be incorrectly attributed to emitter condition.
Airflow measurements can be useful when static performance changes without obvious emitter contamination. A change in machine ventilation can alter ion distribution even when the ionizing bar itself is in good condition.
After maintenance, performance should be verified by measuring electrostatic voltage or static decay at representative locations across the treatment area and confirming that the results meet the process requirement.
Visual inspection alone cannot prove that an ionizing air bar is working correctly. The emitter points may appear clean while static neutralization remains inadequate because of electrical problems, incorrect working distance, airflow changes, or emitter wear.
A practical performance test compares static levels before and after treatment. Measurements should be performed under conditions that represent actual production whenever possible. For moving materials, test the system at normal line speed because slow speed testing can provide misleading results.
Measurements should also be taken across several locations rather than only at the center. Long ionizing bars can develop uneven performance if some emitter areas are more contaminated or worn than others.
| Measurement Position | Purpose |
|---|---|
| Left edge | Checks edge treatment |
| Left center | Checks intermediate performance |
| Center | Provides central reference |
| Right center | Checks intermediate performance |
| Right edge | Checks edge treatment |
Recording measurements before and after cleaning can also help determine whether the maintenance interval is appropriate. If cleaning produces a significant improvement each time, contamination is clearly influencing performance.
Ion balance and static decay can be evaluated with suitable electrostatic test equipment, including a charged plate monitor when the application requires quantitative ionizer qualification.
Ion balance describes the relationship between positive and negative ion output. An ionizing air bar should provide a suitable balance for the intended application so that it does not leave the target with an excessive residual charge of one polarity.
Static decay describes how quickly an ionizer can reduce a charged condition toward a lower voltage level under defined test conditions. As emitter contamination increases, decay performance can become slower because the effective ion output is reduced.
For general industrial troubleshooting, an electrostatic field measurement can provide useful information about residual charge before and after ionization. For more controlled qualification, a charged plate monitor can provide quantitative information about decay behavior and offset voltage.
Maintaining these records allows engineers to identify gradual deterioration instead of waiting until the static control system produces an obvious production problem.
Common signs include increasing residual static, slower static decay, greater dust attraction, material sticking, unstable feeding, visible emitter contamination, uneven performance across the bar, abnormal indicators, and recurring static related production problems.
One of the clearest signs is the return of a problem that originally disappeared after the ionizing air bar was installed. For example, plastic film may begin sticking again, dust may increasingly accumulate on surfaces, or lightweight components may become difficult to separate.
Visible contamination around emitter points is another strong indicator. A thin layer of dust may seem insignificant, but the emitter geometry and local electric field are critical to ion generation. Small deposits can therefore affect performance before the bar appears heavily contaminated.
Uneven performance can also indicate local contamination. If static remains near one side of the material while the opposite side performs normally, inspect the corresponding emitter section, airflow, and mounting position.
Maintenance should ideally be performed before these symptoms become severe. Preventive maintenance is generally more effective than waiting for complete performance failure.
Common maintenance mistakes include cleaning while the equipment is energized, using aggressive tools, damaging emitter points, using incompatible cleaning agents, failing to dry the bar properly, ignoring performance testing, and waiting until static control fails completely before maintenance.
One major mistake is focusing entirely on visible cleanliness. An emitter can look clean while the bar still performs poorly. Performance verification is therefore necessary after maintenance.
Another mistake is cleaning too aggressively. Hard scraping, bending, or pressing against emitter points may permanently change their geometry. The immediate result may appear clean, but long term ion output can become less consistent.
Using inappropriate cleaning liquids can also create problems. A solvent may remove residue effectively while damaging the housing, insulation, cable materials, or seals. Any cleaning agent should therefore be selected for compatibility with the equipment materials and contamination type.
| Mistake | Possible Effect | Better Practice |
|---|---|---|
| Cleaning while powered | Electrical safety risk | Follow safe power isolation procedures |
| Using hard tools | Emitter damage | Use soft non damaging cleaning tools |
| Applying excessive force | Bent emitter points | Clean gently |
| Using incompatible cleaner | Material or insulation damage | Check compatibility before use |
| Leaving cleaning residue | New contamination or leakage risk | Remove residue completely |
| Skipping performance testing | Hidden faults remain undetected | Verify static performance after maintenance |
| Waiting for complete failure | Production interruption | Use preventive maintenance |
A maintenance procedure should therefore consider safety, mechanical condition, cleanliness, and measured ionization performance together.
A preventive maintenance schedule should combine regular visual inspection, emitter cleaning, electrical inspection, mounting checks, airflow inspection, and documented performance testing at intervals based on actual operating conditions.
The first stage is establishing a baseline. When the ionizing air bar is clean and performing correctly, record the working distance, static decay performance, residual voltage, ion balance where applicable, line speed, and other important conditions. These values provide a reference for future inspections.
Next, inspect the system periodically and compare new measurements with the baseline. If performance deteriorates significantly before the planned cleaning date, shorten the interval. If the system remains consistently clean and stable, the interval can be reviewed according to production risk and maintenance policy.
Maintenance records should also identify repeated problems. If a particular section of a bar becomes contaminated faster than other sections, the source may be process airflow, dust direction, adhesive spray, or machine geometry. Correcting the source can sometimes reduce maintenance requirements.
| Maintenance Item | Inspection Purpose |
|---|---|
| Visual emitter inspection | Identify contamination buildup |
| Emitter cleaning | Restore ion generation performance |
| Housing inspection | Identify contamination or damage |
| Cable inspection | Identify insulation or connection problems |
| Mounting inspection | Maintain correct working distance |
| Airflow inspection | Maintain stable ion transport |
| Static performance test | Confirm actual neutralization |
| Maintenance record update | Track long term performance trends |
Documenting maintenance turns static control from a reactive activity into a measurable preventive maintenance program.
Ionizing air bar service life can be extended by keeping emitter points clean, preventing mechanical damage, maintaining correct electrical connections, protecting the bar from excessive contamination, using suitable mounting methods, and identifying performance changes early.
Contamination control is one of the most effective ways to improve long term performance. If the ionizing bar is installed directly in a heavy dust or mist stream, changing its position slightly may reduce contamination without affecting static control. Source control can therefore be just as important as cleaning frequency.
Mechanical protection is also important. The bar should be mounted securely but remain accessible for maintenance. It should not be placed where moving products, tools, machine covers, or operators can easily strike the emitter area.
Cables should be protected from repeated bending, crushing, tension, and abrasion. A well maintained ionizing bar can still experience downtime if a cable fails because of poor routing or mechanical stress.
Service life is not determined only by operating hours. The environment, cleaning method, mechanical protection, electrical condition, and maintenance quality all influence how long an ionizing air bar can continue providing stable static neutralization.
Effective ionizing air bar maintenance requires regular emitter cleaning, visual inspection, electrical checks, mounting verification, airflow maintenance, and performance testing. A preventive maintenance program should be based on actual contamination levels and measured static control performance rather than waiting for the ionizer to stop working completely.
The emitter points are the most important maintenance area because contamination can gradually reduce ion output and increase static decay time. They should be inspected regularly and cleaned using suitable tools that do not bend or damage the emitter geometry. The ionizing air bar should be safely powered off before routine cleaning, and any cleaning liquid used should be compatible with the housing, insulation, cables, and other materials.
Maintenance should also extend beyond the emitters. The housing should remain clean, cables should be free from damage, electrical connections should remain secure, mounting brackets should maintain the correct working distance, and airflow should remain unobstructed. Changes in any of these areas can reduce static neutralization even when the emitter points themselves are clean.
Performance measurement is an essential part of maintenance. Residual electrostatic voltage should be checked at several locations across the treatment area, particularly on long ionizing air bars. Where more detailed qualification is required, static decay and ion balance can also be evaluated with appropriate test equipment.
A useful maintenance approach is to establish a performance baseline when the ionizing air bar is clean and operating correctly, then compare future measurements against that baseline. If performance begins to decline faster than expected, the maintenance interval can be shortened or the source of contamination can be investigated.
By combining regular cleaning, careful inspection, correct installation, electrical maintenance, airflow management, and documented performance testing, manufacturers can keep ionizing air bars operating more consistently, reduce unexpected static related production problems, extend equipment service life, and maintain reliable electrostatic control throughout the production process.
