Ionizing air bars are widely used in electronics manufacturing, plastic processing, printing, packaging, film converting, semiconductor production, coating, laminating, labeling, and automated assembly. Their purpose is to generate positive and negative ions that neutralize electrostatic charges on materials and products. However, the ionizing bar itself is only one part of the static control system. The power supply plays an equally important role because it provides the electrical energy required to create and maintain the ionization process.
Selecting an unsuitable power supply can reduce static neutralization performance, cause unstable ion output, create compatibility problems, shorten equipment life, or make installation more complicated. For this reason, engineers should not select a power supply based only on input voltage or physical size. Output characteristics, ionizer type, power capacity, connection method, environmental conditions, monitoring functions, grounding, and safety requirements must all be considered.
The right power supply for an ionizing air bar should match the electrical requirements of the ionizer, provide sufficient output capacity for the number and length of connected bars, support the required ion generation method, operate with the available facility input voltage, and include appropriate protection, grounding, monitoring, and environmental features. Electrical compatibility should always be confirmed before the power supply and ionizing bar are connected.
A correctly selected power supply allows the ionizing bar to maintain stable corona discharge and consistent positive and negative ion generation. This directly influences static decay performance, ion balance, operating reliability, and maintenance requirements.
The following guide explains the most important factors to consider when selecting a power supply for ionizing air bars. It covers input voltage, output voltage, frequency, power capacity, AC and DC ionization methods, connection quantity, cable requirements, monitoring functions, environmental conditions, grounding, safety, and practical selection procedures.
The power supply is important because it provides the controlled electrical energy required to generate corona discharge at the emitter points, which is the fundamental process responsible for producing positive and negative ions.

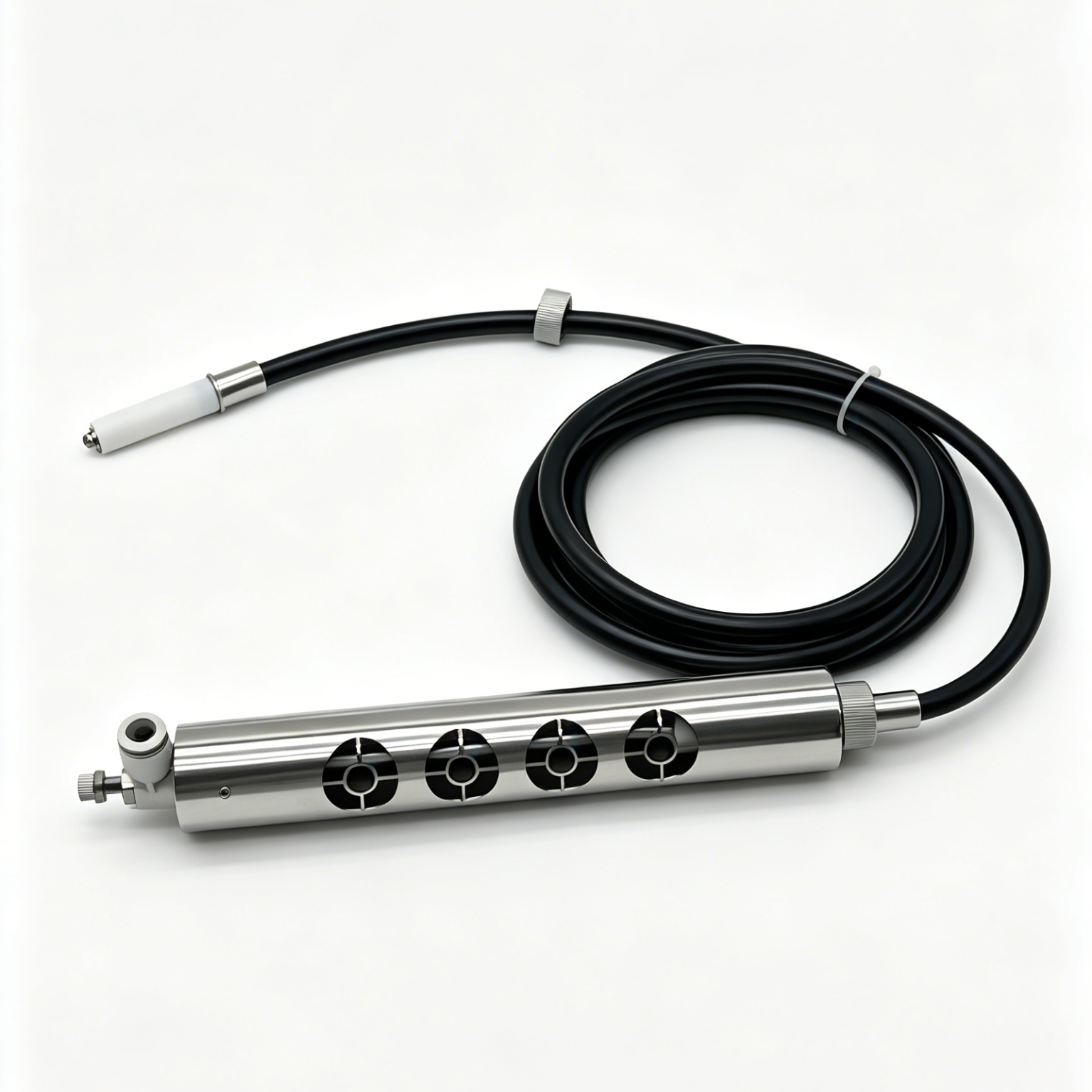

An ionizing air bar normally contains a series of emitter points positioned along its active length. When sufficiently high electrical potential is applied to these emitter points, the electric field around the tips becomes strong enough to ionize molecules in the surrounding air. These ions then move toward charged materials and neutralize electrostatic charges.
The stability of this electrical output directly affects ion generation. If the power supply voltage is unstable, insufficient, or incompatible with the ionizing bar, corona discharge may become weak or inconsistent. This can increase static decay time and create uneven neutralization across the treatment area.
The power supply also influences long term operating reliability. Industrial static control systems often operate continuously for many hours. A power supply should therefore maintain stable performance while tolerating electrical load changes, environmental temperature variations, and normal contamination around the ionizing system.
For these reasons, the power supply should be considered an integral part of the static elimination system rather than a separate accessory.
The main electrical parameters to check are facility input voltage, required output voltage, output current, operating frequency, power capacity, waveform, number of output channels, connection type, grounding requirements, and the electrical characteristics of the ionizing air bar.
The first step is to review the electrical specifications of the ionizing bar. The power supply must provide the type of electrical output for which the ionizer was designed. Connecting equipment with incompatible voltage, frequency, or waveform may result in poor performance or equipment damage.
Input specifications are equally important. Manufacturing facilities may provide different voltage levels depending on country, machine design, control cabinet configuration, and electrical standards. The selected power supply must operate correctly with the available input electricity without requiring an unsuitable external conversion arrangement.
Engineers should also check whether the power supply has sufficient output capacity for the total connected load. A system containing several long ionizing bars may require more electrical capacity than a single short bar. Therefore, selection should be based on total system requirements rather than one ionizer alone.
| Parameter | Why It Matters |
|---|---|
| Input Voltage | Must match the available facility electricity |
| Input Frequency | Should match the power system specification |
| Output Voltage | Must meet the ionizing bar operating requirement |
| Output Current | Must support the connected ionization load |
| Output Frequency | Can affect ion generation and balance |
| Waveform | Must be compatible with the ionizing method |
| Output Channels | Determines how many devices can be connected |
| Protection Functions | Improve equipment and operator safety |
| Grounding Method | Supports stable operation and electrical safety |
A complete comparison of these specifications can prevent many installation and performance problems before equipment is purchased.
AC and DC ionizing air bars require different electrical output characteristics, so the power supply must be designed specifically for the ionization method used by the bar.
AC ionization systems generally alternate electrical polarity so that positive and negative ions are produced in sequence. Depending on the ionizer design, the switching frequency may influence ion density, ion balance, and effective neutralization distance. The power supply must therefore provide the correct alternating output characteristics for the ionizing bar.
DC systems normally use separate positive and negative high voltage outputs or controlled polarity channels. This can allow positive and negative ion generation to be adjusted independently in some system designs. Such power supplies must provide stable outputs for both polarities while maintaining appropriate electrical isolation.
There are also pulsed ionization systems that control the timing of positive and negative ion output. These systems may be useful where the ionizer is installed at a greater working distance or where precise ion balance control is required. The power supply or controller must support the correct pulse sequence and output characteristics.
| Characteristic | AC Ionization | DC Ionization |
|---|---|---|
| Polarity Generation | Alternating polarity | Separate or controlled positive and negative output |
| Power Supply Requirement | Alternating high voltage output | Positive and negative high voltage channels |
| Control Method | Often frequency based | Can allow independent polarity control |
| System Complexity | Depends on design | May require additional control circuitry |
| Typical Selection Priority | Stable frequency and compatible output | Stable polarity output and balance control |
The power supply and ionizing bar should always be treated as a matched electrical system. The ionizer type should therefore be identified before any power supply selection is made.
The input voltage of the power supply should match the available factory electrical supply or the machine control system output within the specified operating range.
Industrial facilities can provide different input voltages depending on location and equipment design. Some ionizer power supplies are designed for direct connection to common industrial AC electricity, while others may use a lower voltage DC input supplied from a machine control cabinet.
The machine designer should first identify the available power source at the intended installation point. This includes nominal voltage, frequency, current capacity, electrical protection, and whether the supply is AC or DC. The power supply should then be selected according to this information.
Using the correct input specification simplifies installation and reduces the need for additional transformers or converters. It can also improve reliability because fewer components are added between the facility power source and the ionization equipment.
The final selection should remain within the electrical ratings specified for both the power supply and the connected ionizing equipment.
The required output voltage and frequency should be determined from the electrical design specifications of the ionizing air bar because these parameters control the corona discharge used to generate ions.
Ionization requires an electric field strong enough to create corona discharge around the emitter points. The power supply therefore produces an elevated electrical potential suitable for the emitter geometry and internal design of the ionizing bar.
Higher output voltage should not automatically be considered better. The ionizing bar is designed to operate within a specific electrical range. Excessive voltage may increase electrical stress, increase unwanted discharge, or reduce component life. Insufficient voltage may produce weak ionization and slow static decay.
Frequency can also affect performance in systems that alternate positive and negative ion output. Changing the frequency changes the timing of polarity generation. This can influence the quantity and distribution of ions reaching the target, particularly when the ionizer operates at different working distances.
Engineers should therefore never select output voltage or frequency by estimation. These parameters must be compatible with the specific electrical requirements of the ionizing bar.
The required power capacity should be calculated from the total electrical demand of all connected ionizing bars plus a suitable operating margin to ensure stable continuous operation.
A power supply may support a single ionizing bar or several ionizers depending on its output capacity and number of available connections. The total connected load must remain within the rated capacity of the power supply.
A simple preliminary calculation is:
Total Required Load = Sum of Connected Ionizer Loads
An additional capacity margin can then be considered:
Recommended Power Supply Capacity = Total Required Load × Capacity Factor
The capacity factor depends on system design and operating requirements. The purpose of the margin is to prevent the power supply from operating continuously at an unsuitable load limit.
| Connected Device | Example Electrical Load |
|---|---|
| Ionizing Bar 1 | 8 W |
| Ionizing Bar 2 | 8 W |
| Ionizing Bar 3 | 10 W |
| Total Load | 26 W |
If the system requires additional operating margin, a power supply with capacity above 26 W should be selected. The actual required rating must follow the electrical specifications of the connected ionizers and power supply design.
Capacity calculations are particularly important when several long ionizing bars are connected to one centralized supply. A power supply that works correctly with one bar may not provide sufficient output when several additional loads are added.
The number of ionizing air bars that one power supply can support depends on its rated output capacity, number of output ports, maximum connected load, ionizer length, electrical design, and connection limitations.
The number of physical connection ports does not necessarily indicate the maximum allowable load. A power supply may contain several output connections, but the total connected ionizer length or electrical load may still be limited.
For this reason, engineers should evaluate both the number of available channels and the total permitted load. If multiple ionizing bars are connected, their combined electrical requirements should remain within the rated operating capacity of the power supply.
Connecting too many bars may reduce output stability, increase electrical stress, or trigger protection functions. In some designs, excessive loading may also reduce ion generation performance across all connected bars.
For larger machines, using more than one power supply can sometimes simplify wiring and improve system segmentation. It may also allow separate control of different static elimination zones.
Cable length and connection method affect power supply selection because high voltage transmission, electrical insulation, voltage stability, routing, and connector compatibility all influence safe and reliable ionizer operation.
The cable connecting the power supply to the ionizing air bar should be suitable for the voltage and electrical characteristics of the system. Ordinary low voltage wiring should not be substituted for a cable designed for high electrical potential.
Longer cable runs can introduce additional electrical effects and create more opportunities for insulation stress, interference, physical damage, and routing problems. For this reason, the power supply should ideally be installed at a practical distance from the ionizing equipment while remaining accessible for inspection and maintenance.
Cable routing is also important. High voltage cables should be protected from sharp edges, moving machine parts, excessive heat, chemicals, and repeated mechanical bending. Connectors should be fully secured to prevent intermittent electrical contact.
When several ionizing bars are installed across a large machine, cable layout should be considered during the initial system design rather than after the equipment has already been assembled.
A suitable industrial power supply should provide appropriate electrical protection and, where required, status monitoring functions that help identify abnormal operation before static control performance is significantly affected.
Protection functions are important because ionization systems operate with elevated electrical potential. A well designed power supply should be able to respond safely to abnormal conditions such as overload, short circuit, output faults, excessive temperature, or other electrical problems depending on system design.
Monitoring is also useful in automated production. A basic indicator may show whether the power supply is operating, while more advanced systems may provide alarm contacts or control signals that can be integrated into machine monitoring equipment.
For critical manufacturing processes, receiving an alarm when ionization performance or power output becomes abnormal can help maintenance personnel respond before static electricity causes product defects or process instability.
| Function | Purpose |
|---|---|
| Power Indicator | Confirms normal electrical operation |
| Overload Protection | Protects the power supply from excessive load |
| Short Circuit Protection | Reduces risk during electrical faults |
| Temperature Protection | Helps prevent overheating |
| Output Alarm | Indicates abnormal ionizer operation |
| Remote Alarm Signal | Allows integration with machine control systems |
| Remote Enable Input | Allows automatic ionizer control |
The required monitoring level depends on process importance. A general packaging line may require basic status indication, while a critical electronics production process may benefit from more comprehensive monitoring and alarm integration.
Environmental conditions affect power supply selection because temperature, humidity, dust, contamination, chemicals, airflow, vibration, and installation location can influence electrical reliability and service life.
A power supply installed inside a clean electrical cabinet operates in very different conditions from one mounted near a film processing machine, coating line, or dusty converting process. Environmental exposure should therefore be evaluated before installation.
Temperature is especially important. Electrical components generate heat during operation, and excessive ambient temperature can reduce cooling effectiveness. If the power supply is installed inside a control cabinet, the internal cabinet temperature may be significantly higher than the surrounding room temperature.
Contamination can also affect reliability. Dust, fibers, oil mist, process chemicals, and conductive particles can accumulate on electrical components or connectors. Where contamination is expected, appropriate enclosure protection and installation location should be considered.
Installing the power supply in a clean, accessible, properly ventilated area can improve reliability and simplify maintenance.
Correct grounding and electrical safety are essential because they support stable ionizer operation, reduce unwanted electrical potential, improve fault protection, and help protect operators and production equipment.
Grounding provides a defined electrical reference for the static control system. Depending on ionizer design, poor grounding can contribute to unstable behavior, unexpected electrical potential, or unreliable static neutralization.
The power supply enclosure, machine frame, and relevant grounding conductors should be installed according to the applicable electrical design requirements. Ground connections should be mechanically secure and protected from corrosion, contamination, or accidental disconnection.
Because ionizing systems can involve elevated electrical voltage, installation and servicing should be performed according to appropriate electrical safety procedures. Power should be isolated before connectors, cables, or emitter assemblies are serviced where required by the equipment design.
Good grounding practice also supports consistent measurement when static voltage and ionizer performance are tested during commissioning or maintenance.
Power supply selection should be adapted to the application by considering the number of ionizing bars, installation environment, required monitoring level, production speed, static sensitivity, available input electricity, and maintenance requirements.
A simple packaging machine may use one ionizing air bar at a relatively accessible location. In this case, the selection priority may be electrical compatibility, adequate capacity, compact installation, and reliable continuous operation.
A large film converting machine may use several ionizing bars across multiple process stages. The power system may therefore require several output channels, higher total capacity, longer connection cables, and convenient integration with machine controls.
Electronics and semiconductor applications can place greater emphasis on stable ion balance, process monitoring, alarm signals, cleanliness, and predictable static decay performance. In such environments, the power supply is part of a wider electrostatic control strategy rather than an isolated electrical component.
| Application | Power Supply Selection Priority |
|---|---|
| Plastic Film Processing | Continuous operation, multiple bar capacity, stable output |
| Printing | Reliable output, machine integration, easy maintenance |
| Packaging | Compact installation, sufficient capacity, stable performance |
| Electronics Assembly | Stable ion balance, monitoring, reliable grounding |
| Semiconductor Processing | Precise control, monitoring, clean environment compatibility |
| Conveyor Systems | Simple integration, suitable input power, adequate output channels |
| Wide Web Converting | Multiple ionizer support, cable planning, high total capacity |
The correct choice is therefore based on both electrical specifications and the production process in which the ionizing bars will operate.
Common mistakes include selecting only by input voltage, ignoring ionizer compatibility, underestimating total load, connecting too many bars, overlooking cable requirements, neglecting grounding, and failing to consider environmental and monitoring requirements.
One of the most serious mistakes is assuming that any high voltage power supply can operate any ionizing air bar. Ionizers are designed around specific electrical characteristics. Even if connectors appear physically compatible, voltage, frequency, polarity, or output control may not be suitable.
Another mistake is sizing the supply for the current system without considering future expansion. If additional ionizing bars may be added later, available capacity and output channels should be evaluated during the initial design. This can reduce the need for major electrical changes in the future.
Some installations also ignore the location of the power supply. Mounting it in a hot, contaminated, or inaccessible area can increase maintenance difficulty and reduce long term reliability.
| Selection Error | Possible Result | Recommended Approach |
|---|---|---|
| Ignoring output compatibility | Unstable operation or equipment damage | Match electrical specifications carefully |
| Insufficient capacity | Overloading or weak performance | Calculate total connected load |
| Too many connected bars | Output instability | Follow rated connection limits |
| Incorrect input voltage | Power supply malfunction | Confirm facility electricity |
| Poor cable selection | Electrical faults or unstable output | Use appropriate cables and connectors |
| Poor grounding | Unstable operation and safety risks | Verify grounding before operation |
| Ignoring environment | Reduced service life | Select suitable installation protection |
| No monitoring strategy | Faults remain unnoticed | Use status and alarm functions where required |
A structured selection process prevents these problems and improves overall static control reliability.
Power supply performance should be verified by checking electrical connections, grounding, operating status, ionizing bar function, static decay performance, ion balance where required, temperature, alarms, and stability during normal production.
Commissioning should begin with a visual inspection. Confirm that the power supply is securely installed, cables are properly connected, grounding is complete, and connectors are protected from mechanical damage. The input electrical supply should also be checked before energizing the system.
After power is applied, verify that all connected ionizing bars operate normally. Any status indicators or alarm outputs should be checked. If the system is integrated with machine controls, remote enable and alarm functions should also be tested.
The final verification should evaluate actual static neutralization. Static voltage should be measured before and after ionization at representative positions across the treatment area. Where required, static decay time and ion balance can also be measured using appropriate electrostatic test equipment.
Recording commissioning data is particularly useful because it establishes a baseline. If static elimination performance becomes weaker months later, maintenance personnel can compare new measurements with the original values and determine whether the problem is related to the ionizing bar, emitter contamination, power supply output, installation conditions, or changes in the production process.
Selecting the right power supply for ionizing air bars requires matching the electrical requirements of the ionizer with the available factory power, required output voltage, frequency, polarity, total connected load, number of ionizing bars, cable configuration, environmental conditions, grounding, protection, and monitoring requirements.
The selection process should begin with the ionizing air bar specifications. Engineers should confirm the required electrical input and output characteristics before considering power capacity or installation details. AC, DC, and controlled ionization systems may require different power supply architectures, so electrical compatibility is essential.
Next, the total connected load should be calculated. If multiple ionizing bars are installed, the power supply must have both sufficient capacity and enough compatible output channels. Cable length and routing should also be planned carefully because high voltage connections require appropriate insulation, connectors, and mechanical protection.
Environmental conditions should not be overlooked. A power supply installed near heat, dust, chemical contamination, vibration, or high humidity may require different protection than one located inside a clean electrical cabinet. Good ventilation and maintenance access can further improve reliability.
Grounding, electrical protection, and monitoring are also essential parts of the system. Proper grounding supports safe and stable operation, while overload protection, status indicators, alarms, and remote control functions can improve production reliability and simplify troubleshooting.
After installation, the complete ionization system should be verified under actual production conditions. Engineers should check power supply status, connected ionizing bars, grounding, alarms, static decay performance, and residual electrostatic voltage. These measurements confirm whether the selected power supply is delivering the performance required by the application.
Ultimately, the correct power supply is not simply the unit that can energize an ionizing air bar. It is the unit that can operate the complete ionization system safely, consistently, and reliably under real production conditions. By evaluating electrical compatibility, capacity, control, environment, grounding, and performance together, manufacturers can improve static neutralization effectiveness, reduce unplanned downtime, extend equipment service life, and maintain more stable production processes.
