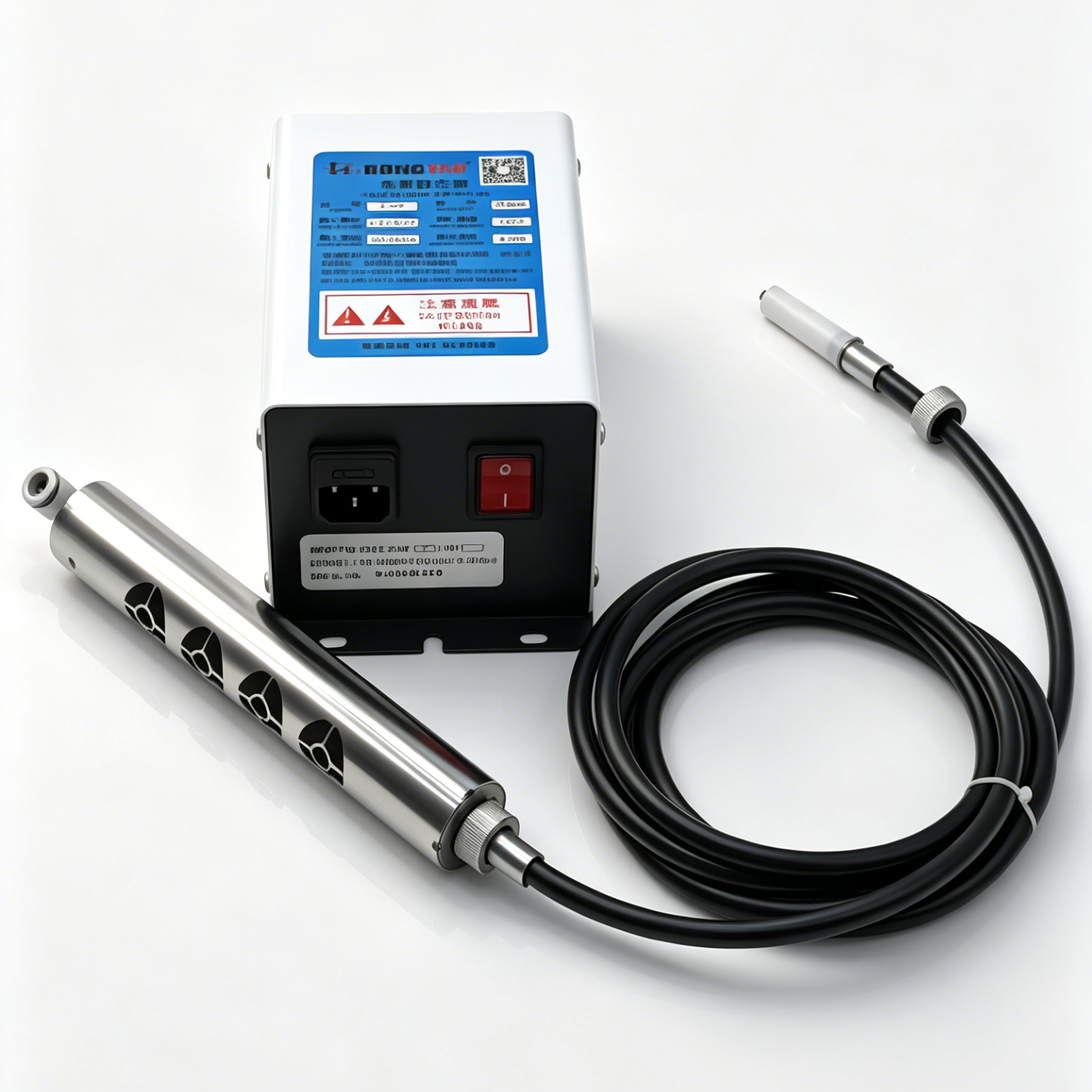

Ionizing air bars are widely used to neutralize static electricity in electronics manufacturing, printing, packaging, plastics processing, textile production, pharmaceutical operations, coating, converting, and other industrial processes. When operating correctly, an ionizing air bar produces positive and negative ions that reduce surface voltage, prevent dust attraction, improve material movement, and protect sensitive components.
Ionizing performance can gradually deteriorate as emitter points collect dust, fibers, oil, adhesive residue, and other contaminants. Air outlets may become restricted, cables can loosen, mounting positions may change, and electrical components may age. Because many of these changes develop slowly, operators may not recognize the problem until static related defects begin to increase.
Your ionizing air bar probably needs maintenance if static decay becomes slower, residual voltage increases, ion balance becomes unstable, dust attraction returns, materials begin sticking, emitters appear dirty, airflow becomes uneven, alarms occur, or production quality declines.
Recognizing these warning signs early allows maintenance teams to restore performance before the problem causes extensive rejects or production interruptions. However, similar symptoms can also result from poor grounding, incorrect working distance, process changes, unsuitable airflow, or new static generation downstream.
This guide explains the most important signs that an ionizing air bar needs maintenance, how to distinguish contamination from installation problems, which inspection and testing methods to use, and what actions should be taken after a warning sign is identified.
This article covers the visual, electrical, pneumatic, mechanical, and production related signs that indicate an ionizing air bar requires inspection, cleaning, testing, adjustment, or repair.
The first sections focus on performance symptoms such as slower static decay, increased residual voltage, unstable ion balance, and uneven neutralization. These signs can be detected through regular measurements and production observations.
Later sections examine visible contamination, airflow problems, alarms, abnormal electrical behavior, loose hardware, damaged cables, and increasing quality defects. These conditions may require immediate maintenance attention.
The final sections explain what maintenance should include, how frequently an air bar should be inspected, and how records can help companies identify gradual deterioration before it affects production.
Increasing static decay time is one of the clearest signs that an ionizing air bar is no longer delivering enough useful ions to the target surface.
Static decay time measures how quickly an ionizer reduces a known positive or negative charge to a lower level. When emitter points are clean and the system is correctly installed, decay performance should remain reasonably consistent under the same test conditions.
As contamination collects around emitter points, it changes the electrical field responsible for ion generation. Fewer useful ions may reach the target, causing positive or negative charges to remain on the surface for longer periods.
Decay time can also increase because of blocked air outlets, reduced compressed air pressure, a longer working distance, or changes in process airflow. Therefore, a slow decay result should trigger a complete inspection rather than cleaning alone.
| Possible Cause | Recommended Check | Maintenance Response |
|---|---|---|
| Contaminated emitter points | Inspect for dust, oil, and fibers | Clean according to the approved procedure |
| Blocked air outlets | Compare airflow across the active length | Remove permitted surface contamination |
| Low air pressure | Measure pressure during operation | Inspect filters, regulators, hoses, and leaks |
| Changed working distance | Measure the bar to target distance | Restore the approved mounting position |
| Component aging | Compare current and historical test data | Arrange technical evaluation |
Decay testing should be performed at the same distance, plate position, airflow setting, and environmental condition whenever possible. Without consistent conditions, an apparent performance decline may simply reflect a change in the test setup.
An increase in residual voltage after ionization indicates that the air bar may not be neutralizing the incoming charge sufficiently under actual production conditions.
Residual voltage is the charge remaining on a material after it passes through the ionized treatment area. It can be measured using a suitable noncontact electrostatic field meter at a controlled distance.
Compare the voltage before and after the ionizing air bar. If the incoming voltage remains similar but the residual voltage gradually rises, ionizer performance may be deteriorating. Emitter contamination, airflow restriction, or component aging may be responsible.
If both incoming and residual voltage rise at the same time, the production process may be generating a stronger charge. A faster machine speed, different material, lower humidity, increased tension, or changed roller condition can increase the neutralization challenge.
| Measurement Pattern | Possible Meaning | Recommended Action |
|---|---|---|
| Incoming stable and residual rising | Ionizer performance may be declining | Inspect, clean, and test the air bar |
| Incoming rising and residual rising | Process charge generation has increased | Review material and process changes |
| Residual low but downstream voltage high | New charge is generated after treatment | Locate the downstream charge source |
| Voltage changes only at one edge | Coverage or localized emitter problem | Inspect alignment, emitters, and outlets |
| Voltage fluctuates randomly | Unstable process, airflow, or electrical connection | Monitor operating conditions and connections |
Measurements should include polarity, magnitude, distance, material type, and production speed. A voltage value without these conditions provides limited diagnostic information.
Unstable or unacceptable ion balance is a strong maintenance warning because it indicates that positive and negative ion delivery is no longer sufficiently controlled at the target position.
Ion balance is measured with a charged plate monitor and represents the residual voltage created by the relationship between positive and negative ions. If positive ion influence dominates, the plate develops a positive residual voltage. If negative ion influence dominates, the reading becomes negative.
Uneven emitter contamination can affect the two polarities differently. An air bar may continue to neutralize static quickly while leaving an unacceptable residual bias. This is why decay time and ion balance should both be tested.
Balance instability can also be caused by changing airflow, nearby grounded structures, loose connections, incorrect settings, or component aging. If a previously stable reading begins drifting under unchanged conditions, maintenance is required.
The test should be repeated at the center, both edges, overlap zones, and critical product locations. A good result at one position does not confirm acceptable balance across the full treatment width.
Uneven static removal usually indicates localized emitter contamination, blocked air outlets, incorrect alignment, incomplete coverage, or variation in the working distance.
A long ionizing air bar contains multiple emitter points distributed across its active length. If some emitters become more contaminated than others, ion output may become uneven. One area of a film or sheet may be neutralized effectively while another remains strongly charged.
Air outlets can also become restricted locally. This is especially common in printing, packaging, textile, and adhesive processes where dust or sticky residue collects near the air bar.
Mechanical movement may create uneven results even when the bar is clean. Vibration can loosen brackets and change the angle. Flexible film may sag or move laterally, causing the working distance to vary across the process.
If several air bars are used, measure the areas between them. A physical overlap does not guarantee that ions are distributed evenly, especially when airflow from adjacent units interacts.
Visible dust, fibers, oil, adhesive residue, dark deposits, or particles around emitter points indicate that the air bar requires safe inspection and cleaning.
Emitter points create a strong electrical field and naturally attract some airborne contamination. Over time, the deposit can interfere with ion generation and create an uneven relationship between positive and negative output.
Dry dust may appear as a light coating or dark ring near the emitter base. Fibers can wrap around sharp points, while oil and adhesive residues create sticky deposits that capture additional particles.
The type of contamination often reveals its source. Paper dust may come from cutting or converting. Oil can originate from machine lubrication or contaminated compressed air. Adhesive residue may come from nearby label or tape processes.
| Contamination Type | Possible Source | Maintenance Consideration |
|---|---|---|
| Dry dust | Paper, plastic, or general process dust | Clean gently and inspect extraction |
| Fibers | Textile, paper, or nonwoven material | Remove without bending emitters |
| Oil film | Lubrication or pneumatic air contamination | Use a compatible cleaner and correct the source |
| Adhesive residue | Label, tape, or coating operation | Use an approved cleaner without scraping |
| Moisture | Compressed air or condensation | Dry completely and investigate air treatment |
| Dark electrical marks | Possible electrical tracking or discharge | Arrange technical inspection before operation |
Cleaning should only begin after the power and pneumatic supplies have been safely isolated. Metal brushes, sharp scrapers, abrasive materials, and excessive liquid should not be used on emitters or insulating surfaces.
Weak, unstable, or uneven airflow indicates that filters, regulators, hoses, fittings, air outlets, or the compressed air supply may require maintenance.
Air assisted ionizing bars depend on airflow to transport ions toward the target. The high voltage section may be operating correctly, but poor airflow can prevent enough ions from reaching the material within the available treatment time.
Pressure should be checked while the system is operating. A regulator may display an acceptable pressure when airflow is stopped but fall significantly when the air bar begins consuming air.
Uneven airflow often creates localized static problems. A blocked outlet near one edge can leave that area charged while the center continues to perform normally.
Increasing pressure may hide a restriction temporarily, but it does not correct contaminated filters, leaking fittings, blocked outlets, or unsuitable tubing. Excessive pressure can also increase noise, disturb lightweight material, and waste energy.
An increase in dust attraction, material sticking, feeding errors, winding problems, operator shocks, or electrostatic damage may indicate declining air bar performance.
Production symptoms are often the first warning noticed by operators. Film may cling to rollers, sheets may feed together, labels may fail to separate, or lightweight components may move out of position.
Dust attraction is another common sign. If previously clean surfaces begin collecting particles after passing the ionizing area, residual static voltage may have increased. This can affect printing, coating, painting, optical assembly, and surface inspection.
In electronics manufacturing, electrostatic discharge failures or increased voltage at controlled workstations may indicate that an ionizer requires maintenance. Because damage may be latent, waiting for visible component failure is not an acceptable monitoring strategy.
| Production Symptom | Possible Static Effect | Recommended Check |
|---|---|---|
| Sheets feed together | Electrostatic attraction | Measure voltage near the separation point |
| Film wraps around a roller | Charge generated by contact and separation | Measure before and after the roller |
| Dust returns after cleaning | Residual surface voltage | Measure immediately after ionization |
| Labels fail to release | Charge on liner and label | Inspect the ionizer near the peeling point |
| Operators receive shocks | Charge accumulation on material or equipment | Inspect grounding and static control performance |
| Electronic defects increase | Possible electrostatic discharge exposure | Perform complete control verification |
These symptoms do not prove that the ionizing air bar is defective. Mechanical, material, grounding, and environmental problems can create similar effects. Objective voltage, decay, and balance measurements are required.
Repeated alarms, unexpected status lights, or intermittent indicators require prompt maintenance because they may signal contamination, electrical leakage, poor connections, or component failure.
When an alarm appears, record its status and the production conditions present at that time. Note whether the alarm occurs continuously, during startup, at high speed, after extended operation, or only when nearby machinery operates.
Do not reset the alarm repeatedly without identifying the cause. A protection function may be responding to emitter contamination, moisture, insulation damage, or another abnormal electrical condition.
After safe isolation, inspect emitters, insulating surfaces, cables, connectors, grounding, and the air supply. If cleaning and external checks do not correct the condition, qualified technical evaluation may be necessary.
Protection devices should never be bypassed to keep production running. An unresolved alarm can indicate a condition that may damage the air bar or reduce electrical safety.
Unusual clicking, snapping, visible discharge, burning odor, or abnormal heat may indicate heavy contamination, insulation damage, moisture, loose connections, or an electrical fault requiring immediate inspection.
Some ionizing systems may produce a low normal operating sound, particularly when compressed air is used. Maintenance teams should understand the normal sound of the installation so they can recognize a meaningful change.
Sharp or irregular discharge sounds may occur when contamination creates an unwanted electrical path. Moisture, conductive particles, cracked insulation, or a damaged emitter can also contribute to abnormal discharge behavior.
A burning odor, visible tracking, discolored insulation, or excessive heat is more serious than ordinary contamination. The unit should be switched off, isolated, and kept out of operation until it has been inspected by qualified personnel.
Cleaning cannot repair damaged insulation, broken emitters, overheated connectors, or internal electrical faults. Attempting to operate the bar after these signs appear may increase damage and production risk.
Loose brackets, changed alignment, damaged cables, strained connectors, and leaking air hoses indicate that mechanical maintenance is required even if the ionizer still produces ions.
Machine vibration can gradually loosen mounting hardware. A small change in angle or working distance may increase decay time or create uneven coverage across the product.
Cables may be damaged by repeated bending, crushing, heat, chemicals, sharp machine edges, or contact with moving components. Internal damage can cause intermittent operation even when the outer insulation appears mostly normal.
Connectors should remain fully engaged, clean, and protected from mechanical strain. The cable weight should not pull directly on the connection. Pneumatic hoses should also be inspected for cracks, kinks, leakage, and loose fittings.
| Component | Warning Sign | Maintenance Action |
|---|---|---|
| Mounting bracket | Loose hardware or visible vibration | Tighten and restore approved alignment |
| Air bar housing | Impact marks, cracks, or deformation | Arrange technical inspection |
| Power cable | Cuts, crushing, or severe bending | Replace damaged components |
| Connector | Loose fit, heat, or contamination | Clean, secure, or replace as required |
| Air hose | Leakage, kinks, or cracking | Repair or replace the hose |
| Grounding connection | Loose, corroded, or damaged connection | Restore according to site requirements |
The original installation geometry should be documented. This allows technicians to restore the correct distance and angle after machine maintenance or accidental movement.
If performance improves after cleaning but deteriorates again quickly, the air bar is probably exposed to an unresolved contamination source or unsuitable operating condition.
A clear improvement after cleaning confirms that emitter contamination affected performance. However, rapid recurrence suggests that simply cleaning more frequently may not be the most effective long term solution.
Oil may enter through the compressed air supply or come from nearby machine lubrication. Adhesive particles may travel from a coating or label process. Fibers and paper dust may be drawn toward the emitter area because of poor extraction or an unsuitable mounting position.
Maintenance teams should record the type and location of contamination. If deposits consistently appear on one side of the bar, the direction of process airflow may help identify the source.
The objective is to extend stable operating time without compromising ion coverage. Any protective guard or relocation should be tested to confirm that it does not obstruct ion delivery.
Maintenance should include safe isolation, emitter cleaning, housing inspection, airflow checks, cable and grounding inspection, mounting verification, and performance testing before production resumes.
Begin by switching off and isolating the electrical supply according to the approved safety procedure. Close and depressurize the compressed air supply where applicable. Allow stored electrical energy to dissipate before touching the emitter area.
Clean emitter points using a suitable soft nonconductive tool. A compatible fast evaporating cleaner may be applied carefully to a lint free applicator when oily residue is present. Do not spray excessive liquid directly into the air bar.
After cleaning, inspect the emitter points for bending, corrosion, wear, or breakage. Check insulating surfaces for cracks, discoloration, moisture, or electrical tracking. Allow all cleaned parts to dry completely before restoring power.
If performance remains unacceptable, do not continue cleaning repeatedly. Investigate the installation, process conditions, and electrical system, or arrange qualified technical evaluation.
Inspection frequency should be based on contamination level, operating hours, process sensitivity, historical performance, and the consequences of inadequate static neutralization.
There is no universal interval suitable for every ionizing air bar. Equipment installed near paper dust, textile fibers, adhesive, powder, or oil mist may require daily or weekly visual inspection.
Air bars in cleaner environments may remain stable for longer periods, but performance should still be measured at a defined interval. Clean appearance alone cannot confirm acceptable decay and balance.
New installations should be inspected more frequently until a maintenance history is available. The interval can then be adjusted so that cleaning and testing occur before performance reaches an unacceptable condition.
| Operating Environment | Initial Visual Inspection | Performance Verification |
|---|---|---|
| Heavy dust, fibers, or adhesive | Daily or several times each week | Weekly and after cleaning |
| General printing and packaging | Weekly | Monthly or according to process risk |
| Plastic film processing | Weekly | Monthly and after process changes |
| Electronics assembly | Weekly | According to the electrostatic control plan |
| Controlled clean environment | Monthly | At the defined compliance interval |
These intervals are starting points rather than fixed requirements. Actual schedules should follow equipment instructions, site safety procedures, process risk, and measurement history.
Maintenance records reveal warning signs by showing trends in decay time, ion balance, residual voltage, contamination frequency, alarms, airflow, and component condition.
A single test shows current performance, but a sequence of tests shows whether performance is stable or gradually deteriorating. Trend information allows maintenance to be scheduled before a failure occurs.
Records can also identify recurring contamination. If the air bar requires cleaning much more frequently after a particular process change, material batch, or production shift, the source can be investigated.
Before and after maintenance results demonstrate whether cleaning, adjustment, or replacement corrected the problem. They also help distinguish between an ionizer problem and a downstream charge generation source.
Maintenance data should be reviewed periodically rather than stored without analysis. A gradual trend toward the performance limit is a maintenance signal even when the latest result still passes.
Your ionizing air bar needs maintenance when measured performance declines, contamination becomes visible, airflow changes, production defects increase, alarms appear, or electrical and mechanical components show abnormal conditions.
The most reliable warning signs are slower decay time, rising residual voltage, unstable ion balance, and uneven treatment across the material. These indicators should be evaluated through repeatable measurements rather than visual judgment alone.
Visible dust, oil, fibers, adhesive, moisture, damaged cables, loose brackets, and blocked air outlets also require prompt attention. Burning odor, electrical tracking, abnormal heat, or visible discharge should result in immediate isolation and qualified inspection.
Maintenance should include safe shutdown, emitter cleaning, airflow inspection, cable and grounding checks, mounting verification, and performance testing. If contamination returns rapidly, the source should be corrected instead of relying only on more frequent cleaning.
By recognizing maintenance warning signs early and using accurate records to track performance, manufacturers can maintain reliable static neutralization, reduce defects, prevent unexpected downtime, extend equipment life, and protect sensitive industrial processes.
