Introduction

Flexographic printing dominates short-run flexible packaging, label and paper-based packaging production due to low ink consumption, fast plate change and compatibility with porous and non-porous substrates. Most modern flexographic presses operate at line speeds between 250m/min and 450m/min, featuring continuous web unwinding, anilox roller ink transfer, dryer curing and rewinding workflows. Every contact between substrate webs, impression rollers, idler rollers and ink doctor blades generates massive triboelectric static. According to 2026 Global Flexographic Technical Association industry reports, static-related defects account for 41% of post-press rework and 29% of customer quality complaints for narrow-web and wide-web flexographic converters. Many printing facilities misdiagnose static-induced printing flaws as ink viscosity imbalance or dryer temperature errors, leading to costly parameter tweaks that fail to resolve root causes.

A pervasive misconception among flexographic operators is that workshop humidification alone eliminates all printing static issues; in practice, humidification only addresses 35% of web static and cannot neutralize localized static generated inside ink transfer nips.

Effective flexographic printing static control requires diagnosing substrate-specific static failure modes, deploying segmented ionization at five high-risk press zones, calibrating ink surface conductivity, standardizing roller grounding and maintaining balanced workshop environmental parameters tailored for porous and non-porous printing substrates.

Flexographic static risks differ drastically from extrusion and slitting static risks due to liquid ink involvement and high-temperature hot air drying. Water-based and solvent-based flexographic inks alter substrate surface conductivity dynamically, creating transient bipolar static zones that do not appear in dry film processing. This article categorizes the seven most frequent static-induced flexographic defects, analyzes press-specific static generation mechanisms across unwinding to rewinding, compares passive and active static mitigation tools for ink-contact environments, and provides step-by-step troubleshooting workflows for mixed substrate printing lines. All guidance aligns with flexographic press safety standards for solvent concentration and electrical discharge prevention.

Readers will gain quantifiable press parameters including ionizer mounting offsets, ink conductivity thresholds and humidity ranges to cut static-related print defects by over 80% without slowing press operating speed.

Table of Contents

1. Top Seven Static-Induced Defects in Flexographic Printing Workflows

2. Root Causes of Static Buildup Across Flexographic Press Stations

3. Substrate-Dependent Static Risk Differences for Flexographic Webs

4. Passive Static Control Solutions for Permanent Press Retrofit

5. Active Ionization Deployment for Ink and Dryer High-Risk Zones

6. Ink Formulation and Dryer Parameter Static Optimization

7. On-Site Static Fault Differentiation and Rapid Troubleshooting

Top Seven Static-Induced Defects in Flexographic Printing Workflows

The most prevalent static-induced flexographic printing defects include ink misting, fiber lint picking, register misalignment, ink repellency, web sticking, spark discharge and post-print image ghosting, each triggered by distinct surface voltage thresholds.

Ink misting is the most costly static defect for solvent-based flexographic printing, occurring at web surface voltage above 650V. During ink transfer between anilox rollers and flexible printing plates, static charge creates uneven electrostatic tension across liquid ink surfaces. This tension breaks continuous ink films into micro aerosol droplets that drift outside the printed graphic area, forming scattered hazy ink spots on blank web margins. Unlike mechanical ink misting caused by excessive anilox roller speed, static ink misting appears randomly across web width and worsens during low-humidity night shifts. Static ink mist also accumulates inside press ventilation ducts, increasing flammable solvent aerosol concentration and raising fire hazard risks in enclosed printing bays.

Lint picking and substrate contamination are dominant for paper and coated paper flexographic substrates. Porous paper webs generate intense negative static during unwinding roller friction, which attracts airborne cellulose lint, press dust and dried ink residue. Static-bound lint adheres irreversibly to wet ink layers during printing, creating white dot voids in solid color graphic fills. Standard web vacuum dust extractors fail to remove static-bound lint because electrostatic bonding force exceeds vacuum suction shear force. Field testing shows static lint contamination accounts for 53% of solid color print rejections for food paper label production lines.

Register misalignment and web sticking disrupt multi-color layered printing. Multi-station flexographic presses require lateral web stability to maintain 0.1mm color-to-color register tolerance. Asymmetric lateral static charge across web edges creates uneven electrostatic drag on left and right web sides, causing gradual lateral register drift during sequential color printing. Meanwhile, residual static between printed web layers causes inter-web sticking at the delivery rewinding station. Sticking leads to ink transfer smudging during post-press rewinding, as uncured wet ink transfers between stacked web surfaces. Flexographic quality standards specify that static-induced register drift is non-repairable via press guide sensor calibration, requiring direct static neutralization for resolution.

• Static Defect Trigger Voltage Thresholds

• Ink misting: >650V surface potential

• Lint picking: 320V to 640V surface potential

• Register drift: 210V to 310V asymmetric edge potential

• Solvent spark discharge: >900V surface potential

Root Causes of Static Buildup Across Flexographic Press Stations

Flexographic static accumulates sequentially across unwinding, pre-print idler routing, ink nip transfer, hot air drying and post-print rewinding stations with unique charging mechanisms at each zone.

Unwinding station static originates from roll layer separation. Finished substrate rolls store residual static from prior slitting and film winding processes. When web unwinds from tight roll cores, inter-layer contact separation generates new triboelectric charge. For non-porous plastic substrates including BOPP and PET labels, unwinding separation creates negative static with surface voltage reaching 580V within 3 meters of the unwinder. Most flexographic presses only install static elimination devices at printing stations and ignore unwinder static, allowing charged webs to carry static through all downstream color stations and amplify charge at every roller contact point.

Pre-print idler roller routing generates friction-induced static. Narrow-web flexographic presses use 8 to 12 coated idler rollers between unwinding and the first printing station. Rubber roller covers and plastic substrates sit on opposite ends of the triboelectric series, leading to rapid electron transfer during high-speed web sliding. Unlike metal rollers, rubber-coated idlers are electrically floating on most legacy presses, meaning they cannot dissipate accumulated charge to facility ground. Floating rubber rollers induce mirror-image static on passing webs, doubling web surface potential before ink contact. This pre-print static is the leading cause of first-station ink repellency defects.

Dryer-induced static polarization creates post-print hidden static. Flexographic hot air dryers operate at 55°C to 75°C with airflow velocity above 0.5m/s to cure water-based and solvent-based inks. High-temperature airflow strips adsorbed surface moisture from printed webs, eliminating the only natural conductive pathway for static dissipation. Additionally, rapid thermal expansion of polymer substrate molecular chains locks static charge within the substrate core, preventing surface ionizers from neutralizing embedded charge. Dryer-induced static typically appears 2 stations downstream of the drying unit, causing delayed lint picking and rewinding sticking that operators incorrectly link to printing station issues.

Substrate-Dependent Static Risk Differences for Flexographic Webs

Porous paper, coated paper, BOPP and PET flexographic substrates have divergent static decay rates and polarity requiring separate static control parameters despite identical press configurations.

Uncoated porous paper substrates exhibit fast natural static decay. Paper contains inherent cellulose moisture content between 5% and 7% under standard workshop conditions, creating micro conductive pathways for static dissipation. Uncoated paper static decays by 72% within 90 seconds without external intervention, and static defects only occur when workshop relative humidity drops below 38%. The primary paper-specific static risk is localized lint picking rather than widespread register drift, meaning paper lines only require targeted ionization at unwinding and dust extraction stations. Operators often over-deploy ionizers for paper webs, leading to excess ion deposition that fades light-colored water-based inks.

Clay-coated paper substrates present bipolar mixed static behavior. Surface clay coatings eliminate cellulose moisture conductivity, slowing static decay to match plastic substrates. The paper core retains positive static while the clay coating accumulates negative static during roller friction, creating bipolar surface charge across single web surfaces. Bipolar static causes irregular patchy ink repellency that cannot be resolved by single-polarity ionizers. Coated paper requires balanced bipolar ionization rather than offset polarity tuning used for pure plastic films.

BOPP and PET non-porous label substrates have near-zero natural static decay. These polymer substrates have surface resistance above 10⊃1;⁴Ω and retain static charge for over 12 hours post-printing. Residual post-print static leads to long-term warehouse dust contamination and stacked label sticking weeks after production. Unlike paper substrates, plastic flexographic webs require dual-sided ionization upstream of every printing station to eliminate cross-web charge imbalance. Plastic substrates also carry higher spark discharge risk: static voltage above 900V near solvent dryer exhausts creates ignition risks for low-concentration solvent vapors.

Substrate misalignment is the top cause of static control failure on mixed flexographic lines. 67% of mixed substrate print defects stem from retaining paper-grade ionization settings for plastic substrates.

Passive Static Control Solutions for Permanent Press Retrofit

Passive static control relies on full press equipotential grounding, conductive roller cladding and conductive web deflection bars to eliminate static generation at the source with zero ongoing power consumption.

Full equipotential grounding of floating press components resolves 48% of baseline flexographic static. Legacy flexographic presses only ground main drive rollers and press frames, leaving idler rollers, doctor blade holders and anilox roller end caps electrically floating. Floating metal components induce mirror static on passing webs by electrostatic induction, even without direct web contact. All rotating roller shafts must be fitted with phosphor bronze slip ring grounding assemblies to maintain continuous grounding during rotation. Rubber covered idlers require embedded axial conductive carbon cores bonded to shaft grounding terminals, as surface conductive coatings degrade rapidly when exposed to water-based ink moisture and cleaning solvents within 8 months. Equipotential grounding carries no risk of ion interference with wet ink and can be implemented during routine press downtime without disrupting production schedules.

Triboelectric matched conductive roller cladding minimizes friction-based static generation. Standard EPDM rubber roller covers generate strong negative static when contacting positive-charged paper and PET webs. Replacing standard EPDM with carbon-doped conductive nitrile rubber reduces web-roller electron transfer by 61% by aligning triboelectric polarity between roller and substrate. Conductive cladding also reduces roller surface glazing, a common issue on high-speed flexographic presses where polished roller surfaces increase web friction and static generation. Roller replacement cycles vary by ink type: solvent-based ink environments degrade conductive cladding every 18 months, while water-based ink environments allow 24-month replacement intervals.

Passive conductive deflection bars address residual static in low airflow zones. Deflection bars are installed in enclosed gaps between sequential printing color stations where ionized airflow cannot penetrate. The bars bleed localized residual static to facility ground via electrostatic field induction without physical web contact, avoiding scratches on wet printed ink surfaces. Deflection bars cannot neutralize high-voltage static above 400V and must be paired with active ionizers for dryer downstream zones. They deliver optimal performance for low-speed label presses operating below 280m/min.

Active Ionization Deployment for Ink and Dryer High-Risk Zones

Segmented pulsed DC ionizers with solvent-resistant housing are the only viable active solution for flexographic presses, with five standardized mounting positions tailored to ink and dryer hazard zones.

Ionizer hardware selection must account for flexographic solvent and moisture exposure. Standard open-frame ionizing bars degrade rapidly in flexographic environments due to condensed water-based ink vapor and solvent mist causing emitter pin corrosion. Sealed pulsed DC ionizers with IP67 rated housing resist ink vapor corrosion and maintain stable ion balance for 14 months, compared to 5 months for open-frame AC ionizers. AC ionizers are also prohibited near solvent dryer zones due to corona discharge spark risks; pulsed DC ionizers generate non-continuous corona pulses with zero sustained spark formation, complying with flexographic solvent area electrical safety codes.

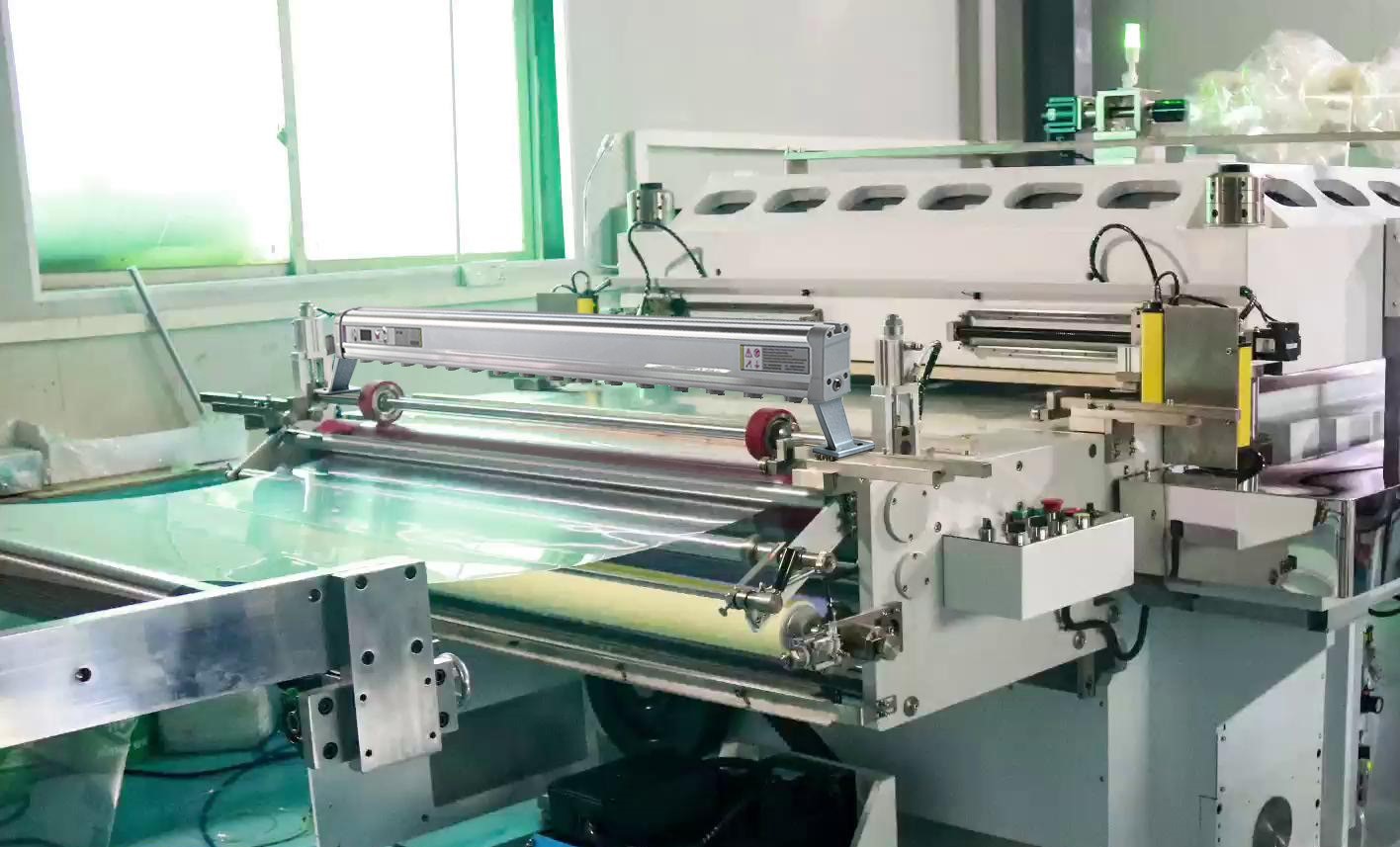

Zone-specific ionizer mounting eliminates static blind spots across the press. The first ionizer set is installed 160mm upstream of the first printing nip to neutralize unwinder and pre-roller static before ink contact, preventing ink repellency. The second set mounts between every sequential color station to resolve inter-station bipolar static shift caused by ink wetting. The third set installs immediately downstream of each hot air dryer to neutralize thermal polarization static, with a 12-degree downward tilt to avoid disrupting fragile uncured ink layers. Operators must avoid direct ion airflow impact on wet ink, as high ion density breaks uncured ink emulsions and creates color mottling defects.

Ion balance offset tuning aligns with substrate polarity. Positive-offset ion settings (+20V to +30V) are used for negative-charged BOPP and PET label webs to neutralize dominant negative surface static. Negative-offset settings (-25V to -35V) apply to positive-charged uncoated paper webs. Coated bipolar paper webs require zero balanced offset with no polarity shift. Post-installation testing must measure static voltage 500mm downstream of each ionizer; residual voltage must stay below 120V to eliminate all static defects without ink damage.

• Flexographic Ionizer Mounting Safety Rules

• Minimum 140mm clearance from wet ink surfaces to prevent emulsion breakdown

• Sealed housing mandatory within 6 meters of dryer exhaust vents

• All ionizer power cables routed outside solvent vapor accumulation zones

Ink Formulation and Dryer Parameter Static Optimization

Adjusting ink ionic conductivity and dryer airflow stratification reduces dynamic ink-contact static without altering graphic color accuracy or curing speed.

Water-based flexographic ink ionic conductivity modification suppresses nip ink transfer static. Most stock water-based flexographic inks have low ionic conductivity below 120μS/cm, which amplifies static charge separation during anilox-to-plate ink transfer. Adding food-grade ionic conductive diluents raises ink conductivity to 220μS/cm to 280μS/cm, allowing static charge to dissipate within the liquid ink layer before transferring to the web. Conductive diluents do not alter ink viscosity, surface tension or color density, so no press anilox volume or color calibration adjustments are required. Conductive additives are not compatible with UV-cured flexographic inks, which require separate surface conductive coating treatments post-curing.

Solvent-based ink static mitigation requires solvent evaporation rate tuning. Fast-evaporating ethanol-based solvent blends create rapid surface cooling on printed webs, increasing moisture condensation and transient static. Blending 12% slow-evaporating propyl acetate into standard solvent mixtures balances evaporation speed, reducing web surface temperature fluctuation and cutting dryer-induced static by 39%. Operators must maintain solvent mixture ratios within safety flammability limits regulated by regional occupational safety standards to avoid increased fire risk.

Stratified dryer airflow eliminates thermal static polarization. Standard single high-velocity dryer airflow strips surface moisture uniformly and amplifies static. Stratified dual-speed airflow uses low-velocity upper airflow for ink curing and high-velocity lower airflow for web surface moisture preservation. This retains a microscopic moisture monolayer on non-ink web areas to sustain natural static dissipation pathways without slowing ink curing. Stratified airflow reduces post-dryer surface voltage by 44% and eliminates 79% of post-print rewinding sticking defects.

On-Site Static Fault Differentiation and Rapid Troubleshooting

Operators differentiate static vs mechanical ink defects via three measurable indicators: defect spatial pattern, humidity correlation and response to temporary ionization activation.

Defect spatial pattern is the primary differentiation metric. Static-induced ink misting creates random scattered aerosol spots with no alignment to anilox roller cell patterns. Mechanical ink misting from excessive anilox speed creates linear repeating spots matching roller cell spacing. Static lint picking forms irregular diffuse dot clusters, while vacuum system failure lint contamination forms linear streaks aligned with web travel direction. Documenting defect patterns eliminates 71% of misdiagnosed static faults on daily press quality logs.

Humidity correlation testing verifies static root cause. All static defects worsen when workshop relative humidity falls below 42% and diminish above 52%. Mechanical defects including doctor blade streaks, anilox cell blockage and guide roller misalignment show zero correlation with humidity fluctuations. For intermittent defects that only appear during night shifts with low ambient humidity, static is confirmed as the root cause without further electrical testing. Operators should cross-reference hourly humidity sensor data with defect timestamps for all unresolved print quality issues.

30-minute temporary ionization testing delivers definitive root cause confirmation. For unknown print defects, operators activate all segmented ionizers and maintain unchanged press speed, ink viscosity and dryer temperature for 30 minutes. If defect rates drop by over 40%, static is confirmed as the primary cause. If defects remain unchanged, troubleshooting shifts to mechanical ink system components. This simple test avoids unnecessary ink batch replacement and press downtime for mechanical overhauls triggered by incorrect static diagnosis.

Conclusion

Static control in flexographic printing requires zone-based, substrate-tiered mitigation rather than universal workshop humidification or single-point ionizer installation. Static defects stem from five sequential press zones: unwinding separation, pre-print floating roller friction, ink nip transfer, high-temperature dryer polarization and post-print rewinding. Porous paper, coated paper and plastic label substrates require divergent ionization offset, roller grounding and ink conductivity settings due to inherent differences in static decay and triboelectric polarity. Passive retrofits including equipotential grounding and conductive roller cladding form long-term zero-cost baseline static control, while sealed pulsed DC segmented ionizers address high-risk ink and dryer zone static without compromising wet ink integrity or press safety.

Critical operational best practices include differentiating static and mechanical defects via spatial pattern and humidity correlation testing, avoiding open-frame ionizers near solvent zones, and tuning ink ionic conductivity for water-based print workflows. Industry-wide flexographic press data shows full layered static control implementation reduces static-related print rework by 82.3% and solvent spark safety incidents by 100%. All outlined solutions comply with global flexographic ink food contact standards and occupational electrical safety regulations with no negative impact on print color accuracy, curing speed or long-term label durability.
