Static electricity is an invisible but significant challenge in modern industrial production. While it is often associated with minor shocks experienced in daily life, static electricity in manufacturing environments can create serious operational, safety, and quality issues. Industries ranging from electronics and plastics to textiles, pharmaceuticals, food processing, printing, and packaging encounter electrostatic problems that can damage products, interrupt production, reduce efficiency, and even create hazardous conditions.
Understanding what causes static electricity is the first step toward preventing costly production losses. Since nearly every industrial process involves materials moving, separating, rubbing, or flowing, electrostatic charge generation is almost unavoidable. The key lies in understanding why it occurs, where it accumulates, and how manufacturers can effectively control it.
Static electricity in industrial production is primarily caused by friction, separation of materials, movement of insulating materials, low humidity, and improper grounding. When electrical charges generated through these processes cannot dissipate safely, they accumulate on surfaces and eventually discharge, potentially causing equipment failures, product contamination, production downtime, or safety hazards.
As manufacturing technologies continue to advance, production speeds become faster and automation becomes more widespread. These improvements increase opportunities for electrostatic charge generation because materials move more rapidly through machines and production lines. Consequently, electrostatic control has become an essential component of modern industrial engineering rather than merely a maintenance concern.
This article explores the science behind static electricity, explains its causes in industrial environments, examines the industries most affected, discusses the risks associated with electrostatic discharge, and outlines practical methods for controlling static electricity during production.
Static electricity is the accumulation of electrical charges on the surface of materials when electrons are transferred between two objects and cannot immediately return to electrical balance.
Every material contains positively charged protons and negatively charged electrons. Under normal conditions, these charges remain balanced. However, when two materials come into contact and then separate, some electrons move from one surface to another. This process creates one positively charged object and one negatively charged object.
Unlike electrical current, static electricity remains stationary until it finds a conductive path for discharge. Because many industrial materials such as plastics, rubber, films, textiles, powders, and paper are poor electrical conductors, the accumulated charge remains trapped on their surfaces for extended periods.
The amount of charge generated depends on several factors, including material composition, contact pressure, movement speed, humidity, and environmental conditions. In high-speed automated production lines, thousands of contact and separation events occur every minute, allowing electrostatic charges to accumulate rapidly.
Electrostatic discharge (ESD) occurs when the stored charge suddenly flows to another object with a different electrical potential. Although many discharges are too small for humans to notice, they may still damage sensitive products or ignite combustible atmospheres.
The primary causes of static electricity include friction, contact and separation of materials, high-speed motion, liquid and powder flow, low humidity, and insufficient grounding.
One of the most common mechanisms is friction, also known as the triboelectric effect. Whenever two materials rub against each other, electrons transfer between their surfaces. Conveyor belts transporting plastic containers, rollers processing packaging films, or textile fibers passing through machinery all continuously generate electrostatic charges.
Material separation is another major contributor. When adhesive films are peeled, plastic sheets are unwound, labels are removed, or protective liners separate from products, electrons remain unevenly distributed between the two surfaces. This explains why packaging operations frequently experience static-related issues.
Flowing materials also generate static electricity. Powders moving through pipes, grains transported pneumatically, liquids flowing through plastic hoses, and pellets traveling into molding machines all create charge due to repeated particle collisions and contact with equipment surfaces.
High production speeds significantly increase electrostatic generation because more frictional interactions occur within shorter periods. Modern automated manufacturing lines often operate several times faster than traditional equipment, leading to greater charge accumulation.
The following table summarizes common causes:
Cause | How Static Is Generated | Typical Applications |
|---|---|---|
Friction | Surface rubbing transfers electrons | Conveyors, rollers, textiles |
Material Separation | Charges remain after contact ends | Packaging films, labels |
Powder Movement | Particle collisions create charges | Chemical and pharmaceutical production |
Liquid Flow | Fluid friction against pipe walls | Fuel handling and coating |
Machine Speed | Higher interaction frequency | Automated production lines |
Low Humidity | Reduced natural charge leakage | Winter manufacturing environments |
Different materials generate static electricity at different levels because their ability to gain or lose electrons varies significantly.
Conductive materials such as metals allow electrical charges to move freely and dissipate rapidly through proper grounding. Therefore, metal components rarely retain significant static charges unless they are electrically isolated.
Insulating materials present much greater challenges. Plastics, synthetic rubber, polyethylene films, polypropylene sheets, acrylic materials, and many composite products resist electron movement. Once charged, they may retain static electricity for hours or even days under dry conditions.
Textile manufacturing frequently encounters static because synthetic fibers such as polyester and nylon readily exchange electrons during spinning, weaving, winding, and cutting operations. These charges cause fibers to cling together, attract dust, and interfere with automated handling.
Paper products also accumulate static despite their natural cellulose composition. Modern coated papers, laminated cartons, glossy printing materials, and packaging boards often contain polymers that reduce conductivity, making electrostatic accumulation more likely.
The relative tendency of common materials to generate static can be summarized below:
Material Type | Static Generation Potential | Charge Retention |
|---|---|---|
Metal | Low | Very Low |
Glass | Moderate | Moderate |
Paper | Moderate | Moderate |
Rubber | High | High |
Plastic Films | Very High | Very High |
Synthetic Fibers | Very High | High |
Environmental conditions such as humidity, temperature, air quality, and workplace cleanliness strongly influence the amount of static electricity generated and retained during industrial production.
Humidity is perhaps the most influential environmental factor. Moisture in the air forms a microscopic conductive layer on many surfaces, allowing accumulated charges to dissipate naturally. When humidity drops below approximately 40%, this conductive path becomes less effective, allowing charges to remain on insulating materials.
Temperature indirectly affects electrostatic behavior by influencing humidity levels and material properties. Heated production facilities during winter often experience extremely dry indoor air, creating ideal conditions for static accumulation.
Dust particles suspended in the air become attracted to charged surfaces. In industries requiring high cleanliness standards, including electronics, medical products, optics, and pharmaceuticals, electrostatic attraction significantly increases contamination risks.
Airflow generated by ventilation systems, blowers, and compressed air equipment can further increase charge generation by accelerating friction between airborne particles and surrounding surfaces.
Manufacturers often monitor environmental conditions because maintaining stable humidity and cleanliness significantly reduces electrostatic problems without modifying production equipment.
Industries handling insulating materials, combustible substances, sensitive electronics, or precision manufacturing processes are most vulnerable to static electricity.
The electronics industry is among the most sensitive because modern integrated circuits can be permanently damaged by electrostatic discharges far below the threshold detectable by humans. Even microscopic discharges may reduce long-term product reliability.
The plastics industry constantly battles static because extrusion, thermoforming, injection molding, film winding, and sheet processing all involve continuous friction and material separation. Dust attraction and handling problems frequently reduce product quality.
Textile manufacturers experience fiber entanglement, fabric sticking, machine jams, and reduced processing efficiency due to electrostatic charges generated during spinning, weaving, and finishing.
Printing and packaging operations often encounter sheet feeding problems, multiple-sheet pickup, ink transfer defects, and inaccurate label placement resulting from static attraction between materials.
Other industries frequently affected include:
Food processing
Pharmaceutical manufacturing
Chemical production
Automotive component manufacturing
Semiconductor fabrication
Paper converting
Medical device production
Powder coating operations
Uncontrolled static electricity can reduce product quality, damage equipment, interrupt production, contaminate products, and create serious fire or explosion hazards.
One of the largest economic impacts comes from product defects. Static attracts airborne contaminants that adhere to painted surfaces, optical components, packaging materials, and electronic assemblies. Even microscopic dust particles may result in rejected products.
Electrostatic discharge also damages electronic devices. Integrated circuits, sensors, printed circuit boards, and semiconductor components are especially vulnerable because internal structures continue shrinking while operating voltages decrease.
Production efficiency suffers when charged materials stick together or cling to machine surfaces. Packaging films become difficult to separate, labels misalign, and lightweight products fail to move correctly through automated systems.
Safety risks become especially serious where combustible gases, vapors, solvents, or dusts are present. A sufficiently energetic electrostatic spark may ignite flammable atmospheres, making static control an important element of industrial safety management.
The following table summarizes common risks:
Risk | Impact |
|---|---|
Product Contamination | Dust attraction reduces quality |
Equipment Damage | Electronic components fail |
Production Downtime | Machine interruptions increase |
Worker Discomfort | Unexpected shocks reduce productivity |
Fire Hazard | Sparks may ignite flammable materials |
Higher Manufacturing Costs | Waste and maintenance increase |
Effective static control combines grounding, humidity management, conductive materials, ionization technology, equipment maintenance, and employee awareness to minimize electrostatic accumulation.
Proper grounding provides the most fundamental protection. Conductive equipment, machinery frames, storage containers, and workstations should be electrically connected to ground so accumulated charges dissipate continuously instead of building to dangerous levels.
Maintaining appropriate humidity is another highly effective strategy. Relative humidity between 40% and 60% often provides sufficient moisture to reduce charge accumulation while remaining suitable for many manufacturing environments.

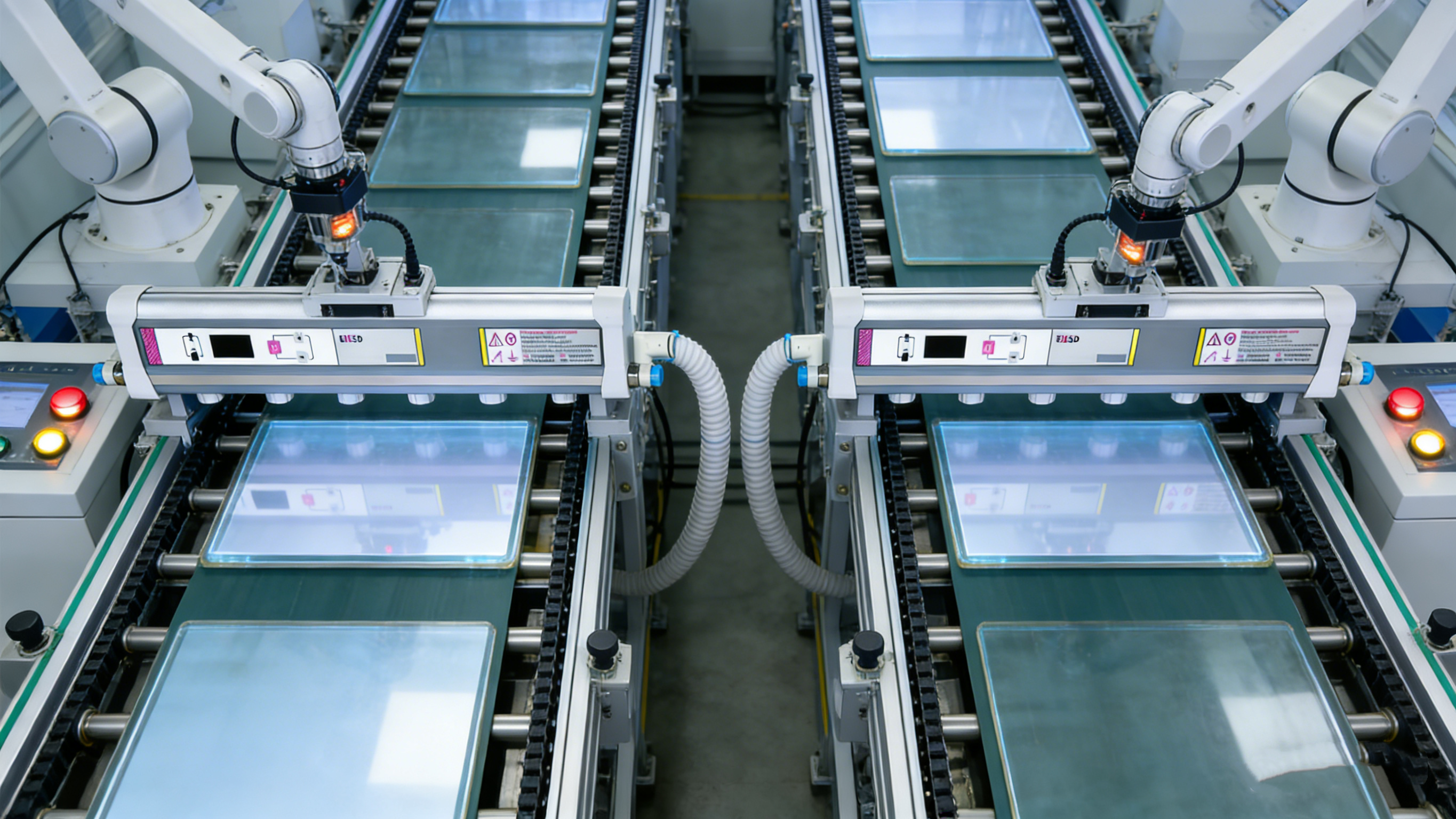

Ionization systems neutralize electrostatic charges by releasing balanced positive and negative ions into the surrounding air. These systems are especially valuable where insulating materials cannot be grounded directly, such as plastic films, molded parts, or moving webs.
Manufacturers also improve electrostatic control through material selection. Conductive flooring, antistatic packaging, dissipative work surfaces, conductive hoses, and specialized coatings all help reduce charge retention throughout production facilities.
A comprehensive static control program typically includes:
Ground all conductive equipment.
Maintain stable humidity levels.
Install ionization equipment where necessary.
Inspect grounding systems regularly.
Use antistatic materials when appropriate.
Monitor electrostatic voltage continuously.
Train employees on electrostatic safety procedures.
Perform routine preventive maintenance.
Industrial static control is evolving toward intelligent monitoring, automated detection, predictive maintenance, and integrated smart manufacturing systems.
Modern factories increasingly incorporate sensors capable of continuously measuring electrostatic voltage throughout production lines. These systems provide real-time feedback that allows engineers to identify developing problems before product quality deteriorates.
Artificial intelligence and industrial data analytics are beginning to identify production conditions that correlate with increased electrostatic generation. Predictive maintenance algorithms can recommend equipment adjustments before excessive static accumulates.
Advanced materials are also reducing electrostatic risks. Conductive polymers, permanently dissipative plastics, nanotechnology coatings, and engineered composite materials provide improved static performance without sacrificing mechanical properties.
As manufacturing becomes increasingly automated and precision requirements continue rising, electrostatic control will remain an essential component of production quality, workplace safety, operational efficiency, and regulatory compliance.
Static electricity is an unavoidable consequence of many industrial manufacturing processes, but its effects can be effectively managed through a thorough understanding of its causes and appropriate control measures. Friction, material separation, high-speed production, flowing powders and liquids, low humidity, and insulating materials all contribute to electrostatic charge generation across modern production environments.
Although static electricity may seem insignificant, its impact extends far beyond minor electrical shocks. It can damage sensitive electronic components, contaminate products, reduce manufacturing efficiency, interrupt automated processes, and create potentially hazardous ignition sources in combustible environments.
Successful industrial operations treat electrostatic control as an integrated part of production design rather than a reactive maintenance issue. By combining proper grounding, environmental management, ionization systems, conductive materials, equipment maintenance, and continuous monitoring, manufacturers can significantly reduce electrostatic risks while improving product quality, operational reliability, and workplace safety.
As industrial automation, precision manufacturing, and smart factories continue to evolve, effective static electricity management will remain a critical factor in achieving consistent production performance and long-term manufacturing excellence.
