Electrostatic Control Before Reflow Soldering in SMT Processes

Abstract

Surface Mount Technology (SMT) assembly processes involve extensive material handling, high-speed automation, and the widespread use of insulating materials, all of which make electrostatic charging unavoidable. Before reflow soldering, printed circuit board assemblies (PCBAs) are particularly vulnerable to electrostatic discharge (ESD) and electrostatic attraction effects that can degrade component reliability, solder joint quality, and long-term product performance. This article presents a comprehensive and systematic analysis of electrostatic control before reflow soldering in SMT manufacturing. It examines charge generation mechanisms, device sensitivity, process-induced risks, ionization-based neutralization methods, equipment-level implementation strategies, monitoring techniques, and industry best practices. Emphasis is placed on in-line, pre-reflow electrostatic control solutions that ensure both ESD protection and process stability in high-volume electronics manufacturing.

Keywords: SMT, reflow soldering, electrostatic discharge, ESD control, ionization, electronics manufacturing


1. Introduction

Surface Mount Technology has become the dominant assembly method in modern electronics manufacturing due to its high density, automation compatibility, and cost efficiency. As component sizes shrink and device sensitivity increases, electrostatic phenomena have emerged as a major reliability and yield concern. While much attention is traditionally given to ESD protection at component handling and final testing stages, the period immediately before reflow soldering represents a critical yet often underestimated risk window.

Prior to reflow, PCBAs pass through multiple process steps, including solder paste printing, solder paste inspection (SPI), component placement, automated optical inspection (AOI), buffering, and conveyor transport. Each step introduces opportunities for electrostatic charge generation and accumulation. Unlike post-reflow assemblies, pre-reflow PCBAs contain exposed component terminations, solder paste deposits, and partially secured components, making them particularly sensitive to electrostatic forces.

This article focuses on electrostatic control strategies applied before reflow soldering, addressing both ESD damage prevention and secondary effects such as component shifting, solder paste disturbance, and particle attraction. The goal is to provide a technical reference for engineers seeking to design robust, standards-compliant SMT lines.


2. Fundamentals of Electrostatic Charging in SMT Lines

2.1 Triboelectric Charging Mechanisms

Triboelectric charging is the dominant source of electrostatic charge in SMT processes. It occurs when two materials come into contact and then separate, transferring electrons based on their relative positions in the triboelectric series. Common triboelectric interactions in SMT include:

  • PCB contact with conveyor belts and rails

  • Component tape peeling in feeders

  • Nozzle contact during pick-and-place operations

  • Handling of plastic trays, carriers, and magazines

Even materials marketed as "ESD-safe" can generate significant charge under high-speed or repetitive contact conditions.

2.2 Charge Induction and Field Effects

In addition to direct charge transfer, induction effects occur when charged objects create electric fields that redistribute charge on nearby conductive or semi-conductive surfaces. Induced charging is particularly problematic in dense SMT environments where multiple charged bodies coexist within close proximity.

2.3 Environmental Influences

Humidity, temperature, and airflow strongly influence electrostatic behavior. Low humidity conditions increase surface resistivity and charge retention, while uncontrolled airflow can transport charged particles across the line.


3. Sensitivity of Pre-Reflow Assemblies

3.1 Component-Level ESD Sensitivity

Modern semiconductor components often have ESD damage thresholds well below 100 V, particularly for advanced CMOS, RF, and mixed-signal devices. Pre-reflow components are electrically connected only through solder paste, which provides limited and inconsistent grounding.

3.2 Solder Paste Vulnerability

Electrostatic forces can deform solder paste deposits, cause slumping, or attract airborne particles. These effects can lead to solder bridging, opens, or weak joints after reflow.

3.3 Mechanical Stability of Placed Components

Before reflow, components rely on solder paste tackiness for positional stability. Electrostatic attraction or repulsion forces can cause component skew, tombstoning precursors, or rotation.


4. Electrostatic Risks in Pre-Reflow Process Steps

4.1 Solder Paste Printing and SPI

Although printing equipment is often well-grounded, paste separation from stencils and board movement can generate charge. SPI systems introduce additional conveyor transitions and inspection lighting that may influence electrostatic conditions.

4.2 Component Placement

High-speed placement machines are major charge generators due to tape peeling, nozzle motion, and rapid acceleration. Charges generated here can persist until reflow if not neutralized.

4.3 Buffering and Board Accumulation

Boards waiting for reflow often accumulate in buffers or on conveyors, allowing charges to build over time. This stage is particularly vulnerable to ESD events triggered by human intervention or equipment contact.


5. Consequences of Inadequate Electrostatic Control

5.1 Latent ESD Damage

Latent defects caused by ESD may not be detected during in-circuit testing but can lead to early-life failures in the field.

5.2 Yield Loss and Rework

Electrostatic effects contribute to solder defects, component misalignment, and inspection failures, increasing rework rates and cost.

5.3 Reliability and Brand Impact

Failures traced back to ESD-related assembly issues can damage brand reputation and customer trust.


6. Principles of Electrostatic Control Before Reflow

6.1 Grounding and Bonding

Effective grounding of equipment frames, conveyors, and tooling is the foundation of ESD control. However, grounding alone is insufficient for insulating materials and floating assemblies.

6.2 Material Selection

Use of dissipative materials for conveyors, pallets, and tooling reduces charge accumulation and promotes controlled discharge.

6.3 Environmental Control

Maintaining relative humidity within recommended ranges helps reduce charge generation, though it cannot eliminate electrostatic risks entirely.


7. Ionization as a Key Pre-Reflow Control Method

7.1 Rationale for Ionization

Ionization is the only practical method for neutralizing charge on isolated or insulating objects such as PCBAs and solder paste.

7.2 Types of Ionizers Used in SMT

Common ionization solutions include overhead ionizers, ion air blowers, ion nozzles, and ion wind bars integrated into conveyors.

7.3 Ion Balance and Offset Considerations

Maintaining balanced ion output is critical to avoid introducing net charge onto assemblies.


8. Placement of Ionizers Before Reflow Ovens

8.1 Pre-Reflow Conveyor Zones

Installing ion wind bars along conveyors leading to the reflow oven ensures continuous neutralization.

8.2 Buffer and Accumulation Areas

Buffers require dedicated ionization due to extended dwell times.

8.3 Reflow Oven Inlet Sections

Special attention is needed near oven inlets where thermal gradients and airflow can affect ion transport.


9. Interaction Between Electrostatics and Reflow Process Quality

9.1 Component Shift and Tombstoning Risk

Electrostatic forces can exacerbate component movement prior to solder melting.

9.2 Flux Behavior and Residues

Electrostatic attraction of particles can contaminate flux, affecting wetting and joint integrity.

9.3 Thermal Profiles and Electrostatic Neutralization

Ionization systems must be designed to withstand elevated temperatures near reflow zones.


10. Monitoring and Measurement Techniques

10.1 Electrostatic Field Meters

Non-contact field meters are used to assess surface potentials on PCBAs.

10.2 Charge Plate Monitors

Charge plate monitors evaluate ionizer performance and decay times.

10.3 In-Line ESD Event Detection

Advanced systems detect ESD events in real time for process control.


11. Compliance with ESD Standards

11.1 ANSI/ESD S20.20

Requirements relevant to SMT lines are discussed.

11.2 IEC 61340 Series

International standards governing electrostatic control.

11.3 Customer and OEM Specifications

Many electronics manufacturers impose stricter internal limits.


12. Case Studies from SMT Production Lines

12.1 High-Mix Low-Volume Manufacturing

Electrostatic control challenges in flexible production environments.

12.2 High-Volume Consumer Electronics

Ionization strategies for fast-moving SMT lines.

12.3 Automotive and Industrial Electronics

Higher reliability requirements and extended lifetime considerations.


13. Reliability, Maintenance, and Cost Considerations

Ionizer maintenance, calibration, and total cost of ownership are analyzed.


14. Emerging Trends in Pre-Reflow Electrostatic Control

As SMT manufacturing continues to evolve toward higher density, higher speed, and greater automation, electrostatic control strategies before reflow soldering are also undergoing significant transformation. Several emerging trends are reshaping how manufacturers approach ESD risk mitigation in pre-reflow environments.

14.1 Intelligent Ionization and Closed-Loop Control

Traditional ionization systems operate with fixed output parameters, assuming relatively stable electrostatic conditions. In modern SMT lines, however, charging behavior varies dynamically with product mix, placement speed, material changes, and environmental fluctuations. Intelligent ionization systems equipped with real-time electrostatic sensors enable closed-loop control of ion output. By continuously monitoring surface potential or electric field strength on PCBAs, these systems dynamically adjust ion balance, emission intensity, and duty cycle.

Such adaptive control improves neutralization efficiency while minimizing unnecessary ion generation, which in turn reduces electrode wear, ozone formation, and maintenance requirements. Closed-loop ionization is particularly valuable in buffer zones and near reflow oven inlets, where dwell times and airflow conditions can vary significantly.

14.2 Integration with Industry 4.0 and Smart Factories

Electrostatic control is increasingly being integrated into broader Industry 4.0 frameworks. Ionizers and ESD monitoring devices are now capable of communicating with manufacturing execution systems (MES) and factory automation platforms. Data such as ion balance trends, decay times, and ESD event counts can be logged, analyzed, and correlated with yield and defect data.

This data-driven approach enables predictive maintenance, root-cause analysis of ESD-related failures, and continuous process optimization. In advanced factories, electrostatic control is no longer treated as an isolated compliance requirement but as a measurable contributor to overall equipment effectiveness (OEE) and product quality.

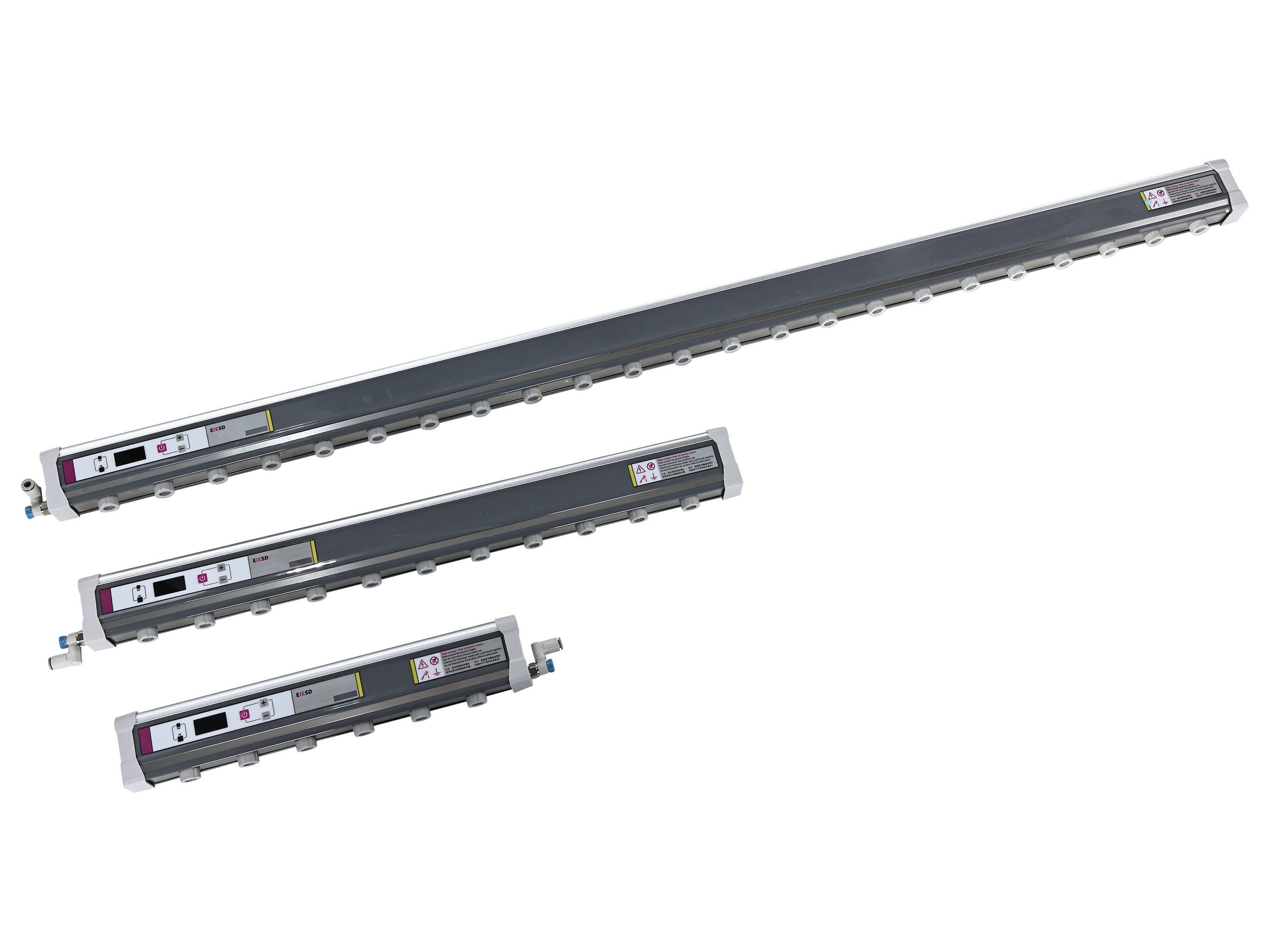

14.3 Miniaturization and In-Line Integration of Ion Wind Bars

Space constraints in SMT lines have driven the development of compact, low-profile ion wind bars that can be integrated directly into conveyors, buffers, and inspection equipment. These miniature ionizers provide localized neutralization close to charge generation sites, improving effectiveness compared to overhead systems.

In pre-reflow applications, in-line ion wind bars are often installed immediately upstream of the reflow oven, where final charge neutralization is critical. Designs optimized for high-temperature tolerance and minimal airflow disturbance are particularly valuable in this zone.

14.4 Environmental and Energy Considerations

Sustainability concerns are also influencing electrostatic control strategies. Manufacturers seek ionization solutions that minimize power consumption and avoid excessive ozone generation. Advances in power electronics and discharge control have enabled more energy-efficient ionizers with reduced environmental impact.


15. Extended Analysis of Electrostatic Effects on Pre-Reflow Defects

15.1 Electrostatic Contribution to Component Shift and Skew

While component shift is traditionally attributed to placement accuracy and solder paste rheology, electrostatic forces can play a significant contributing role. Charged components may experience attraction or repulsion relative to the PCB surface or neighboring components. Even small electrostatic forces can overcome solder paste tackiness for fine-pitch or low-mass components.

Ionization applied immediately after placement reduces residual charge, stabilizing component position prior to reflow. Experimental observations indicate that effective electrostatic neutralization can reduce component shift-related defects, particularly for chip resistors and capacitors.

15.2 Tombstoning Precursors and Electrostatics

Tombstoning is often associated with asymmetric wetting during reflow, but pre-reflow electrostatic effects can create initial imbalances. Differential charging on component terminations can influence component orientation and contact pressure with solder paste, predisposing assemblies to tombstoning during heating.

15.3 Particle Attraction and Solder Joint Contamination

Electrostatic attraction of airborne particles to solder paste surfaces prior to reflow can introduce contamination that degrades solder joint quality. Fine particles trapped in solder joints may lead to voiding, poor wetting, or long-term reliability issues. Ionization reduces surface charge and therefore particle attraction forces, contributing indirectly to improved solder joint integrity.


16. Advanced Ionization Design for Pre-Reflow Zones

16.1 Thermal and Airflow Constraints Near Reflow Ovens

The area immediately before the reflow oven presents unique challenges for ionizer design. Elevated temperatures, strong convective airflow, and limited installation space can all affect ionization performance. Ion wind bars used in this region must tolerate thermal exposure without degradation of electrical insulation or mechanical stability.

Airflow from the reflow oven can rapidly disperse ions, reducing neutralization efficiency. Effective designs account for airflow direction and velocity, positioning emitters to maximize ion delivery to PCB surfaces before boards enter the heated zone.

16.2 Shielding and Conveyor Effects

Metal conveyor rails and frames can act as electrostatic shields, diverting ions away from PCB surfaces. Careful placement and emitter orientation are required to overcome these shielding effects. In some designs, conveyor materials with controlled resistivity are used to reduce shielding while maintaining mechanical performance.

16.3 Safety and EMC Considerations

Ionization systems operating near sensitive electronics must meet electromagnetic compatibility (EMC) requirements. Proper grounding, shielding, and filtering of ionizer power supplies are essential to avoid interference with nearby equipment.


17. Quantitative Evaluation and Process Optimization

17.1 Measurement of Charge Decay Under Production Conditions

Laboratory measurements of charge decay may not accurately represent in-line performance. Therefore, quantitative evaluation should be conducted under actual production conditions, accounting for conveyor speed, board size, component density, and environmental variables.

Mapping surface potential at multiple locations along the pre-reflow line provides insight into where charge accumulates and where additional ionization may be required.

17.2 Correlation with Defect Metrics

To justify investment in electrostatic control, manufacturers increasingly seek quantitative correlations between ESD mitigation and defect reduction. Statistical analysis linking ionization performance metrics with defect rates, rework frequency, and field failure data supports data-driven decision making.

17.3 Optimization Through Design of Experiments

Design of experiments (DoE) approaches can be used to optimize ionizer placement, output levels, and environmental settings. By systematically varying parameters and measuring outcomes, engineers can identify robust operating windows that balance ESD protection with process efficiency.


18. System-Level Best Practices for SMT Pre-Reflow Electrostatic Control

Based on extensive industrial experience, several best practices have emerged for managing electrostatics before reflow soldering:

  • Treat the entire pre-reflow line as a single electrostatic system rather than isolated process steps.

  • Combine grounding, material control, and ionization rather than relying on any single method.

  • Apply ionization as close as possible to charge generation and risk points.

  • Monitor electrostatic conditions continuously and respond to trends rather than isolated events.

  • Train operators and engineers to recognize electrostatic risks beyond traditional ESD damage scenarios.


19. Challenges and Open Issues

Remaining technical challenges include uniform ion delivery, space constraints, and balancing ESD control with process airflow.


16. Conclusion

Effective electrostatic control before reflow soldering is essential for ensuring SMT process quality, yield, and long-term reliability. By understanding charge generation mechanisms, identifying high-risk process steps, and implementing robust ionization and grounding strategies, manufacturers can significantly reduce ESD-related risks. As SMT technology continues to evolve, pre-reflow electrostatic control will remain a critical element of advanced electronics manufacturing.
