Electrostatic discharge (ESD) remains one of the most critical challenges in the manufacturing, handling, and transportation of microelectronic devices. As device geometries shrink and sensitivity increases, even minimal electrostatic accumulation can lead to latent defects or catastrophic failure. Automated handling systems, widely used in semiconductor fabrication, assembly, and testing environments, introduce additional electrostatic risks due to friction, material interaction, and high-speed motion.
Ionizing air bars (commonly referred to as ionizing blowers or ion bars) have emerged as an essential solution for neutralizing static charges in automated environments. This paper explores the principles, system integration, optimization strategies, and performance considerations of ionizing air bars in microelectronic device handling. It also discusses industry best practices, environmental influences, and future trends in electrostatic control.
The rapid evolution of microelectronics has led to increasingly smaller and more complex devices. Modern semiconductor components—such as integrated circuits (ICs), microprocessors, MEMS devices, and advanced packaging modules—are highly sensitive to electrostatic discharge.
In automated production environments, robotic arms, conveyor belts, pick-and-place machines, and wafer transfer systems operate at high speeds and precision. However, these systems inherently generate static electricity through:
Friction between materials (triboelectric effect)
Separation of surfaces
Airflow-induced charging
Insulating materials in mechanical components
Without effective electrostatic control, accumulated charges can exceed thousands of volts, far beyond the tolerance of sensitive components.
Ionizing air bars provide a controlled method to neutralize static charges by generating balanced ions that recombine with charged surfaces. Their integration into automated systems is now considered a standard practice in advanced electronics manufacturing.
The triboelectric effect is the primary source of static electricity in automated systems. When two materials come into contact and then separate, electrons transfer from one material to another depending on their position in the triboelectric series.
Key factors influencing charge generation:
Material type
Surface roughness
Contact pressure
Separation speed
Environmental humidity
In automated handling, charge accumulation occurs in several components:
Conveyor belts (especially polymer-based)
Robotic grippers and end-effectors
Wafer carriers and trays
Packaging materials
Charges can build up rapidly, particularly in low-humidity cleanroom environments.
ESD events can cause:
Immediate device failure
Latent defects (hidden damage reducing lifespan)
Parametric degradation
Yield loss
Even voltages as low as 30–50 V can damage advanced semiconductor devices.

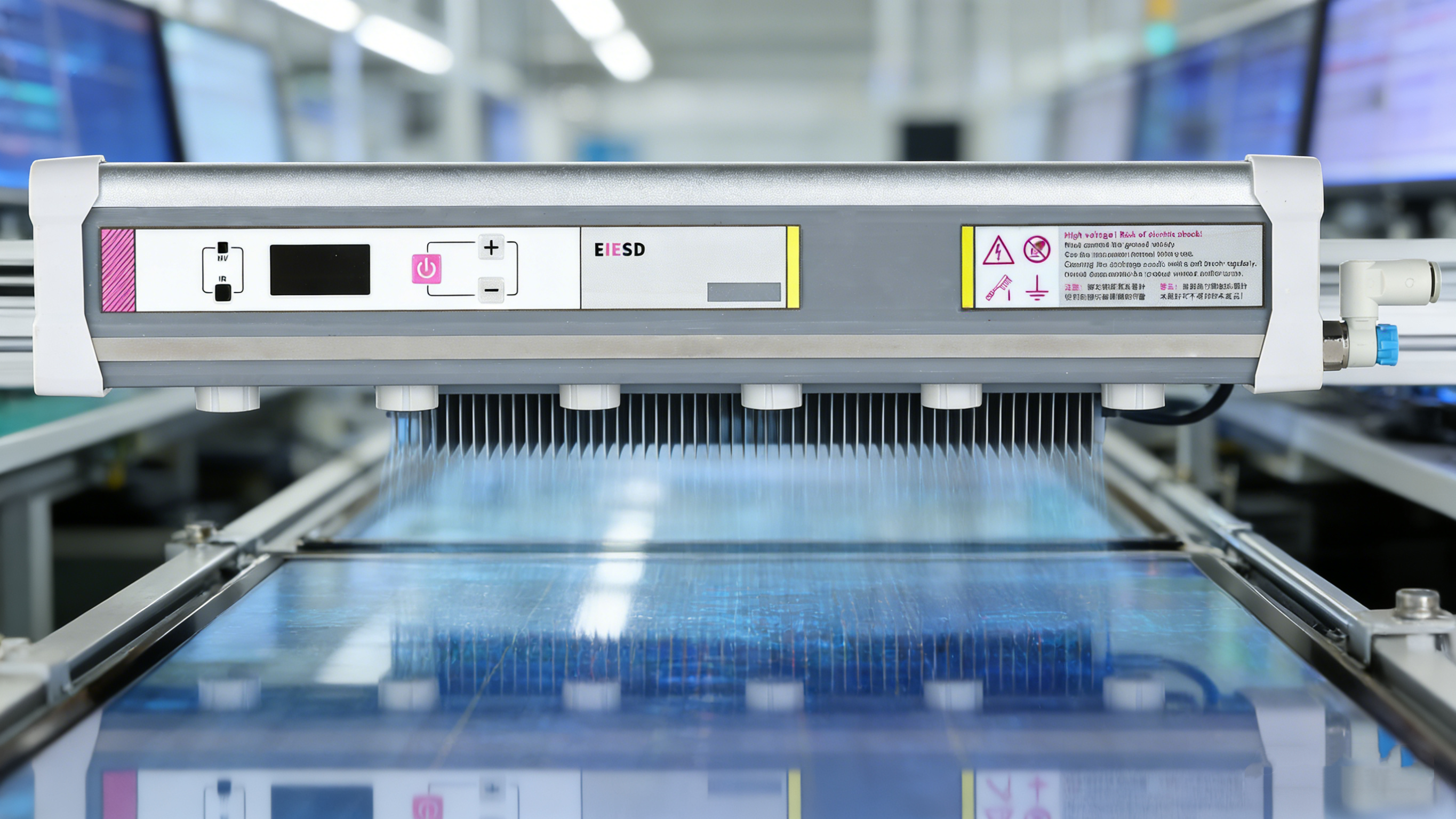

Ionizing air bars generate ions through high-voltage corona discharge. The process involves:
Applying high voltage to emitter points
Ionizing surrounding air molecules
Producing positive and negative ions
Delivering ions via airflow to target surfaces
Neutralization occurs when ions of opposite polarity recombine with charged surfaces:
Positive ions neutralize negatively charged surfaces
Negative ions neutralize positively charged surfaces
A balanced ion output ensures efficient neutralization regardless of charge polarity.
AC ionizing bars (alternating polarity)
DC ionizing bars (separate positive/negative emitters)
Pulsed DC ion bars (controlled ion emission)
Air-assisted ion bars (integrated airflow)
Each type offers different advantages depending on application requirements.
Proper placement is critical for effective ionization:
Near charge generation points
Above conveyor belts
At pick-and-place stations
At wafer loading/unloading areas
Key considerations:
Optimal working distance: typically 100–600 mm
Coverage area depends on bar length and airflow
Overlapping ion zones improve consistency
Airflow enhances ion delivery:
Laminar airflow preferred in cleanrooms
Avoid turbulence that disperses ions
Adjustable airflow improves targeting
Modern systems integrate ion bars with:
PLC controllers
Sensors for charge detection
Real-time monitoring systems
This allows dynamic control based on process conditions.
Decay time measures how quickly a charged object is neutralized.
Typical targets:
< 2 seconds for high-performance systems
Faster decay for critical processes
Offset voltage indicates ion balance:
Ideal: 0 V
Acceptable range: ±10 V (depending on standards)
Poor balance can cause recharging.
Higher ion density improves neutralization speed but must be controlled to avoid contamination.
Long-term stability is essential for:
Continuous production
High-yield manufacturing
Compliance with ESD standards
Humidity significantly affects static control:
Low humidity (<30%) increases charge buildup
High humidity improves natural dissipation
Ionizing bars compensate for low-humidity environments.
Temperature affects:
Air density
Ion mobility
Equipment performance
Cleanroom requirements include:
Low particle generation
Non-contaminating materials
Controlled airflow patterns
Ion bars must meet strict cleanroom standards.
Ion bars must use:
Non-shedding materials
Corrosion-resistant emitters
Cleanroom-compatible plastics or metals
Emitter points degrade over time:
Contamination reduces ion output
Regular cleaning is required
Replaceable emitter designs improve longevity
Stable high-voltage power supplies ensure:
Consistent ion generation
Minimal fluctuation
Safety compliance
Important safety considerations:
Current limiting circuits
Fault detection systems
Grounding compliance
Ion bars are used in:
Wafer transfer systems
FOUP loading/unloading
Lithography processes
Applications include:
SMT pick-and-place machines
Solder paste printing
Inspection stations
Used in:
IC packaging lines
Test handlers
Final inspection
Critical for:
LCD/OLED panel handling
Glass substrate transport
Film processing
Key industry standards:
ANSI/ESD S20.20
IEC 61340 series
JEDEC standards
Compliance ensures:
Process reliability
Product quality
International acceptance
Ions can recombine before reaching targets, reducing efficiency.
External airflow can disrupt ion delivery.
Regular maintenance is necessary for:
Emitter cleaning
Calibration
Performance verification
High-quality systems require:
Initial investment
Maintenance costs
Monitoring equipment
Regular calibration ensures:
Proper ion balance
Accurate performance
Real-time monitoring helps detect:
Performance degradation
Environmental changes
Combining methods:
Ion bars + grounding
Ion bars + antistatic materials
Using data analytics to:
Predict failures
Optimize maintenance schedules
Integration with IoT enables:
Remote monitoring
Automated adjustments
Data-driven optimization
Smaller ionizing devices for:
Compact equipment
Precision applications
New designs focus on:
Lower power consumption
Sustainable operation
Artificial intelligence can:
Optimize ion output
Adapt to dynamic environments
Improve yield rates
In a high-speed semiconductor production line:
Static voltages reached >2,000 V
Ion bars reduced levels to <50 V
Yield improved by 15%
Defect rates significantly decreased
This demonstrates the critical role of ionization in modern manufacturing.
Electrostatic control is indispensable in the automated handling of microelectronic devices. Ionizing air bars provide an effective, scalable, and reliable solution for neutralizing static charges in complex manufacturing environments.
By understanding the principles of ionization, optimizing system design, and integrating advanced monitoring technologies, manufacturers can significantly improve product quality, reduce defects, and enhance operational efficiency.
As microelectronics continue to evolve, the importance of precise and intelligent electrostatic control systems will only grow, making ionizing air bars a cornerstone technology in the industry.
Electrostatic discharge, ESD control, ionizing air bar, static neutralization, semiconductor manufacturing, automated handling, cleanroom technology, ionization systems, microelectronics reliability.
