The reliability of high-voltage transmission systems depends critically on the electrical and mechanical integrity of line insulators. Among the many diagnostic and testing techniques used to evaluate insulator performance, electrostatic field manipulation and charge control play an increasingly important role, particularly under laboratory and on-site high-voltage test conditions. Ion wind rods—also referred to as ionizing wind bars or ion flow devices—have emerged as an effective means of controlling surface charge accumulation, mitigating non-uniform electric fields, and stabilizing measurement environments during insulator testing. This paper provides a comprehensive and systematic discussion of electrostatic control using ion wind rods in the context of transmission line insulator testing. It covers the physical principles of ion wind generation, electrostatic phenomena associated with insulators under high voltage, design and operational considerations of ion wind rods, control strategies for static electricity, experimental setups, measurement techniques, safety and reliability issues, and future development trends. The objective is to offer a detailed technical reference for researchers, testing engineers, and power utility professionals engaged in high-voltage insulation diagnostics.
Transmission line insulator; ion wind rod; electrostatic control; static electricity; high-voltage testing; electric field regulation; surface charge mitigation
High-voltage transmission lines are a fundamental component of modern power systems, enabling the long-distance transport of electrical energy from generation sources to load centers. Insulators are critical elements in these systems, providing both electrical insulation and mechanical support for conductors. The performance of insulators directly affects system reliability, safety, and operational efficiency. Failures or degradations in insulator performance can lead to flashover, power outages, equipment damage, and even large-scale grid instability.
To ensure the long-term reliability of insulators, various testing methods are employed throughout their life cycle, including type tests, routine tests, acceptance tests, and condition assessment tests. Many of these tests involve the application of high voltages, during which complex electrostatic phenomena arise. Surface charge accumulation, non-uniform electric fields, corona discharge, and environmental influences such as humidity and pollution can significantly affect test results and their interpretation.
Ion wind rods have been introduced into high-voltage testing environments as a practical tool to control static electricity and manage electric field distributions. By generating a controlled flow of ions and inducing air movement, ion wind rods can neutralize unwanted charges on insulator surfaces, suppress localized field enhancement, and improve the repeatability and accuracy of measurements. Despite their increasing use, a comprehensive treatment of their role and electrostatic control mechanisms in transmission line insulator testing remains limited in the literature.
This paper aims to fill this gap by presenting an in-depth analysis of ion wind rod technology and its application to electrostatic control during insulator testing. The discussion begins with a review of electrostatic phenomena in insulator testing, followed by an explanation of ion wind principles, design aspects, and control strategies. Experimental considerations, practical implementation, and future prospects are also addressed.
When a high voltage is applied to an insulator, an electric field is established between the energized conductor and the grounded support structure. The geometry of the insulator, including sheds, ribs, and end fittings, strongly influences the field distribution. Sharp edges, interfaces between materials of different permittivity, and surface загрязнение (pollution) can cause local field enhancement.
Non-uniform electric fields are problematic because they can initiate partial discharges, corona activity, and surface flashover. During testing, such phenomena may mask the intrinsic performance of the insulator or introduce measurement errors. Accurate control and stabilization of the electric field environment are therefore essential.
Insulator materials, particularly polymeric and composite types, are prone to surface charge accumulation under DC or combined AC/DC test conditions. Charges may originate from corona discharge, ion bombardment, triboelectric effects, or conduction through polluted surface layers. Once deposited, these charges can persist for long periods due to the high surface resistivity of insulating materials.
Surface charges distort the local electric field, often leading to increased stress in certain regions. In laboratory tests, uncontrolled charge accumulation can result in poor reproducibility, drift in measurement readings, and difficulty in comparing results across different test runs.
Environmental factors such as temperature, humidity, air pressure, and contamination level significantly affect electrostatic behavior. High humidity can increase surface conductivity, facilitating charge dissipation, while dry conditions promote charge retention. Airflow can remove ions and alter corona characteristics. These variables must be considered when designing electrostatic control measures.
Ion wind, also known as electrohydrodynamic (EHD) flow, refers to the bulk movement of air induced by the motion of ions in an electric field. When a high voltage is applied to a sharp electrode, such as a needle or thin wire, corona discharge occurs, producing ions in the surrounding air. These ions are accelerated by the electric field and collide with neutral air molecules, transferring momentum and creating a macroscopic airflow.
The direction and intensity of the ion wind depend on electrode geometry, polarity, applied voltage, and ambient conditions. Importantly, ion wind can be generated without mechanical moving parts, making it attractive for use in high-voltage environments.

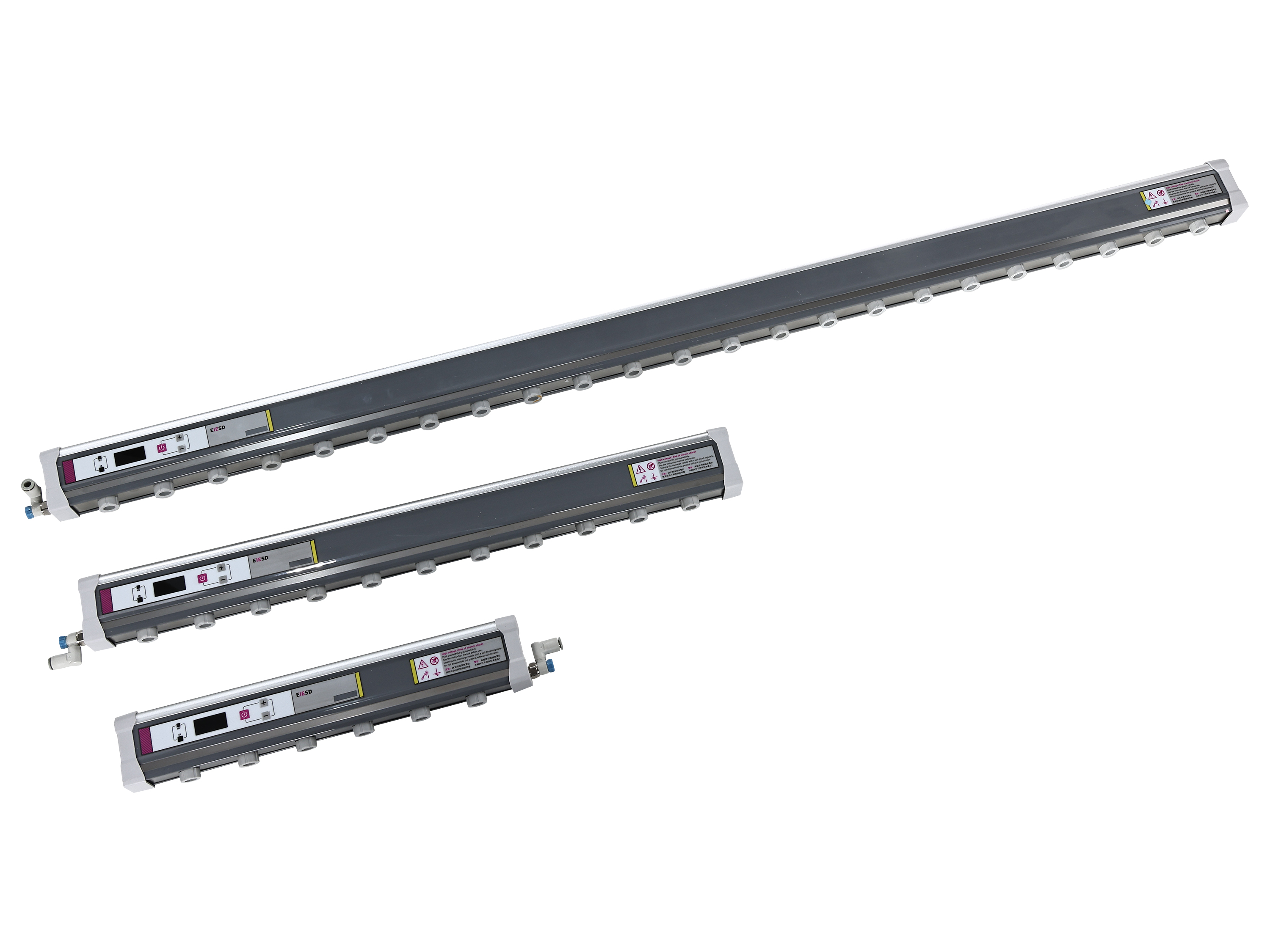

An ion wind rod typically consists of a linear electrode assembly housed within an insulating or semi-conductive casing. The active electrode may be a series of sharp pins or a continuous wire designed to promote controlled corona discharge. A high-voltage power supply provides the necessary potential difference, often in the range of several kilovolts.
In operation, the rod emits ions into the surrounding air, generating a directed ion flow. When positioned near an insulator under test, the ion wind interacts with surface charges, facilitating neutralization and redistribution.
Ion wind rods can be configured to emit positive ions, negative ions, or both (alternating or balanced operation). The choice of polarity depends on the nature of the surface charges to be controlled. For example, if an insulator surface tends to accumulate positive charges, a negative ion wind may be more effective in neutralization.
Balanced ion emission is often used to achieve overall charge neutrality, especially in environments where the charge polarity is variable or uncertain.
The primary function of ion wind rods in insulator testing is the neutralization of accumulated surface charges. Ions carried by the wind reach the insulator surface and recombine with charges of opposite polarity, reducing net charge density. The accompanying airflow also helps transport charges away from critical regions.
By reducing localized charge concentrations, ion wind rods contribute to a more uniform electric field distribution. This homogenization lowers peak field stresses and reduces the likelihood of premature discharge or flashover during tests.
Many diagnostic techniques, such as leakage current measurement, electric field probing, and optical discharge detection, are sensitive to electrostatic conditions. Ion wind-based control improves the stability and repeatability of these measurements by minimizing uncontrolled electrostatic variations.
The geometry of the ionizing electrode determines corona onset voltage, ion production rate, and spatial distribution of the ion wind. Sharp tips produce strong local fields and efficient ionization but may also increase ozone generation and electrode erosion. Optimizing tip radius, spacing, and arrangement is crucial.
The housing of the ion wind rod must withstand high electric fields and environmental stress without introducing additional charge sources. Materials with suitable dielectric strength, surface resistivity, and aging characteristics are required.
Stable and controllable high-voltage power supplies are essential for precise electrostatic control. Parameters such as voltage level, current limit, ripple, and polarity switching capability influence performance. In some applications, closed-loop control based on real-time feedback is employed.
Ion wind rods operate at high voltage and may produce electromagnetic interference (EMI). Proper shielding, grounding, and interlock systems are necessary to ensure operator safety and compatibility with sensitive measurement equipment.
In open-loop operation, the ion wind rod is set to predefined voltage and polarity settings based on prior experience. While simple, this approach may not compensate for dynamic changes in charge conditions during testing.
Advanced systems integrate electrostatic sensors, such as field mills or capacitive probes, to monitor surface charge or electric field in real time. The ion wind output is adjusted accordingly to maintain desired electrostatic conditions.
Multiple ion wind rods may be arranged around an insulator to achieve spatially uniform control. Temporal modulation, including pulsed operation or polarity alternation, can further enhance effectiveness and reduce side effects.
In laboratory environments, ion wind rods are typically mounted on adjustable supports, allowing precise positioning relative to the insulator. Considerations include distance, angle, and coverage area.
Applying ion wind technology in field tests introduces additional challenges, such as wind, weather, and limited space. Portable and robust designs are required, along with adaptive control strategies.
The effectiveness of electrostatic control can be evaluated using surface potential measurements, electric field mapping, discharge activity monitoring, and statistical analysis of test repeatability.
Ion wind rods have been successfully applied in both AC and DC testing scenarios. DC tests, in particular, benefit from charge neutralization due to the tendency for persistent surface charging.
During pollution tests, conductive surface layers interact with electrostatic phenomena in complex ways. Ion wind control helps isolate material performance from extraneous electrostatic effects.
In research settings, ion wind rods enable controlled studies of discharge mechanisms, charge transport, and material behavior under well-defined electrostatic conditions.
Despite their advantages, ion wind rods also present limitations. Excessive ionization may alter local chemistry, producing ozone and nitrogen oxides. Strong airflow can disturb lightweight components or influence moisture distribution. Careful design and operation are required to balance benefits and drawbacks.
Future research is expected to focus on improved electrode materials, intelligent control algorithms, integration with digital testing platforms, and standardized evaluation methods. Advances in sensor technology and power electronics will further enhance the precision and applicability of ion wind-based electrostatic control.
Ion wind rods represent a powerful and versatile tool for electrostatic control in transmission line insulator testing. By effectively neutralizing surface charges and stabilizing electric field distributions, they improve the accuracy, reliability, and repeatability of high-voltage tests. A thorough understanding of their principles, design, and control strategies is essential for their successful application. As power systems continue to evolve and testing requirements become more stringent, ion wind-based electrostatic control is poised to play an increasingly important role in insulation diagnostics and research.
