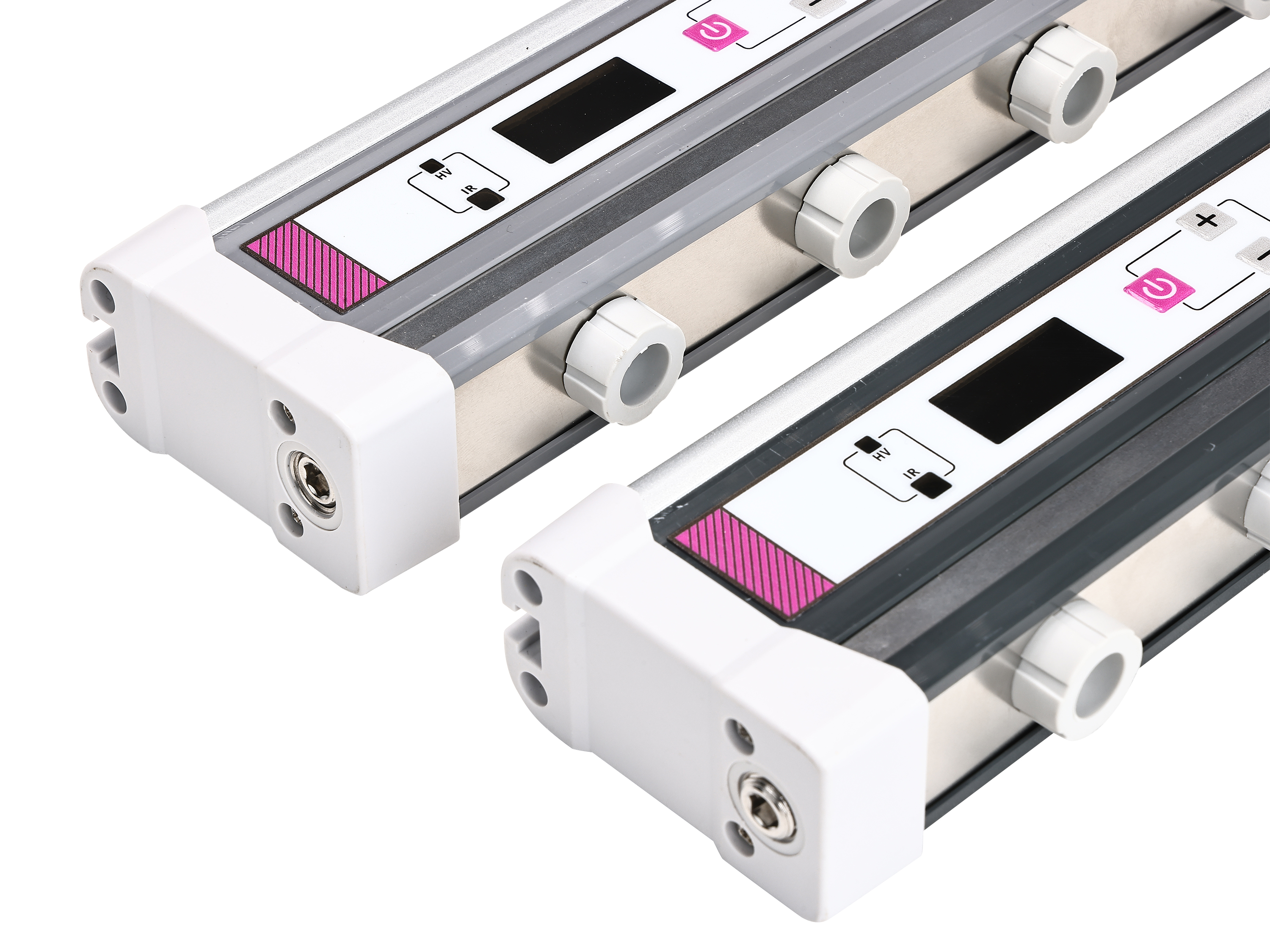

Medical diagnostic equipment, including blood analyzers, PCR machines, imaging devices, and wearable monitoring systems, incorporates highly sensitive electronic, optical, and microfluidic components that are extremely vulnerable to electrostatic discharge (ESD). Static charges accumulated on components, assembly tools, operator surfaces, or packaging materials can lead to immediate device failure, latent defects, or measurement inaccuracies. Ion wind bars and other ionization technologies are widely used to neutralize static charges in medical device production environments, ensuring safe handling, assembly, and transportation. This article provides a comprehensive analysis of ESD phenomena in medical equipment manufacturing, ionization principles, optimal ionizer layout strategies, environmental considerations, measurement and monitoring techniques, process integration, maintenance, detailed case studies, and future trends. Additionally, this expanded version examines cross-contamination control, high-speed automation integration, micro-environment management, and advanced simulation techniques for predictive ESD mitigation. The objective is to guide engineers, quality assurance specialists, and production managers in implementing effective static control to maintain high product reliability, compliance with medical standards, and long-term operational safety.
Keywords: medical devices, electrostatic discharge, ionizer, ion wind, static control, assembly environment, ESD mitigation, high-precision manufacturing
Medical diagnostic equipment production integrates high-precision electronics, optical modules, and microfluidic systems that require stringent ESD control. The increasing complexity of medical devices, coupled with miniaturization and higher component densities, elevates the risk of electrostatic damage. Sensitive elements include:
Microcontrollers, FPGAs, and analog signal processing units
Optical sensors, photodiodes, and CCD/CMOS detectors
Microfluidic channels and cartridges with precision fluidic paths
Display interfaces, touch sensors, and communication modules
ESD events can lead to immediate failures or latent defects, affecting reliability, accuracy, and regulatory compliance. Ionizers, including ion wind bars, fan-assisted blowers, and tool-integrated micro-ionization, are employed to neutralize charges before, during, and after assembly. This document expands on the previous version, providing deeper insight into localized static phenomena, high-speed assembly challenges, and predictive control strategies.
Contact and separation between materials generate triboelectric charges. Common scenarios include:
Plastic enclosures and trays contacting conveyor belts
Protective films and lens coatings peeling during assembly
Operator gloves interacting with polymeric or coated surfaces
Insulation films rubbing against PCB traces or optical components
Surface roughness, contact area, material polarity, and relative motion contribute to the magnitude and polarity of accumulated charge. High-resistivity plastics can maintain charge for extended periods, creating localized hotspots.
Manufacturing steps that contribute to static accumulation include:
Robotic pick-and-place of ICs, sensors, and microfluidic modules
Lens handling and optical alignment
Adhesive application and curing for sensor or optical mountings
Lamination and encapsulation processes that involve high-pressure contact
Localized charge accumulation is especially significant in areas with complex geometries or overlapping insulating layers.
Electrostatic fields from nearby charged equipment, trays, or previously processed components can induce additional charge. Induced charges can occur even without direct contact and can create high-potential spots on sensitive elements.
Low-humidity, cleanroom conditions common in medical device manufacturing increase surface resistivity, prolong charge retention, and reduce natural charge dissipation. Temperature variations, airflow patterns, and operator interaction further influence charge distribution and decay.
Sensitive ICs, microcontrollers, and analog/digital converters require neutralization before soldering, testing, or functional verification. Fine-pitch ICs and exposed pads are particularly susceptible to discharge.
Lenses, photodiodes, CCD/CMOS sensors, and optical fibers are insulating and prone to surface charge accumulation. Even minor discharges can alter sensor calibration, introduce noise, or degrade optical alignment.
Microchannels, cartridges, and pumps are sensitive to ESD, which may affect fluid dynamics, valve operation, or sensor response. The small scale of channels amplifies the effects of localized charges.
Enclosures, trays, and protective films are insulating and can retain charge, attracting dust or creating discharge paths near sensitive electronics or optics.
Robotic grippers, vacuum nozzles, trays, and conveyor surfaces can transfer charges if not properly grounded or dissipative. Conductive coatings, dissipative polymers, and proper grounding practices reduce the risk of localized ESD.
Ionizers emit positive and negative ions to neutralize surface charges. Methods include:
Corona discharge (needle, bar, or blade)
Fan-assisted blowers with ionization
Plasma or micro-ion emitters for localized neutralization
Airflow carries ions to target surfaces. Proper direction, speed, and turbulence control are critical to ensure ions reach all critical areas, including optical surfaces, PCB traces, and microfluidic channels.
Rapid neutralization, often within milliseconds to a few seconds, prevents ESD during high-speed robotic assembly or manual handling.
Balanced emission of positive and negative ions prevents overcharging or polarity bias. Ion balance is especially important for sensitive optical and electronic components.
Ionizers should minimize ozone generation to prevent contamination of sensitive optics and maintain a safe cleanroom environment.
Ionizers are strategically placed near pick-and-place stations to neutralize charges before component placement. Adjustable ion bars, micro blowers, or tool-integrated ionizers ensure precise coverage of ICs, pads, and traces.
Localized ionization prevents ESD on lenses, photodiodes, and fiber-optic components. Redundant ionizers ensure consistent neutralization across high-precision optical modules, preventing calibration drift or alignment errors.
Ionizers target areas where polymer channels, valves, and sensors are exposed. Proper airflow and ion placement prevent localized charging that could interfere with fluid dynamics.
Ionizers near assembly lines prevent charge accumulation on plastic surfaces, reducing dust attraction, contamination, and ESD risk near sensitive electronics.
Hotspots often occur at edges and corners of components or enclosures. Ionizers are oriented to deliver ions effectively to these regions, and air deflectors can be used to guide ions into recesses.
Overlapping ionizer coverage ensures neutralization even if one ionizer underperforms. Critical assembly stages, such as microfluidic integration or optical alignment, benefit from multi-point ionization.
In automated lines, ionizers are synchronized with robotic pick-and-place or conveyor movement, ensuring charges are neutralized precisely as components arrive at sensitive stations.
Non-contact voltmeters and electrostatic field meters measure potentials on PCBs, optics, and microfluidic components. Hotspots trigger real-time adjustments of ionizer output.
Charge decay testing ensures rapid neutralization. Targets vary by component but typically aim for less than 2 seconds for electronics and optics.
Monitoring positive-to-negative ion ratios ensures balanced neutralization, reducing the risk of residual net charges.
Sensors integrated on conveyors, robotic tools, and assembly stations provide continuous feedback for dynamic control of ionizer output.
Data from surface potential monitoring and ESD events is analyzed to identify trends, process anomalies, and areas for improvement.
Maintaining 40–60% RH accelerates charge dissipation without condensation risk. Temperature control stabilizes airflow, ion transport, and material behavior.
Laminar airflow ensures uniform ion delivery and reduces dust attraction. Turbulence must be minimized to prevent localized charge accumulation.
Wrist straps, conductive gloves, and ESD-safe mats complement ionization, reducing charge transfer during manual handling.
Ionization is applied immediately before sensitive handling steps. Multi-stage ionization ensures continuous neutralization throughout assembly.
Ionization systems are integrated with cleanroom protocols to prevent particle attraction, ensuring optical and microfluidic components remain free from contamination.
Finite element analysis identifies potential hotspots and guides ionizer placement for optimal coverage.
CFD models simulate ion trajectories and airflow patterns, predicting coverage, neutralization time, and potential dead zones.
Simulations of robotic movement, conveyor speed, and component orientation allow predictive ESD risk assessment.
Simulation data informs maintenance schedules, ionizer calibration, and layout adjustments, sustaining consistent static control.
For highly sensitive optical or microfluidic areas, micro-environment modeling ensures ion delivery reaches sub-millimeter scale features.
Regular cleaning, inspection, and calibration maintain ion output consistency.
Electrode degradation reduces efficiency; protective coatings and cleaning extend service life.
Charge decay testing and ion balance verification detect degradation early, enabling timely maintenance.
Maintenance logs and calibration records support regulatory compliance and quality assurance.
Targeted ionization reduced ESD-related defects by over 70%, improving yield, reliability, and sensor calibration stability.
Localized ionization prevented electrostatic interference with microfluidic cartridges, ensuring accurate sample processing.
Edge-focused ionization minimized defects in optical modules and high-density PCB assemblies.
Micro-ion emitters at component insertion points prevented charge accumulation on miniature sensors and flexible PCBs.
Overlapping ionizer coverage at critical stages ensured consistent neutralization and reduced ESD-related failures.
Sensor-driven ionizers dynamically adjust output in response to real-time charge measurements.
Simulation of static charge behavior and ion transport allows virtual testing and optimization of ionizer layouts.
Micro-ion emitters provide precise neutralization for sensitive optics and electronics, even in sub-millimeter regions.
IoT-enabled monitoring, predictive maintenance, and adaptive control optimize ESD protection in real time.
Low-power, ozone-free ionizers reduce environmental impact while maintaining effective neutralization.
Machine learning algorithms analyze historical ESD events and environmental data to predict hotspots and adjust ionizer operation proactively.
Managing localized static in high-density electronic and optical assemblies
Rapid neutralization in high-speed robotic and manual assembly
Integrating multi-stage ionization without creating airflow turbulence
Predictive modeling for dynamic charge distribution
Standardization of localized ESD risk metrics for medical equipment
Energy optimization without compromising static protection
Cross-contamination control in ionized airflow environments
Ion wind bars and integrated ionization systems are essential for controlling electrostatic risks in medical diagnostic equipment production. Proper layout, grounding, environmental control, process sequencing, monitoring, and advanced predictive strategies ensure safe handling of electronics, optics, and microfluidic components. Adoption of smart ionization, digital twins, micro-ionization technologies, and predictive analytics further enhances ESD control, supporting high-yield, reliable production while maintaining compliance with medical device quality standards.
