High-frequency printed circuit boards (HF-PCBs) are crucial in advanced communication systems, radar, microwave, and high-speed digital applications. Due to the miniaturization of components, higher signal integrity requirements, and the use of low-dielectric materials, HF-PCBs are particularly vulnerable to electrostatic discharge (ESD) and electrostatic-related failures during manufacturing. This article provides a comprehensive analysis of static-sensitive issues in HF-PCB production, covering ESD risk mechanisms, charge generation during handling and processing, component sensitivity, ionization and grounding strategies, tool and environment management, testing and monitoring methods, process design considerations, and advanced modeling approaches. The aim is to guide engineers and manufacturers in establishing robust ESD control practices to ensure yield, reliability, and long-term performance of high-frequency electronics.
Keywords: high-frequency PCB, electrostatic discharge, ESD control, signal integrity, ionization, manufacturing reliability
High-frequency PCBs are increasingly used in RF communication systems, millimeter-wave applications, high-speed digital circuits, and sensitive sensor devices. Unlike standard PCBs, HF-PCBs employ specialized laminates with low-loss dielectric properties, tight impedance control, fine trace geometries, and sometimes embedded components. The complexity and sensitivity of HF-PCBs introduce unique challenges for electrostatic control during manufacturing. Static charges can accumulate on the board surface, component leads, or tooling, leading to ESD events, latent defects, and compromised signal integrity.
In conventional PCB manufacturing, ESD controls focus primarily on discrete components, operator handling, and assembly areas. In HF-PCB production, additional considerations such as dielectric properties, fine-pitch high-frequency connectors, and low-conductivity substrate materials necessitate more sophisticated strategies.
This article explores electrostatic-sensitive issues in HF-PCB manufacturing, with emphasis on understanding physical mechanisms, assessing risks, implementing mitigation strategies, and integrating monitoring and standards compliance into the production environment.
HF-PCBs encounter multiple sources of charge accumulation during production:
Triboelectric effects: Contact and separation between boards, carriers, or robotic tools can transfer electrons.
Induced charges: Nearby charged objects or machines create electric fields that redistribute charges on board surfaces.
Environmental factors: Low humidity, airflow turbulence, and temperature gradients influence surface resistivity and charge retention.
Mechanical motion: Conveyor systems, pick-and-place machinery, and vacuum tools introduce dynamic charging on HF-PCBs and components.
HF-PCBs often utilize materials such as PTFE-based laminates, Rogers, or Taconic substrates with low dielectric loss. These materials tend to be highly insulating, which exacerbates static charge accumulation and reduces natural dissipation. Conductive coatings or surface treatments are limited due to performance constraints, necessitating careful integration of active neutralization methods.
Surface-mount devices (SMDs), high-speed ICs, and active RF components used on HF-PCBs often have ESD thresholds below 100 V. These devices are highly sensitive to transient voltage spikes and can experience immediate failure or latent damage, which may manifest as early-life failures in the field.
Electrostatic events on HF-PCBs can have more pronounced consequences due to the frequency-sensitive nature of RF signals. Localized dielectric breakdown or surface charging can introduce parasitic capacitance, impedance mismatch, or micro-arcing effects that degrade high-frequency performance, even if visible damage is not present.
Boards may be manually or robotically moved, stacked, or transferred between workstations. Triboelectric charging occurs during contact with conveyor belts, trays, or transport carriers, particularly in low-humidity conditions. Handling of large-area or flexible HF-PCBs increases the risk of differential charging between layers or components.
Electrostatic forces can affect solder paste deposition, potentially causing misalignment or disturbed paste patterns. HF-PCBs with fine traces are especially vulnerable to electrostatic-induced bridging or smearing. Paste viscosity, stencil design, and controlled ionization near the printing station mitigate such effects.
Robotic placement heads, vacuum nozzles, and grippers generate dynamic charges that can transfer to sensitive ICs. Placement of fine-pitch and high-frequency connectors is particularly challenging, as even minor charge accumulation can affect alignment and integrity. Tool-integrated ionization, conductive grippers, and controlled placement speed are effective countermeasures.
Pre-reflow boards carry static charges that may discharge during heating, leading to latent component damage. Differential thermal expansion combined with electrostatic forces can also contribute to micro-cracks or stress on high-frequency traces. Careful sequencing, pre-heating, and controlled conveyor grounding help minimize these risks.
Automated optical inspection (AOI), X-ray inspection, and electrical testing equipment may induce or detect ESD events. High-voltage probing and contact-based measurements can trigger electrostatic interactions with sensitive areas. Using dissipative fixturing, pre-grounded probe cards, and in-line ionization mitigates these risks.
HF-PCBs are often stored temporarily in trays or carriers. Insulating carriers can exacerbate static build-up. Implementing dissipative carriers and humidity control reduces charge accumulation and protects boards during inter-process transportation.
All conductive work surfaces, transport systems, and equipment frames should be properly grounded. HF-PCBs themselves may have limited grounding due to insulating substrates, requiring additional control measures. Grounding of robotic tools, conveyor rails, and operator wrist straps is essential to form a complete charge dissipation path.
Ionizers are essential to neutralize charges on board surfaces, tools, and components. Options include:

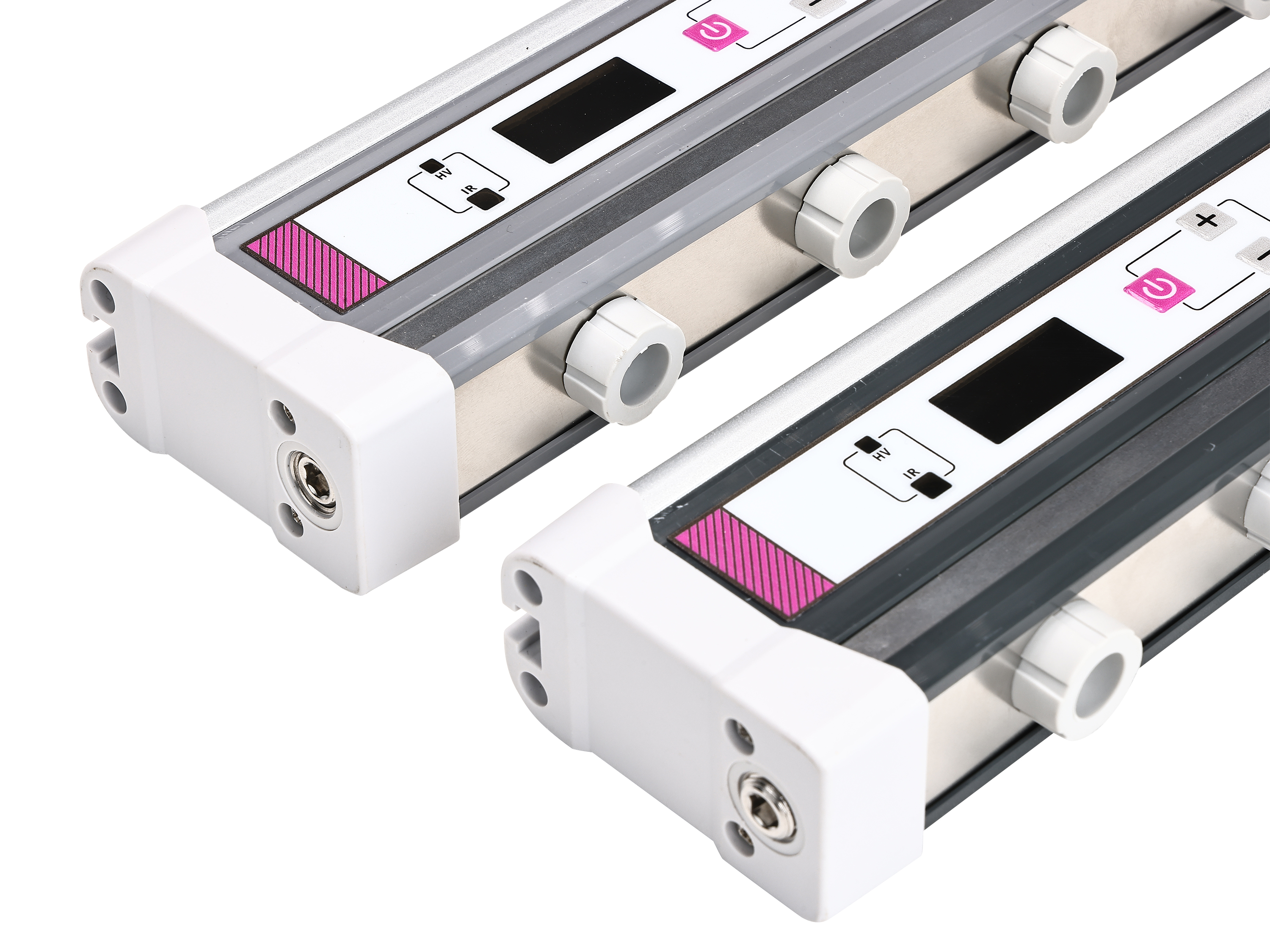

Overhead ion bars: Provide area coverage.
Tool-integrated ionization: Neutralizes components at pick-and-place tools.
Conveyor-mounted ionizers: Target moving boards.
Balanced ionization with low offset voltage ensures minimal net charging and rapid decay of accumulated surface charges.
Dissipative or conductive transport carriers reduce triboelectric charge. Robotic tooling materials should minimize insulation properties without compromising placement accuracy. Conductive coatings on fixtures and grippers enhance charge dissipation while preserving surface integrity for sensitive HF-PCBs.
Maintaining humidity in the recommended range (40–60% RH) reduces charge accumulation. Controlling airflow and temperature prevents rapid charge build-up and local field variations. Avoiding turbulent airflow near critical processes preserves ion distribution and reduces electrostatic hotspots.
Standard operating procedures should include safe handling, staged board movement, minimal separation of high-charge-generating materials, and careful sequencing of high-risk operations. Proper operator training, controlled motion of robotic arms, and timed ionization activation further reduce ESD risk.
Non-contact field meters monitor surface potential on HF-PCBs. Regular measurements detect hotspots or areas prone to charge accumulation. Dynamic mapping of the line helps optimize ionizer placement and environmental conditions.
Charge decay testing and ion balance monitoring ensure neutralization systems function effectively. Decay time should be within milliseconds to match high-speed production requirements, particularly for fine-pitch and high-frequency components.
Sensitive event detection equipment can log ESD incidents on the line, allowing correlation with defects or yield loss. Combining statistical process control (SPC) with ESD event logs helps identify root causes and evaluate mitigation strategies.
Data on humidity, airflow, temperature, and conveyor speed can be correlated with ESD events to refine process design. Predictive models help anticipate high-risk conditions and implement preemptive mitigation.
ANSI/ESD S20.20 and associated IEC 61340 series provide guidelines for handling electrostatic-sensitive devices. Key practices include grounding, ionization, operator training, and routine audits. For HF-PCBs, these standards inform layout of ionization systems, environmental control parameters, and measurement protocols.
Minimize insulated surface exposure where possible.
Implement localized ionization near critical components.
Maintain environmental control for humidity and airflow.
Regularly monitor and document ESD events and mitigation effectiveness.
Ensure tools, grippers, and carriers are properly dissipative or grounded.
Personnel should be trained on electrostatic risks specific to HF-PCBs, including handling, transportation, and inspection. Awareness of high-frequency component sensitivity reduces inadvertent damage and improves overall production yield.
Implementation of localized ionization reduced ESD-related failures by 70%, improving yield and signal integrity. Analysis showed that ion bars near pick-and-place heads mitigated static accumulation on fine-pitch connectors.
Enhanced environmental control and grounded transport carriers minimized charge accumulation, reducing latent device failures and improving long-term reliability. Monitoring of charge decay times allowed real-time adjustments to ionizer output.
Monitoring and tool-level neutralization prevented micro-arcing events during reflow, preserving impedance characteristics and component function. Integration of conveyor-mounted ionizers reduced the probability of charge transfer during board handling.
For PCBs used in satellite communication, incorporating pre-placement ionization and controlled humidity led to a reduction in latent defects by more than 60%, with no observed impact on signal integrity.
Closed-loop, sensor-driven ionizers adjust output based on real-time field measurements, ensuring consistent neutralization across variable production conditions. This is particularly effective in HF-PCB lines with mixed component types and dynamic handling.
Electrostatic modeling and digital twin simulations predict areas of charge accumulation, optimizing ionizer placement, board handling, and workflow. These models allow virtual testing before physical implementation, reducing trial-and-error interventions.
Development of low-triboelectric substrates and tool coatings reduces static generation while preserving high-frequency performance. Innovative coatings on carriers and grippers help dissipate charges without affecting board signal characteristics.
ESD control systems are being integrated into manufacturing execution systems (MES) for continuous monitoring, predictive maintenance, and process optimization. Real-time dashboards allow operators to respond to dynamic charge trends and prevent latent failures.
Robotic verification systems automatically monitor ionization levels, board potentials, and environmental parameters, providing a continuous compliance log for HF-PCB production and simplifying audits.
FEM tools simulate electrostatic field distribution on HF-PCBs, accounting for board geometry, material properties, and environmental conditions. Critical regions prone to charge accumulation can be identified and mitigated.
Simulating ionization efficiency and surface charge decay helps optimize ionizer placement, voltage settings, and exposure times. Dynamic simulations allow modeling of conveyor movement, board rotation, and component pickup.
Combining FEM and process data produces risk maps highlighting zones of high ESD susceptibility. Predictive analytics using historical production and environmental data enables proactive mitigation.
Standardizing ESD control protocols for HF-PCBs across diverse materials and frequencies.
Managing electrostatic effects on ultra-fine pitch and embedded RF components.
Balancing ionization efficiency with contamination control in sensitive HF environments.
Developing predictive models linking charge accumulation to latent failures.
Integration of real-time monitoring and AI-driven adaptive control to minimize production interruptions.
HF-PCBs are inherently sensitive to electrostatic phenomena due to insulating materials, fine geometries, and high-frequency operational requirements. Effective ESD control is critical to prevent immediate damage, latent defects, and long-term reliability issues. By integrating grounding, ionization, environmental control, material selection, monitoring, and best practices, manufacturers can mitigate static-related risks and ensure consistent performance of high-frequency electronic systems. Future advancements in smart ionization, digital twin modeling, material science, and Industry 4.0 integration will further enhance ESD management in HF-PCB production.
