Laser marking equipment is widely used across electronics, automotive, medical, semiconductor, and precision manufacturing industries for permanent identification, traceability, and functional marking. As laser systems evolve toward higher power density, finer feature resolution, and faster throughput, electrostatic charge has emerged as a significant but often underestimated risk factor.
This article provides an in-depth, engineering-focused analysis of electrostatic generation mechanisms in laser marking processes and presents comprehensive strategies for suppressing static electricity using ionizing air bars. The discussion covers physical principles, process risks, equipment-level integration, ionizer selection and configuration, airflow and cleanliness considerations, quality and reliability impacts, standards compliance, maintenance, and future trends. The goal is to establish ionizing air bars as a core subsystem in modern laser marking equipment rather than an optional peripheral.
Laser marking has become a critical process in modern manufacturing due to its non-contact nature, high precision, and permanence. Typical applications include:
PCB and semiconductor package marking
Connector, cable, and metal part identification
Medical device traceability
Automotive and aerospace component labeling
Consumer electronics branding
Despite its advantages, laser marking introduces unique electrostatic challenges. High-energy laser-material interactions, combined with rapid material handling and the presence of polymers, coatings, and insulating fixtures, create conditions conducive to static charge accumulation. If left uncontrolled, electrostatic effects can compromise marking quality, process stability, equipment reliability, and downstream assembly yield.
Ionizing air bars provide an effective and scalable solution for suppressing static electricity in laser marking environments. Their proper configuration, however, requires a deep understanding of both electrostatics and laser process dynamics.
Electrostatic charge in laser marking systems arises from multiple mechanisms:
Triboelectric charging during part transport, indexing, or clamping
Separation of materials following laser ablation
Friction between fixtures, pallets, and marked parts
Airflow-induced charging from exhaust and fume extraction systems
These sources often act simultaneously, leading to complex and dynamic charge distributions.
Many laser-marked components include polymers, ceramics, anodized coatings, or oxide layers. These materials can accumulate significant static charge and retain it for extended periods, especially in low-humidity environments.
Even in the absence of visible ESD events, electrostatic fields can:
Attract debris and ablation byproducts
Distort lightweight components
Influence particle trajectories during marking
Ionizing air bars primarily address these field effects by continuously neutralizing surface charge.
Laser marking involves localized heating, melting, or vaporization of material. This rapid energy input can cause charge separation within the material and eject charged particles into the surrounding air.
High-power laser pulses may generate transient plasma plumes. These plumes can contribute to localized charge imbalances and influence subsequent marking consistency.
Electrostatic attraction increases the likelihood that ablated particles will redeposit on the marked surface or optics, degrading mark clarity and optical performance.
Static electricity can lead to:
Blurred or inconsistent mark edges
Variable contrast or depth
Unintended debris adhesion
Charged particles are more likely to adhere to lenses, protective windows, and mirrors, increasing cleaning frequency and downtime.
Lightweight parts may shift under electrostatic forces, causing positional errors relative to the laser focal point.
Residual charge after marking can affect subsequent assembly, inspection, or packaging processes.
A typical laser marking system includes:
Laser source (fiber, CO₂, UV, or green)
Beam delivery and focusing optics
Workstation enclosure
Part handling and fixturing
Fume extraction and filtration
Control and vision systems
Electrostatic suppression must be compatible with all these subsystems.

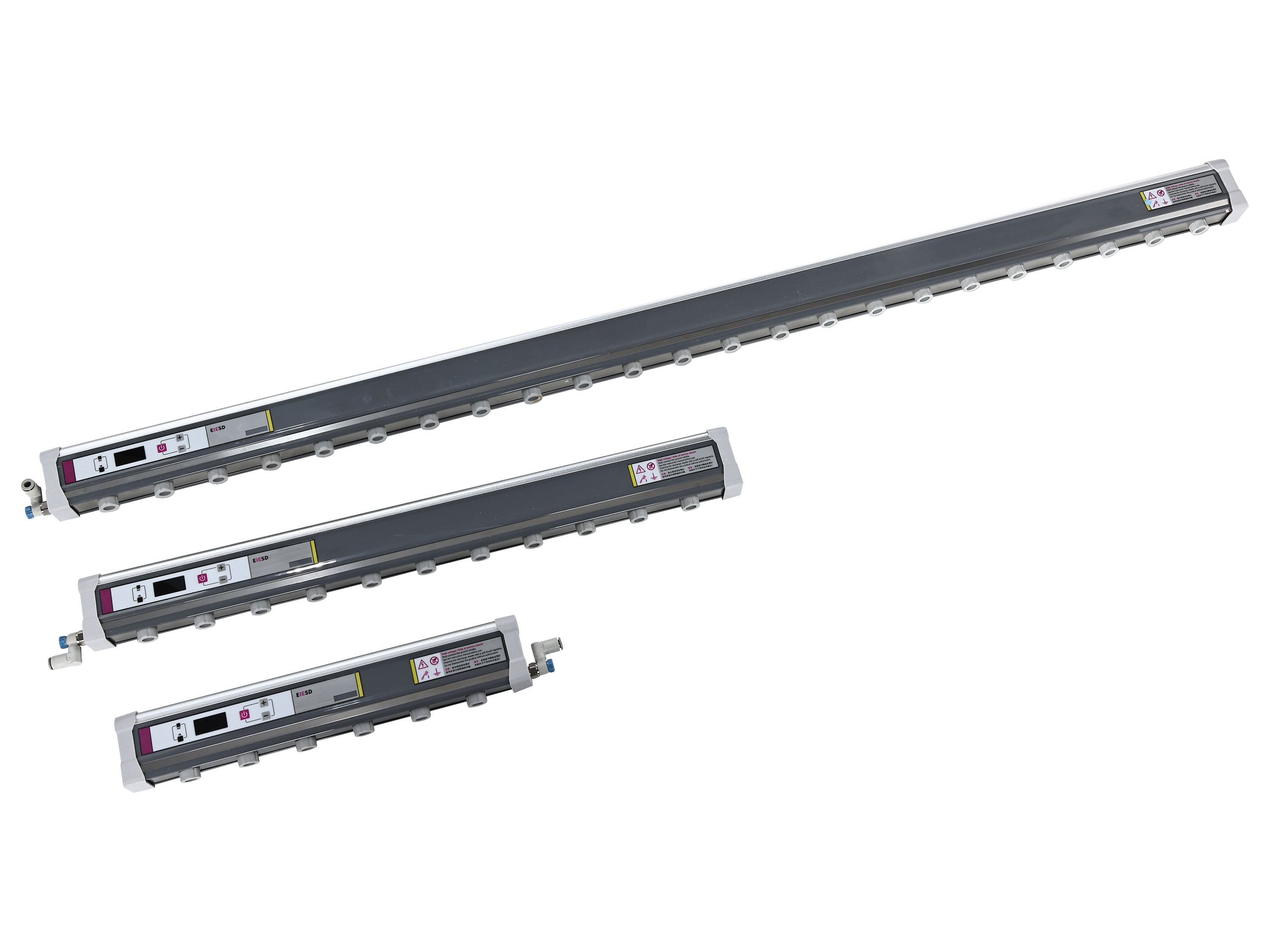

Ionizing air bars generate balanced streams of positive and negative ions via controlled corona discharge. These ions neutralize surface charges by recombination.
AC ionizers: Simple and robust, suitable for general enclosures
DC ionizers: Faster decay, better balance
Pulsed DC ionizers: Precise control, ideal for high-speed and high-precision laser marking
Ion balance: ±20–50 V (or tighter for precision work)
Static decay time: <1 second from ±5 kV to ±500 V
A structured assessment should include:
Identification of charge generation points
Measurement of surface voltage and field strength
Observation of debris behavior and part movement
Correlation with marking defects and downtime
This assessment guides effective ionizer placement.
Neutralize charge as close to the source as possible
Avoid direct airflow into the laser beam path
Maintain safe distances from optics
Ensure uniform coverage across the marking area
Ionizing air bars placed upstream of the marking zone remove charge introduced during handling and positioning.
Carefully positioned ionizers can suppress charge accumulation during marking without disturbing fumes or optics.
Downstream ionization prevents residual charge from affecting inspection and packaging.
Laser marking requires effective fume extraction. Ionizer airflow must be coordinated to avoid disrupting exhaust efficiency.
Controlled, low-turbulence airflow improves both ion transport and debris removal.
Ionizing air bars reduce electrostatic attraction of particles, complementing mechanical filtration and exhaust systems.
This synergy improves:
Mark clarity
Optical cleanliness
Overall equipment uptime
Ionization addresses charge on insulators, while grounding controls charge on conductors. Effective suppression requires:
Grounded machine frames
Conductive fixtures where feasible
Personnel grounding
Ionizers complete the static control ecosystem.
Rigid mounting to prevent vibration
Shielding from debris and heat
Compliance with high-voltage safety standards
Interlocks within laser enclosures
Verification steps include:
Ion balance measurement
Static decay testing at the work surface
Process validation under full production conditions
Laser environments generate fine debris that can contaminate ionizer emitters. Regular maintenance is critical.
Advanced ionizers provide output monitoring to ensure consistent performance.
Effective electrostatic suppression leads to:
Improved marking consistency
Reduced defect rates
Lower rework and scrap
Ionization should be included in process FMEA and control plans.
Although ionizing air bars represent a modest investment, benefits include:
Reduced downtime
Lower cleaning costs
Improved throughput
ROI is typically achieved within months.
Relevant standards include:
ANSI/ESD S20.20
IEC 61340 series
Ionizer performance should be documented as part of ESD audits.
A consumer electronics manufacturer experienced inconsistent mark contrast and frequent lens contamination. After installing pulsed DC ionizing air bars upstream and downstream of the marking zone:
Surface voltage dropped from ±6 kV to <±300 V
Lens cleaning frequency decreased by 40%
Marking defect rate was reduced by 25%
Humidity control alone is insufficient for dynamic laser marking environments. Ionization provides localized, rapid charge neutralization independent of ambient conditions.
As laser marking expands into micro-marking, medical devices, and semiconductor packaging, electrostatic sensitivity will continue to increase.
Future systems will require tighter ion balance control and smarter integration.
Integration with machine control systems enables:
Real-time ionizer status monitoring
Predictive maintenance
Correlation of static data with mark quality
Different laser technologies introduce distinct electrostatic behaviors that must be considered when configuring ionizing air bars.
Fiber lasers are widely used for metal and some plastic marking. Their high beam quality and power density produce fine ablation particles that are easily charged and attracted to nearby surfaces. Ionizing air bars in fiber laser systems should focus on:
Preventing charged metal debris from redepositing on the mark
Protecting scan lenses and protective windows
Neutralizing charge on metal parts that are electrically isolated by fixtures
CO₂ lasers are commonly applied to plastics, rubber, glass, and organic materials. These substrates are typically insulative and prone to retaining static charge.
Ionization strategies must prioritize:
Wide-area neutralization of polymer surfaces
Control of debris attraction to optical components
Stable airflow that does not disturb lightweight parts
UV and ultrafast lasers are used for high-precision, low-thermal-impact marking. At these scales, even minimal electrostatic forces can affect feature resolution.
Pulsed DC ionizing air bars with ultra-low balance drift are strongly recommended for these applications.
As marking features shrink, electrostatic influences become more pronounced. Static fields can subtly deflect debris plumes, altering energy distribution and resulting in:
Edge roughness
Line width variation
Inconsistent grayscale or contrast
By stabilizing the electrostatic environment, ionizing air bars contribute directly to mark repeatability and process capability (Cp/Cpk).
Fixtures and pallets are often overlooked contributors to static problems. Non-conductive materials, quick-change tooling, and robotic end effectors can accumulate significant charge.
Best practices include:
Using conductive or dissipative fixture materials where feasible
Grounding conductive elements effectively
Applying localized ionization near robotic pick-and-place interfaces
This ensures static control extends beyond the laser head itself.
In inline marking systems integrated into production lines, parts move at high speed through the marking zone. Static charge can accumulate rapidly due to continuous friction and separation.
Ionizing air bars must be:
Positioned to provide sufficient dwell time for neutralization
Coordinated with conveyor motion
Designed for uniform ion coverage across the full marking width
Multiple shorter bars are often more effective than a single long bar.
Many laser marking systems use vision for part alignment and mark verification. Static charge can cause:
Dust accumulation on camera lenses
Part movement during image capture
Increased false reject rates
Strategic ionization near vision stations stabilizes both the optical path and the part position, improving inspection reliability.
Even when marking appears visually acceptable, residual electrostatic charge can introduce latent risks:
Attraction of contaminants before packaging
Interference with downstream adhesive bonding or coating
Increased handling instability
Post-mark ionization is therefore critical for end-to-end process robustness.
For regulated industries such as medical devices and automotive electronics, electrostatic suppression measures must be documented and validated.
Key elements include:
Defined ionizer performance specifications
Installation and operational qualification records
Periodic verification and maintenance logs
Ionizing air bars should be explicitly included in process control documentation.
Modern manufacturing emphasizes energy efficiency and sustainability. Compared to humidity control or excessive exhaust flow, ionizing air bars offer:
Low energy consumption
Localized effectiveness
Reduced environmental impact
Optimized ionization contributes to both process stability and sustainability goals.
An automotive supplier operating a high-speed inline laser marking system experienced frequent marking defects and excessive lens contamination, particularly during winter months.
After implementing a multi-point ionizing air bar configuration:
Electrostatic field levels were reduced to below ±200 V
Lens maintenance intervals were extended by 50%
Marking defect rates decreased by 30%
The improvements were sustained across seasonal variations.
To maximize the benefits of ionization in laser marking systems:
Include ionization requirements at the equipment design stage
Avoid treating ionizers as aftermarket accessories
Validate performance under real production conditions
Collaboration between laser OEMs, ionizer suppliers, and end users is essential.
Laser marking is a precision process in which electrostatic effects directly influence quality, reliability, and operational efficiency. As marking speeds increase and feature sizes decrease, uncontrolled static electricity becomes an increasingly significant risk.
Ionizing air bars, when intelligently integrated into laser marking equipment, provide a robust and economical solution for electrostatic suppression. Their benefits extend beyond ESD prevention to encompass debris control, optical protection, process repeatability, and long-term reliability.
Manufacturers that adopt a systematic, data-driven approach to ionization will be better positioned to meet the growing demands of high-precision, high-throughput laser marking applications.
