Electrostatic charging is an inherent phenomenon in many industrial processes, particularly when handling insulating materials such as polymers, films, paper, and electronic components. Accumulated surface charges can result in particle attraction, electrostatic discharge (ESD), material damage, process instability, and even safety hazards.

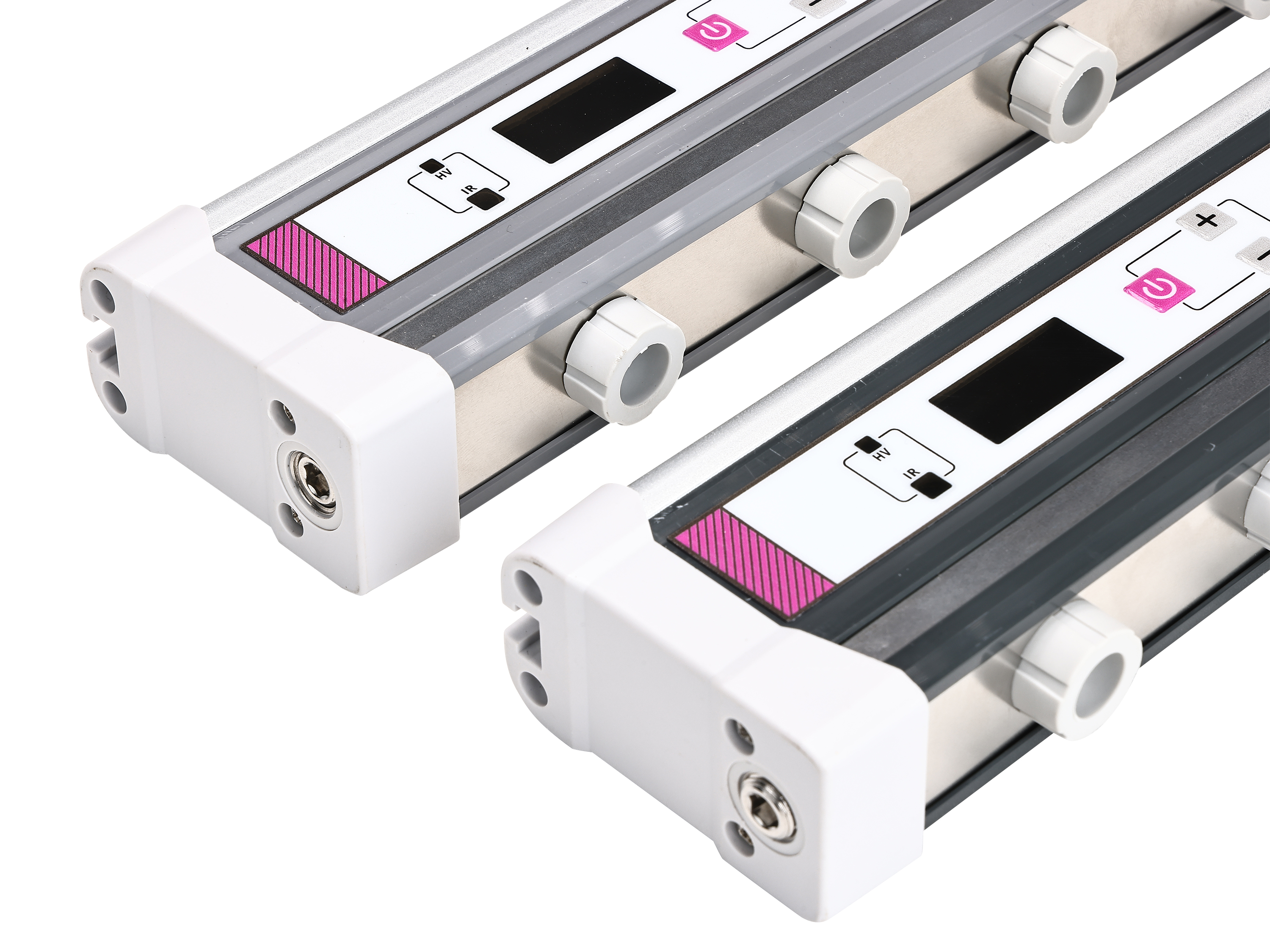

Ionizing air bars are widely deployed to neutralize these charges. However, their effectiveness depends not just on the ion generation capacity but also on the interaction between the surface charge distribution and the dynamic response of the ionizer.
To optimize ionization performance, it is critical to understand:
How charges are distributed on surfaces.
How surface charge interacts with ion flux.
How environmental and system parameters affect neutralization.
This article presents a detailed analysis of surface charge models and ionizing air bar response, integrating theoretical foundations, modeling approaches, experimental observations, and engineering implications.
Surface charges primarily arise from:
Triboelectric charging: Contact and separation between different materials transfer electrons.
Charge induction: Nearby electric fields can polarize materials and induce surface charges.
Charge injection: Direct contact with high-voltage sources or corona discharge.
Triboelectric charging is most common in industrial applications, particularly in moving webs, rollers, and conveyors.
Magnitude: Typical surface charge density varies from 10−910^{-9}10−9 to 10−510^{-5}10−5 C/m² depending on material and process.
Polarity: Both positive and negative charges can coexist on the same surface.
Spatial distribution: Surface charge is rarely uniform; it often forms localized high-density regions (“patches”).
Temporal evolution: Charges dissipate slowly due to leakage, recombination with ions, and environmental effects.
Assumes a constant charge density across the surface:
σ(x,y)=σ0\sigma(x, y) = \sigma_0σ(x,y)=σ0
Advantages:
Simple analytical solution for field calculations.
Useful for baseline performance estimates.
Limitations:
Unrealistic for most industrial surfaces.
Cannot predict localized neutralization behavior.
Represents surface charge as discrete regions:
σ(x,y)=∑i=1Nσifi(x,y)\sigma(x, y) = \sum_{i=1}^{N} \sigma_i f_i(x, y)σ(x,y)=i=1∑Nσifi(x,y)
where fi(x,y)f_i(x, y)fi(x,y) describes the spatial extent of patch iii.
Advantages:
More accurately reflects real-world charge distributions.
Enables prediction of non-uniform neutralization.
Challenges:
Requires detailed surface charge mapping.
Computationally intensive for fine-scale patches.
Treats surface charge as a random variable governed by statistical distributions:
σ(x,y)∼P(μ,σ2)\sigma(x, y) \sim \mathcal{P}(\mu, \sigma^2)σ(x,y)∼P(μ,σ2)
Applications:
Monte Carlo simulations of industrial processes.
Useful when surface charge cannot be measured directly.
For an ideal planar surface:
E=σ2ε0E = \frac{\sigma}{2\varepsilon_0}E=2ε0σ
Where ε0\varepsilon_0ε0 is the permittivity of free space.
Non-uniform charge distributions create localized high-field regions, influencing:
Ion attraction patterns.
Local neutralization rates.
Potential for residual charges.
Ionizing air bars generate ions through corona discharge:
Positive and negative ions are emitted alternately or simultaneously.
Airflow transports ions toward the surface.
Electric fields guide ions to charged regions.
Key performance parameters:
Ion density (nin_ini): Number of ions per unit volume.
Polarity balance: Ratio of positive to negative ions.
Transport distance: Effective distance ions can reach before recombination.
Ion flux JiJ_iJi to a surface patch is given by:
Ji(x,y,t)=ni(x,y,t) μi Etotal(x,y,t)J_i(x, y, t) = n_i(x, y, t) \, \mu_i \, E_{\text{total}}(x, y, t)Ji(x,y,t)=ni(x,y,t)μiEtotal(x,y,t)
Where EtotalE_{\text{total}}Etotal includes contributions from:
Ionizer field.
Surface charge.
Space charge from previously arriving ions.
This forms a dynamic feedback loop:
Strong surface charge → higher EtotalE_{\text{total}}Etotal → faster ion flux → charge reduction → decreased EtotalE_{\text{total}}Etotal → slower ion flux.
For uniform surfaces, decay often follows:
σ(t)=σ0e−t/τ\sigma(t) = \sigma_0 e^{-t/\tau}σ(t)=σ0e−t/τ
Where τ\tauτ is the neutralization time constant.
For patchy or random surfaces, decay becomes spatially heterogeneous:
High-density patches neutralize quickly.
Low-density regions may persist.
Residual charges affect overall process reliability.
Open-loop: Fixed ion output regardless of surface charge.
Closed-loop: Ion output adjusted based on ion balance or surface feedback.
Non-uniform surface charge and space charge effects introduce:
Saturation behavior at high charge densities.
Delays and overshoot in dynamic neutralization.
Spatially variable neutralization efficiency.
For a moving web at velocity vvv:
∂σ∂t+v∂σ∂x=−Ji(x,y,t)\frac{\partial \sigma}{\partial t} + v \frac{\partial \sigma}{\partial x} = - J_i(x, y, t)∂t∂σ+v∂x∂σ=−Ji(x,y,t)
Implications:
Exposure time limits ion neutralization.
High-speed processes may leave residual charge if ion flux is insufficient.
Airflow and bar placement are critical.
As ions accumulate near the surface:
Local electric fields are partially shielded.
Ion arrival slows.
Saturation of neutralization occurs at high charge density.
This is especially significant in dense charge patches or high-speed lines.
High-resolution mapping reveals:
Patchy charge distribution.
Nonlinear neutralization patterns.
Persistent residual charge in low-field regions.
Initial rapid neutralization in high-field zones.
Slow tail phase as surface charge approaches equilibrium.
These observations validate both patch and stochastic surface charge models.
To ensure effective neutralization:
Design for worst-case local charge, not average.
Optimize bar-to-surface distance.
Ensure sufficient ion density and polarity balance.
Incorporate airflow-assisted transport.
Use closed-loop feedback in dynamic or high-speed processes.
Electrostatic surface charge modeling is essential for predicting ionizing air bar performance. Uniform, patch, and stochastic models each provide insights into:
Non-uniform neutralization.
Dynamic response to changing charge patterns.
System optimization under industrial conditions.
Understanding these models allows engineers to design, select, and deploy ionizers effectively, minimizing residual charge, ESD risk, and process defects.
The local ion flux toward a charged surface can be expressed as:
Ji(x,y,t)=ni(x,y,t)⋅μi⋅Etotal(x,y,t)J_i(x, y, t) = n_i(x, y, t) \cdot \mu_i \cdot E_{\text{total}}(x, y, t)Ji(x,y,t)=ni(x,y,t)⋅μi⋅Etotal(x,y,t)
Where:
ni(x,y,t)n_i(x, y, t)ni(x,y,t) is the local ion density,
μi\mu_iμi is ion mobility,
EtotalE_{\text{total}}Etotal is the superposed electric field including contributions from the ionizer, surface charge, and accumulated space charge.
The temporal and spatial variation of EtotalE_{\text{total}}Etotal is critical for understanding nonlinear response behaviors.
For a surface with charge density σ(x,y,t)\sigma(x, y, t)σ(x,y,t), the decay due to ion neutralization can be modeled as:
∂σ(x,y,t)∂t=−Ji(x,y,t)−Jleak(x,y,t)\frac{\partial \sigma(x, y, t)}{\partial t} = -J_i(x, y, t) - J_{\text{leak}}(x, y, t)∂t∂σ(x,y,t)=−Ji(x,y,t)−Jleak(x,y,t)
Where JleakJ_{\text{leak}}Jleak represents leakage currents through the material or along grounded supports.
In insulating materials, JleakJ_{\text{leak}}Jleak is often negligible.
The dominant neutralization is controlled by JiJ_iJi, which is nonlinearly dependent on the instantaneous surface charge.
A practical approach to modeling non-uniform surfaces is the patch-charge model:
σ(x,y,t)=∑k=1Nσk(t)fk(x,y)\sigma(x, y, t) = \sum_{k=1}^{N} \sigma_k(t) f_k(x, y)σ(x,y,t)=k=1∑Nσk(t)fk(x,y)
σk(t)\sigma_k(t)σk(t) is the charge density of patch kkk
fk(x,y)f_k(x, y)fk(x,y) describes the spatial distribution (e.g., Gaussian or uniform shape)
Each patch behaves quasi-independently under the influence of the ion flux. The net ionizer response is the superposition of responses across all patches.
In open-loop systems:
Ion output is constant.
Response is entirely dictated by surface charge-induced electric fields.
Implications:
Strongly charged regions neutralize faster.
Weakly charged regions may remain partially charged.
Residual charge can create uneven discharge patterns.
Modern ionizers use feedback from ion balance sensors or surface charge sensors:
Ion output adjusts dynamically based on measured imbalance.
Response includes time delays, overshoot, and spatial non-uniformity.
Mathematically, the system can be represented as:
Jiadjusted(t)=f(σmeasured(t−τd))J_i^{\text{adjusted}}(t) = f\big(\sigma_{\text{measured}}(t - \tau_d)\big)Jiadjusted(t)=f(σmeasured(t−τd))
Where τd\tau_dτd is the sensor and processing delay.
For simplified linear analysis:
H(s)=Ji(s)σ(s)H(s) = \frac{J_i(s)}{\sigma(s)}H(s)=σ(s)Ji(s)
Captures the ionizer’s frequency response to dynamic changes in surface charge.
High-frequency response may be limited by ion generation rate and transport time.
Low-frequency response is controlled by airflow and system geometry.
Ion diffusion and airflow dispersion impose a minimum resolvable feature size. Charges smaller than this scale are effectively averaged out.
Implication: Patch sizes < 5–10 mm may not be fully neutralized by a single bar.
Sudden events (peeling, separation, or discharge) generate transient surface charge:
Initial ion flux saturates rapidly.
Residual imbalance persists due to delayed ion transport.
Closed-loop control can reduce but not fully eliminate overshoot.
For moving webs at velocity vvv:
∂σ∂t+v∂σ∂x=−Ji(x,y,t)\frac{\partial \sigma}{\partial t} + v \frac{\partial \sigma}{\partial x} = - J_i(x, y, t)∂t∂σ+v∂x∂σ=−Ji(x,y,t)
High-speed lines reduce exposure time.
Ionizers must compensate with higher ion density or multiple bars.
Patch orientation relative to airflow affects neutralization efficiency.
High humidity increases ion clustering, reducing mobility μi\mu_iμi.
Slower migration velocity → delayed neutralization.
Negative ions are more strongly affected than positive ions.
Higher temperatures reduce air density, slightly increasing ion mobility.
Lower pressures (e.g., in cleanrooms or high altitudes) reduce collision frequency, increasing ion transport distance.
Response strength decays with distance due to field attenuation.
Typical recommended distances: 50–150 mm for most industrial surfaces.
At high surface charge density:
Local ion accumulation produces space-charge shielding.
Effective electric field near the surface is reduced.
Ion flux reaches a saturation limit, slowing neutralization.
This effect explains why high-voltage charged patches may persist longer than predicted by linear models.
Multiple ion bars in proximity:
Create overlapping electric fields.
Modify ion trajectories.
Can produce either cooperative or destructive interference.
Bars spaced too closely: field cancellation, uneven ion flux.
Bars spaced too far: gaps with slow neutralization.
Computational models are essential to optimize layout.
High-resolution electrostatic voltmeters or Faraday cup arrays measure patch charge distribution.
Observed patch sizes: 5–20 mm in industrial processes.
Decay curves validate the nonlinear response model.
Initial rapid decay for strong patches.
Slower decay for residual low-field regions.
Dynamic response depends on bar output, airflow, and environmental factors.
Must exceed maximum local charge density.
Polarity balance critical for rapid neutralization.
Directed airflow accelerates ion transport to low-field regions.
Laminar flow preferred to avoid turbulence and ion recombination.
Adjust sensor thresholds and feedback gains to prevent overshoot or oscillation.
High-speed control improves response to transient charging events.
Residual surface charge causes dust attraction.
Patch-charge model used to predict hotspot locations.
Multi-bar ionizer with directed airflow reduced residual charge by 70%.
PCB handling requires rapid neutralization.
Closed-loop ionizers monitored by ion balance sensors achieved <50 V residual surface potential.
Continuous moving web; high-speed line (>200 m/min).
Patch-charge model predicted delayed neutralization at web edges.
Solution: dual-bar layout with airflow assistance and closed-loop control.
Surface charge is heterogeneous and time-dependent.
Ion flux responds nonlinearly due to electric field superposition and space-charge effects.
Transient charging and moving surfaces impose additional response requirements.
Proper modeling enables predictive design, optimal placement, and selection of ionizers.
