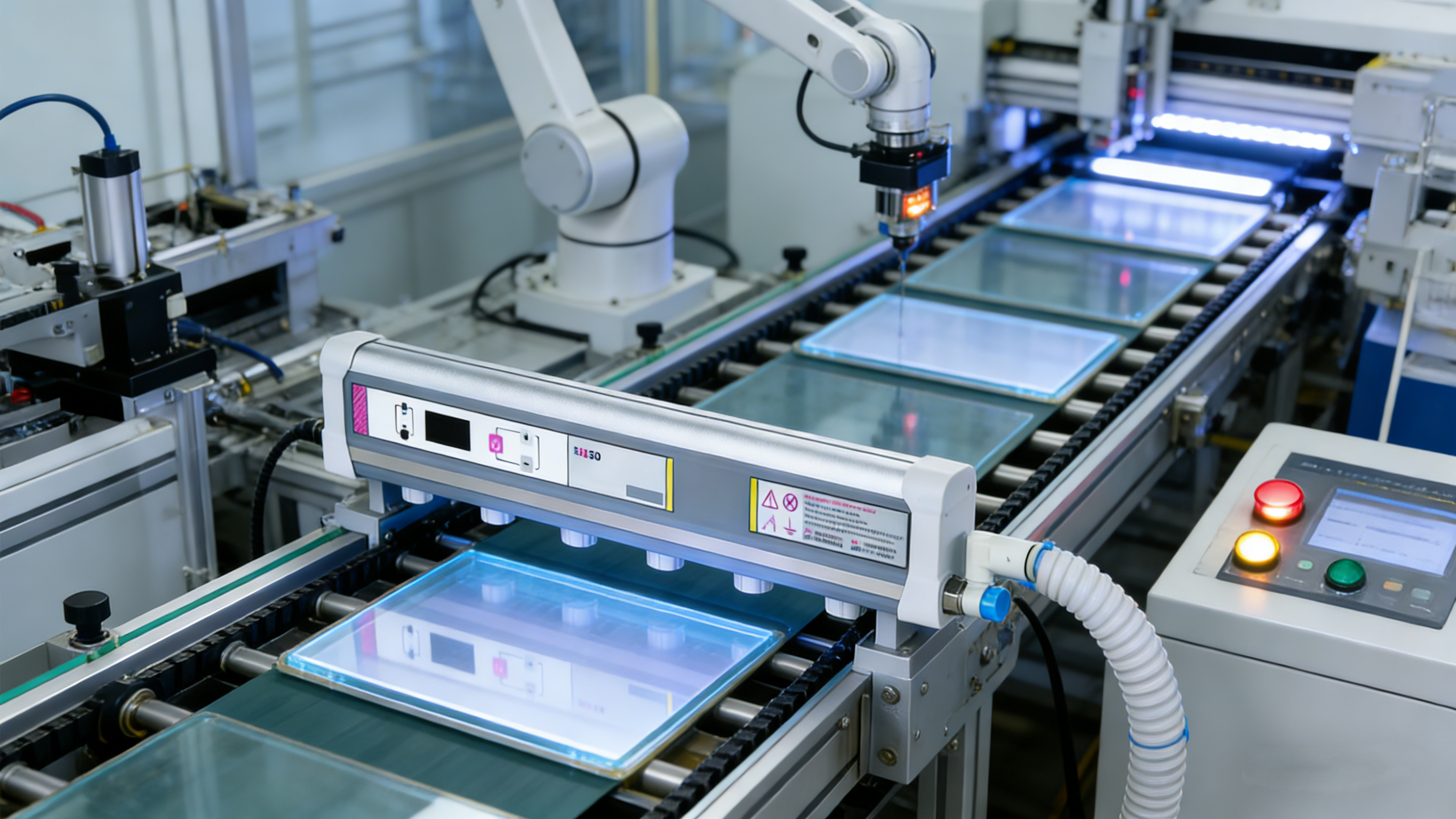

Ionizing air bars are widely used in industrial electrostatic discharge (ESD) control systems to neutralize static charges on surfaces during manufacturing processes. These devices typically employ multiple emitter needles distributed along a linear bar to generate positive and negative ions through corona discharge. The ions are transported by airflow toward charged objects where they neutralize accumulated electrostatic charges. However, in multi-emitter ionizing air bars, airflow generated from individual emitter locations may interact and overlap with neighboring air streams. This airflow overlap phenomenon can significantly influence ion transport, ion distribution, and overall electrostatic neutralization efficiency.
This study investigates the airflow overlap effects in multi-needle ionizing air bars through a combination of experimental measurements, theoretical modeling, and airflow distribution analysis. Experiments were conducted using a multi-emitter ionizing air bar under controlled airflow conditions. Ion density, charge decay time, and ion balance stability were measured at different distances and emitter spacing configurations. Computational airflow analysis was also used to study the interaction between adjacent ion streams.
The results show that airflow overlap significantly affects ion distribution uniformity. Moderate overlap improves ion coverage and reduces dead zones, while excessive overlap may cause turbulence and ion recombination, reducing neutralization efficiency. Optimal emitter spacing and airflow velocity are identified to maximize ion transport efficiency and maintain stable ion balance.
The findings of this study provide important insights for the design and optimization of multi-needle ionizing air bars in industrial electrostatic control applications.
Keywords: ionizing air bar, airflow overlap, multi-emitter ionizer, electrostatic neutralization, ion transport, airflow interaction
Static electricity is a widespread phenomenon in industrial environments where materials move, contact, or separate from each other. In manufacturing processes such as semiconductor fabrication, electronics assembly, plastic film processing, and packaging operations, electrostatic charges can accumulate on surfaces and materials. These charges may attract contaminants, cause material handling problems, damage sensitive electronic components, or create hazardous discharge events.
To control static electricity, ionization technologies are commonly employed. Ionizers generate positive and negative ions that neutralize electrostatic charges on nearby objects. Among various ionization devices, ionizing air bars are widely used because they can provide uniform ion distribution across large areas and can be easily integrated into production lines.
Ionizing air bars typically contain multiple emitter needles distributed along the length of the bar. These emitters generate ions through corona discharge when high voltage is applied. In many designs, compressed air or fan-driven airflow is used to transport ions toward the target surface.
However, when multiple emitters operate simultaneously, the airflow generated around each emitter may interact with airflow from adjacent emitters. This interaction leads to what is known as the airflow overlap effect.
Airflow overlap can influence several aspects of ionizer performance:
Ion distribution uniformity
Ion transport efficiency
Charge neutralization speed
Ion recombination rates
Turbulence generation in airflow
Despite the widespread use of multi-emitter ionizing air bars, relatively little research has focused on the aerodynamic interactions between multiple ion streams.
Understanding airflow overlap effects is important for optimizing ionizer design. If emitter spacing is too large, ion coverage may become uneven, leaving static charge “dead zones.” If emitters are too close together, excessive airflow overlap may cause turbulence and reduce ion transport efficiency.
Therefore, this study aims to analyze airflow overlap effects in multi-needle ionizing air bars through experimental investigation and theoretical analysis.
Ionizing air bars operate by generating ions through corona discharge. When a high voltage is applied to a sharp emitter needle, a strong electric field forms near the tip. This electric field ionizes surrounding air molecules, producing positive and negative ions.
The ion generation rate depends on several factors:
Applied voltage
Emitter geometry
Air pressure
Environmental conditions
Each emitter acts as an independent ion source.
Once generated, ions must travel from the emitter toward the charged surface.
Three main mechanisms contribute to ion transport:
Electric field drift
Airflow convection
Diffusion
In ionizing air bars with forced airflow, convection becomes the dominant transport mechanism.
Most ionizing air bars contain multiple emitters arranged along a linear structure. The spacing between emitters typically ranges from 20 mm to 50 mm depending on design requirements.
Each emitter produces an ion plume carried by airflow. When these plumes expand, they may overlap with adjacent plumes.
Airflow overlap refers to the interaction between air streams generated by adjacent emitters in a multi-needle ionizing air bar.
When two airflow streams intersect, several phenomena may occur:
Mixing of ion populations
Turbulence generation
Velocity redistribution
Ion recombination
Moderate airflow overlap can improve performance by:
Increasing ion distribution uniformity
Eliminating dead zones between emitters
Enhancing surface coverage
Excessive airflow overlap may cause:
Turbulent mixing
Increased ion recombination
Reduced directional ion transport
The velocity distribution of airflow from a single emitter can be approximated as a Gaussian jet:
V(x,r) = V0 exp(-r² / 2σ²)
where:
V0 = initial airflow velocity
r = radial distance
σ = spread parameter
When two airflow jets overlap, their velocity fields combine:
V_total = V1 + V2
In overlapping regions, velocity gradients may increase, leading to turbulence.
Ion concentration can be modeled using a convection-diffusion equation:
∂n/∂t + v·∇n = D∇²n − αn²
where:
n = ion concentration
v = airflow velocity
D = diffusion coefficient
α = recombination coefficient
The experimental system used a multi-needle ionizing air bar with the following parameters:
Number of emitters: 12
Emitter spacing: adjustable (20–50 mm)
Operating voltage: ±7 kV
The following instruments were used:
Charge plate monitor
Ion density meter
Airflow velocity sensor
Data acquisition system
Three variables were studied:
Emitter spacing
Airflow velocity
Measurement distance
Measurements showed that ion density distribution varies significantly with emitter spacing.
When spacing was large, ion density showed peaks near emitters and valleys between them.
Moderate spacing produced the most uniform distribution.
Charge decay time was fastest when moderate airflow overlap occurred.
Insufficient overlap caused uneven neutralization.
Excessive overlap created turbulence that reduced efficiency.
Ion balance remained stable under moderate overlap but fluctuated under high turbulence conditions.
Smoke visualization experiments revealed three airflow regimes:
Independent jet regime
Moderate overlap regime
Turbulent overlap regime
The moderate overlap regime provided the most stable ion transport.
Statistical analysis showed a nonlinear relationship between emitter spacing and neutralization efficiency.
Optimal spacing was approximately:
30–35 mm
for the tested system.
Understanding airflow overlap effects allows engineers to optimize ionizer design for industrial applications.
Improved airflow design can increase static neutralization efficiency and reduce energy consumption.
Several strategies can improve multi-emitter ionizer performance:
Optimized emitter spacing
Directed airflow channels
Adaptive airflow control
Future ionizers may incorporate:
Smart feedback systems
Adaptive airflow control
Electrode geometry optimization
Further research should explore:
CFD simulation of ion transport
Machine learning optimization of ionizer design
Coupled temperature-humidity effects
This study investigated airflow overlap effects in multi-needle ionizing air bars.
The results demonstrate that airflow interaction between emitters significantly influences ion transport and electrostatic neutralization performance.
Moderate airflow overlap improves ion distribution uniformity and neutralization efficiency, while excessive overlap causes turbulence and reduces ion transport efficiency.
Optimal emitter spacing and airflow velocity must be carefully designed to achieve the best performance.
These findings provide valuable guidance for the design and optimization of industrial ionizing air bar systems.
