Ion bars, also known as ionizers or ion wind bars, are widely used in various industrial applications, especially in manufacturing environments such as electronics, clean rooms, and battery production lines. Their primary function is to neutralize static charges, remove dust particles, and create a controlled atmosphere to ensure high product quality. While ion bars are crucial for these processes, their operation involves high-voltage electrical systems that carry inherent risks if not handled with proper safety precautions.
In this detailed guide, we will explore the high-voltage safety standards that must be followed when using ion wind bars. We will cover the hazards associated with their operation, the relevant safety standards from international and local bodies, and best practices for safe operation. By adhering to these standards, operators can mitigate risks, ensure safe working conditions, and protect both personnel and equipment from potential dangers.

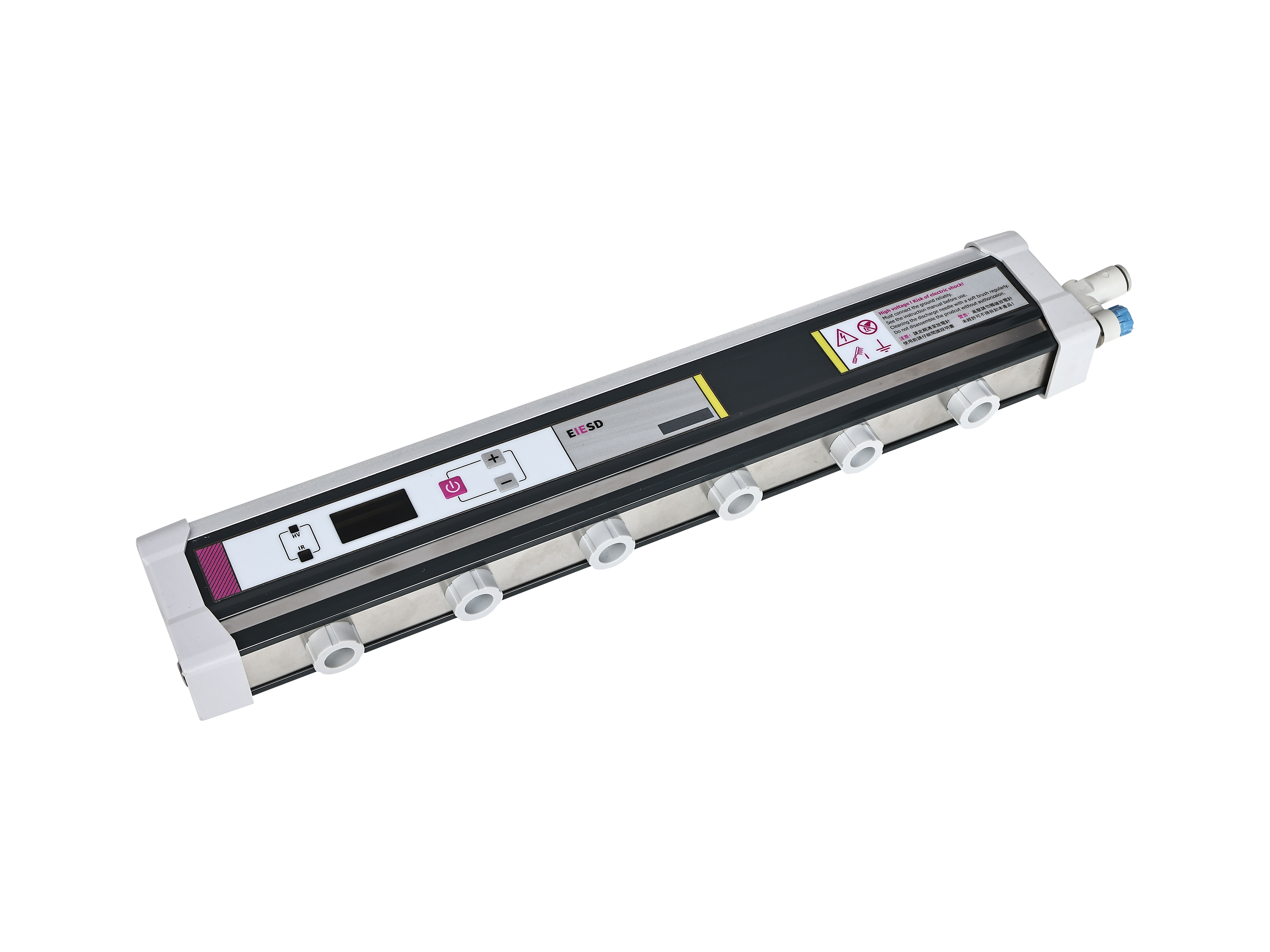

An ion wind bar operates on the principle of corona discharge, where high-voltage electrodes create an electric field that ionizes the air surrounding the device. The ionized air produces positive and negative ions, which attach to particles like dust or static charges, neutralizing them. These ionized particles flow out of the bar in a controlled stream, which is effective in cleaning sensitive environments such as manufacturing floors, cleanrooms, and laboratories.
Ion wind bars generally operate at high voltages, typically ranging from 5 kV to 10 kV (kilovolts), but some advanced systems can generate even higher voltages. While these high-voltage systems are effective at neutralizing electrostatic charges, they can pose significant safety risks if not operated in accordance with established safety standards.
The high-voltage nature of ion wind bars presents various potential hazards that must be carefully managed:
Since ion bars use high-voltage electrical systems, the most immediate risk is electrical shock. Contact with live components such as high-voltage electrodes, exposed wires, or faulty connectors can cause serious injury or death. Even with insulated systems, a malfunction or improper handling can lead to electric shocks.
An arc flash is a dangerous phenomenon that occurs when an electrical current jumps from one conductor to another. In high-voltage systems, the arc can generate intense heat, causing burns, fires, or explosions. The risk of arc flashes increases when there is equipment failure or improper installation and maintenance.
Ion wind bars are composed of high-voltage components that are susceptible to damage due to improper handling, inadequate grounding, or environmental factors like humidity and dust. Malfunctions or breakdowns in the system can lead to the failure of the ionizer, resulting in unplanned downtime or costly repairs.
While ion bars are designed to control electrostatic discharge (ESD), improper grounding or malfunctioning ionization can create unintended static charges that may damage sensitive electronic components. This is especially critical in cleanroom environments, where static-sensitive devices like semiconductors, circuit boards, and lithium-ion battery cells are produced.
To mitigate the risks associated with high-voltage ion bar usage, several safety standards have been established by international and local regulatory bodies. These standards are designed to ensure that ionization systems are safe, reliable, and effective in minimizing the hazards associated with electrical systems.
The IEC (International Electrotechnical Commission) is a global organization that sets standards for electrical equipment, including ionization systems like ion bars. Some relevant IEC standards for high-voltage ion bar safety include:
IEC 61010-1: Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use
This standard outlines the basic safety requirements for electrical equipment operating at high voltages, such as ion bars. It covers protection against electric shock, fire hazards, and requirements for proper insulation. Key provisions include clearance distances, insulation resistance, and protection against accidental contact with live parts.
IEC 61508: Functional Safety of Electrical, Electronic, and Programmable Electronic Systems
This standard provides guidelines for systems that include safety-critical components. Ion bars used in environments where the failure of an ionizer may lead to unsafe conditions must comply with IEC 61508 to ensure functional safety through proper design, validation, and maintenance processes.
IEC 60364-4-41: Electrical Installations in Buildings
This standard offers guidance on electrical installations, including safety measures for protection against electric shock and the installation of high-voltage devices. For ion wind bars, it includes grounding and bonding requirements, overcurrent protection, and ensuring that the installation meets local regulations for electrical safety.
In the United States, OSHA (Occupational Safety and Health Administration) enforces strict regulations to protect workers from electrical hazards. OSHA guidelines for high-voltage systems, including ion wind bars, include:
OSHA 29 CFR 1910.303: Electrical General Requirements
This regulation sets out general requirements for electrical installations and maintenance, including ionization systems. It covers aspects like equipment grounding, circuit protection, electrical labeling, and maintenance of safe distances from live electrical components.
OSHA 29 CFR 1910.332: Training Requirements for Electrical Work
Workers involved in handling or maintaining high-voltage equipment must be properly trained to recognize hazards, use personal protective equipment (PPE), and respond appropriately in case of an electrical emergency. This training must also cover lockout/tagout (LOTO) procedures to de-energize equipment during maintenance.
OSHA 29 CFR 1910.335: Safeguards for Personnel Protection
This regulation mandates safeguards to protect workers from electrical hazards, such as using insulated tools and wearing appropriate PPE, including insulated gloves, arc flash protection, and safety eyewear.
The NFPA 70E: Standard for Electrical Safety in the Workplace is another critical standard for working with high-voltage equipment, including ion bars. The standard provides specific requirements for workplace safety, including:
Arc Flash Hazard Analysis: NFPA 70E requires an analysis of the arc flash hazard when working with high-voltage systems. An arc flash study must be conducted to identify potential risks and ensure that appropriate protective measures are in place.
Personal Protective Equipment (PPE): NFPA 70E specifies the minimum PPE that must be worn by workers in environments where arc flash or electrical shock hazards exist. PPE may include flame-resistant clothing, arc flash suits, and rubber gloves with appropriate voltage ratings.
Lockout/Tagout (LOTO) Procedures: The LOTO procedures must be followed during maintenance and repair of high-voltage equipment to prevent electrical accidents. This includes isolating power sources, ensuring all stored energy is discharged, and verifying the absence of voltage before performing any work on the equipment.
For ion bars used in sensitive environments, ESD control standards are essential to avoid accidental discharge and ensure the safety of electronic components. Relevant standards include:
ANSI/ESD S20.20: This standard defines the requirements for an ESD control program in the workplace. It covers the use of ionizers, including the maintenance of an ionization balance, proper grounding of devices, and the monitoring of ionization levels to ensure their effectiveness in controlling ESD.
IEC 61340-5-1: This standard outlines the general requirements for controlling electrostatic charges in electronic environments. It covers procedures for selecting and installing ionizers, grounding systems, and ensuring the safe handling of materials sensitive to ESD.
While compliance with safety standards is crucial, adhering to best practices when operating ion bars can further reduce the risk of hazards. These practices include:
Electrical Grounding: Proper grounding of the ion bar is essential to prevent static buildup and ensure safe operation. The device must be grounded according to the manufacturer’s instructions, ensuring that the ion bar does not become a source of electrical shock or static discharge.
Correct Placement: Ensure that ion wind bars are installed in locations where they will provide maximum efficiency in neutralizing static charges and dust particles. Follow the manufacturer’s specifications for distance between the ionizer and sensitive equipment.
Environment Considerations: The ion bar should be installed in a dry and clean environment, free from excessive humidity, corrosive chemicals, or high temperatures, which may impair the functioning of the device or lead to electrical hazards.
Routine Checks: Conduct periodic inspections to check for damaged or worn components, loose wiring, or any signs of electrical wear. Regular maintenance should include checking for insulation resistance and ensuring that all connections are tight and secure.
Discharge Capacitors: Before performing maintenance, always discharge any stored energy in the device’s capacitors to reduce the risk of electrical shock.
Cleaning and Calibration: Ensure the ion bars are free from dust, debris, or contamination that may affect their functionality. Ionizers should be calibrated regularly to maintain **effective ionization levels
**.
Insulated Gloves: Wear rubber or insulated gloves when handling ion bars to protect against accidental electrical shock.
Arc Flash Protection: For maintenance or servicing tasks, ensure that workers are wearing arc flash-rated PPE, such as flame-resistant clothing, face shields, and rubber gloves rated for the voltage level of the equipment.
Safety Footwear and Eye Protection: Workers should wear appropriate safety shoes to reduce the risk of electrical shock from the floor or other conductive surfaces. Safety goggles should also be worn to protect against any debris or sparks from electrical faults.
Worker Training: All workers involved in the installation, operation, or maintenance of ion bars must undergo comprehensive training on electrical safety, specifically high-voltage hazards, proper handling techniques, and the safe use of ionizers.
Emergency Response Drills: Regular safety drills should be conducted to ensure that all workers are familiar with emergency procedures, including the use of fire extinguishers, first aid kits, and emergency shutoff protocols in case of an electrical accident.
High-voltage ion bars are essential tools for neutralizing static charges and controlling airborne contaminants in sensitive manufacturing environments. However, their operation comes with inherent electrical hazards, and it is crucial that safety standards are adhered to in order to protect workers and equipment. By following established safety protocols, including those set by the IEC, OSHA, NFPA, and other relevant bodies, manufacturers can ensure the safe and efficient use of ion wind bars.
Implementing robust safety standards, conducting regular maintenance, using the proper PPE, and providing comprehensive training for personnel are all essential steps to mitigate risks and ensure a safe working environment. As industries continue to adopt ionization technology for cleaner, safer production lines, the importance of high-voltage safety will only grow, making it imperative to continuously prioritize safety in every aspect of ion bar usage.
