Electrostatic discharge (ESD) control is critical in modern electronics manufacturing, where sensitive components are susceptible to damage from static charges. Ionizing air bars are widely employed to neutralize static electricity on surfaces and in confined spaces. Traditional designs often utilize unidirectional airflow, but bidirectional airflow systems have been proposed to enhance static elimination efficiency. This article explores the influence of bidirectional airflow on the performance of ionizing air bars, including theoretical principles, airflow design, ion generation, charge decay mechanisms, experimental results, thermal and electrical considerations, control strategies, integration with automated systems, safety compliance, and future research directions. The study aims to provide a comprehensive technical reference for engineers and researchers seeking to optimize ESD performance through bidirectional airflow designs.
Bidirectional Airflow, Ionizing Air Bar, Electrostatic Discharge (ESD), Charge Neutralization, Airflow Optimization, Ion Generation, Thermal Management, Control Systems, Electronics Manufacturing
Electrostatic charges accumulate on various materials and surfaces during handling, transport, or automated processing of electronic components. These charges can lead to damage in microelectronics, MEMS devices, display panels, and other sensitive systems. Ionizing air bars neutralize static charges by emitting positive and negative ions that attach to charged surfaces, facilitating rapid charge decay.
Traditional ion bars typically employ unidirectional airflow, delivering ions in a single direction toward the target surface. While effective, unidirectional designs may leave areas with insufficient ion coverage, particularly in complex geometries or large-area workstations. Bidirectional airflow, in which air is directed from opposing directions, has been proposed to enhance coverage and uniformity, potentially improving charge decay rates and overall ESD protection.
This article investigates the theoretical and practical implications of bidirectional airflow designs, analyzing their effect on ion distribution, charge decay, thermal performance, and integration into manufacturing systems.
Electrostatic charges result from triboelectric effects, dielectric polarization, and friction between materials. Surface potential is influenced by material properties, humidity, temperature, and handling processes.

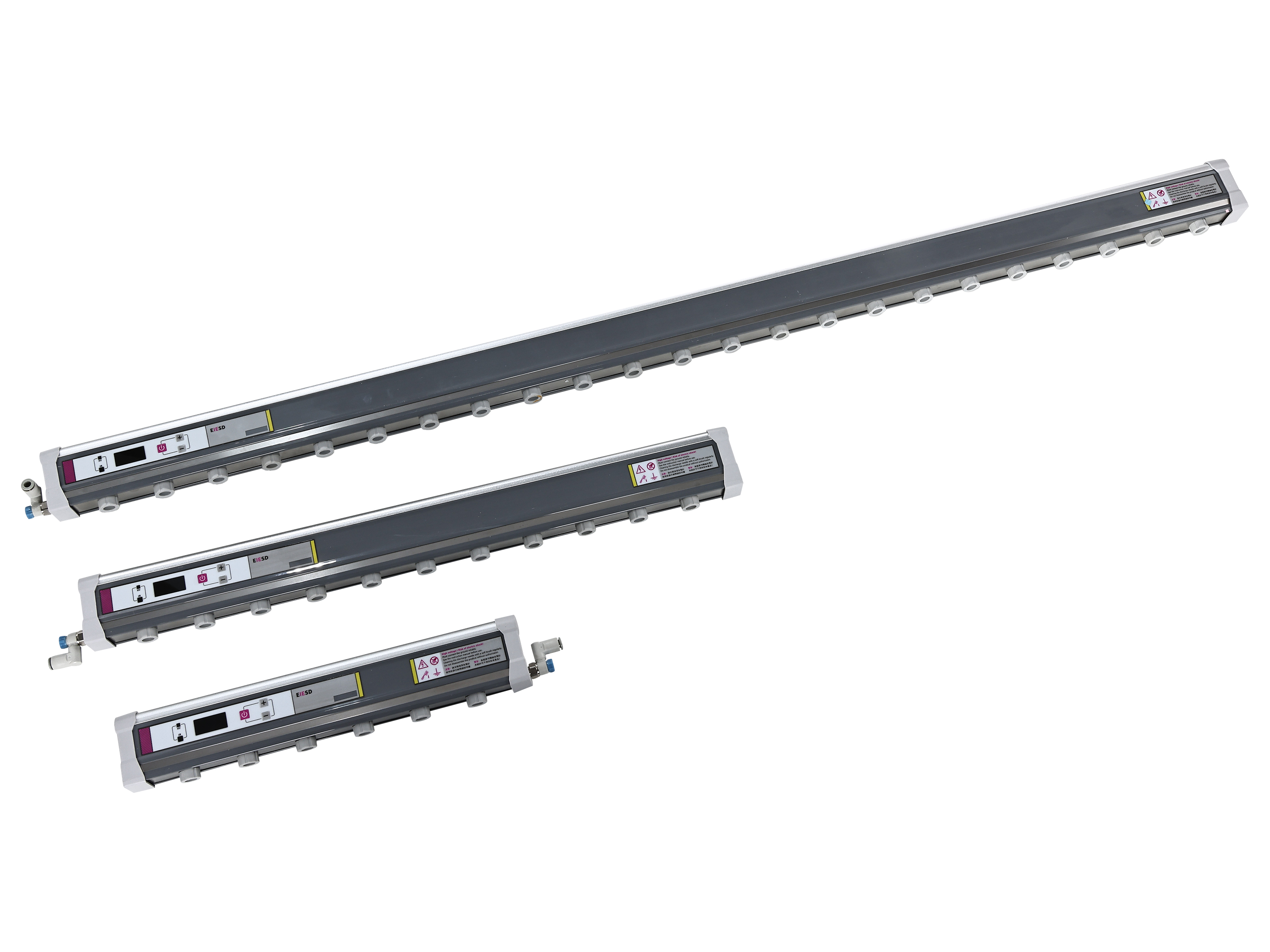

Ionizing air bars produce positive and negative ions via corona discharge, utilizing high-voltage electrodes. Ion density, emitter spacing, and voltage influence the rate of charge neutralization. AC and pulsed DC ionization modes are commonly employed to maintain ion balance and minimize surface bias.
Charge decay is governed by the interaction between emitted ions and the charged surface. Factors such as air velocity, ion concentration, airflow direction, and environmental conditions influence decay rates. Effective ESD protection requires rapid and uniform neutralization across the target area.
Bidirectional airflow involves the emission of air from opposite directions, often through dual fans or channels integrated into the ion bar. This approach aims to increase coverage uniformity and enhance ion delivery to complex geometries.
By introducing ions from multiple directions, bidirectional airflow reduces shadowing effects and ensures that ions reach surfaces that may be obstructed in unidirectional designs. Computational fluid dynamics (CFD) simulations demonstrate improved ion density uniformity and lower peak surface potential in bidirectional configurations.
Air velocity, divergence angle, and interaction zones are critical parameters. Optimized velocity ensures sufficient ion transport without creating turbulence that could reduce ion attachment efficiency. Proper angle selection ensures overlap of opposing airflow streams, maximizing surface coverage.
Empirical studies indicate that bidirectional airflow can reduce charge decay times by 10–30% compared to unidirectional systems, depending on module length, ion density, and environmental conditions. Faster charge decay reduces the risk of ESD-induced damage in sensitive components.
Additional fans or blowers in bidirectional designs contribute to heat generation. Electrical losses in high-voltage modules and corona discharge further increase thermal load. Proper thermal management is required to maintain emitter performance and prevent overheating.
Passive heat sinks, conductive housings, and microfans integrated into the airflow path mitigate thermal buildup. Thermal simulations guide the placement of cooling elements to maintain uniform temperature distribution across the ion bar.
Bidirectional airflow designs require careful insulation of high-voltage components near air channels. Interlocks and protective barriers prevent accidental contact, ensuring operator safety.
Controlled experiments compare bidirectional and unidirectional ion bars under identical environmental conditions. Surface potentials are measured using electrostatic voltmeters, and charge decay times are recorded for various target geometries.
Ion density sensors capture the spatial distribution of positive and negative ions. Bidirectional airflow shows improved uniformity and higher average ion concentration across the target area.
Experimental results indicate that bidirectional airflow reduces localized charge retention and accelerates overall decay. Shadowed areas in unidirectional systems achieve better neutralization in bidirectional configurations.
Air velocity, divergence angle, and fan placement are optimized to achieve maximal ESD efficiency. Excessive velocity may induce turbulence, while insufficient velocity reduces ion transport, highlighting the need for balanced design.
Independent control of opposing fans allows adaptive adjustment of ion flow based on target geometry, charge distribution, and environmental conditions.
High-voltage output can be dynamically adjusted to optimize ion production, maintain ion balance, and reduce ozone generation.
Real-time monitoring of ion density, airflow, temperature, and surface potential enables closed-loop control, ensuring consistent ESD protection even in variable conditions.
Bidirectional ion bars are integrated into conveyor systems, pick-and-place machines, and robotic workstations. Adaptive control ensures compatibility with high-speed manufacturing processes.
Designs adhere to IEC 61010, UL, and other electrical safety standards. Insulation, grounding, and interlocks prevent accidental exposure to high voltage.
Bidirectional airflow may increase ozone generation due to higher ionization efficiency. Ventilation, ozone catalysts, and low-voltage optimization are implemented to maintain safe concentrations.
Systems comply with ANSI/ESD S20.20 and IEC 61340, ensuring rapid charge decay, uniform ion balance, and safe operating conditions.
Mechanical integrity under vibration, airflow stress, and thermal cycling is verified according to industry standards to ensure reliability.
Integration of bidirectional ion bars in a high-density SMT line reduced charge decay times by 25% compared to unidirectional systems, resulting in a measurable decrease in component failure.
Bidirectional airflow improved coverage over flexible substrates, reducing localized static accumulation and enhancing yield in roll-to-roll processing.
In microfabrication workstations, bidirectional ion bars enhanced uniformity on complex geometries, preventing static-induced particle attraction and improving device reliability.
Bidirectional systems facilitated uniform ion distribution over large display panels, ensuring consistent static control and reducing defect rates.
CFD simulations model airflow interactions, ion transport, and turbulence patterns. These models help optimize fan placement, divergence angles, and module spacing for bidirectional systems.
Finite element analysis predicts charge distribution, ion attachment rates, and decay times across complex surfaces. Simulation guides the design of electrode placement and voltage settings.
Thermal simulations evaluate heat buildup in fans, high-voltage modules, and emitters. Predictive modeling ensures safe operating temperatures and consistent performance.
Sensitivity analysis identifies key design parameters affecting ESD efficiency. Multi-objective optimization balances ion coverage, airflow efficiency, thermal performance, and energy consumption.
Research on multi-directional airflow, dynamic fan adjustment, and adaptive voltage control aims to further enhance ion distribution and charge decay performance.
Machine learning algorithms can analyze real-time sensor data to optimize airflow, ion output, and module coordination, improving efficiency and predictive maintenance.
Low-power fans, optimized airflow paths, and dynamic voltage control reduce energy consumption and operational costs while maintaining high ESD performance.
Bidirectional ion bars can be integrated with Industry 4.0 systems, enabling digital twin simulations, real-time monitoring, and autonomous adjustment in automated production lines.
Advanced emitter materials and coatings may improve ion generation efficiency, reduce corrosion, and enhance performance in bidirectional airflow configurations.
Bidirectional airflow designs significantly impact the efficiency of ionizing air bars in neutralizing static charges. By introducing air from opposing directions, these systems enhance ion coverage, accelerate charge decay, and improve uniformity, particularly in complex or large-area workstations. Effective design requires careful consideration of airflow velocity, divergence angles, thermal management, electrical safety, and integration with control systems. Experimental studies and simulations confirm the benefits of bidirectional airflow, while ongoing research focuses on AI-driven control, energy efficiency, and advanced materials. Implementation of bidirectional ion bars provides a robust solution for modern electronics manufacturing, ensuring high-yield, reliable, and safe production environments.
