Precision sensors are indispensable components in modern science, industry, aerospace, medical technology, and advanced manufacturing. Their performance depends critically on the stability and integrity of physical, electrical, and chemical interactions occurring at or near the sensor surface. Among the various disturbance factors, surface electrostatic effects—commonly referred to as static electricity or electrostatic charge phenomena—pose a significant and often underestimated threat to sensor accuracy, repeatability, reliability, and long-term stability. Electrostatic charges can originate from triboelectric processes, environmental interactions, material properties, electronic circuitry, and operational conditions. Once present, they can distort electric fields, induce parasitic forces, alter charge transport, and introduce noise or drift in sensor outputs.
This comprehensive review examines the mechanisms by which surface electrostatic effects influence precision sensors. It systematically analyzes charge generation, accumulation, transport, and dissipation on sensor surfaces, and explains how these phenomena interact with different sensor principles, including capacitive, piezoelectric, optical, MEMS-based, electrochemical, and quantum sensors. The paper further discusses environmental and material factors, measurement uncertainties, mitigation and control techniques, experimental evaluation methods, and future research directions. The goal is to provide a rigorous technical reference for sensor designers, researchers, and engineers seeking to understand and manage electrostatic effects in high-precision sensing applications.
Precision sensors; surface electrostatics; static electricity; charge accumulation; measurement noise; sensor drift; electrostatic control
Precision sensors form the backbone of modern measurement systems, enabling accurate detection of physical quantities such as displacement, force, pressure, temperature, acceleration, electric and magnetic fields, chemical concentrations, and biological signals. As sensor technology advances toward higher sensitivity, smaller scales, and lower signal levels, the influence of subtle disturbance mechanisms becomes increasingly pronounced. Among these mechanisms, surface electrostatic effects stand out due to their ubiquitous nature and complex interactions with sensor structures and environments.
Static electricity has long been recognized as a source of interference in electronic systems. However, in precision sensors—especially those operating at micro- and nano-scales—the impact of electrostatic phenomena extends far beyond simple electromagnetic interference. Surface charges can generate spurious forces comparable to or larger than the measurand itself, modify boundary conditions, affect charge carrier dynamics, and cause long-term drift through charge trapping and material aging.
The growing adoption of microelectromechanical systems (MEMS), nanoelectromechanical systems (NEMS), and advanced solid-state sensors has further amplified the relevance of electrostatic effects. Reduced dimensions increase surface-to-volume ratios, making surface phenomena dominant over bulk properties. At the same time, sensors are increasingly deployed in uncontrolled or harsh environments, where humidity, contamination, radiation, and mechanical contact exacerbate charge-related issues.
This paper presents an in-depth analysis of surface electrostatic effects on precision sensors. Unlike application-specific studies, this work adopts a unified perspective, covering fundamental mechanisms, sensor-specific manifestations, and practical mitigation strategies. The discussion is intended to support both theoretical understanding and engineering practice.
Electrostatic charge arises from an imbalance between positive and negative charges within or on the surface of a material. In solids, this imbalance is often associated with the transfer or redistribution of electrons. Surface charges may be free to move along the surface, trapped in localized states, or bound to adsorbed species such as water molecules or contaminants.
The behavior of surface charge is governed by material properties including electrical conductivity, dielectric constant, surface resistivity, and defect density. Insulating and semi-insulating materials are particularly prone to charge accumulation due to limited charge dissipation pathways.
Several mechanisms can generate electrostatic charges on sensor surfaces:
Triboelectric Charging: Charge transfer occurs when two materials come into contact and then separate, driven by differences in electron affinity.
Corona and Ion Bombardment: High electric fields can ionize surrounding air, leading to charge deposition on surfaces.
Photoelectric and Radiation Effects: Ultraviolet light, X-rays, and particle radiation can liberate electrons from surfaces.
Charge Injection from Electronics: Bias voltages and leakage currents in sensor circuits may inject charges into dielectric layers.
Electrochemical Reactions: In chemical and biological sensors, redox processes can create localized charge imbalances.
Once generated, charges may accumulate on the surface or within near-surface layers. Charge trapping occurs at defects, grain boundaries, interfaces, and adsorbed layers. Trapped charges can persist for long durations, leading to memory effects and hysteresis in sensor response.
Charge dissipation depends on surface and bulk conductivity, environmental humidity, and grounding conditions. The characteristic relaxation time of surface charge can range from milliseconds to days or even longer, depending on material and environmental factors.
Surface charges generate electric fields that extend into the surrounding space. In precision sensors, these fields can interact with movable elements, charged particles, or field-sensitive transduction mechanisms. Electrostatic forces scale with charge magnitude and inversely with distance, making them particularly significant at small separations.
Surface charges can modify capacitance, resistance, and leakage currents. In capacitive sensors, even a small amount of charge can shift the effective capacitance, leading to offset errors. In resistive and semiconductor sensors, surface charge alters carrier concentration and mobility.
Electrostatic effects contribute to several forms of noise, including flicker noise, random telegraph noise, and low-frequency drift. Time-varying charge redistribution leads to instability in sensor output, degrading resolution and long-term accuracy.
Capacitive sensors are widely used for displacement, pressure, and humidity measurements. They are inherently sensitive to electric fields, making them particularly vulnerable to surface electrostatic effects. Accumulated charges introduce parasitic electrostatic forces and bias the capacitance measurement, often resulting in nonlinearity and hysteresis.
In piezoelectric sensors, surface charges can interact with the intrinsic polarization of the material. External electrostatic fields may induce spurious charges that superimpose on the piezoelectric signal, complicating signal interpretation.
MEMS accelerometers, gyroscopes, and resonators rely on micrometer-scale structures. Electrostatic charging can cause stiction, pull-in instability, frequency shifts, and quality-factor degradation. Charge trapping in dielectric layers is a major reliability concern in MEMS devices.
Electrostatic effects influence optical sensors indirectly through dust attraction, refractive index changes in surrounding media, and electro-optic interactions. In interferometric sensors, electrostatic forces can cause nanometer-scale displacements that are significant relative to measurement resolution.
Surface charge plays a central role in electrochemical sensing. However, uncontrolled electrostatic effects can lead to baseline drift, non-specific adsorption, and reduced selectivity. In biosensors, electrostatic interactions affect biomolecule binding and orientation.
Emerging quantum sensors, such as atomic force-based detectors and nitrogen-vacancy (NV) center sensors, operate at extreme sensitivity levels. Even minimal surface charge fluctuations can dominate the noise budget, necessitating stringent electrostatic control.
Humidity significantly affects surface conductivity and charge dissipation. Adsorbed water layers can both enhance and destabilize charge relaxation processes, depending on thickness and purity.
Temperature influences material conductivity, charge mobility, and adsorption dynamics. Thermal cycling can also promote triboelectric charging through differential expansion and contact.
Dust, oils, and chemical residues modify surface properties and often act as charge reservoirs. Electrostatic attraction of particles further exacerbates contamination issues.
Low-pressure environments reduce ion availability for charge neutralization, increasing charge persistence. Gas composition affects ionization and surface reactions.
Non-contact techniques such as Kelvin probe force microscopy and electrostatic voltmeters are used to map surface potential distributions.
Field mills, electrostatic probes, and simulation-based inversion methods provide insight into electric field distributions around sensors.
Time-domain and frequency-domain analyses are employed to quantify electrostatic-induced noise and drift.
Using conductive or semi-conductive coatings, antistatic materials, and surface treatments can significantly reduce charge accumulation.
Proper grounding strategies and electrostatic shielding minimize external field coupling and provide controlled charge dissipation paths.
Maintaining controlled humidity, cleanliness, and atmospheric conditions is essential in high-precision sensor applications.

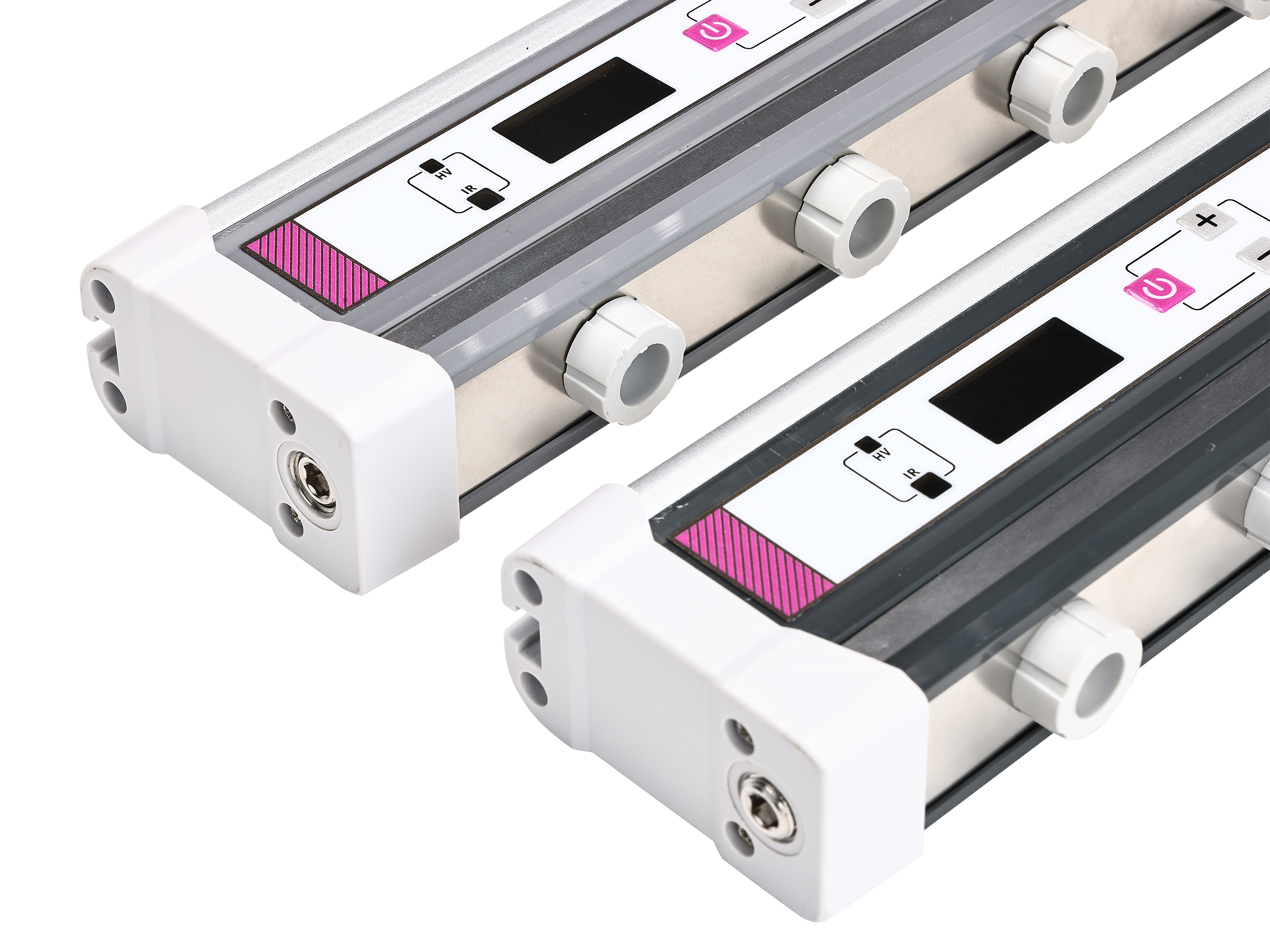

Ionizers, ion wind devices, and feedback-controlled charge neutralization systems are increasingly used in precision measurement setups.
Advanced algorithms can identify and compensate for electrostatic-induced errors, although they cannot fully replace physical mitigation.
Persistent surface charges contribute to dielectric aging, material degradation, and long-term drift. Understanding electrostatic aging mechanisms is crucial for predicting sensor lifetime and maintenance requirements.
Examples from semiconductor manufacturing, aerospace inertial sensing, medical diagnostics, and metrology illustrate the practical significance of surface electrostatic effects and successful mitigation strategies.
Future work will focus on multi-physics modeling, intelligent electrostatic control, novel materials with intrinsic charge dissipation properties, and standardized evaluation methodologies for electrostatic robustness.
Surface electrostatic effects represent a fundamental limitation to the performance of precision sensors. As sensor technologies continue to push the boundaries of sensitivity and miniaturization, understanding and controlling electrostatic phenomena becomes increasingly critical. Through comprehensive analysis of mechanisms, impacts, and mitigation strategies, this paper provides a foundation for improving sensor accuracy, reliability, and long-term stability in the presence of unavoidable electrostatic disturbances.
