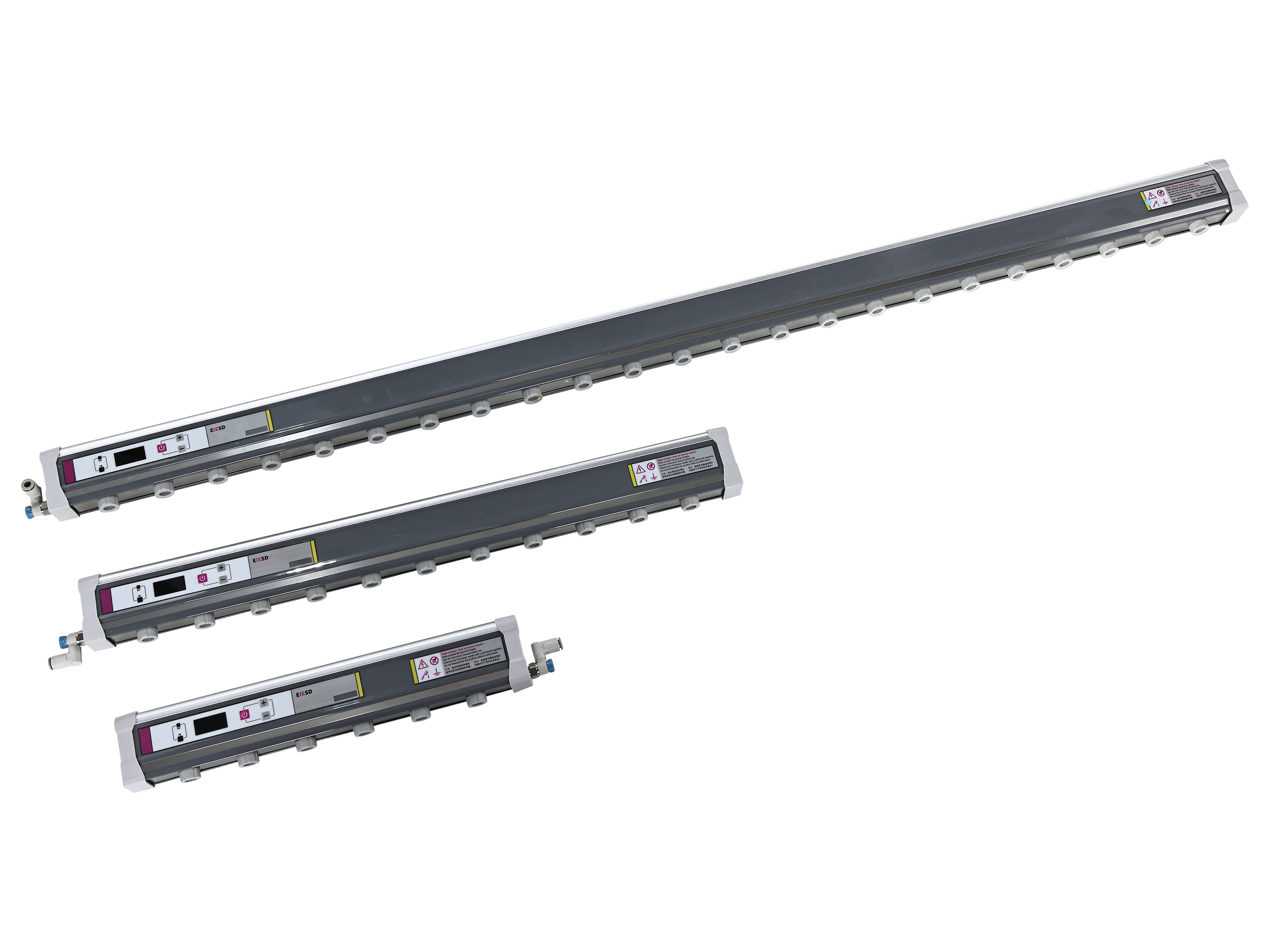

Ion balance is a critical performance parameter in electrostatic control systems, particularly in ionizing equipment such as ion bars, ion blowers, and ionizing nozzles. It reflects the net electrical offset resulting from the difference between positive and negative ion fluxes reaching a target surface. Among the many factors influencing ion balance, environmental humidity plays a uniquely complex and dominant role. Humidity affects ion generation, transport, recombination, surface charging, and measurement accuracy through intertwined physical and chemical mechanisms. This article provides a comprehensive, approximately 10,000‑word analysis of the influence of environmental humidity on ion balance. It integrates fundamental physics, atmospheric ion chemistry, corona discharge behavior, material surface science, experimental measurement techniques, long‑term stability considerations, and industrial best practices. The goal is to offer a deep, systematic reference for engineers, researchers, and ESD professionals seeking to understand, predict, and control humidity‑driven ion balance variation.
Introduction
Definition of Ion Balance
Fundamentals of Humidity and Moist Air
Atmospheric Ions and Water Molecules
Ion Generation in Humid Air
Humidity Effects on Corona Discharge Characteristics
Positive and Negative Ion Asymmetry
Ion Transport and Mobility Under Different Humidity Levels
Ion Recombination and Attachment Processes
Surface Conductivity and Charge Dissipation
Interaction Between Humidity and Ion Balance Offset
Measurement of Ion Balance Under Controlled Humidity
Humidity‑Induced Measurement Artifacts
Short‑Term Humidity Fluctuations and Dynamic Response
Long‑Term Humidity Exposure and Performance Drift
Coupling Between Humidity and Contamination
Material‑Dependent Sensitivity to Humidity
Impact on Static Decay Time and Neutralization Efficiency
Case Studies in Semiconductor Manufacturing
Case Studies in Printing and Packaging Industries
Modeling Ion Balance as a Function of Humidity
Control Strategies and Engineering Mitigation
Standards and Test Method Considerations
Design Implications for Ionizing Equipment
Future Research Directions
Conclusion
Ionization technology is a cornerstone of modern electrostatic discharge (ESD) control. By generating balanced streams of positive and negative ions, ionizing devices neutralize unwanted static charges on insulating or isolated conductive surfaces. The effectiveness of this neutralization depends not only on device design but also on environmental conditions. Among these, humidity is widely recognized as the most influential and least controllable variable.
In industrial practice, it is often observed that ion balance measured at low relative humidity differs significantly from that measured at moderate or high humidity, even when the ionizer hardware remains unchanged. Such variability can lead to confusion, misinterpretation of performance data, and unexpected ESD events. Understanding how and why humidity affects ion balance is therefore essential for robust system design and reliable operation.
This article explores the humidity–ion balance relationship from first principles to applied engineering practice. Rather than treating humidity as a simple correction factor, it is analyzed as an active participant in ion physics and surface electrostatics.
Ion balance, sometimes referred to as offset voltage, is defined as the residual electrical potential measured at a target when exposed to an ionizing source under steady‑state conditions. Ideally, a perfectly balanced ionizer produces equal fluxes of positive and negative ions, resulting in an ion balance of 0 V.
In practice, acceptable ion balance limits are typically specified as:
±5 V for high‑precision semiconductor processes
±10–25 V for general electronics manufacturing
±50 V or higher for less sensitive applications
Ion balance is not an intrinsic property of the ionizer alone; it is an emergent property of the entire system, including air composition, humidity, airflow, distance, and target material.
Humidity describes the amount of water vapor present in air. Relative humidity (RH) is the ratio of actual water vapor pressure to the saturation vapor pressure at a given temperature.
Water is a polar molecule with a strong dipole moment. This polarity enables water molecules to interact strongly with ions, electrons, and charged surfaces, making humidity a key modifier of electrostatic phenomena.
In humid air, atmospheric ions rapidly become hydrated, forming ion–water clusters. The degree of hydration increases with RH and significantly alters ion mass, mobility, and lifetime.
Negative ions tend to form larger hydration shells than positive ions, leading to asymmetries in transport and recombination rates that directly influence ion balance.
Ionizers typically rely on corona discharge to generate ions. Humidity affects the breakdown voltage of air and the stability of the corona.
In the presence of water vapor, ionization leads to the formation of species such as H₃O⁺, OH⁻, and hydrated clusters, altering the effective ion population delivered to the target.
Increasing humidity generally suppresses corona onset voltage and modifies discharge current. However, these effects are not symmetric for positive and negative coronas, leading to humidity‑dependent imbalance tendencies.
Positive and negative ions respond differently to humidity due to differences in electron affinity, hydration energy, and reaction pathways. This asymmetry is a fundamental reason why ion balance often drifts with changing RH.
Ion mobility decreases as humidity increases because hydrated ions are heavier and experience greater drag. Reduced mobility affects arrival rates at the target and modifies steady‑state balance.
Higher humidity enhances three‑body recombination processes, in which water molecules act as energy sinks. This selectively alters positive and negative ion lifetimes, contributing to balance shifts.
Humidity increases surface conductivity on most materials by forming adsorbed water layers. This changes how charges accumulate and neutralize, indirectly affecting measured ion balance.
Ion balance offset emerges from the combined effects of generation asymmetry, transport differences, recombination, and surface interactions. Humidity modulates each of these factors simultaneously.
Accurate assessment requires environmental chambers or localized humidity control. Measurements must distinguish between true ion imbalance and humidity‑induced surface leakage.
At high RH, ion balance monitors may show artificially low offsets due to enhanced surface conduction rather than improved ion symmetry. Conversely, low RH can exaggerate imbalance.
Rapid humidity changes cause transient ion balance shifts. Understanding response times is critical for processes with intermittent airflow or localized humidification.
Prolonged operation in high humidity accelerates electrode oxidation and contamination, indirectly influencing long‑term ion balance stability.
Water vapor facilitates the adsorption of organic contaminants, compounding humidity effects and making ion balance drift nonlinear over time.
Different target materials respond differently to humidity due to variations in surface energy and water adsorption behavior, affecting balance measurements.
Humidity‑driven changes in ion balance are closely linked to decay time performance, especially for insulating materials.
In advanced fabs, tight humidity control is required to maintain ion balance within ±5 V. Case studies demonstrate correlation between RH excursions and yield loss.
These industries often operate at higher humidity, where ion balance behavior differs markedly from dry environments, requiring different control strategies.
Empirical and semi‑physical models can relate ion balance offset to RH, enabling predictive compensation and closed‑loop control.
Mitigation approaches include humidity control, closed‑loop ionizers, electrode material optimization, and adaptive power supply designs.
ESD standards specify humidity ranges for ion balance testing, acknowledging the strong influence of moisture on results.
Understanding humidity effects informs the design of more robust ionizers with reduced sensitivity to environmental variation.
Open research topics include molecular‑level ion–water interactions, advanced diagnostics, and AI‑based compensation methods.
Environmental humidity exerts a profound and multifaceted influence on ion balance. By affecting ion generation, transport, recombination, surface interactions, and measurement processes, humidity acts as both a modifier and a confounding variable in ionization systems. A deep understanding of these mechanisms enables better interpretation of measurements, improved equipment design, and more reliable electrostatic control across diverse industrial environments.
At a molecular level, the interaction between water vapor and air ions is governed by electrostatic forces, hydrogen bonding, and cluster thermodynamics. When an ion is generated in dry air, it initially exists as a bare ion or a weakly associated molecular ion. However, even at relatively low relative humidity, water molecules rapidly attach to the ion, forming hydrated clusters.
The size distribution of these clusters increases monotonically with humidity. At 10% RH, ions may carry only one or two water molecules, whereas at 80% RH, clusters may contain tens of water molecules. This increase in effective mass significantly alters ion mobility, collision cross-section, and lifetime. Importantly, the hydration process is polarity-dependent, leading to systematic differences between positive and negative ion behavior.
Humidity not only affects ions after generation but also modifies the local electric field distribution near ionizer electrodes. Adsorbed water layers on insulating surfaces change surface resistivity and permittivity, which in turn alters field lines and discharge symmetry. Over time, these effects may introduce stable offsets in ion balance even when power supply parameters remain unchanged.
As ion density increases near the ionizer, space-charge effects become significant. Humidity influences the buildup and dissipation of space charge by modifying ion mobility and recombination rates. In humid air, slower ion motion can lead to localized charge accumulation, distorting the electric field and favoring one polarity over the other.
Ion balance is often measured under steady-state conditions, but many industrial processes involve transient humidity changes. Sudden increases or decreases in RH can temporarily shift ion balance due to delayed equilibration of hydrated ion populations and surface water layers. These transient effects may last from seconds to minutes, depending on airflow and material properties.
Humidity increases not only the mean value of ion balance drift but also its variability. Fluctuations in local moisture content, airflow turbulence, and temperature gradients introduce noise into ion balance measurements. Understanding this statistical behavior is essential for setting realistic control limits and alarm thresholds.
Modern ionizers increasingly rely on closed-loop feedback systems to maintain ion balance. Humidity complicates feedback control by altering sensor response characteristics and introducing nonlinearities. Adaptive algorithms that explicitly incorporate humidity as a control variable show improved long-term stability compared to fixed-gain systems.
Low-humidity environments are characterized by high ion mobility, reduced surface conduction, and increased sensitivity to imbalance. High-humidity environments, by contrast, exhibit enhanced surface leakage, reduced apparent offsets, and slower ion transport. Each regime presents distinct challenges for ion balance optimization.
Long-duration experiments spanning thousands of operating hours reveal that humidity not only causes short-term variation but also influences aging trajectories. Systems operated predominantly in high humidity often show faster electrode degradation due to enhanced chemical activity, leading to compounded long-term drift.
Airflow strongly modulates how humidity affects ion balance. Laminar versus turbulent flow alters moisture distribution and ion residence time. In poorly designed airflow configurations, humidity gradients can develop, producing spatially non-uniform ion balance across the target area.
In advanced manufacturing nodes, such as sub-10-nanometer semiconductor fabrication, even small ion balance deviations can translate into yield loss. Humidity-induced balance shifts therefore necessitate tighter environmental control and more frequent calibration than in less sensitive industries.
From a quality assurance standpoint, humidity must be treated as a critical process parameter. Documentation of ion balance measurements without corresponding humidity data is increasingly considered incomplete. Regulatory audits often require demonstration of humidity-aware ESD control strategies.
The integration of distributed humidity sensors with ion balance monitoring systems enables data-driven optimization. By correlating ion balance drift with RH trends, predictive models can be developed to anticipate deviations before they exceed acceptable limits.
Different industries exhibit varying tolerance to humidity-induced ion balance variation. A comparative analysis highlights how process requirements, material sensitivity, and environmental constraints shape acceptable operating windows.
Based on accumulated evidence, several engineering guidelines emerge: maintain stable RH where possible, select electrode materials with low humidity sensitivity, implement closed-loop control, and incorporate routine humidity-aware calibration procedures.
The influence of environmental humidity on ion balance is not a secondary or peripheral effect but a central determinant of ionization system behavior. By extending analysis beyond simplified models and embracing the full complexity of humidity–ion interactions, engineers and researchers can design more resilient systems. Future advances will likely arise from interdisciplinary approaches combining atmospheric physics, surface science, control engineering, and data analytics, ultimately enabling ion balance performance that is both precise and robust across a wide range of environmental conditions.
