Ionizing air bars are widely employed in precision manufacturing to neutralize static electricity on surfaces and moving materials. Traditional designs often integrate fixed emitter needles, which degrade over time due to oxidation, contamination, or mechanical wear, leading to inconsistent ion generation and increased maintenance requirements. Innovative designs featuring replaceable emitter needles offer a flexible, cost-effective solution to extend service life, improve operational stability, and reduce downtime. This article provides a comprehensive technical discussion of replaceable emitter needle design in ionizing air bars, including principles of ion generation, material selection, mechanical design, electrical integration, self-diagnostic strategies, industrial applications, and future development directions. The work targets engineers, researchers, and industry professionals seeking to implement advanced, maintainable ionization solutions.
Ionizing air bars are critical in industries such as semiconductor manufacturing, display production, battery assembly, and printing, where electrostatic discharge (ESD) can lead to product defects, material damage, and safety hazards. Conventional fixed emitter designs suffer from gradual performance degradation due to contamination, oxidation, or mechanical damage. These issues necessitate frequent maintenance or complete replacement, increasing operational costs and risking unplanned downtime.
The concept of replaceable emitter needles allows for rapid, cost-effective maintenance, preserving ionization efficiency while minimizing disruption to production processes. Additionally, replaceable designs can enable modular upgrades, adapting to evolving process requirements or environmental conditions.
This article systematically covers:
Ionization principles and emitter needle function
Material considerations for replaceable electrodes
Mechanical and electrical design strategies
Self-diagnostic integration
Performance evaluation and industrial applications
Reliability, maintenance optimization, and lifecycle cost analysis
Future trends and research directions
Ion generation in air bars primarily occurs via corona discharge, where a high electric field at a sharp electrode tip ionizes nearby air molecules. Positive and negative ions migrate toward charged surfaces, neutralizing static electricity. Emitter needle geometry, tip sharpness, and material properties strongly influence ionization efficiency and stability.
Ion migration is affected by airflow, electrode spacing, environmental humidity, and temperature. Maintaining consistent ion output requires precise control over needle placement and condition.
Key performance indicators include ion current, polarity balance, static decay time, and uniformity of ion distribution across the target surface. These metrics are critical for evaluating the effectiveness of replaceable emitter designs.
Temperature, relative humidity, and airborne particulate matter directly affect corona onset voltage, ion mobility, and needle degradation rates. Understanding these interactions informs both material selection and replacement scheduling.
Metal needles are subject to surface oxidation and particulate deposition, which reduces corona efficiency. Even minor contamination alters the local electric field, causing uneven ion distribution.
Vibration, accidental contact, or high-speed airflow can deform the needle tip. Deformation increases corona onset voltage and can create uneven ion generation.
Cleaning or replacing entire ionizing bars is labor-intensive, increases production downtime, and introduces potential handling errors that may damage equipment.
Frequent full-bar replacements raise operational costs and inventory requirements. Lack of modularity limits rapid adaptation to evolving industrial demands.
Replaceable emitter needles are designed as individual modules or cartridges that can be inserted and removed without disassembling the entire ionizing air bar. Modularity allows targeted replacement, rapid maintenance, and the potential to upgrade specific needle types without affecting the whole bar.
Precision sockets, spring-loaded holders, or clamping mechanisms secure needles while maintaining alignment and tip spacing. Proper mechanical integration ensures reproducible ion output after each replacement.
High-voltage connections to replaceable needles must maintain reliable contact and insulation. Conductive clips, spring contacts, or metallic sockets are commonly employed, ensuring minimal voltage drop and preventing corona loss at the connection point.
Replaceable needle designs often incorporate tool-free replacement, ergonomic access, and visual indicators to signal wear, reducing human error and downtime.
High-conductivity metals such as tungsten, molybdenum, or stainless steel provide durability and stable corona generation. The choice balances conductivity, mechanical hardness, and resistance to oxidation.
Gold plating, nickel, or conductive ceramic coatings prevent oxidation and reduce contamination adherence. Surface treatments also help maintain consistent ionization characteristics over the needle's lifespan.
Needles must withstand temperature variations and mechanical stresses without deformation. Materials with high melting points and low thermal expansion coefficients are preferred.
Microhardness and resistance to mechanical wear extend service life, reducing replacement frequency and ensuring stable ion output.
Precision sockets with spring clips or threaded mounts provide secure retention while allowing quick replacement. Tolerances are critical to maintain consistent gap spacing.
Needle tips are often conical or needle-shaped to concentrate electric fields. Micro-structuring enhances corona onset and uniformity. Surface roughness is controlled to balance ionization efficiency with durability.
The housing accommodates needle modules, protects electrical contacts, and ensures laminar airflow for optimal ion transport. Modular supports allow selective replacement of damaged or worn needles.
Design must prevent needle displacement due to vibrations from machinery or airflow-induced oscillations.
Spring-loaded or clip-based contacts provide low-resistance electrical connection while maintaining insulation from the high-voltage environment.
Uniform voltage distribution along the bar is essential for consistent ion generation. Polarity-switching mechanisms allow balanced positive and negative ion output.
Insulation, current limiting, and interlock mechanisms ensure operator safety during maintenance and replacement procedures.
Electrical design minimizes unwanted corona at connection points and prevents arcing that could degrade the needle or housing.
Sensors embedded near each needle measure ion current, local voltage, and discharge characteristics, enabling real-time monitoring of needle performance.
Data from individual needles feed algorithms that detect anomalies, classify wear, and predict replacement schedules before noticeable performance degradation occurs.
Self-diagnostic feedback can adjust applied voltage, pulse frequency, or ion output distribution to compensate for partially worn needles, maintaining uniform static neutralization.
Automated alerts inform operators of upcoming replacements, while detailed logs track needle performance history, enhancing predictive maintenance.
Replaceable needles reduce downtime in cleanroom environments, maintaining high ionization efficiency during wafer handling. Modular designs simplify compliance with cleanroom protocols.

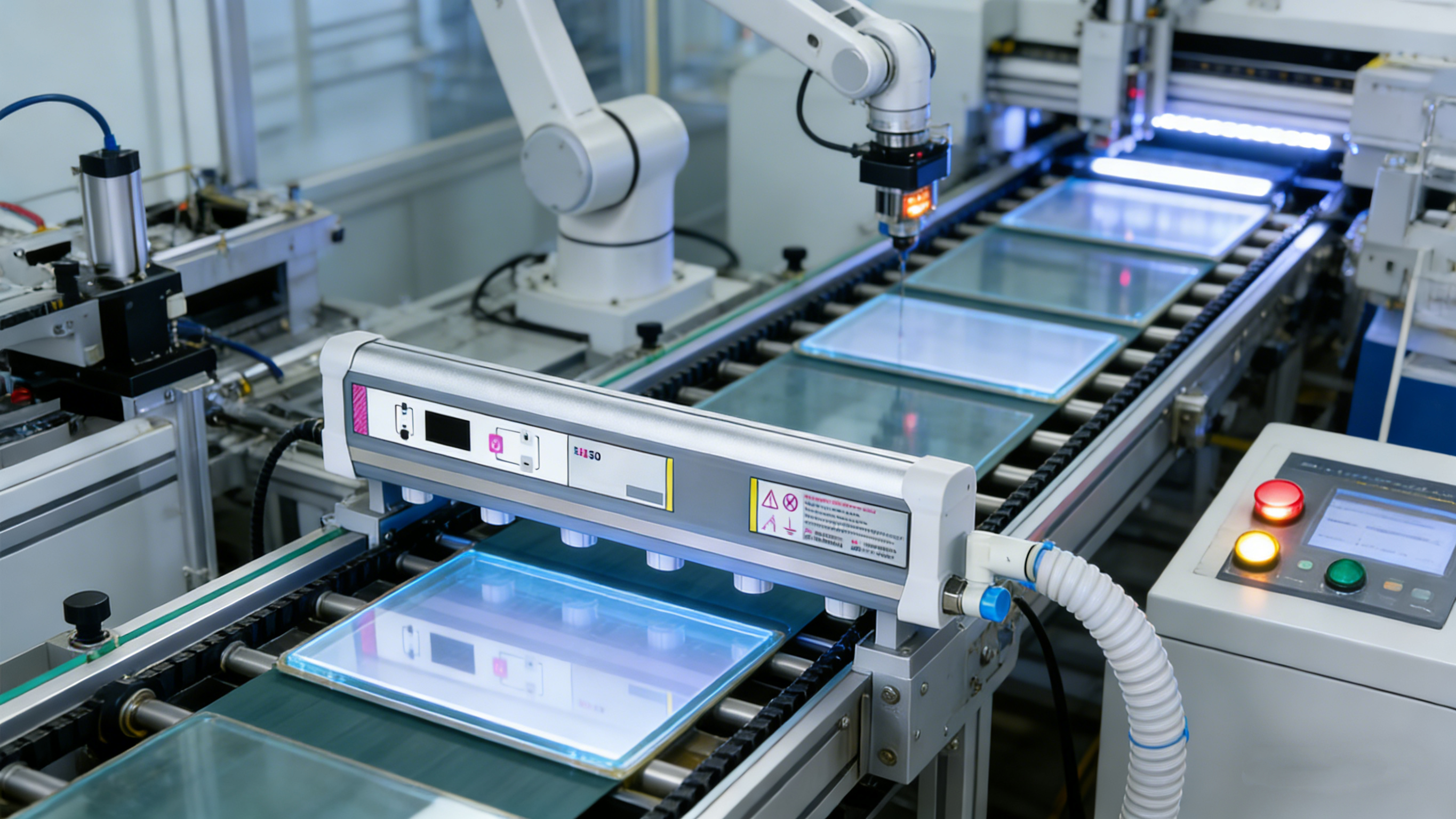

Rapid replacement of needles ensures continuous static control for fragile glass and OLED substrates, reducing yield loss due to electrostatic defects.
In dry rooms, modular needles allow maintenance without prolonged exposure to low-humidity conditions, preserving ionization reliability and safety.
High-speed web processing benefits from rapid needle replacement and uniform ion output, minimizing static-related defects and production interruptions.
Microelectronics assembly, 3D printing, and flexible electronics production increasingly require modular, maintainable ionization solutions to adapt to rapidly evolving manufacturing environments.
Current measurement for individual needles validates their operational status. Comparisons to baseline performance detect needle degradation.
Decay times of test charges confirm the effectiveness of replaced needles under typical operating conditions.
Repeated insertion/removal cycles, vibration tests, and airflow simulations ensure mechanical reliability over the product lifecycle.
Temperature and humidity variations, along with particulate exposure, are simulated to assess needle performance stability in real-world environments.
Clear protocols reduce errors, enhance safety, and minimize downtime. Color-coded or indexed needle modules aid rapid identification.
Sensor data allows forecasting of replacement needs, optimizing maintenance schedules and reducing unplanned downtime.
Replaceable needles reduce costs associated with full-bar replacement, cleaning labor, and production losses due to equipment downtime.
Nanostructured coatings and composite materials can further improve durability, reduce contamination adherence, and enhance ionization efficiency.
Robotic or semi-automated systems may replace needles in high-throughput production lines, minimizing human intervention.
Networking needle modules allows centralized monitoring of performance, predictive analytics, and maintenance tracking across multiple production lines.
Integrated microclimate sensors enable real-time adjustment of ion output, compensating for variations in temperature, humidity, or airflow.
Replaceable needle cartridges may incorporate new geometries, materials, or coatings, extending lifespan and adapting to evolving process requirements.
Modular replaceable designs reduce waste and resource consumption by limiting the replacement of entire bars and enabling selective upgrades.
Innovative replaceable emitter needle designs in ionizing air bars provide substantial operational advantages, including enhanced flexibility, improved maintenance efficiency, and sustained performance stability. Mechanical precision, material selection, electrical integration, and self-diagnostic monitoring are critical to successful implementation. These designs allow targeted replacement, predictive maintenance, and modular upgrades, reducing downtime and lifecycle costs. Future developments in automated replacement, IoT integration, microclimate adaptation, and advanced materials will further expand the capabilities of replaceable emitter systems, setting new standards for maintainable, high-performance ionization technology across semiconductor, display, battery, printing, and emerging electronics industries.
