Ion wind bars (also known as ionizing air bars or static elimination bars) are widely used in industrial processes to neutralize electrostatic charges on material surfaces. Their effectiveness relies on the generation, transport, and interaction of positive and negative ions within an electric field and surrounding airflow. Among the critical physical processes influencing performance is ion recombination, the phenomenon by which oppositely charged ions neutralize each other before reaching the target surface. This paper provides a comprehensive review and analysis of ion recombination phenomena in the context of ion wind bar applications. It discusses the fundamental physics of ion generation and recombination, influencing parameters such as electric field strength, electrode geometry, airflow characteristics, environmental conditions, and material properties. Experimental observations, numerical modeling approaches, and practical implications for ion wind bar design and operation are examined. Finally, strategies to mitigate undesirable recombination and enhance static neutralization efficiency are proposed.
Keywords: ion wind bar, ion recombination, static elimination, corona discharge, electrohydrodynamics, industrial electrostatics
Electrostatic charging is a pervasive issue in modern industrial environments, particularly in sectors such as semiconductor manufacturing, printing, packaging, plastics processing, film coating, and textile production. Accumulated static electricity can attract dust, cause material handling problems, damage sensitive electronic components, and even pose serious safety hazards due to electrostatic discharge (ESD) and ignition risks. As a result, effective static control technologies are essential for ensuring product quality, operational efficiency, and workplace safety.
Ion wind bars have become one of the most commonly deployed active static neutralization devices. These systems generate streams of positive and negative ions through corona discharge and deliver them toward charged surfaces using a combination of electric fields and induced airflow (the so-called ion wind). Ideally, ions of opposite polarity to the surface charge arrive at the surface and neutralize it efficiently.
However, in real-world operation, not all generated ions reach the target. A significant fraction may undergo ion recombination—a process in which positive and negative ions collide and neutralize each other in the air. Ion recombination reduces the net ion flux, weakens neutralization capability, increases energy consumption, and can lead to spatial imbalance in ion distribution. Understanding and controlling ion recombination is therefore a central challenge in optimizing ion wind bar performance.
This paper aims to provide an in-depth discussion of ion recombination phenomena in ion wind bar applications. The discussion spans from basic physical principles to applied engineering considerations, offering both theoretical insight and practical guidance.

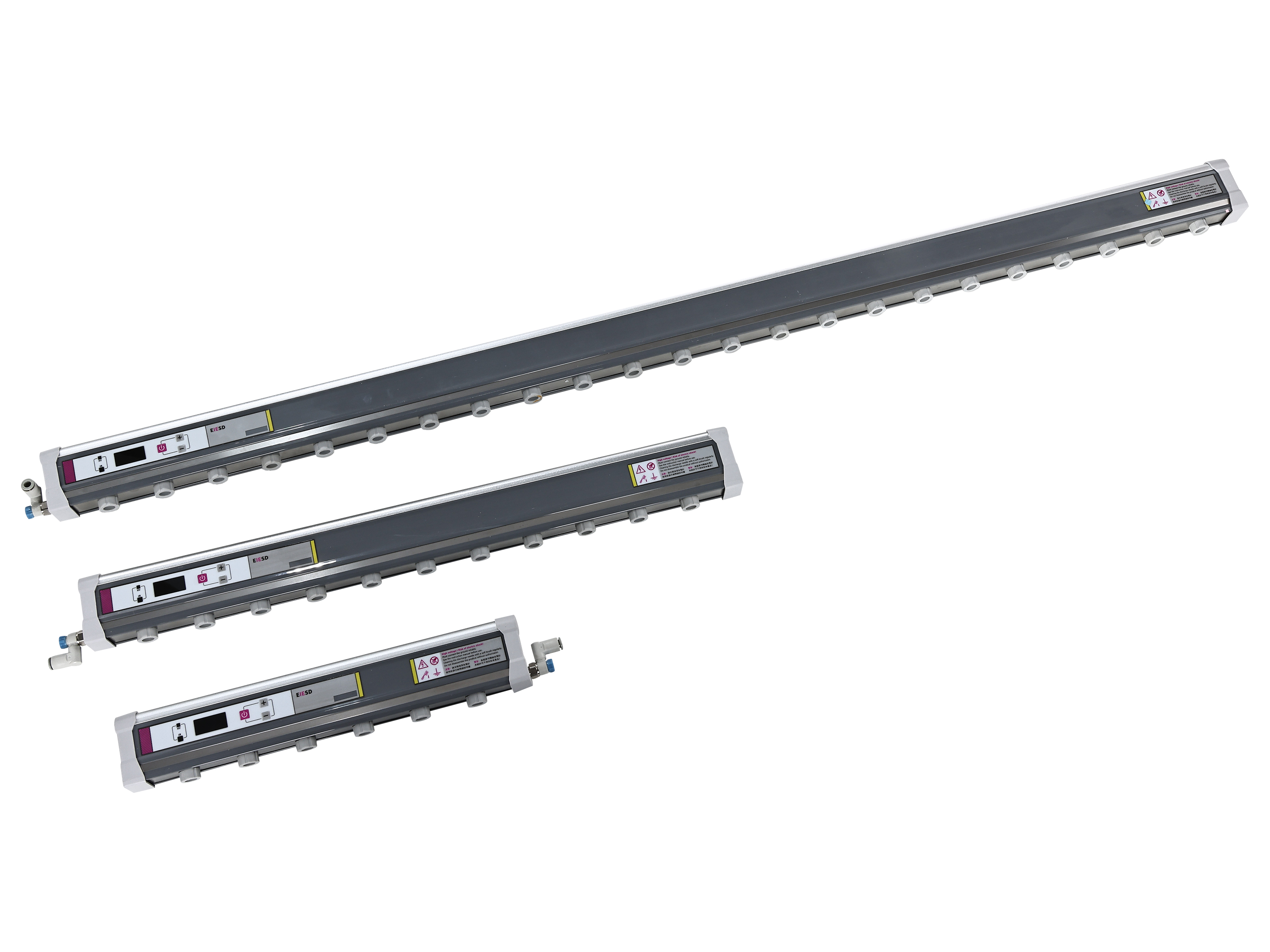

An ion wind bar typically consists of a linear array of high-voltage electrodes (needles, pins, or wires) housed within an insulating body. These electrodes are connected to a high-voltage power supply, often operating in the kilovolt range. Depending on the design, the system may use AC, pulsed DC, or balanced DC voltage to generate both positive and negative ions.
When a sufficiently high electric field is applied at the sharp electrode tips, corona discharge occurs. This discharge ionizes surrounding air molecules, producing ions and free electrons. The electric field accelerates these charged species away from the electrode region, forming an ion cloud. In many designs, an auxiliary airflow—either natural or forced by a fan—is used to transport ions toward the target surface.
The term “ion wind” refers to the bulk movement of neutral air molecules induced by the momentum transfer from drifting ions under an electric field. As ions move, they collide with neutral molecules, imparting momentum and generating a macroscopic airflow. This electrohydrodynamic (EHD) effect enhances ion transport distance and improves coverage over large surfaces.
While ion wind improves ion delivery, it also increases the likelihood of ion–ion and ion–neutral collisions, which are directly related to recombination processes.
Effective static neutralization requires a balance between positive and negative ion output. Modern ion wind bars often incorporate feedback control systems that monitor ion current or surface potential and adjust the applied voltage to maintain balance. Despite such controls, recombination in the air gap can still disrupt the effective ion balance at the target.
Ion recombination is the process by which charged species lose their charge through interaction with oppositely charged particles. In the context of ion wind bars, the most relevant mechanisms include:
Ion–ion recombination: A positive ion and a negative ion collide and neutralize each other.
Electron–ion recombination: A free electron recombines with a positive ion, forming a neutral molecule.
Three-body recombination: Two oppositely charged ions recombine with the assistance of a third body (usually a neutral molecule) that carries away excess energy.
In atmospheric-pressure air, ion–ion recombination is generally the dominant mechanism affecting ion wind bar performance.
The recombination rate can be described by a second-order kinetic equation:
[
\frac{dn}{dt} = -\alpha n_+ n_-
]
where (n_+) and (n_-) are the number densities of positive and negative ions, respectively, and (\alpha) is the recombination coefficient.
Under conditions where (n_+ \approx n_- = n), the equation simplifies to:
[
\frac{dn}{dt} = -\alpha n^2
]
This relationship highlights that recombination becomes more significant at higher ion densities—a common situation near corona electrodes.
Typical ion–ion recombination coefficients in air at atmospheric pressure range from (10^{-12}) to (10^{-6}, \text{cm}^3/\text{s}), depending on ion species, humidity, temperature, and electric field conditions. These values imply that recombination can occur on timescales comparable to or shorter than ion transport times, especially in dense ion clouds.
The region near the electrode tip is characterized by extremely high electric field gradients and high ion densities. While this region is essential for ion generation, it is also where recombination is most intense. Newly formed positive and negative ions coexist in close proximity, leading to rapid neutralization.
As ions accumulate, they form a space charge that modifies the local electric field. This field distortion can reduce ion acceleration, increase residence time near the electrode, and further enhance recombination probability.
A significant fraction of ions generated by corona discharge may recombine before escaping the ionization region. This effectively reduces the usable ion current and limits the maximum achievable ion flux toward the target surface.
Once ions leave the immediate vicinity of the electrode, they are transported by a combination of electric field–driven drift, diffusion, and airflow convection. During this transport, ions continue to collide with each other and with neutral molecules.
Higher airflow velocity can reduce ion residence time in the air gap, thereby decreasing recombination. However, excessive turbulence can increase collision frequency and promote recombination. Optimizing airflow is therefore a key design consideration.
The longer the distance between the ion wind bar and the target surface, the greater the opportunity for recombination. Empirically, ion density often decays exponentially with distance, largely due to recombination losses.
Humidity significantly affects ion chemistry. Water vapor leads to the formation of hydrated ion clusters, which generally have lower mobility and higher recombination coefficients. As a result, high humidity environments often experience increased recombination and reduced ion transport efficiency.
Temperature influences gas density, ion mobility, and reaction rates. Higher temperatures typically increase ion mobility but may also alter recombination dynamics through changes in collision frequency.
The presence of volatile organic compounds, dust, or aerosols can introduce additional recombination pathways, such as ion attachment to particles, effectively removing ions from the neutralization process.
Sharper electrode tips produce stronger local electric fields and higher ionization rates, but they also create denser ion clouds with higher recombination rates. Electrode spacing influences the overlap of ion clouds from adjacent emitters, affecting inter-ion recombination.
The use of grounded shields or field-shaping electrodes can direct ion flow and reduce regions of high ion density where recombination is likely.
Electrode material and surface roughness influence corona stability and ion species composition, indirectly affecting recombination behavior.
Higher voltages increase ion production but also enhance recombination due to higher ion densities. In AC systems, frequency affects the temporal overlap of positive and negative ion clouds.
Pulsed DC operation can temporally separate positive and negative ion generation, reducing immediate recombination and improving ion delivery efficiency.
Advanced ion wind bars employ closed-loop control to adjust output based on measured ion balance or surface charge. Such systems can compensate for recombination losses to some extent but cannot eliminate the underlying physical processes.
Ion density and recombination are studied using tools such as Faraday cups, ion counters, electrostatic voltmeters, and laser-based diagnostics. These techniques provide spatial and temporal resolution of ion behavior.
Experimental results consistently show rapid decay of ion density with distance and strong dependence on humidity and airflow. Recombination is identified as a primary loss mechanism in most operating regimes.
Direct measurement of recombination events is challenging due to the small spatial and temporal scales involved. As a result, many studies rely on indirect inference from ion current decay.
Continuum fluid models treat ions as charged species governed by drift-diffusion equations coupled with Poisson’s equation. Recombination is included as a reaction term.
Particle-in-cell (PIC) and Monte Carlo simulations offer detailed insight into ion trajectories and collision processes but are computationally intensive.
Combining experimental data with simulation results enables validation of recombination coefficients and improves predictive capability for ion wind bar design.
Ion recombination directly reduces the effective ion flux reaching charged surfaces, lowering neutralization speed and uniformity.
Recombination represents wasted energy, as power is consumed to generate ions that never contribute to neutralization.
Conditions that promote recombination often coincide with increased contamination and electrode degradation, affecting long-term performance.
Careful selection of electrode shape, spacing, and materials can reduce high-density ion regions and limit recombination.
Laminar, directed airflow can shorten ion transit time and improve delivery efficiency.
Using pulsed or phase-shifted excitation schemes can temporally separate ion populations and reduce recombination.
Maintaining moderate humidity levels and clean air conditions minimizes recombination-enhancing effects.
Despite extensive study, ion recombination in ion wind bars remains an active research area. Future work may focus on advanced diagnostics, machine-learning-assisted control systems, and novel electrode materials to further suppress recombination losses.
Ion recombination is an inherent and influential phenomenon in the operation of ion wind bars. It affects ion availability, neutralization efficiency, and energy utilization. By understanding the physical mechanisms and influencing factors of recombination, engineers and researchers can design more effective ion wind bar systems. Continued integration of experimental, theoretical, and computational approaches will be essential for advancing static control technology.
