Liquid crystal display (LCD) manufacturing is highly sensitive to electrostatic phenomena due to the delicate nature of thin-film transistor (TFT) arrays, color filters, polarizers, and glass substrates. Electrostatic discharge (ESD) can cause immediate damage, latent defects, or alignment errors, leading to yield loss and reduced display performance. Ionizers, particularly ion wind bars or ion blowers, are widely used in LCD production lines to neutralize static charges on glass panels, substrates, and assembly tools. This article provides a comprehensive analysis of residual electrostatic risks in LCD manufacturing, the principles of ionization, and optimal ionizer layout strategies. Topics covered include charge generation mechanisms, substrate and material considerations, ionization types, layout design for various production stages (glass handling, cell assembly, backplane integration, module assembly), monitoring and measurement techniques, environmental factors, modeling and simulation, maintenance strategies, case studies, and future trends. The aim is to offer a systematic framework for engineers and manufacturing specialists to implement effective electrostatic control and maximize yield in LCD production.
Keywords: LCD production, electrostatic discharge, ionizer layout, ion wind, ESD control, TFT, static neutralization
LCD manufacturing involves multiple stages of handling, assembly, and integration of highly sensitive components. Thin glass substrates, TFT arrays, color filters, and polarizers are susceptible to ESD, which can cause short circuits, pixel defects, or latent failures. Even minor electrostatic charges can lead to dust attraction, alignment issues, or film deformation.

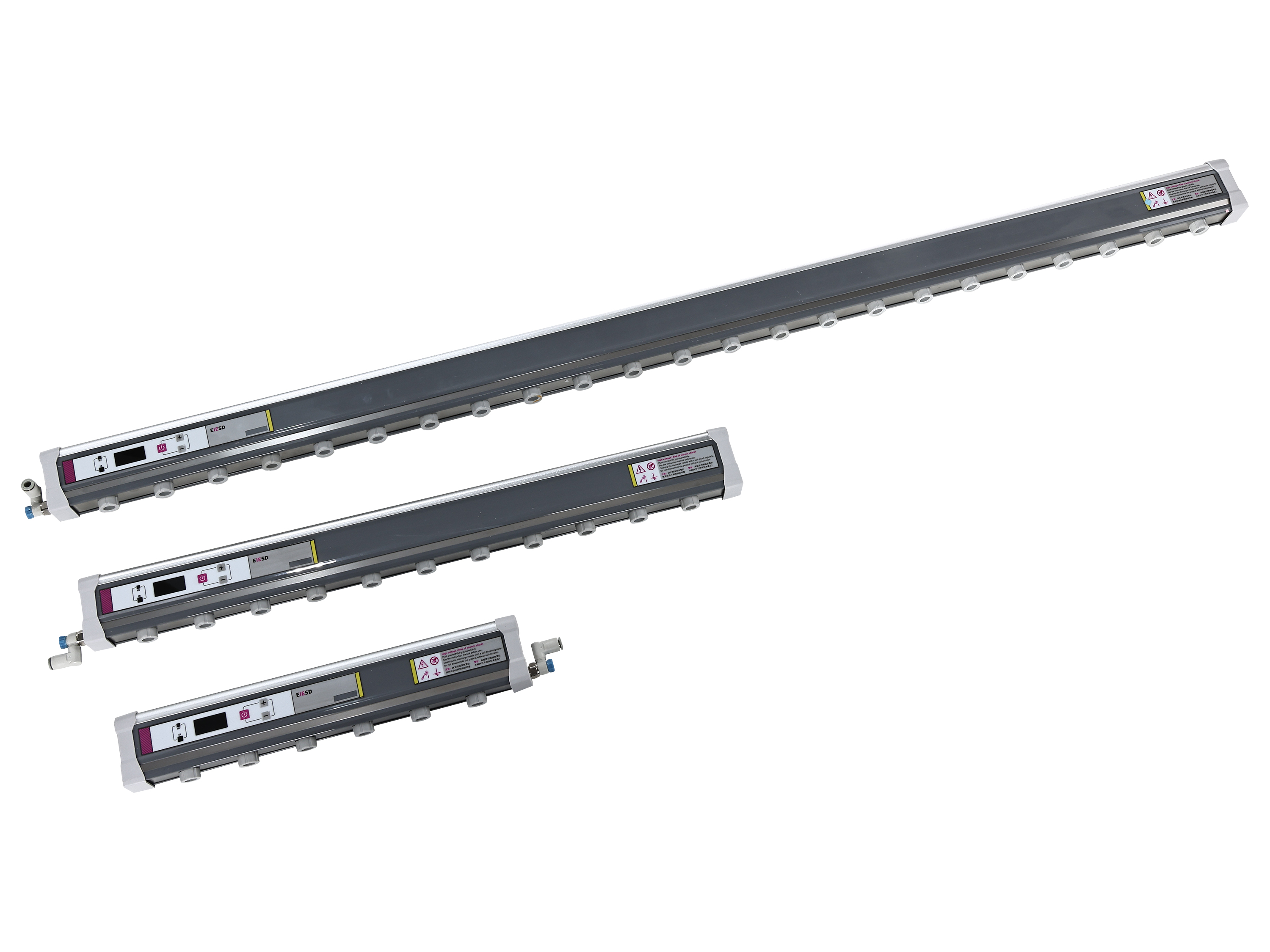

Ionizers, including ion wind bars and ion blowers, are used extensively to neutralize static charges. Proper ionizer layout is critical to ensure uniform ion distribution, prevent charge accumulation, and avoid secondary contamination or turbulence that can affect assembly precision.
This article explores the role of ionizers in LCD production, addressing physics, engineering, and process integration considerations. The goal is to provide a comprehensive reference for designing robust electrostatic control strategies across all stages of LCD manufacturing.
Glass substrates, plastic films, and handling equipment frequently come into contact and separate, generating electrostatic charges. Examples include:
Glass substrate transfer between conveyors and robotic arms
Contact between polarizer films and rollers
Handling of protective films or tapes during TFT assembly
The magnitude of charge depends on material properties, humidity, contact pressure, and speed of separation.
Electric fields from nearby charged objects or equipment can induce surface charges on glass panels and films. Non-uniform charge distribution can create hotspots that increase ESD risk.
Manufacturing steps that contribute to static accumulation include:
Spin coating and vacuum deposition during TFT and color filter fabrication
Photolithography and mask alignment operations
Encapsulation and lamination steps where insulating films contact surfaces
Low humidity (common in cleanroom environments) reduces surface conductivity, increasing the persistence of residual charges. Controlled airflow and temperature are necessary to manage static decay.
High-resistivity glass substrates retain charges longer than conductive materials. Substrate thickness, surface roughness, and coatings influence electrostatic susceptibility.
Polymer films used for polarization or surface protection are highly insulating and prone to triboelectric charging. Handling and storage strategies are critical.
Sensitive electronic layers on TFT backplanes are highly vulnerable to ESD. Ionization near these layers during handling is critical to prevent device damage.
Robotic grippers, vacuum nozzles, and transfer arms can generate charges and transfer them to substrates. Conductive or dissipative tool materials are essential to minimize static risks.
Ionizers generate positive and negative ions to neutralize surface charges. Common methods include:
Corona discharge (needle, blade, or bar configurations)
Radioactive ionization (limited use due to regulations)
Plasma-based ionizers
Airflow (natural or forced) carries ions to the target surface. Ion velocity, direction, and turbulence affect neutralization efficiency. Optimizing ion distribution ensures rapid and uniform static decay.
Ionizers should provide sufficient ion density to neutralize charges within milliseconds to seconds, depending on substrate size and movement speed. Balanced ion output prevents overcharging or polarity bias.
Ionizers are positioned to neutralize charges as glass substrates are moved or transferred. Key considerations include:
Distance from substrate to ion source (10–50 cm typical)
Ion balance and airflow direction to cover full surface
Integration with conveyor or robotic transfer systems
Ion bars or blowers are placed near photolithography, deposition, or spin coating stations to prevent charge accumulation on sensitive thin films. Shielding and airflow control minimize turbulence and particle attraction.
During cell assembly, alignment and bonding require neutralized surfaces. Ionizers are installed at entry and exit points, as well as above robotic placement areas. Polarity balance is carefully controlled to prevent static-induced misalignment.
Substrate edges can accumulate charge more readily. Ionizer orientation and airflow are adjusted to ensure uniform ion coverage along edges and corners.
Critical stages may require multiple ionizers to provide overlapping coverage. Redundancy ensures neutralization even in case of temporary ionizer failure or uneven distribution.
Non-contact electrostatic voltmeters monitor substrate and film potential. Real-time feedback enables adjustments to ionizer output and placement.
Measurement of ion balance ensures neutralization is symmetric. Offset voltage control is crucial to prevent net charging or induction on the substrate.
Testing the time required for a substrate to decay from a set initial charge to near-neutral levels validates ionizer effectiveness. Short decay times (<2 seconds for large glass panels) are desired.
Sensors integrated into production lines provide continuous data on ion density, airflow, and substrate potential. Data-driven control adjusts ionizer output dynamically.
Maintaining 40–50% RH ensures faster charge decay without condensation. Temperature control stabilizes airflow and prevents turbulence.
Directed laminar airflow prevents dust attraction while enabling ion transport. Turbulent air can disperse ions unevenly and reduce neutralization efficiency.
Ionizer layout is coordinated with cleanroom airflow and filtration to avoid particle contamination. Placement minimizes interaction with laminar flow hoods or HEPA filters.
Critical ionization stages are scheduled to neutralize charges immediately before handling or assembly steps. Process flow is designed to avoid unnecessary contact or separation that could generate new charges.
Finite element analysis (FEA) predicts field distributions and identifies high-charge regions on substrates and films. Ionizer placement is optimized based on simulation data.
Computational fluid dynamics (CFD) models airflow and ion transport. Simulations ensure uniform ion coverage and predict neutralization times under various operational conditions.
Simulations account for substrate movement, robotic handling, and process timing to validate ionization effectiveness in real-world production scenarios.
Simulation data informs maintenance schedules, ionizer calibration, and layout adjustments to sustain optimal neutralization performance.
Routine inspection of electrodes, cleaning, and voltage calibration ensures consistent ion generation. Preventive maintenance reduces downtime and ensures uniform neutralization.
Electrode erosion or contamination affects ion output. Materials selection and protective measures extend service life.
Regular testing of charge decay times and ion balance detects degradation early, allowing timely intervention.
Ionizer maintenance is coordinated with routine equipment servicing to minimize line interruptions and maintain ESD protection.
Implementation of overhead ion bars with directed airflow achieved <2-second decay times across 1.5-meter glass panels, reducing ESD-related defects by 65%.
Tool-integrated ionization on robotic pick-and-place systems prevented charge transfer to TFT arrays, improving yield for high-resolution displays.
Redundant ionizer layouts and real-time monitoring ensured uniform neutralization across complex-shaped panels, reducing pixel defects and assembly errors.
Dynamic ionization controlled by inline sensors minimized dust attraction and static-induced misalignment, supporting high-volume production with tight tolerances.
Sensor-driven systems adjust ion output dynamically, optimizing neutralization for moving substrates and variable process conditions.
Digital twin models allow virtual testing of ionizer layout, airflow, and substrate handling, enabling process optimization before physical implementation.
Emerging plasma and micro-ion generation techniques provide precise neutralization for sensitive TFT and OLED substrates.
IoT-enabled monitoring of ionizers, environmental sensors, and substrate potentials enables predictive maintenance, adaptive control, and continuous quality assurance.
Low-energy ionization systems and ozone-free technologies reduce environmental impact while maintaining effective static neutralization.
Managing electrostatic control for ever-larger glass substrates
Neutralizing charges during high-speed robotic handling
Minimizing turbulence and particle contamination during ionization
Modeling complex ion transport in dynamic production environments
Integrating multi-layer ionization strategies with minimal energy consumption
Ionization plays a critical role in managing electrostatic risks in LCD production. Proper ionizer layout, combined with grounding, environmental control, process sequencing, and real-time monitoring, ensures uniform static neutralization and protects sensitive TFT, polarizer, and glass components. Advanced modeling, sensor feedback, and Industry 4.0 integration further enhance ESD control, supporting high-yield, high-quality LCD manufacturing.
