Ionizer Optimization in Battery Module Assembly Lines for Electrostatic Control

Abstract

Lithium-ion battery modules are highly sensitive to electrostatic discharge (ESD) due to the presence of electronic battery management systems (BMS), high-voltage interconnects, and insulation layers. Residual static charges on components, tooling, and operator interfaces can lead to insulation breakdown, short circuits, latent defects, or reduced performance. Ion wind bars and other ionization devices are widely used in battery module assembly lines to neutralize static charges and ensure safe handling. This article provides an in-depth analysis of electrostatic risks in battery module assembly, ionization principles, optimal ionizer layout strategies, environmental considerations, measurement and monitoring techniques, process integration, maintenance, case studies, and future trends. The goal is to provide battery manufacturing engineers and production managers with a systematic approach to ESD control and ionizer optimization for high-volume battery module assembly.

Keywords: battery module, lithium-ion, electrostatic discharge, ionizer, ion wind, ESD control, assembly line


1. Introduction

Battery module assembly involves handling sensitive components such as:

  • Battery cells (cylindrical, pouch, or prismatic)

  • Busbars and interconnects

  • Battery management systems (BMS) and sensor wiring

  • Insulation materials and protective films

Electrostatic discharge can cause immediate electrical failure, latent defects, or long-term degradation in battery modules. Ionizers, including ion wind bars, blowers, and tool-integrated ionizers, are employed to neutralize static charges and prevent ESD-related damage.

This article examines charge generation mechanisms, ionization technology, ionizer layout strategies, environmental and process considerations, measurement and monitoring methods, simulation approaches, maintenance, and future trends for optimizing ionization in battery module assembly lines.


2. Electrostatic Charge Generation in Battery Module Assembly

2.1 Triboelectric Charging

Battery components are often insulated and prone to triboelectric charging during:

  • Handling and placement of battery cells

  • Contact with conveyor belts, trays, or robotic grippers

  • Contact between insulation films, separators, and protective coatings

The magnitude of charge depends on material resistivity, surface area, separation speed, and contact pressure.

2.2 Induced Charging

Electrostatic fields from nearby equipment, power lines, or previously charged components can induce charges on conductive and insulated surfaces within battery modules. This can lead to localized high-voltage areas susceptible to ESD.

2.3 Process-Induced Charging

Manufacturing steps that generate charge include:

  • Cell stacking or alignment

  • Welding or bonding of busbars

  • Wiring of BMS components

  • Lamination or application of protective films

2.4 Environmental Factors

Low humidity environments, common in cleanroom or climate-controlled assembly areas, increase surface resistivity and prolong charge retention. Airflow, temperature, and operator interaction further affect static accumulation.


3. Materials and Component Considerations

3.1 Battery Cells

Cells have insulating surfaces and metallic terminals. Triboelectric charging can occur during handling or placement in trays and holders. Conductive terminals may transfer charge if not properly grounded.

3.2 Busbars and Interconnects

Metallic busbars are conductive but can accumulate charge if isolated from ground. Insulating coatings and films may trap charges on adjacent surfaces.

3.3 BMS and Sensors

Electronic boards and sensor wiring are highly sensitive to ESD. Ionization must be applied near these components to ensure neutralization before any electrical connection.

3.4 Insulation and Protective Films

Polymeric films and separators are insulating and prone to charge accumulation. Contact with handling equipment or other layers can generate significant electrostatic potential.

3.5 Assembly Tooling

Robotic grippers, vacuum tools, conveyors, and trays can generate and transfer charges to battery components. Materials selection and grounding are critical for minimizing ESD risk.


4. Principles of Ionization

4.1 Ion Generation Methods

Ionizers produce positive and negative ions to neutralize surface charges. Methods include:

  • Corona discharge (needle, bar, blade)

  • Plasma-based ionization

  • Fan-assisted ion blowers

4.2 Ion Transport and Coverage

Airflow carries ions to target surfaces. Proper airflow direction, speed, and turbulence management are essential to achieve uniform neutralization of cells, busbars, and insulation layers.

4.3 Neutralization Time

Rapid neutralization is critical to prevent ESD during high-speed assembly. Ionizers should neutralize charges within milliseconds to a few seconds, depending on component sensitivity and assembly speed.

4.4 Ion Balance

Balanced output of positive and negative ions prevents overcharging or polarity bias. Offset voltage must be minimized to ensure uniform charge neutralization across all surfaces.


5. Ionizer Layout Strategies in Battery Module Assembly

5.1 Cell Handling and Placement

Ionizers should be positioned near conveyors, trays, and robotic placement tools to neutralize charges before and during handling. Considerations include:

  • Distance from ion source (10–50 cm)

  • Ion balance for full coverage

  • Airflow direction to reach all sides of the cell

5.2 Busbar Welding and Bonding

Ionizers are installed near welding or bonding stations to prevent charge accumulation on metallic components. Shielding and airflow control minimize turbulence and ensure effective ion distribution.

5.3 BMS Wiring and Sensor Integration

Localized ionization protects sensitive electronic components during assembly. Redundant ionizers may be required to provide full coverage.

5.4 Lamination and Protective Film Application

Ionizers neutralize static charges on insulating films and separators. Multiple ion sources and directed airflow prevent localized charging and reduce dust attraction.

5.5 Edge and Corner Coverage

Battery module edges and corners are prone to localized charge accumulation. Ionizer orientation and airflow must be adjusted to ensure effective neutralization in these areas.

5.6 Redundant Ionization

Critical assembly stages benefit from overlapping ionization coverage to maintain neutralization even if one ionizer underperforms. This is particularly important for high-speed production lines.


6. Monitoring and Measurement

6.1 Surface Potential Measurement

Non-contact electrostatic voltmeters measure the potential on battery components in real time. Identifying hotspots allows dynamic adjustment of ionizer output.

6.2 Charge Decay Testing

Charge decay tests measure the time required for a component to reach near-neutral potential. Target decay times vary but typically aim for less than 2 seconds for sensitive electronics.

6.3 Ion Balance Verification

Monitoring the ratio of positive to negative ions ensures balanced neutralization. Automated calibration can adjust ion output to compensate for drift.

6.4 Inline Monitoring

Sensors embedded in conveyors, robotic tools, and assembly stations provide continuous feedback for real-time control of ionizers. Data logging supports process optimization and traceability.

6.5 Statistical Process Control

Analyzing ESD events and charge measurements over time allows early detection of equipment degradation or process deviations.


7. Environmental and Process Considerations

7.1 Humidity and Temperature Control

Maintaining 40–60% relative humidity accelerates charge dissipation without condensation risk. Temperature control stabilizes ion transport and prevents airflow-induced turbulence.

7.2 Airflow Management

Directed laminar airflow ensures uniform ion coverage and prevents dust attraction. Turbulence can reduce ion density and unevenly neutralize surfaces.

7.3 Cleanroom Integration

Ionizer placement must be coordinated with cleanroom airflow and filtration systems. Placement avoids interference with laminar flow and maintains particulate control.

7.4 Process Sequencing

Ionization is applied immediately before critical handling or assembly steps to prevent new charge generation. Staging of multiple ionization points ensures continuous neutralization.

7.5 Operator and Tool Grounding

Complementing ionization with grounding measures such as wrist straps, conductive footwear, and dissipative mats reduces charge transfer from operators or tools.


8. Simulation and Modeling

8.1 Electrostatic Field Modeling

Finite element analysis identifies areas of high charge concentration on cells, busbars, BMS boards, and protective films. Ionizer layout is optimized based on simulation results.

8.2 Ion Transport Simulation

Computational fluid dynamics (CFD) models airflow and ion trajectories, predicting neutralization coverage and decay times for complex geometries.

8.3 Dynamic Production Modeling

Simulations incorporate component movement, robotic handling, and assembly timing to validate ionization strategies under realistic production conditions.

8.4 Predictive Maintenance Planning

Simulation data informs maintenance schedules, ionizer calibration, and layout adjustments to maintain optimal performance over time.


9. Maintenance and Reliability

9.1 Ionizer Maintenance

Routine inspection, cleaning, and calibration ensure consistent ion output. Preventive maintenance reduces downtime and ensures coverage uniformity.

9.2 Electrode Wear and Contamination

Electrode degradation or contamination reduces ion generation. Protective materials and routine cleaning extend service life.

9.3 Performance Monitoring

Charge decay testing and ion balance verification detect degradation early, enabling timely maintenance.

9.4 Documentation and Traceability

Maintenance logs, performance metrics, and calibration records support quality assurance and regulatory compliance.


10. Case Studies

10.1 High-Volume Battery Module Production

Implementation of overhead ion bars, tool-integrated ionizers, and inline monitoring reduced ESD-related defects by 65%, improving yield and module reliability.

10.2 BMS-Integrated Modules

Localized ionization prevented damage to electronic circuits during assembly, ensuring functional integrity and long-term reliability.

10.3 Robotic Assembly Lines

Optimized ionizer placement minimized residual charges on battery cells and busbars, facilitating safe robotic assembly and reducing component rejection rates.

10.4 Large-Format Modules

Overlapping ionization coverage was used to maintain uniform neutralization, particularly around edges and corners prone to charge accumulation.


11. Advanced Techniques and Future Trends

11.1 Smart Ionization Systems

Sensor-driven ionizers dynamically adjust output for moving components and variable process conditions, ensuring consistent neutralization.

11.2 Digital Twin Integration

Digital twin models simulate charge accumulation, ion transport, and assembly interactions, enabling virtual testing and optimization of ionizer layouts.

11.3 Nano-Scale Ionization Technologies

Plasma or micro-ion generation techniques provide precise neutralization for sensitive BMS circuits and insulation layers.

11.4 Industry 4.0 Integration

IoT-enabled monitoring, predictive maintenance, and adaptive control optimize ESD protection while minimizing downtime and energy consumption.

11.5 Energy-Efficient Designs

Low-power ionizers and ozone-free technologies reduce environmental impact without compromising neutralization efficiency.

11.6 Advanced Materials and Coatings

Integration of dissipative coatings and conductive additives in insulating films enhances passive charge dissipation and complements ionization.


12. Challenges and Open Research Areas

  • Managing ESD in complex module geometries

  • Neutralizing charges during high-speed robotic assembly

  • Integrating multi-stage ionization without generating turbulence

  • Modeling dynamic charge accumulation under real production conditions

  • Developing standardized metrics for ESD risk assessment in battery modules

  • Minimizing energy consumption while maintaining effective ionization


13. Conclusion

Ionizers are essential for controlling electrostatic risks in battery module assembly lines. Optimized ionizer layout, combined with grounding, environmental control, process sequencing, monitoring, and advanced simulation, ensures safe handling of cells, busbars, BMS components, and insulating films. Adoption of smart ionization, digital twins, and energy-efficient technologies enhances ESD control, improves yield, and supports reliable high-volume battery module production.

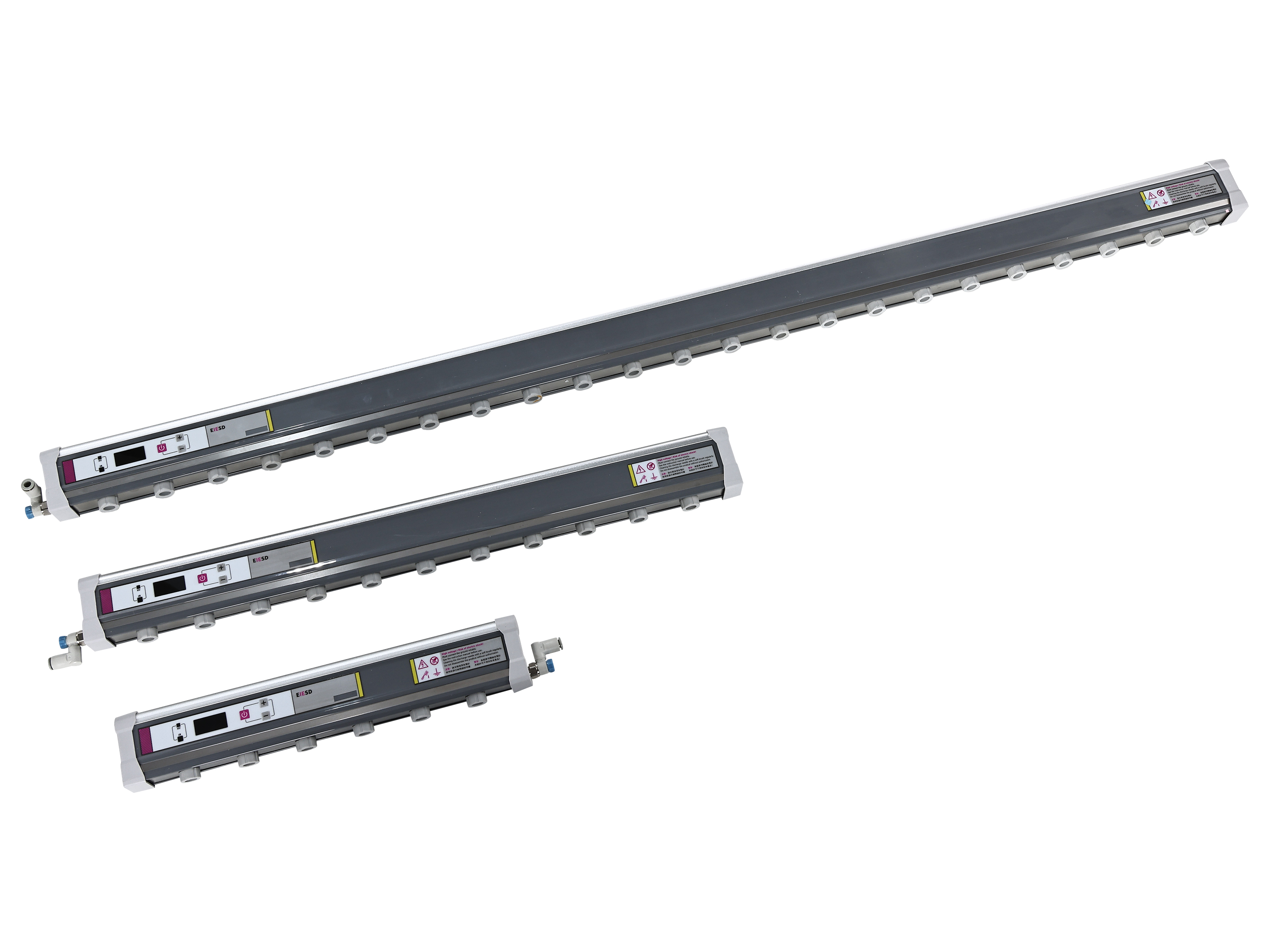

976
