Ionizing Air Bar Electrostatic Control in RFID Tag Manufacturing

Abstract

Radio Frequency Identification (RFID) tags are widely used in logistics, retail, access control, and industrial applications. The production of RFID tags involves delicate processes including substrate handling, inlay attachment, antenna printing, chip embedding, and lamination. Static electricity generated during these processes can result in misalignment, contamination, bonding defects, and reduced yield. Ionizing air bars provide an effective means of neutralizing electrostatic charges in real time, ensuring high-quality RFID production.

This article provides a comprehensive overview of static generation in RFID tag production and presents engineering strategies for implementing ionizing air bars. It covers static sources, risk assessment, ionizer selection, placement strategies, airflow considerations, maintenance, validation, integration with automated manufacturing lines, advanced control strategies for high-speed production, environmental management, and future technology trends.

1. Introduction

RFID tags typically consist of a thin substrate (plastic or paper), a printed antenna, and a silicon chip inlay. As device geometries become smaller and production speeds increase, controlling electrostatic discharge (ESD) and surface charge is critical to maintain production quality.

Static electricity can cause:

• Misplacement of inlays

• Damage to sensitive IC chips

• Dust and particle attraction

• Lamination defects

Ionizing air bars are non-contact devices that neutralize charges on insulative materials, ensuring consistent processing and higher yields. This document explores the engineering principles, design considerations, and process integration strategies required for effective electrostatic management in RFID manufacturing.

2. Fundamentals of Electrostatics in RFID Manufacturing

2.1 Sources of Static Charge

• Friction between substrates and rollers during web handling

• Separation of release liners from adhesive layers

• High-speed movement of webs through printing or pick-and-place machines

• Interaction between chips and placement tooling

• Contact and separation between multiple layers during lamination

2.2 Material Properties

• Substrates: PET, polyimide, and paper; all highly insulative

• Adhesives: maintain static charges due to non-conductive properties

• IC inlays: sensitive to ESD, requiring strict neutralization control

• Conductive inks: susceptible to bridging if dust particles are attracted

2.3 Static Effects

• Attraction of dust particles onto antenna traces or chip surfaces

• Misalignment during lamination or pick-and-place

• Reduced adhesion or bonding failures

• Potential damage to ICs through ESD events

• Web curl, clinging, and handling issues

3. RFID Tag Production Process Overview

3.1 Substrate Preparation

• Web handling, unwinding, and tension control

• Static charges can accumulate on moving substrates

• Ionization at pre-processing stations helps reduce pre-existing charge

3.2 Antenna Printing

• Conductive ink or foil printing using roll-to-roll or sheet-fed processes

• Static can attract particles to ink surface, affecting conductivity

• Ionizing bars positioned over printing area reduce charge accumulation

3.3 Chip Attachment

• Pick-and-place of IC inlays onto antenna pads

• High precision required for alignment and bonding

• Static can cause misplacement, adhesion issues, or chip damage

• Ionization near placement heads and ICs ensures safe handling

3.4 Lamination and Overcoating

• Application of protective adhesive layers

• Separation of release liners generates charges

• Static can cause bubbles or misalignment

• Ionizing bars at entry and exit points improve lamination quality

3.5 Die Cutting and Finishing

• Shearing individual tags from the web

• Charge accumulation on tags can cause sticking and clinging

• Ionizing bars prevent defects during cutting, stacking, and handling

4. Electrostatic Risks in RFID Manufacturing

• Misaligned IC chips leading to non-functional tags

• Short-circuits in printed antenna traces due to particle contamination

• Dust or particle adhesion causing performance defects

• Bonding failure during lamination

• Damage to sensitive ICs due to ESD

• Web curl, cling, and tearing during high-speed roll-to-roll operations

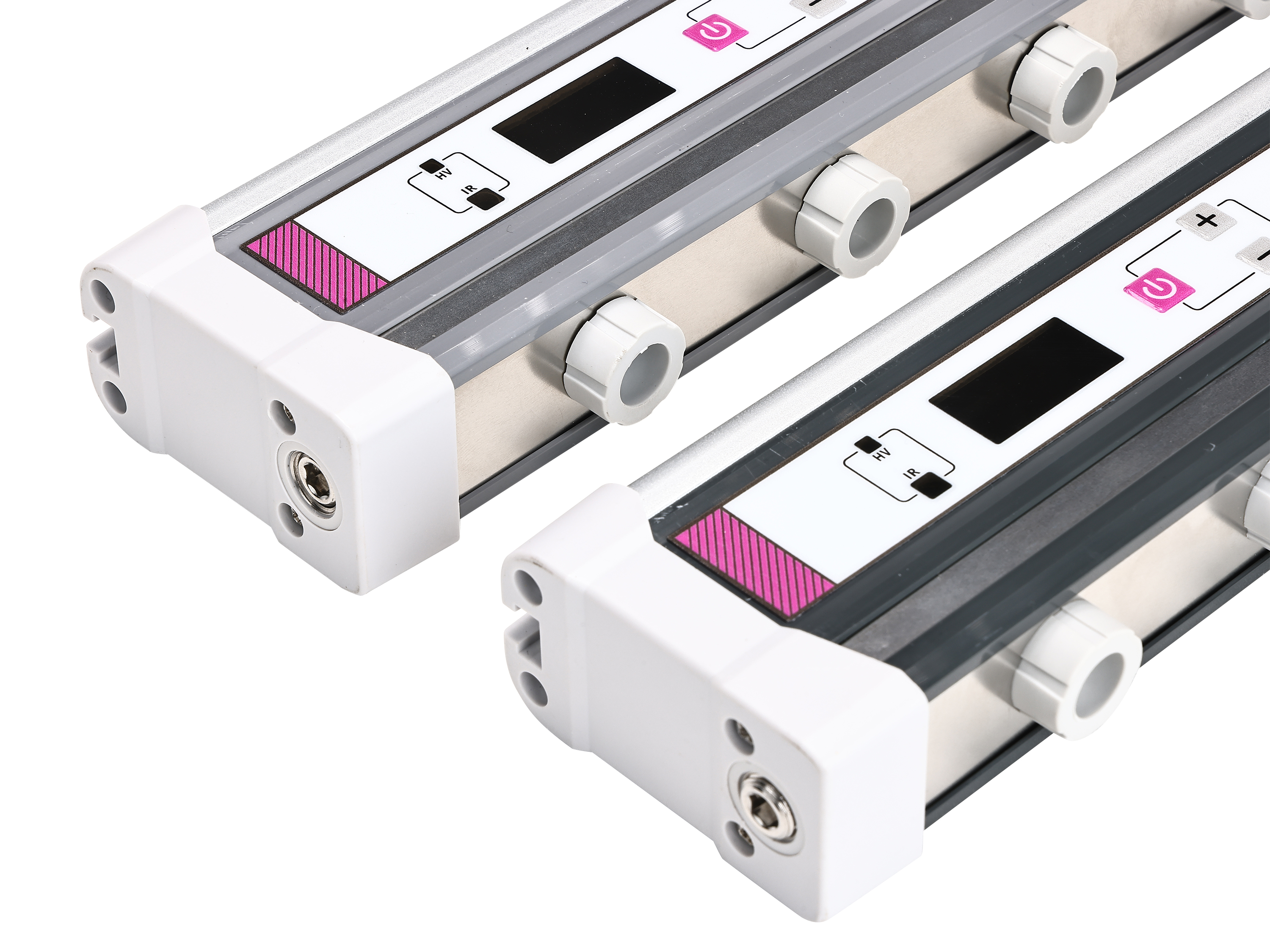

5. Ionizing Air Bar Technology

5.1 Operating Principle

• Corona discharge generates positive and negative ions

• Ions neutralize static charge on insulating surfaces

• Balanced ion output prevents overcharging and residual bias

5.2 Ionizer Types

• AC ionizers: suitable for general roll-to-roll processes

• DC or pulsed DC ionizers: required for precise charge control near ICs

• Integrated airflow or standalone modules for flexible installation

5.3 Performance Parameters

• Ion balance: ±20–30 V for sensitive IC inlays

• Decay time: <0.5 seconds from ±1000 V to ±100 V

• Adjustable airflow: low velocity to prevent substrate flutter

• Emitter tip contamination resistance for adhesive and ink vapors

5.4 Safety and Compliance

• Electrical safety (UL, IEC standards)

• Chemical compatibility with solvents, inks, and adhesive vapors

• Grounding and shielding for operator and equipment safety

• Integration with cleanroom ESD control programs

6. Ionizing Air Bar Placement Strategies

6.1 Web Handling and Unwinding

• Position bars near unwinder to neutralize static on moving substrate

• Prevent charge buildup before printing or inlay placement

• Use multiple bars for wide webs to ensure uniform coverage

6.2 Antenna Printing Stations

• Overhead ionizing bars to neutralize substrate surface

• Reduce particle attraction to conductive ink

• Minimize impact on ink drying and curing

6.3 Chip Pick-and-Place

• Ionizing bars near placement heads

• Neutralize charge on chips and substrate to improve adhesion

• Synchronized with robotic movement for dynamic control

6.4 Lamination and Coating

• Bars at entry and exit of lamination rollers

• Reduce bubble formation and misalignment

• Monitor substrate tension to maintain lamination quality

6.5 Die Cutting and Finishing

• Neutralize individual tags before cutting to prevent sticking

• Ensure smooth handling and stacking of finished tags

• Ionization helps prevent electrostatic clumping during high-speed finishing

7. Airflow and Environmental Considerations

• Low-velocity, laminar ionized airflow preferred to avoid substrate flutter

• Integration with cleanroom airflow for particle control

• Monitor temperature and humidity; low humidity increases static retention

• CFD modeling used for optimal placement and airflow path design

8. Maintenance and Reliability

• Regular cleaning of emitter points from dust, adhesive, and ink residue

• Performance verification using electrostatic field meters

• Monitoring of decay times and ion balance ensures process consistency

• Scheduled maintenance ensures continuous, reliable neutralization

9. Validation and Quality Assurance

• Include ionization performance in process validation (IQ/OQ/PQ)

• Monitor tag alignment, yield, and defect rates

• Maintain documentation for quality audits

• Use SPC charts to track static-related defect reduction

10. Integration with Automation

• Synchronize ionizer operation with roll-to-roll speed and pick-and-place movements

• Feedback from charge sensors for dynamic adjustment

• Minimize impact on cycle time and production throughput

• Integration with MES and process monitoring systems for real-time control

11. Advanced Control Strategies for High-Speed Production

• Multi-zone ionization for wide webs and high-speed lines

• Adjustable ion output depending on local static measurements

• Dynamic ionization synchronized with roller speed and pick-and-place timing

• Data-driven predictive maintenance and performance optimization

11.1 Multi-Zone Ionization

• Divide production line into zones: unwinding, printing, inlay placement, lamination, finishing

• Independent control of ionizers for each zone

• Ensures precise charge control in critical areas without affecting other sections

11.2 Real-Time Feedback

• Integrate static sensors at key points

• Adjust ion output in real time based on charge measurements

• Prevent static accumulation during sudden changes in line speed or environmental conditions

11.3 Adaptive Control

• Use machine learning to predict static buildup patterns

• Adjust ionization preemptively to reduce defect rates

• Correlate static data with defect tracking for continuous improvement

12. Environmental Optimization

• Maintain humidity at 40–50% RH for optimal static decay

• Control temperature to prevent adhesive and ink property variation

• Ensure laminar airflow to avoid dust disturbance

• Use air ionization in combination with cleanroom filtration

13. Case Studies

13.1 High-Speed Roll-to-Roll RFID Production

• Ionizing bars installed at unwinder, printing, and chip placement

• Misaligned ICs reduced by 35%

• Particle-related defects reduced by 40%

• Yield improved and scrap reduced

13.2 Smart Card RFID Laminates

• Ionization along lamination line prevented bubble formation

• Particle adhesion on antenna traces reduced

• Process stability improved across multiple shifts and environmental variations

13.3 Advanced Antenna Printing for Industrial Tags

• Pulsed DC ionizers used to protect sensitive high-resolution conductive ink

• Static-induced bridging eliminated

• Improved consistency for conductive path resistance and tag readability

14. Economic Analysis and ROI

• Reduced scrap and rework costs

• Improved yield reduces material and labor cost per tag

• Increased process reliability allows higher throughput

• ROI typically achieved within 6–12 months for high-volume lines

• Reduced downtime due to static-related failures

15. Standards and Regulatory Compliance

• ANSI/ESD S20.20 and IEC 61340 series for ESD control

• ISO 9001:2015 for quality management systems

• ISO 14001:2015 for environmental management

• Integration with facility ESD program ensures safety for operators and equipment

16. Strategic Recommendations

• Implement ionization at all critical static generation points

• Use pulsed DC for areas with sensitive ICs

• Monitor ion balance and decay times regularly

• Integrate ionization with automation and process monitoring

• Coordinate with environmental controls (humidity, temperature, airflow) for optimal performance

• Conduct periodic process reviews and continuous improvement initiatives

17. Future Trends

• Smart ionizers with integrated sensors and AI control

• Predictive ionization based on real-time production data

• Integration with Industry 4.0 MES systems for full traceability

• Increased production speed and smaller tag geometries require advanced static control

• Multi-material RFID tags will demand adaptive ionization strategies

18. Conclusion

Electrostatic control is essential in RFID tag manufacturing. Uncontrolled static can lead to misaligned chips, defective antennas, adhesion failures, and damage to ICs. Ionizing air bars provide real-time, non-contact neutralization of charges, improving yield, process stability, and overall product quality. Strategic placement, proper selection, multi-zone configuration, environmental optimization, and integration with automation maximize ionization effectiveness. With continued advances in RFID production speed and miniaturization, ionizing air bars remain critical for maintaining high-quality, reliable, and cost-effective RFID manufacturing processes.
