Ionizing Air Bar Electrostatic Neutralization for Semiconductor Photoresist Processing

Abstract

Semiconductor manufacturing, particularly photolithography, relies on precise handling and processing of photoresist-coated wafers. Static electricity generated during wafer handling, spin coating, baking, and exposure can lead to particle attraction, resist pattern distortion, defects, and yield loss. Ionizing air bars are an essential technology for electrostatic neutralization in semiconductor fabs, ensuring process stability and high-quality outcomes.

This comprehensive article examines the sources of static charge in photoresist processing, evaluates the risks of uncontrolled electrostatics, and provides engineering strategies for integrating ionizing air bars. It covers system design, placement strategies, airflow optimization, process-specific configurations, maintenance, validation, regulatory compliance, advanced multi-zone configurations, integration with automation, environmental optimization, and future trends. The goal is to establish ionizing air bars as a standard element of process control in semiconductor photolithography.

1. Introduction

Photolithography is a cornerstone of semiconductor device fabrication. It involves the application of a photoresist layer onto silicon wafers, patterning via ultraviolet light, and subsequent development to define circuit features. As feature sizes shrink to nanometer scales, even minor disturbances caused by static electricity can compromise yield and device performance.

Electrostatic charges arise from friction, material separation, and handling of wafers, masks, and robotic end-effectors. These charges can lead to wafer contamination, resist defects, and micro-bridging in high-resolution features. Ionizing air bars neutralize these charges in real time, preventing static-induced defects and enabling reliable, repeatable photolithography processes.

This document provides a detailed, engineering-level guide to understanding and mitigating electrostatic effects across all stages of photoresist processing, targeting process engineers, fab integration teams, and semiconductor equipment designers.

2. Fundamentals of Static Electricity in Semiconductor Processing

2.1 Sources of Electrostatic Charge

• Triboelectric Effects: Wafer movement across carriers, chucks, and robotic arms

• Dielectric Interfaces: Contact between insulating materials, including photoresist and coating substrates

• Spin Coating and Dispensing: High-speed motion generates localized charge accumulation

• Exposure Equipment: Mask handling and stage movement contribute to charge build-up

• Post-Exposure Handling: Automated wafer transfer systems can redistribute charge

2.2 Material Properties

• Photoresists are polymer-based and highly insulating, retaining static charge

• Substrate surfaces may have antistatic coatings, but localized charge pockets persist

• Mask blanks, pellicles, and handling tools can accumulate charges

• Environmental factors such as low humidity exacerbate charge retention

2.3 Electrostatic Fields vs Discharge

Even without visible electrostatic discharge (ESD), localized fields can:

• Attract particulate contamination

• Distort ultra-fine photoresist patterns

• Introduce variations in exposure intensity or development rate

Ionization provides continuous charge neutralization, complementing grounding of conductive components.

3. Semiconductor Photoresist Processing Workflow

3.1 Wafer Preparation

• Cleaning, dehydration bake, and HMDS priming

• Wafer handling introduces initial charge through carrier contact and robotic movement

• Ionization at pre-processing stations helps reduce pre-existing charge on wafers

3.2 Spin Coating

• Photoresist applied to wafer surface at high rotational speeds

• Friction between resist and wafer, as well as air shear, generates static

• Ionizing air bars above the spin coater neutralize charges before the resist fully settles

3.3 Soft Bake

• Heated plates or convection ovens remove solvents

• Thermal gradients can induce localized electrostatic fields

• Integration of ionization around conveyorized bake ovens reduces charge buildup

3.4 Exposure

• Mask alignment and UV illumination define circuit patterns

• Electrostatic attraction can cause particles to adhere to the resist, resulting in defects

• Ionization around mask aligners and exposure tools protects both wafer and mask surfaces

3.5 Post-Exposure Bake and Development

• Further thermal processing may redistribute charges

• Development involves contact with liquid developers, where residual static can lead to uneven resist removal

• Ionizing air bars above developer baths and post-exposure handling stations improve uniformity

3.6 Hard Bake and Inspection

• High-temperature bakes solidify the resist

• Inspection tools can generate friction-induced static

• Ionization ensures that high-resolution metrology is unaffected by residual charges

4. Electrostatic Risks in Photolithography

• Particle Contamination: Charged particles attracted to wafer surfaces

• Pattern Distortion: Local electrostatic fields can shift or deform resist features

• Charge-Induced Defects: Bridge formation, pinholes, or incomplete development

• Yield Loss: Cumulative effects reduce device performance and wafer acceptance

• Equipment Contamination: Charged resist or particles may adhere to masks, pellicles, and optics

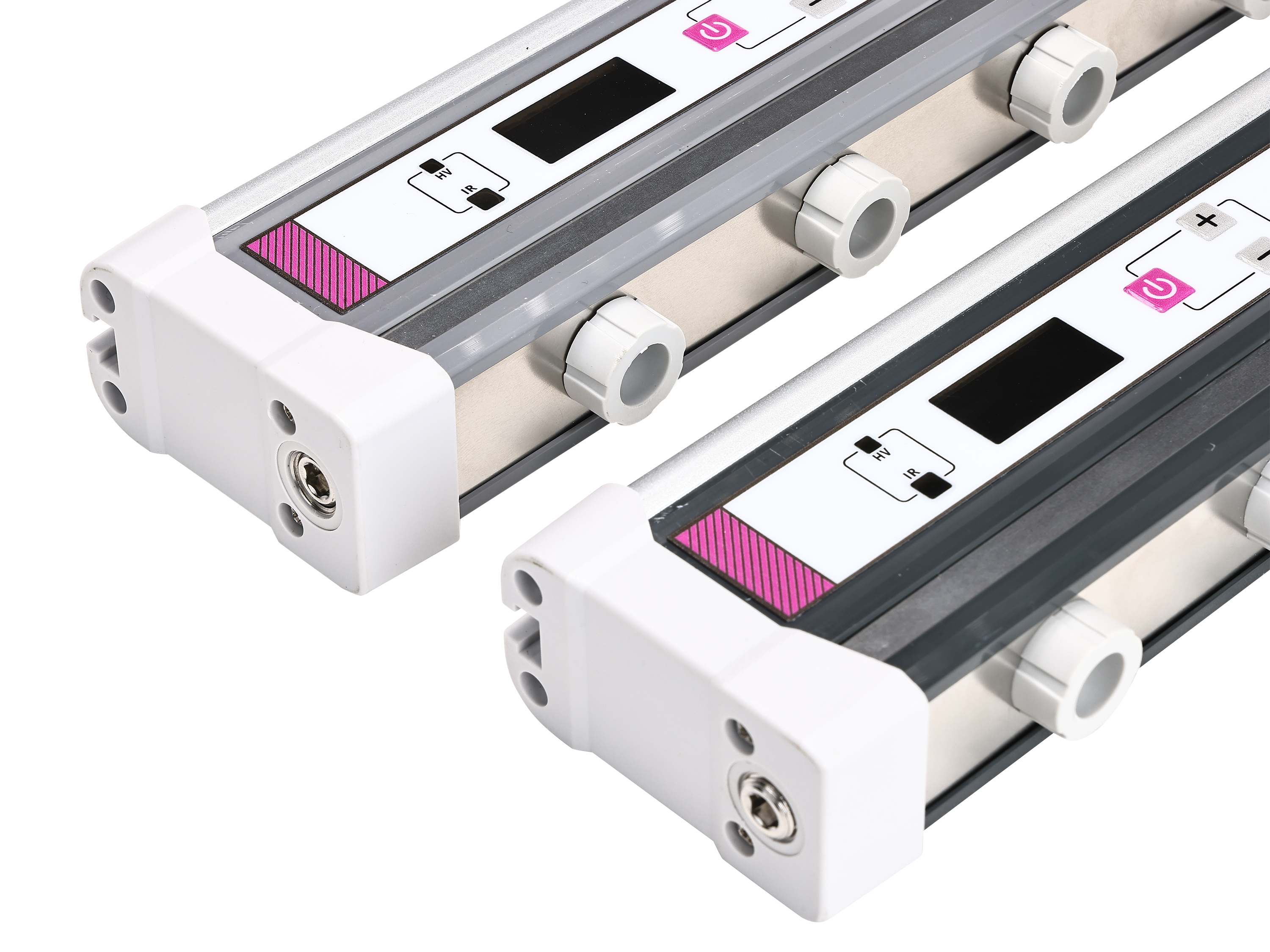

5. Ionizing Air Bar Technology

5.1 Operating Principle

• Corona discharge generates positive and negative ions

• Ions recombine with charged surfaces, neutralizing static potential

• Balanced ion output is critical for precision processes

5.2 Ionizer Types

• AC ionizers: Simple, robust, suitable for general fab applications

• DC ionizers: Faster decay times, more precise control

• Pulsed DC ionizers: Ideal for high-precision photolithography, minimal balance drift

5.3 Key Performance Parameters

• Ion balance: ±10–20 V target for photoresist processing

• Decay time: <0.5 seconds for ±1000 V to ±100 V

• Adjustable airflow to avoid resist surface disturbance

• Emitters resistant to contamination from photoresist vapors

5.4 Safety and Compliance

• Electrical safety (UL, IEC standards)

• Chemical compatibility with solvents and resist vapors

• Grounding and shielding for operator and equipment safety

6. Ionizing Air Bar Placement and Integration

6.1 Spin Coater Integration

• Place bars above wafer during spin coating

• Ensure uniform coverage across entire wafer surface

• Avoid interference with resist dispensing nozzles and chuck mechanisms

6.2 Pre-Exposure and Alignment Stations

• Neutralize charges prior to mask alignment

• Minimize particle attraction to resist and mask surfaces

• Maintain cleanroom airflow integrity

6.3 Conveyors and Robotic Handling

• Ionizers positioned near wafer transfer points

• Neutralize charges accumulated on carriers and end-effectors

• Synchronize ionization with robot motion for dynamic charge control

6.4 Environmental Control

• Integrate with cleanroom airflow to maintain laminar flow

• Avoid turbulence that may redistribute particles

• Adjust humidity and temperature to optimize ionizer effectiveness

6.5 Multi-Wafer Cluster Tools

• Utilize zoned ionization to manage static across multiple wafers simultaneously

• Allow independent control for each wafer pocket or chamber

• Minimize airflow disruption in compact cluster tools

7. Airflow Design and Cleanroom Integration

• Low-velocity, laminar ionized airflow preferred

• HEPA-filtered air reduces particle load while ionization neutralizes charge

• Airflow paths designed to prevent resist surface disturbance

• CFD (computational fluid dynamics) modeling used to optimize placement and flow

8. Maintenance, Reliability, and Performance Monitoring

• Regular cleaning of emitter points to prevent contamination from resist vapors

• Periodic performance verification using electrostatic field meters

• Monitoring of decay times and ion balance ensures process consistency

• Documentation of maintenance and calibration schedules

9. Validation and Quality Assurance

• Include ionizer performance in IQ/OQ/PQ documentation

• Routine audits to ensure consistent electrostatic control

• Integration with process control data for yield tracking and SPC (statistical process control)

• Verification under production load conditions

10. Advanced Integration with Automation

• Feedback loops between ionizer status and wafer handling robots

• Predictive adjustment based on real-time charge measurements

• Integration with MES (Manufacturing Execution System) for process traceability

• Automated alerts for ionizer drift or failure

11. Process-Specific Considerations

11.1 High-Resolution Photoresists

• Ultra-thin resist films (<500 nm) are highly susceptible to electrostatic distortion

• Pulsed DC ionizers with precise placement reduce micro-bridging and feature collapse

11.2 Multi-Layer and Advanced Node Lithography

• Multiple coating and exposure steps increase cumulative static risks

• Ionizing air bars positioned at each step mitigate layer-to-layer charge transfer

11.3 Wet Processing Steps

• Development and rinse processes can be affected by residual charge on wafer edges

• Ionization above wet stations prevents micro-flow disturbances and particle adherence

12. Case Studies

12.1 28nm Node Device Fabrication

• Ionizing air bars installed at spin coater, pre-exposure, and post-exposure bake stations

• Particle adherence rates dropped by 40%

• Micro-bridge defects decreased by 35%

• Overall yield improvement observed across multiple wafers and shifts

12.2 Advanced Multi-Wafer Cluster Tool

• Zoned ionization implemented across six-chamber cluster tool

• Real-time charge monitoring reduced wafer-to-wafer variability

• Defects due to static eliminated for high-volume production

13. Environmental Optimization

• Humidity maintained at 40–50% RH for optimal static decay

• Temperature control to minimize resist viscosity fluctuations

• Coordination between ionization and airflow to prevent local turbulence

14. Economic Analysis and ROI

• Reduced scrap and rework costs

• Decreased maintenance frequency for optics and masks

• Higher process repeatability reduces time-to-market

• ROI achieved within 6–12 months for high-throughput fabs

15. Standards and Regulatory Compliance

• ANSI/ESD S20.20 and IEC 61340 series for ESD control

• ISO 9001/14001 integration for process quality and environmental compliance

• FDA and ISO 13485 considerations for medical device fabs

16. Strategic Recommendations

• Incorporate ionization in tool design, not as aftermarket addition

• Use data-driven placement and configuration for process-specific needs

• Establish maintenance schedules and verification procedures

• Include ionization metrics in continuous improvement initiatives

• Coordinate with humidity, temperature, and airflow management for optimal performance

17. Future Trends

• Integration with AI for predictive ionization adjustment

• Smart ionizers with embedded sensors and real-time monitoring

• Nanometer-scale feature lithography will demand even more precise electrostatic management

• Multi-material and flexible substrate photolithography will require adaptive ionization systems

18. Conclusion

Electrostatic control is critical for semiconductor photolithography. Uncontrolled static can lead to particle contamination, resist defects, pattern distortion, and yield loss. Ionizing air bars provide precise, real-time neutralization of electrostatic charge during photoresist processing. Proper selection, placement, maintenance, and integration ensure high-quality, repeatable results, contributing to overall fab yield and reliability. As device geometries continue to shrink and process complexity increases, ionization becomes an essential component of modern semiconductor manufacturing. Properly implemented, ionizing air bars support process robustness, minimize defects, and enable the high throughput demanded by advanced technology nodes.
