Electrostatic discharge (ESD) and uncontrolled static charge accumulation pose significant risks to product quality, process stability, operator safety, and equipment reliability in modern manufacturing environments. These risks are amplified in production lines that incorporate moving workstations, conveyors, robotic transfer systems, and dynamically reconfigurable assembly cells. Ionizing air technology—particularly ionizing bars—has become one of the most effective and flexible approaches for static charge neutralization in such environments. This article presents a comprehensive engineering-oriented discussion on the design, selection, integration, and optimization of ionizing bar static control systems for moving workstations in production lines. Topics include electrostatic fundamentals, ionization principles, mechanical and electrical design considerations, airflow and ion transport modeling, control strategies, installation guidelines, performance verification, maintenance, safety, and future trends. The intent is to provide a practical yet theoretically grounded reference for process engineers, ESD coordinators, equipment designers, and system integrators.
Electrostatic discharge, static electricity control, ionizing bar, moving workstation, production line, ESD protection, ion balance, manufacturing automation
Static electricity is an inherent byproduct of many industrial processes, arising from triboelectric charging, induction, and separation of materials. In production lines with moving workstations—such as conveyor-based assembly, pick-and-place automation, roll-to-roll processing, and modular manufacturing cells—static charge generation is particularly severe due to continuous motion, friction, and material handling.
Ionizing bars (also referred to as ion bars or static eliminator bars) are widely used to neutralize static charges by emitting balanced streams of positive and negative ions into the surrounding air. When properly designed and integrated, ionizing bars can provide non-contact, real-time static control that is well suited to moving targets and variable process conditions.
This article focuses on the static control design of ionizing bars specifically for moving workstations in production lines. The objectives are to:
Explain the physical principles governing static charge generation and ion-based neutralization
Identify the unique challenges posed by moving workstations
Provide detailed design guidelines for ionizing bar selection and placement
Discuss electrical, mechanical, and control system integration
Present methods for performance evaluation and maintenance
Highlight safety, standards, and future developments
While the discussion is general, examples are drawn from electronics manufacturing, packaging, plastics processing, and precision assembly industries.
Static charge generation in production environments primarily occurs through:
Triboelectric charging – Contact and separation between dissimilar materials (e.g., plastic films on rollers).
Inductive charging – Redistribution of charges in conductive or semi-conductive objects exposed to electric fields.
Fracture and deformation – Mechanical stress causing charge separation in certain materials.
In moving workstations, these mechanisms are continuous and cumulative, leading to high surface charge densities if not properly controlled.
Uncontrolled electrostatic charge can result in:
ESD damage to sensitive electronic components
Particle attraction and contamination
Material handling issues (clinging, misfeeds)
Operator discomfort or shock
Increased fire and explosion risk in flammable environments
The severity of these effects increases with production speed, automation level, and product sensitivity.
Common static control methods include grounding, conductive materials, humidity control, and ionization. For moving workstations where grounding is impractical or insufficient, ionization is often the primary solution.
Ionizing bars generate ions by applying high voltage to emitter points, creating a corona discharge that ionizes surrounding air molecules. Depending on polarity, positive ions (cations) or negative ions (anions) are produced.
The neutralization process occurs when ions of opposite polarity migrate toward a charged object and recombine with excess surface charges, reducing the net electrostatic potential.
Ionizing bars are generally categorized as:
AC ionizing bars – Alternating polarity at line or high frequency; simple design, good balance, but limited distance.
DC ionizing bars – Separate positive and negative emitters; longer range, faster decay, but more complex control.
For moving workstations, DC or pulsed-DC ionizing bars are often preferred due to their extended effective range and faster response.
Key performance metrics include:
Ion balance – The voltage offset between positive and negative ions at the target.
Decay time – The time required to reduce a charged object from a specified voltage (e.g., ±1000 V to ±100 V).
Maintaining stable ion balance is critical in ESD-sensitive processes.
Moving workstations may include:
Conveyor-mounted fixtures
Shuttle systems
Robotic end-effectors
Automated guided vehicles (AGVs)
Indexing tables
Each presents different challenges for static control design.
Unlike fixed stations, the distance between the ionizing bar and the target surface changes continuously. Exposure time to ionized airflow is limited and speed-dependent, requiring careful design to ensure sufficient neutralization.
Airflow patterns, temperature, humidity, and contamination levels vary along production lines, affecting ion transport and recombination efficiency.
The ionizing system must achieve acceptable decay times within the available exposure window. This often requires higher ion output density and optimized placement.
Design considerations include:
Mounting rigidity and vibration resistance
Clearance from moving parts
Protection against mechanical damage
Ionizing bars must interface safely with machine power systems, interlocks, and control logic. Remote monitoring and fault signaling are increasingly required.
The bar length should exceed the maximum width of the charged surface, with margin to ensure uniform ion distribution.
Higher output voltage increases ion density but also raises ozone generation and safety concerns. Frequency selection affects balance and decay characteristics.
Ingress protection (IP) rating, chemical resistance, and temperature tolerance must match the production environment.
Typical effective distances range from 50 mm to 1000 mm depending on technology. For moving workstations, closer placement is generally preferred to compensate for limited exposure time.
Bars should be oriented to maximize ion impingement on the charged surface while minimizing recombination losses.
In high-speed lines, multiple ionizing bars may be staged along the travel path to achieve cumulative neutralization.
Some ionizing bars rely on natural ion drift, while others incorporate fans or are combined with external airflow sources.
Moving conveyors generate boundary-layer airflow that can either aid or hinder ion transport. Computational fluid dynamics (CFD) can be used for optimization.
Ion lifetime is affected by humidity, contamination, and turbulence. Design must account for these losses.
Simple systems operate continuously at fixed output. While robust, they may be inefficient or insufficient under varying conditions.
Advanced systems use sensors to monitor ion balance and adjust output dynamically, improving consistency.
Linking ionizer output to conveyor speed or workstation cycle time can enhance neutralization efficiency.
Common tools include:
Charged plate monitors (CPMs)
Electrostatic field meters
Ion balance analyzers
Testing should simulate actual line speeds, materials, and environmental conditions.
Performance targets should align with applicable standards and product sensitivity levels.
Dust and process residues reduce ion output and balance. Regular cleaning schedules are essential.
High-voltage power supplies should be monitored for stability and fault conditions.
Condition monitoring and data logging support predictive maintenance strategies.
Ionizing bars operate at high voltage but low current. Proper insulation, grounding, and interlocks are mandatory.
Corona discharge can produce ozone. Design must ensure compliance with occupational exposure limits.
Clear labeling and training reduce the risk of misuse or accidental damage.
Relevant standards include:
ANSI/ESD S20.20
IEC 61340 series
ISO 14644 (cleanroom applications)
Compliance ensures consistency and audit readiness.

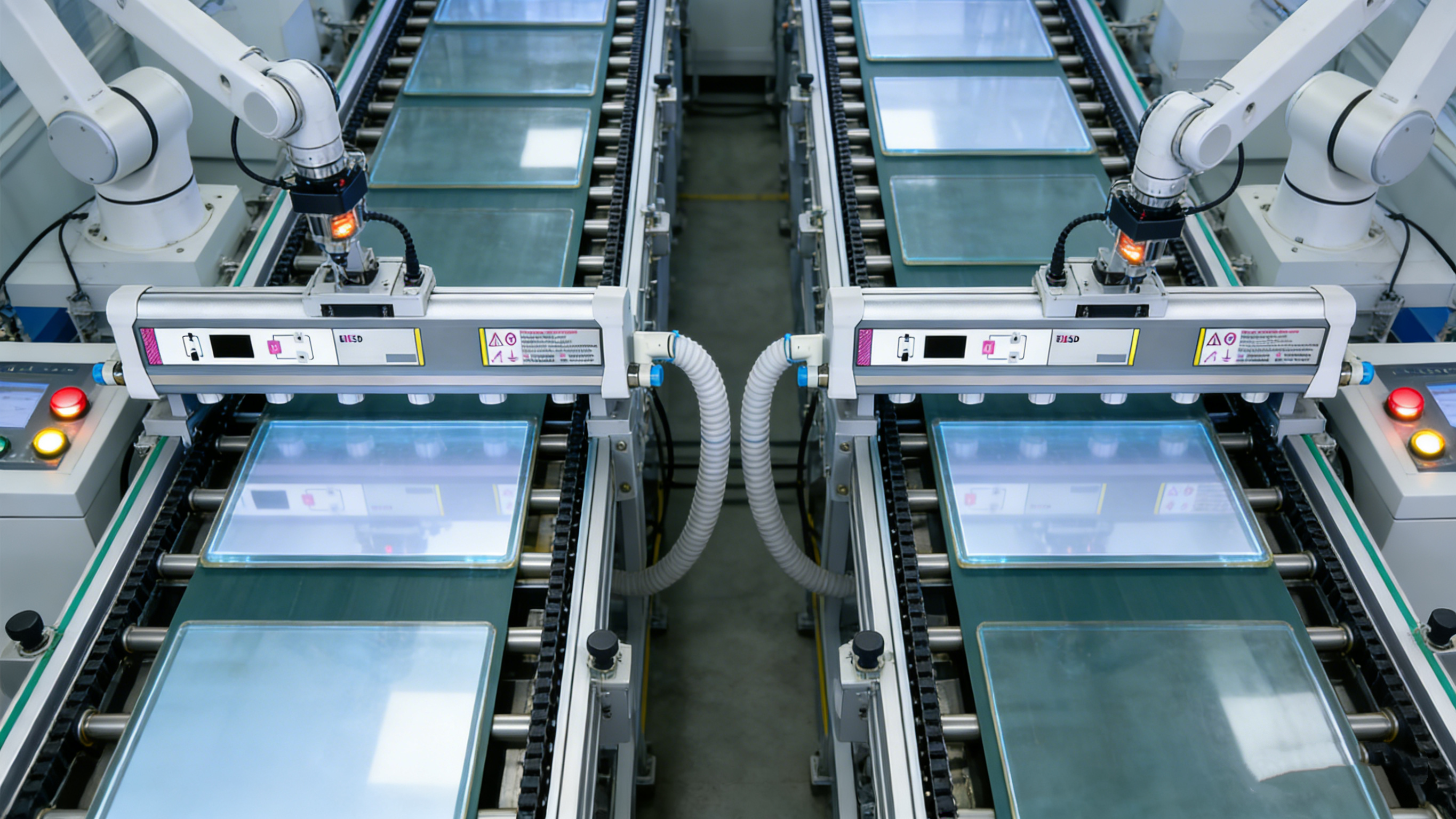

Ionizing bars mounted above conveyorized PCB carriers reduced ESD events and improved yield.
High-output DC ionizing bars neutralized charges on fast-moving web materials, reducing dust attraction.
Emerging developments include:
Smart ionizers with IIoT connectivity
Adaptive control using machine learning
Low-ozone, energy-efficient designs
These trends will further enhance static control in dynamic manufacturing environments.
Ionizing bars are a critical component of static control systems for moving workstations in production lines. Effective design requires a multidisciplinary approach that considers electrostatics, mechanics, airflow, control systems, and safety. By applying the principles and guidelines discussed in this article, engineers can achieve robust, reliable, and compliant static control solutions that support high-quality, high-speed manufacturing.
