Flexible printed circuit boards (FPCBs) are widely used in modern electronics due to their lightweight, compact form factor, and ability to conform to complex geometries. FPCB manufacturing involves multiple stages, including substrate preparation, copper etching, photolithography, lamination, and component assembly. Electrostatic charges can accumulate on flexible substrates and conductive layers, leading to localized electrostatic discharge (ESD) events. These events can damage delicate circuits, reduce yield, and cause latent failures. This article presents a comprehensive analysis of localized static issues in FPCB production, the mechanisms of charge accumulation, material considerations, ionization and grounding strategies, measurement and monitoring techniques, process integration, maintenance practices, case studies, and future trends. The objective is to provide engineers and manufacturing specialists with practical guidelines to manage local static issues and ensure high-quality FPCB production.
Keywords: flexible PCB, FPCB, electrostatic discharge, ESD, localized static, ionization, static control
Flexible PCBs are integral to modern consumer electronics, automotive systems, medical devices, and wearable technology. Their flexibility introduces unique challenges in static control compared to rigid PCBs:
Insulating polyimide substrates are prone to charge accumulation
Fine conductive traces are sensitive to ESD
Thin layers are easily deformed, which can exacerbate charge concentration
Localized static issues arise when certain areas of the FPCB or tooling acquire higher charge density than surrounding regions, increasing the likelihood of ESD events. Managing localized static requires an understanding of charge generation mechanisms, materials, process steps, and ionization strategies.
This article provides a detailed analysis of localized static in FPCB manufacturing and practical approaches for mitigation.
FPCB substrates and protective films frequently experience triboelectric charging during handling, lamination, or transfer:
Polyimide substrates contact rollers, conveyor belts, or operator gloves
Protective films and release liners can accumulate charges when peeled
Copper traces and laminated layers can generate localized charges when separated from insulating films
Factors influencing triboelectric charging include surface roughness, material pairing, humidity, and contact force.
Certain manufacturing steps can create localized charge hotspots:
Photolithography: exposure and development stages may induce charge on thin copper traces
Etching and plating: ionized chemical baths and movement can generate surface charges
Lamination: high-pressure roller contact with insulating layers causes charge build-up
Pick-and-place for components: friction between fine wires, pads, and robotic tips contributes to localized charging
Nearby charged equipment, conveyors, or previously charged FPCB layers can induce additional localized charges. Uneven charge distribution is particularly problematic in thin, flexible circuits where conductive paths are in close proximity.
Low humidity environments increase resistivity of polyimide and other dielectric materials, allowing charges to persist longer and create localized ESD risks. Temperature and airflow patterns also influence charge accumulation and decay.
High-resistivity polyimide retains charges for extended periods. Surface contamination, film thickness, and dielectric constant affect local charge concentration.
Copper traces are sensitive to ESD and can be damaged by even minor localized discharges. Trace width, spacing, and layout influence susceptibility.
Epoxy adhesives and protective coverlays are insulating and may trap charges near conductive layers, creating localized charge zones.
Robotic grippers, vacuum nozzles, and conveyor surfaces can transfer charges locally to FPCB regions. Conductive or dissipative materials are preferred.
Ionizers neutralize surface charges by emitting positive and negative ions:

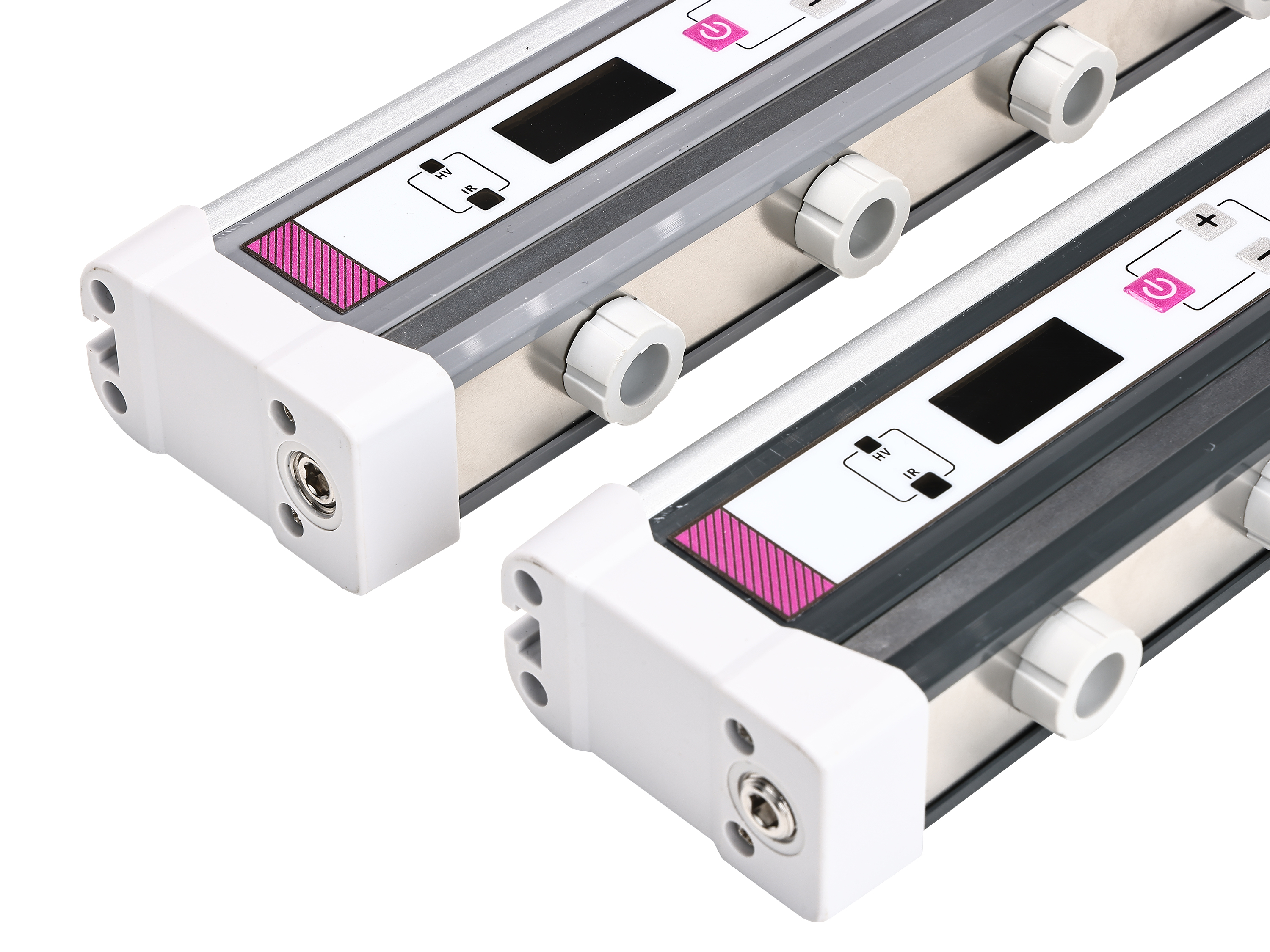

Needle or bar corona discharge
Fan-assisted ion blowers
Localized plasma ionization for precision areas
Localized static hotspots require precise ion delivery. Adjustable ionizers or small-scale ion emitters are used for areas with dense copper traces or thin dielectrics.
Proper grounding of conveyors, fixtures, tooling, and operators prevents charge build-up. ESD-safe mats, wrist straps, and dissipative gloves are critical.
Effective mitigation combines local ionization at high-risk areas with global grounding measures to ensure uniform charge neutralization.
Ionizers are placed near rollers and material entry points to neutralize charges before lamination. Airflow direction and intensity are adjusted to reach all substrate surfaces.
Ionizers target conductive traces where chemical baths may cause localized charge accumulation. Multiple small ion emitters ensure even coverage.
Localized ionization prevents charge accumulation on fine features during development and exposure steps. Adjustable ion bars or miniature blowers are used.
Robotic heads and component feeders are equipped with integrated ionization to neutralize charges at the point of contact with FPCBs.
Hotspots often occur at edges and corners of FPCBs. Ionizers are oriented to deliver ions to these critical regions, preventing localized ESD events.
High-risk areas benefit from overlapping ionization coverage to ensure neutralization even if a single ionizer underperforms.
Non-contact voltmeters or electrostatic field meters measure potential differences across FPCB surfaces. Hotspots can be identified and addressed.
Charge decay times are measured to ensure rapid neutralization of localized static, typically within 1–2 seconds for sensitive areas.
Monitoring the ratio of positive and negative ions prevents overcharging and ensures uniform neutralization.
Sensors on conveyors, lamination rollers, and pick-and-place machines provide continuous feedback for real-time adjustment of ionizers.
Analyzing localized ESD events over time enables identification of process steps or components prone to static accumulation.
Maintaining 40–50% RH accelerates charge dissipation on dielectric surfaces without condensation risk. Temperature stabilization prevents airflow variations that can affect ion distribution.
Laminar airflow ensures uniform ion delivery and prevents dust attraction. Turbulent regions may create localized charge hotspots.
Proper grounding of operators and fixtures complements ionization. Conductive gloves, ESD-safe mats, and wrist straps reduce the likelihood of charge transfer.
Finite element analysis (FEA) identifies potential localized charge accumulation on complex FPCB layouts, guiding ionizer placement.
Computational fluid dynamics (CFD) models airflow and ion distribution across flexible substrates, ensuring complete coverage and rapid neutralization.
Simulation of substrate movement, lamination, and pick-and-place processes allows prediction of dynamic charge accumulation and ESD risk areas.
Simulation data helps schedule ionizer cleaning, calibration, and performance checks to maintain consistent static control.
Routine cleaning, inspection, and calibration are essential to maintain ion output and coverage consistency.
Electrode wear or contamination reduces ion generation efficiency. Protective measures and material selection prolong service life.
Regular charge decay testing and ion balance verification detect deterioration early, allowing preventive maintenance.
Maintenance logs, calibration records, and performance data support quality assurance and compliance with ESD standards.
Targeted ionization at photolithography and lamination stages reduced localized ESD defects by over 60%, improving yield and component reliability.
Integration of miniature ionizers near high-density trace areas prevented discharge events during assembly of ultra-thin FPCBs.
Edge-focused ionization reduced failure rates in circuits exposed to dynamic handling and environmental stresses.
Implementation of overlapping ionizers at lamination and pick-and-place stages ensured consistent neutralization across complex substrate geometries.
Sensors detect localized charge accumulation and dynamically adjust ion output to maintain uniform neutralization.
Simulation of static charge behavior and ion transport enables virtual testing of ionizer layouts and optimization prior to physical deployment.
Micro-ion emitters provide precise neutralization for fine conductive traces and sensitive dielectric areas.
IoT-enabled monitoring allows predictive maintenance, real-time ionizer adjustment, and data-driven optimization of static control across the production line.
Low-power, ozone-free ionizers minimize environmental impact while maintaining effective localized charge neutralization.
Localized ESD risk in high-density, ultra-thin FPCBs
Rapid neutralization in high-speed automated assembly lines
Integration of multi-stage ionization without introducing airflow turbulence
Simulation of dynamic charge distribution for predictive control
Standardized metrics for evaluating localized static risk
Localized static is a critical concern in FPCB manufacturing due to the combination of flexible dielectric substrates and fine conductive traces. Optimized ionization, targeted grounding, environmental control, and real-time monitoring reduce the risk of localized ESD events, ensuring high product yield and reliability. Adoption of advanced techniques such as smart ionization, digital twins, and micro-ionization technologies will further improve localized static management in future FPCB production lines.
