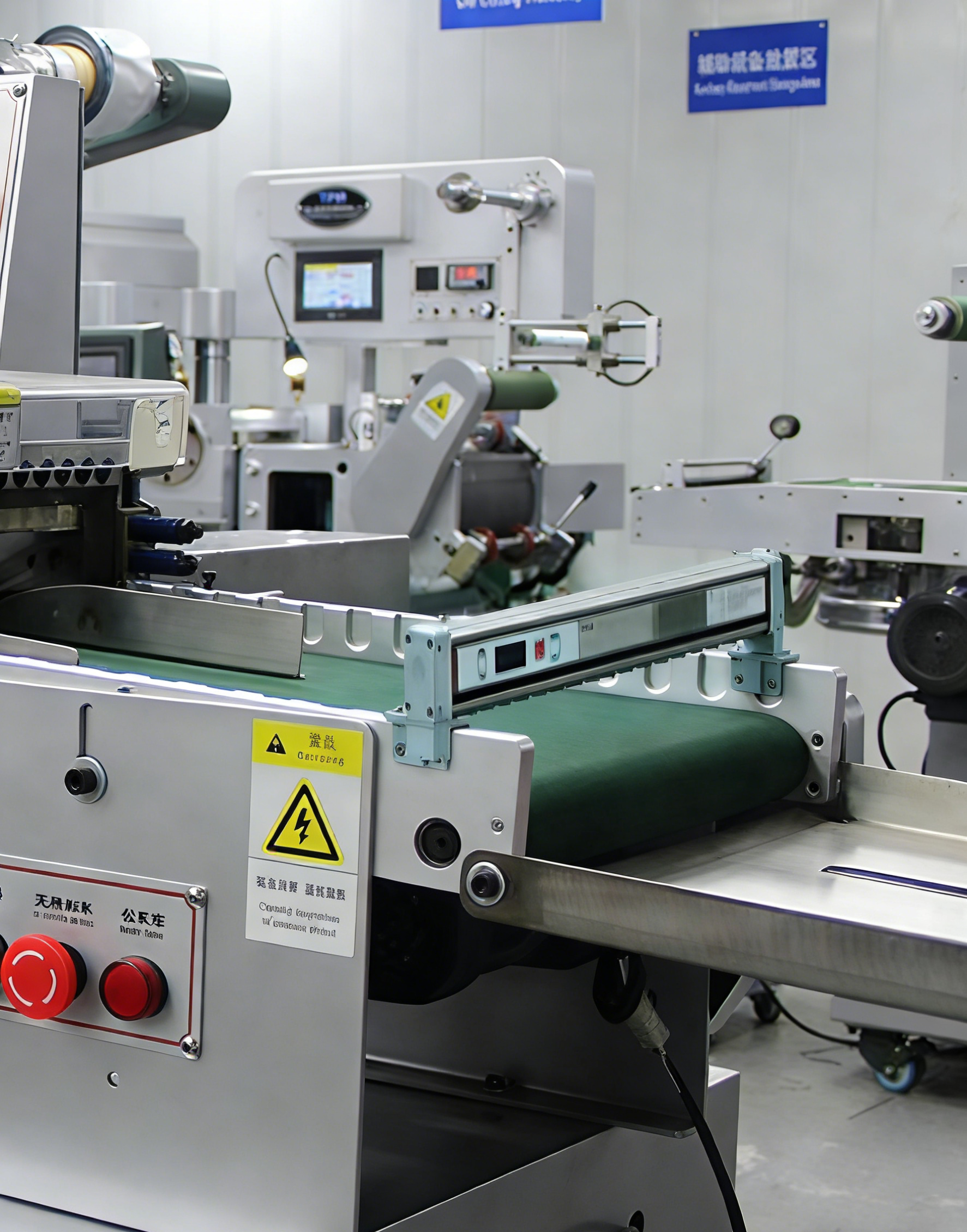

Ionizing air bars are widely used for electrostatic neutralization in industrial production lines, cleanrooms, and scientific laboratories. Despite their extensive application, quantitative evaluation of their effectiveness remains largely empirical, relying on simplified metrics such as charge decay time or single-point ion balance. These metrics, while useful, fail to fully capture the complex physical processes governing ion generation, transport, recombination, and surface charge neutralization.
This paper presents a comprehensive framework for quantitative mathematical modeling of ionizing air bar effectiveness. The study integrates electrostatic theory, ion transport dynamics, and surface charge decay behavior into a unified mathematical description. Key variables, governing equations, boundary conditions, and performance indicators are systematically defined. The objective is to establish models that enable predictive evaluation, comparative analysis, and optimization of ionizing air bar performance under varying environmental and operational conditions.
Keywords: Ionizing air bar, mathematical model, electrostatic neutralization, ion transport, charge decay, quantitative evaluation
Ionizing air bars are commonly evaluated using qualitative or semi-quantitative indicators, such as:
Time to neutralize a charged plate
Residual surface voltage (offset)
Visual or operational judgment
While adequate for basic validation, these approaches are insufficient for:
Design optimization
Performance comparison across devices
Predictive process control
Standardization and certification
A rigorous mathematical model enables a deeper understanding of the underlying physical mechanisms and supports objective, reproducible performance quantification.
Current evaluation practices suffer from several limitations:
Dependence on test geometry and setup
Sensitivity to environmental conditions
Inability to decouple interacting physical processes
Poor scalability across different applications
Without mathematical abstraction, performance results remain context-dependent and difficult to generalize.
Mathematical modeling serves multiple roles:
Descriptive: explaining observed behavior
Predictive: forecasting performance under new conditions
Diagnostic: identifying dominant limiting factors
Prescriptive: guiding design and parameter optimization
In the context of ionizing air bars, modeling bridges experimental measurement and engineering design.
This paper focuses on models that quantify the effectiveness of ionizing air bars, defined as their ability to reduce electrostatic charge and surface potential within specified spatial and temporal constraints.
The scope includes:
Physical assumptions and simplifications
Governing equations for ion dynamics
Surface charge decay modeling
Performance metrics derived from models
The neutralization of surface charge by an ionizing air bar involves several coupled processes:
Generation of positive and negative ions
Transport of ions through air
Interaction of ions with charged surfaces
Recombination and charge neutralization
Each process operates on different spatial and temporal scales.
Ion generation typically occurs via corona discharge at emitter points. The ion production rate depends on:
Applied voltage
Electrode geometry
Air composition and pressure
Ion generation serves as the source term in mathematical models.
Once generated, ions move under the influence of:
Electric fields
Airflow
Diffusion
Transport dynamics determine ion density distribution and arrival rate at the target surface.
When ions reach a charged surface, they recombine with surface charges, reducing net charge density. The efficiency of this process depends on:
Ion polarity balance
Surface material properties
Local electric field strength
To build mathematical models, “effectiveness” must be defined quantitatively. Common metrics include:
Charge decay time constant
Surface potential reduction rate
Residual offset voltage
Spatial uniformity index
Each metric corresponds to a measurable outcome of the neutralization process.
Charge decay time is widely used and can be defined as the time required for surface potential to decrease to a specified fraction of its initial value.
Ion balance reflects the asymmetry between positive and negative ion fluxes. Mathematically, it is expressed as a steady-state solution of the surface charge evolution equation.
Effectiveness is not only temporal but also spatial. Uniformity metrics quantify variation along the length of the air bar or across the target surface.
Air and ion populations are treated as continuous media, allowing the use of differential equations.
In many practical scenarios, electric fields change slowly compared with ion transport timescales, enabling quasi-static assumptions.
Initial models often assume one-dimensional transport to simplify analysis, with extensions to two- or three-dimensional models for higher accuracy.
Boundary conditions represent physical constraints such as grounded surfaces, insulating targets, and enclosure walls.
Key variables include:
Ion density (positive and negative)
Electric potential
Surface charge density
Parameters include:
Ion mobility
Airflow velocity
Surface resistivity
Environmental humidity
These parameters determine model behavior.
Control variables include:
Applied voltage
Distance between bar and surface
Ionizer operating mode
The overall model consists of coupled equations describing:
Electric field distribution
Ion transport
Surface charge evolution
A modular approach allows individual components to be refined independently and combined as needed.
Some simplified models admit analytical solutions, while realistic configurations require numerical methods.
Model outputs must correspond to measurable quantities such as surface potential or decay time.
Experimental data are used to estimate model parameters through fitting and optimization.
Validation involves comparing model predictions with independent experimental results.
Quantitative models provide:
Objective performance comparison
Predictive capability
Insight into dominant mechanisms
Challenges include:
Parameter uncertainty
Environmental variability
Computational complexity
Mathematical modeling provides a rigorous framework for quantifying the effectiveness of ionizing air bars. By translating physical processes into quantitative relationships, such models enable deeper understanding, predictive analysis, and systematic optimization of electrostatic neutralization performance.
