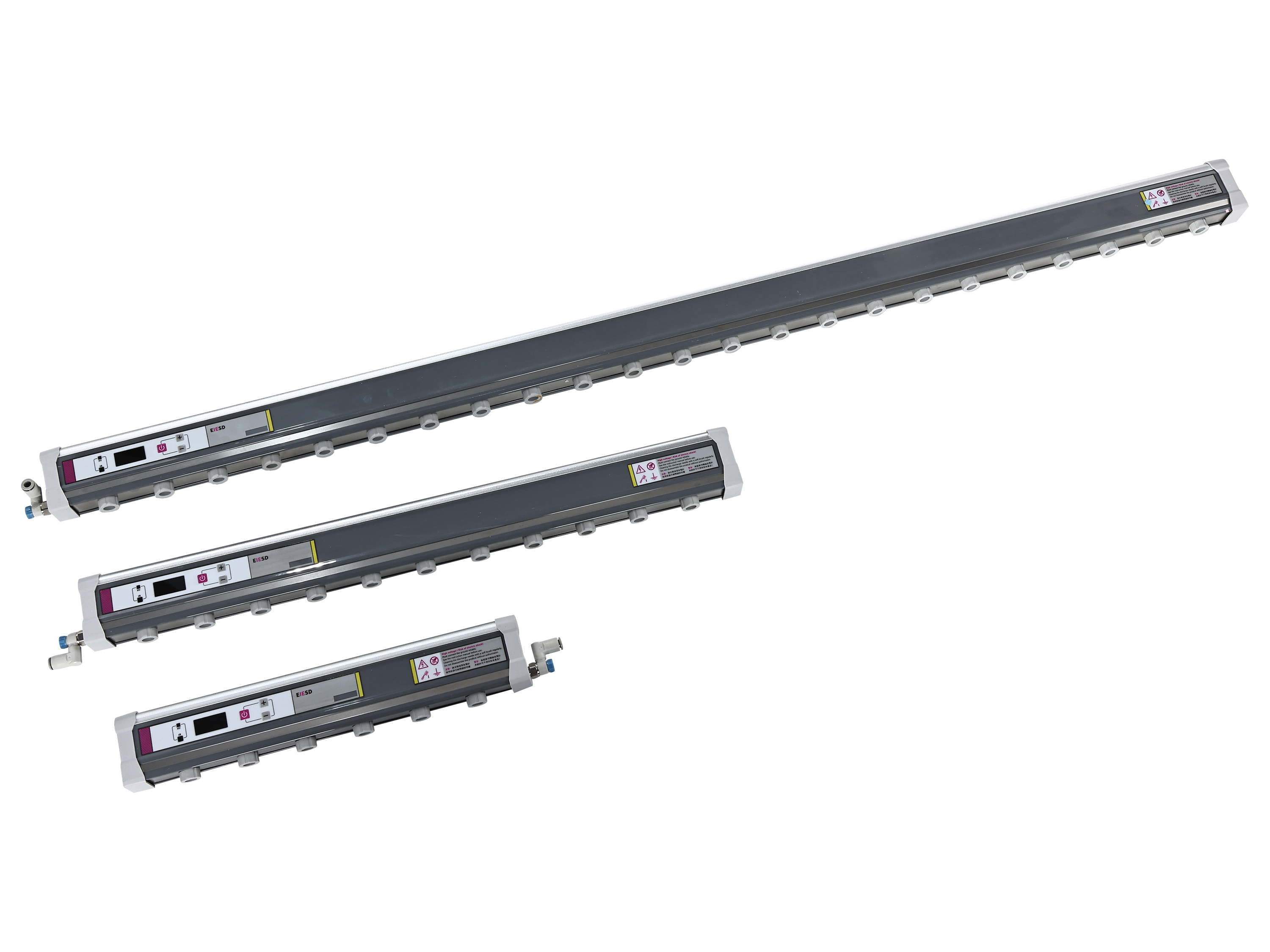

Modular ionizing air bars have emerged as a flexible solution for static control across diverse manufacturing environments. Unlike traditional fixed-length designs, modular systems allow customization, scalability, and adaptability to various production lines, product sizes, and process requirements. This article explores the scalability and extensibility of modular ionizing air bars, focusing on modular design principles, electrical and mechanical architecture, ion generation performance, control strategies, thermal management, airflow optimization, integration with automated systems, safety and standards compliance, case studies, modeling, experimental validation, and future research directions. Detailed discussions on system expansion, predictive maintenance, energy efficiency, and digital integration are also included. The study aims to provide engineers, researchers, and manufacturing designers with a comprehensive understanding of modular ion bar technology and strategies for expanding system capabilities while maintaining effective electrostatic discharge (ESD) protection.
Modular Ionizing Air Bar, Scalability, Extensibility, Electrostatic Discharge (ESD), Flexible Manufacturing, Thermal Management, Airflow Optimization, Control Systems, Safety, Standards Compliance, Energy Efficiency, Predictive Maintenance
In modern electronics manufacturing, high-speed automation, diverse product portfolios, and variable workstation sizes necessitate flexible static control solutions. Modular ionizing air bars provide a scalable approach, allowing customization of length, ion output, and control features based on specific application requirements. These systems can be expanded by adding modules to increase coverage or capacity without redesigning the entire ion bar.
The scalability of modular ion bars introduces unique challenges and opportunities. Modular units must maintain uniform ion distribution across interconnected segments, support dynamic control of ion output, manage thermal loads, ensure electrical and mechanical compatibility between modules, and enable easy maintenance. Furthermore, with the increasing focus on energy efficiency, sustainability, and Industry 4.0 integration, modular systems must balance performance with operational cost and adaptability.
This study examines the technological principles, design considerations, and advanced strategies for scalable modular ion bars, highlighting key challenges, case studies, and future trends.
Modular ion bars are designed with independent electrical units that can be connected in series or parallel. Each module typically contains a high-voltage power supply, emitter array, and control circuitry. Electrical modularization ensures that the addition of new modules does not compromise voltage stability, ion output uniformity, or safety.
High-frequency switching power supplies are often employed to reduce the size of each module while maintaining precise voltage control. Switching frequencies can range from tens to hundreds of kilohertz, enabling compact transformer and inductor designs suitable for dense modular configurations.
Mechanically, modules are designed with standardized interconnects, mounting points, and alignment features, allowing seamless integration into existing production lines. Mechanical modularization also simplifies maintenance and facilitates flexible adjustment of bar length or shape. Materials selected for housings and structural components must support mechanical stress, thermal expansion, and vibration resistance.
Modules are interconnected via communication interfaces such as RS-485, Ethernet, CAN bus, or Modbus, enabling centralized or distributed control. This allows coordinated operation, monitoring, and adaptive adjustments to maintain ion balance across the entire system. Scalable communication protocols are essential to prevent latency or signal degradation when multiple modules are integrated.
To achieve true scalability, modules must be interoperable, allowing seamless addition, removal, or replacement without recalibration of the entire system. Standardized connectors, power ratings, and control logic facilitate expansion while ensuring consistent performance.
Maintaining uniform ion density and balance across modules is critical for effective ESD control. Design considerations include emitter spacing, voltage regulation, and airflow distribution to prevent hot spots or under-ionized zones. Computational fluid dynamics (CFD) and electrostatic simulations guide emitter placement, spacing, and high-voltage distribution to achieve uniform performance in scaled systems.
The addition of modules influences overall charge decay rates due to cumulative ion output and airflow interactions. Empirical testing, combined with simulation, helps optimize decay performance in modular arrays. Charge decay analysis ensures that even the farthest point from the power input maintains effective ESD protection.
Modular systems can utilize AC, DC, or pulsed DC ionization modes. Selection depends on application requirements, interactions between modules, and desired ion balance. AC ionization is commonly used for simplicity and broad coverage, while pulsed DC allows precise control of polarity and charge decay, especially beneficial in high-density modular configurations.
Advanced modular systems can dynamically adjust ion output per module based on process demand, ambient conditions, or sensor feedback. This adaptive scaling reduces energy consumption, prolongs emitter life, and ensures consistent static control across variable workstation sizes.
Heat in modular ion bars originates from high-voltage electronics, resistive losses in emitter arrays, corona discharge, and airflow friction. When multiple modules are combined, cumulative thermal loads increase, potentially impacting performance and reliability.
Passive strategies include heat sinks, thermally conductive housing materials, and thermal vias. Active strategies involve micro fans, forced airflow, and miniature liquid cooling loops. Hybrid approaches combine passive and active methods for optimal thermal management in dense module arrays.
Thermal interaction between adjacent modules can create hotspots, especially in high-density arrangements. Thermal simulations guide module spacing, airflow design, and housing material selection to minimize coupling effects and maintain uniform temperatures.
Embedded thermal sensors provide real-time data for adaptive cooling control. Intelligent systems can modulate fan speed, voltage output, or airflow direction to maintain safe operating temperatures across all modules.
Consistent ion transport requires coordinated airflow across modules. Microducts, flow straighteners, and diffusers maintain laminar flow and uniform ion distribution. Computational modeling helps optimize airflow paths and minimize turbulence, which can affect both ion delivery and thermal dissipation.
Adjustable fans or blowers within each module enable dynamic airflow control. This allows each module to respond to varying thermal loads, environmental conditions, or process requirements, improving energy efficiency and performance consistency.
Air filtration prevents dust or particulate accumulation on emitters, which can degrade performance. In extended modular systems, maintaining consistent filtration across all modules is critical. Additionally, managing ozone levels generated by corona discharge ensures compliance with safety standards.
In modular systems, airflow interactions between neighboring modules must be considered. CFD simulations help predict recirculation zones, pressure drops, and potential turbulence to optimize module placement and ducting design.
Centralized control allows uniform voltage and ion output settings across all modules, whereas distributed control enables individual module adaptation based on local conditions. Hybrid control systems leverage the advantages of both approaches, ensuring both overall uniformity and local optimization.
Ion balance sensors, charge decay monitors, and environmental sensors provide real-time feedback. Data collected across modules enables adaptive adjustments to maintain performance and safety.
Modules communicate using industrial protocols such as Modbus, CAN bus, or Ethernet. Network scalability ensures that additional modules do not introduce latency, signal degradation, or synchronization issues, which could compromise ESD performance.
Sensor data allows predictive maintenance algorithms to identify modules showing performance degradation due to emitter wear, thermal stress, or contamination. This approach minimizes downtime and maintains system reliability across large modular arrays.
High-voltage interconnects must ensure insulation integrity, minimize arcing risk, and include fault detection mechanisms. Safety interlocks prevent module operation when connections are incomplete or damaged.
Scaling modular systems increases cumulative ozone generation. Voltage optimization, airflow management, and ozone catalysts reduce harmful levels. Real-time ozone monitoring can trigger adjustments or ventilation activation to maintain safe working conditions.
Modular ion bars must comply with ANSI/ESD S20.20, IEC 61340, and related standards. Design strategies ensure compliance regardless of the number of modules installed, including consistent charge decay, ion balance, and safe operating voltages.
Modules must meet standards for thermal safety, mechanical robustness, and vibration resistance. This includes testing for thermal cycling, mechanical shocks, and environmental exposure to ensure reliability and longevity.
Integration of modular ion bars allowed a flexible assembly line to adapt to varying PCB widths. Modules were added or removed based on product size. Empirical measurements showed uniform charge decay and a reduction in static-related defects by 18%.
Modular ion bars provided full coverage for a wide processing area. Coordinated control and airflow management ensured consistent static neutralization, improving yield and reducing downtime.
Modules were configured to cover different stages of wafer transport. Feedback from ion balance sensors enabled adaptive control, preventing localized charging and improving handling safety for sensitive devices.
Extended modular arrays underwent thermal testing under continuous operation. Results indicated that hybrid passive-active cooling strategies maintained module temperatures within safe limits, demonstrating scalability without thermal compromise.
Dynamic airflow and voltage control across modular units reduced energy consumption by 15–20% compared to fixed-output systems, highlighting the advantages of modular adaptive design.
CFD and electrostatic simulations predict ion concentration, airflow patterns, and charge decay across multiple modules. Simulation guides module placement, emitter spacing, and airflow design for scalable systems.
FEA and thermal modeling assess heat distribution in extended modular configurations, identifying potential hotspots and informing cooling strategies.
Sensitivity analysis evaluates how variations in module alignment, voltage, airflow, or environmental factors affect overall ESD performance, guiding robust design tolerances.
Digital twins simulate modular array behavior in virtual environments, allowing predictive adjustments to voltage, airflow, and module configuration before physical deployment.
Modular ion bars are compatible with robotic pick-and-place systems, providing targeted ESD protection without obstructing robot motion.
Modular systems can be reconfigured to accommodate changes in product size, line layout, or throughput requirements, supporting agile manufacturing processes.
Integration with IoT-enabled monitoring systems allows real-time performance tracking, predictive maintenance, and automated adjustments across modular arrays.
Machine learning algorithms analyze historical and real-time sensor data to optimize ion output, airflow, and module coordination, enhancing performance, efficiency, and predictive maintenance capabilities.
Adding modules increases the complexity of electrical and mechanical interconnections, requiring standardized connectors and robust mechanical design to ensure reliability.
Scaling may introduce variability in ion output and charge decay. Careful calibration, adaptive control, and continuous monitoring are necessary to maintain uniform ESD protection.
Modules may age differently due to thermal load, environmental exposure, or operational cycles. Predictive maintenance strategies help maintain consistent performance across modular systems, reducing downtime and operational costs.
In tight or environmentally challenging workstations, modular design must account for airflow limitations, temperature rise, and space for interconnects, ensuring both performance and safety.
High thermal conductivity composites, self-cleaning emitter coatings, and lightweight structural materials will enhance scalability, thermal performance, and mechanical robustness.
Machine learning and AI algorithms will autonomously optimize ion output, airflow, and module coordination, improving efficiency, performance consistency, and predictive maintenance.
Development of standardized interfaces, communication protocols, and performance metrics will simplify integration and expansion of modular systems across diverse manufacturing lines.
Low-power modules, dynamic airflow and voltage control, and efficient thermal management will reduce energy consumption, operational cost, and environmental impact while supporting scalable ESD solutions.
Modular ion bars will increasingly integrate with smart manufacturing platforms, enabling real-time data collection, analytics, and autonomous adjustment to changing production demands.
Modular ionizing air bars provide a versatile, scalable, and adaptable solution for ESD control in modern manufacturing environments. By combining electrical and mechanical modularization, coordinated airflow and thermal management, intelligent control systems, and compliance with safety and performance standards, modular ion bars can be expanded to meet diverse process requirements. Advanced materials, AI-driven control, standardized interfaces, and energy-efficient designs will further enhance the scalability, effectiveness, and sustainability of modular ion bar systems, making them a critical component in flexible, high-density production lines.
