Learn about four types of materials: anti-static, dissipative, conductive, and insulative. Each one deals with static electricity in its own way.
Use anti-static materials to stop static from building up in sensitive places. They keep surfaces moist so charges do not form.
Pick static dissipative materials to safely get rid of static electricity. These let charges move slowly to the ground and protect electronics.
Use conductive materials if you need to get rid of static fast. They have low resistance and can send static to the ground well.
Do not use insulative materials in places where ESD is a problem. They keep static charges, which can cause dangerous shocks that hurt electronics.

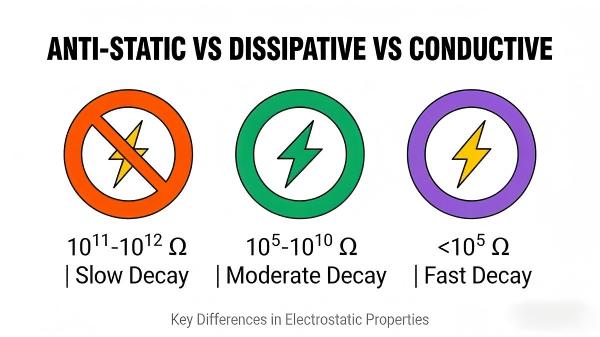

Knowing what is the difference between anti-static, dissipative, conductive, and insulative materials helps you pick the right one for ESD control. Each material acts differently with static electricity. The table below shows how they are not the same:
Material Type | Definition | Surface Resistivity (Ω/square) | Typical Applications |
|---|---|---|---|
Anti-static | Stops static electricity from building up by keeping moisture on the surface | 10^9 to 10^12 | Textiles, packaging, surface treatments |
Static dissipative | Lets charges move to ground slowly and safely | 1 x 10^5 to 1 x 10^12 | ESD protection, electronics workstations |
Conductive | Electrons move easily, so static charges go away fast | Less than 1 x 10^5 | Grounding, ESD mats, connectors |
Insulative | Does not let electrons move, so static charges stay | Greater than or equal to 1 x 10^12 | Electrical insulation, plastic housings |
Anti static materials help stop static electricity from building up. They keep moisture on their surface. This lets some electricity move. It stops static charges from forming. Their surface resistivity is between 10^10 and 10^12 ohms per square. You find anti-static products in packaging, coatings, and textiles. These materials focus on stopping charges before they start. They do not manage discharge. They work well in places where you want to avoid static, like packaging for electronics.
Tip: Use anti-static materials if you want to stop static electricity from starting in your workspace or packaging.
Static dissipative materials help control static electricity. They let charges move to ground slowly and safely. Their surface resistivity is between 1 x 10^5 and 1 x 10^12 ohms per square. You can use static dissipative mats on workbenches in ESD safe areas. These materials do not let sudden discharges happen. Sudden discharges can hurt electronics or cause sparks. Instead, they give a safe way for static charges to leave your devices.
Static dissipative materials:
Let static electricity leave in a safe way.
Stop sudden discharges that can hurt electronics.
Give a safe path for charges to go away.
You see static dissipative materials in electronics assembly and cleanrooms. They are used in other ESD safe places too. If you need to protect delicate parts, use a dissipative material.
Conductive materials remove static charges very fast. They have low resistance. Their surface resistivity is less than 1 x 10^5 ohms per square. Electrons move easily across or through these materials. Any static charge spreads out quickly. It can go to ground if the material touches something grounded. Conductive materials include metals, carbon-filled plastics, and special coatings.
You use conductive materials for grounding and ESD control. For example, you might use a conductive mat or wrist strap to connect yourself to ground. This stops static electricity from building up on your body. It keeps electrostatic discharge from happening.
Note: Conductive materials are best when you need to move static charges away from sensitive places fast.
Insulative materials resist electrical flow a lot. Their surface resistivity is at least 1 x 10^12 ohms per square. These materials do not let electrons move easily. Static charges stay in place for a long time. Common insulative materials are plastics, glass, and rubber.
You need to be careful with insulative materials in ESD safe places. They hold static charges. This can cause sudden discharges that hurt electronics. Insulative materials are good for electrical insulation. They are not good for ESD control. If you use insulative materials near sensitive devices, you risk electrostatic discharge.
Warning: Insulative materials can build up static electricity and release it suddenly. This can harm delicate electronics.
When you ask what is the difference between anti-static, dissipative, conductive, and insulative materials, you look at how each handles static electricity. Anti-static materials stop static charges from forming. Static dissipative materials let charges move away slowly and safely. Conductive materials move charges away very fast. Insulative materials keep static charges in place. This can be risky in ESD safe places.
Use this information to pick the right material for your needs. If you want to stop static buildup, choose anti-static. If you need to protect sensitive electronics, use static dissipative or conductive materials. Do not use insulative materials in ESD safe areas. They can cause dangerous static discharges.
Material Type | Surface Resistivity (Ω/square) | How It Handles Static Electricity |
|---|---|---|
Anti-static | 10^9 to 10^12 | Stops static from building up |
Static dissipative | 1 x 10^5 to 1 x 10^12 | Lets slow, safe discharge |
Conductive | Less than 1 x 10^5 | Moves charges away fast |
Insulative | Greater than or equal to 1 x 10^12 | Holds static charges, risk of sudden discharge |
By knowing what is the difference between anti-static, dissipative, conductive, and insulative materials, you can make your workspace safer. You can protect your equipment from electrostatic damage.
You can stop static electricity by using anti-static materials. These materials keep electrical charges from building up on surfaces. This is very important in electronics factories. Even a little static can hurt sensitive parts. Anti-static flooring and coatings use special materials to move static charges away. They move charges away from people and equipment. For example, anti-static flooring has a coating with tiny conductive pieces. When you walk on it, the charge goes to a grounding point. This keeps your workspace safe.
Many workplaces use anti-static sprays like Staticide® on tables, tools, and clothes. These sprays help stop static for a long time. You also see anti-static packaging in factories. It protects electronic parts during shipping and handling.
Tip: Always use good grounding methods with anti-static materials. This helps stop static, especially when working with plastics or other insulative materials.
Conductive materials help get rid of static electricity fast and safely. These materials have low resistance, so charges move easily. When you use a conductive mat or wrist strap, you make a path for charges to go to ground. This stops static from hurting your devices.
Static dissipative materials are important too. They do not let charges move as fast as conductive materials. But they let charges leave in a slow, safe way. This slow release stops sudden surges that could hurt electronics. For example, static dissipative plastics and ESD-safe work surfaces protect equipment during assembly. ESD-safe packaging and containers keep parts safe during transport.
Here are some common materials used in ESD-sensitive places:
Material Type | Description |
|---|---|
Static Dissipative Plastics | Let charges leave in a controlled way. |
ESD-safe Fabric | Stops static from building up and discharging. |
Conductive Polymers | Get rid of static electricity in many uses. |
Engineered Carbon-based Materials | Give conductivity and lower static in sensitive areas. |
Static Dissipative Flooring | Lowers static buildup in workspaces. |
Protect sensitive equipment during handling. | |
ESD-safe Packaging and Containers | Make sure electronic parts are safe during transport. |
Conductive Bulk Bags (FIBC Type C) | Used for safe handling of materials in ESD-sensitive places. |
When you pick the right material, you protect your workspace from static. You also make sure static charges leave safely. This keeps your equipment and people safe.
You need to test materials to see if they work for esd control. The main way is to measure surface resistance and volume resistance. These tests show if a material is anti-static, static dissipative, conductive, or insulative.
ASTM D257 is an important test. This standard tells you how to measure surface resistance, surface resistivity, volume resistance, and volume resistivity. You use special tools and electrodes for these tests. They check how easily electricity moves across or through a material. Here are some common test methods:
Test Method | Description |
|---|---|
ASTM D-257 | Measures dc insulation resistance, volume resistance, volume resistivity, surface resistance, and surface resistivity of electrical insulating materials. |
BS 5958 | British standard for controlling static electricity in industrial settings. |
BS 7506 | British standard for measuring resistance of floor coverings. |
NFPA 77 | U.S. standard for static electricity in hazardous locations. |
You can see how different resistivity values match with material types in this table:
Classification | Resistivity Range (ohms per square) | Description |
|---|---|---|
Anti-Static | 10^10 to 10^12 | Suppresses initial electrostatic charges. |
Static Dissipative | 10^6 to 10^9 | Prevents discharge to human contact. |
Conductive | 10^3 to 10^5 | Provides a path for charge to bleed off. |
Insulative | ≥ 10^12 | Limits the flow of electrons; static charges remain. |
Surface resistance and surface resistivity tell you how well a material can move or hold static charges. You use these numbers to pick the best material for esd control.
You will see special symbols and labels on esd control products. These symbols help you handle static-sensitive things safely. Here are some important points:
The ESD sensitivity symbol warns you that a device can be hurt by static electricity.
The ESD protective symbol shows that a material or area protects against static discharge.
Letters like S, F, C, and D on labels tell you if the material is shielding, conductive, or dissipative.
You find these symbols on things like conductive packaging, anti-static clothes, and esd control mats.
When you read these symbols and check the surface resistance or surface resistivity, you can pick the right products for your workspace. This keeps your electronics safe and helps you follow good esd control rules.
When you pick anti-static products, you should think about how each one controls static charge. You also need to make sure it fits your workspace. The right product keeps your equipment safe. It helps you follow ESD rules.
Static elimination devices get rid of extra charge from surfaces and air. You can use ionizing bars, ion fans, and ion nozzles where static charge builds up fast. These devices send out ions. The ions remove charge from objects and people. You see these tools in electronics factories, printing rooms, and plastic molding shops.
Ionizing Bars: Put these above conveyor belts or work tables. They release ions to take away charge from moving items.
Ion Fans: Use these to blow ions over a big area. They help keep charge low in rooms with sensitive electronics.
Ion Nozzles: Point these at small parts or tools. They focus on charge in certain spots.
Tip: Check your static elimination devices often. This makes sure they keep charge under control.
You need packaging that protects things from static charge during shipping and storage. Different materials give different levels of protection.
EPE Pearl Cotton Bags: These bags are soft and cushiony. They lower charge and protect fragile items.
Shielding Bags: These bags block outside charge. They keep ESD-sensitive parts safe.
Nylon Vacuum Bags: Use these for moisture protection. They also limit charge buildup.
Aluminum Foil Bags: These bags shield against charge and moisture.
Conductive PE Foam: This foam soaks up charge. It cushions delicate electronics.
Conductive Mesh Bags: These bags let charge flow away from stored items.
Antistatic Film: Wrap this film around products. It stops charge from building up.
Type of Packaging | Advantages | Disadvantages |
|---|---|---|
Static Shielding Bags | Blocks charge, protects against ESD | Needs proper sealing, higher cost |
Anti-Static Bags | Reduces charge, cost-effective | Does not block external charge |
You need to measure charge to keep your workspace safe. Electrostatic sensors and meters help you find hidden charge. Hidden charge can damage products.
Electrostatic sensors measure charge on surfaces and in the air.
Charge Plate Monitors check how well ionizers remove charge.
These tools help you find charge problems before they cause damage.
Note: Use static meters often. This makes sure charge stays at safe levels.
You find anti-static products in many industries. Each area needs special ways to control charge.
You use anti-static mats, wrist straps, and packaging. These keep charge away from PCBs and chips.
Robots and machines need static control. This stops charge buildup that can halt production.
Anti-static sprays and ionizers remove charge from plastic parts.
Cleanrooms use static dissipative flooring and ion fans. These control charge.
Static meters and anti-static packaging keep charge from getting on products.
Ionizing bars and anti-static rollers stop charge. This keeps paper jams away.
You use conductive foam and shielding bags. These protect sensors from charge.
Anti-static films and bags keep charge away from packed goods.
Anti-static sprays and mats help control charge in fabric making.
Ion fans and anti-static flooring stop charge. This keeps dust from sticking.
You use anti-static packaging and ionizers. These protect screens from charge.
Application Area | Examples of Use |
|---|---|
Electronics Manufacturing | PCBs, ICs, Memory Modules |
Consumer Electronics | Hard Drives, Mobile Devices |
Medical Equipment | Diagnostic Devices |
Automotive Industry | Electronic Control Units |
You need to look at the risks and benefits of each material type for charge control.
Material Type | Electrical Resistance (Ohms) | ESD Protection Functionality |
|---|---|---|
Static Dissipative | 10^9 to 10^12 | Safely dissipates charge |
Conductive | Very low resistance | Quickly removes charge to ground |
Anti-static materials lower charge and dust. They may not protect against ESD.
Static dissipative materials control charge release. They work well in sensitive areas.
Conductive materials move charge away fast. This lowers ESD risk.
Insulative materials hold charge. They can cause sudden discharge.
Always match your anti-static product to your workspace needs. This keeps charge under control and protects your equipment.
You should learn how anti-static, dissipative, conductive, and insulators work. This helps keep your equipment safe. Conductive materials move static charges away very quickly. Static dissipative materials control how static flows. Anti-static materials stop static from building up. Insulators hold static charges for a long time. Insulators do not let charges move. This can cause problems in ESD areas. Plastics and glass are common insulators. You need to be careful with insulators in sensitive places.
Material Type | Electrical Resistance | Application Use Case |
|---|---|---|
Conductive | Very low resistance | Use when you need to get rid of static charges completely |
Static Dissipative | 10^9 to 10^12 ohms | Use when you need slow, safe discharge for sensitive parts |
To pick the right material, use this checklist: 1. Learn about each material’s properties. 2. Think about where you will use it. 3. Check how much money you can spend. 4. Decide if your needs might change later. 5. Think about how you will work with the material. 6. Plan how much material you need. 7. Make sure you can get more raw materials if needed.
Electrostatic charges can hurt sensitive parts. Devices might stop working or break. You should use the right materials to keep your equipment safe.
Check the label or test how well it resists electricity. Look for ESD symbols on the product. Use materials made for ESD protection to keep your device safe.
Regular plastic keeps electrostatic charges. It does not protect electronics from damage. Pick anti-static, dissipative, or conductive materials for better safety.
Grounding takes electrostatic charges off your body. This helps stop damage to parts when you build or fix things.
Anti-Static | Static Dissipative |
|---|---|
Stops charge buildup | Lets charge flow slowly |
Used to prevent static | Used for safe discharge |
