Nonlinear Relationship Between Ionization Efficiency and Air Temperature–Humidity in Ionizing Air Systems

Abstract

Ionizing air systems are widely used in electrostatic discharge (ESD) control, semiconductor fabrication, precision coating, pharmaceutical packaging, and high-speed automated manufacturing. Their performance depends strongly on environmental conditions, particularly air temperature and relative humidity. While it is commonly acknowledged that humidity influences static dissipation and ion mobility, the relationship between ionization efficiency and air temperature–humidity is highly nonlinear and governed by complex interactions among plasma physics, gas-phase chemistry, ion transport, recombination kinetics, dielectric surface conductivity, and thermodynamic effects.

This paper presents a comprehensive analysis of the nonlinear coupling between ionization efficiency and ambient temperature–humidity conditions. It explores how temperature and moisture concentration affect corona onset voltage, ion generation rate, ion mobility, cluster formation, recombination rate, ozone chemistry, space charge shielding, airflow transport, and surface neutralization kinetics. Mathematical modeling frameworks are introduced to describe nonlinear behaviors and threshold phenomena. Engineering strategies for environmental optimization and adaptive compensation are also discussed.

---

1. Introduction

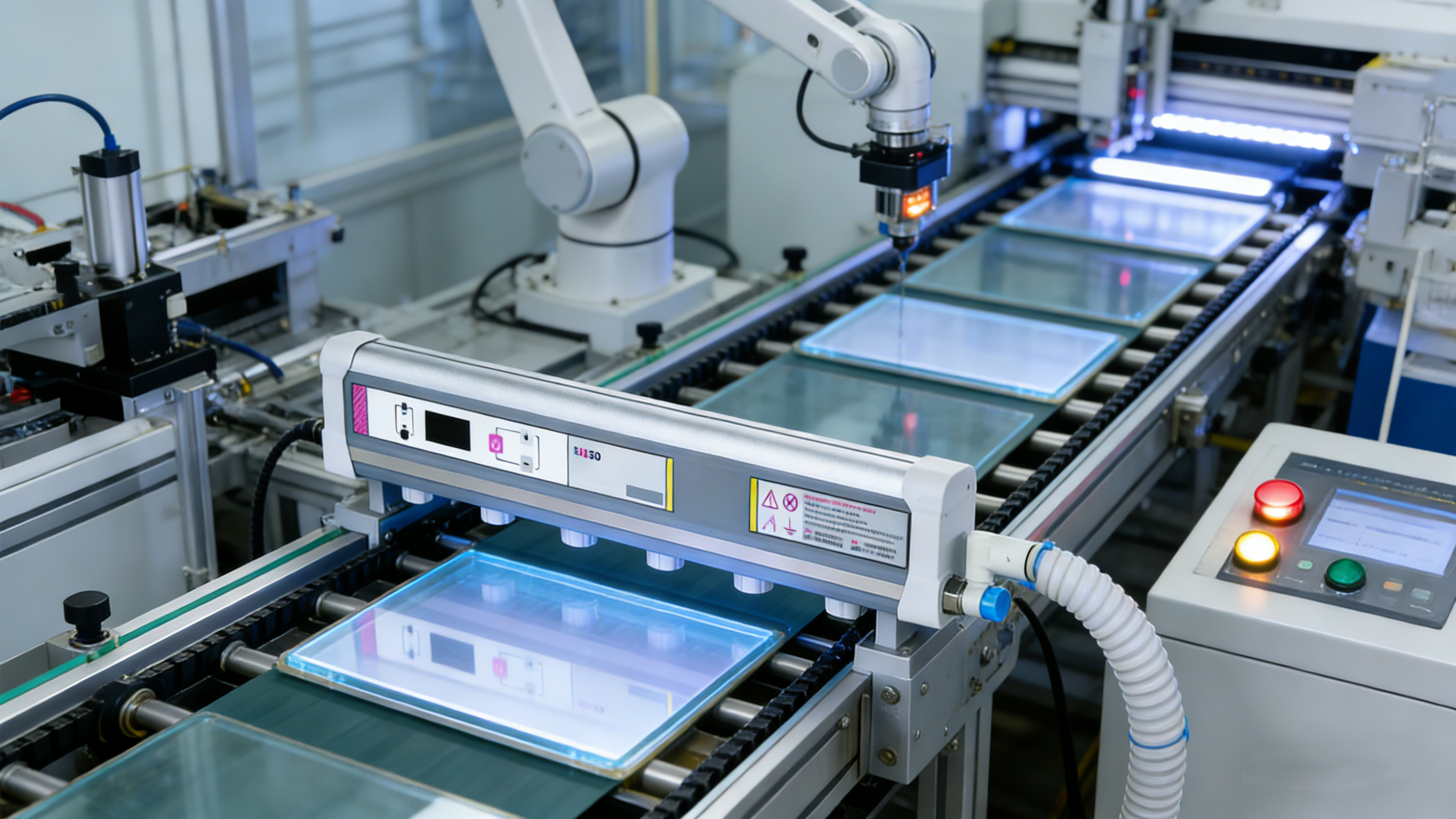

Ionizing air bars generate positive and negative ions through corona discharge to neutralize static charges. The efficiency of ionization systems is typically evaluated by:

• Ion generation rate

• Ion balance stability

• Neutralization time

• Residual surface voltage

• Spatial uniformity

Environmental variables significantly influence these performance indicators. Among them, air temperature (T) and relative humidity (RH) are the most impactful.

In industrial settings, temperature may range from 15°C to 40°C, while relative humidity can vary from below 20% to above 80%. Within this range, ionization efficiency does not vary linearly; instead, it exhibits threshold behavior, saturation effects, and coupling interactions.

Understanding these nonlinear mechanisms is essential for designing stable and high-performance ionization systems.

---

2. Definition of Ionization Efficiency

Ionization efficiency (η) may be defined as:

η=QneutralizedQgenerated\eta = \frac{Q_{neutralized}}{Q_{generated}}η=QgeneratedQneutralized

Where:

• QgeneratedQ_{generated}Qgenerated = total ion charge produced

• QneutralizedQ_{neutralized}Qneutralized = charge effectively neutralizing target surface

Alternatively, efficiency can be expressed through neutralization time constant:

τ=CG\tau = \frac{C}{G}τ=GC

Where:

• $C$ = capacitance of charged object

• $G$ = ion conductance toward surface

Both definitions depend strongly on environmental parameters.

---

3. Influence of Air Temperature

3.1 Gas Density Variation

Air density follows the ideal gas law:

ρ=PRT\rho = \frac{P}{RT}ρ=RTP

As temperature increases, air density decreases.

Lower density affects:

• Mean free path of electrons

• Breakdown voltage

• Ion collision frequency

This modifies corona characteristics nonlinearly.

---

3.2 Corona Onset Voltage Dependence

Corona onset voltage approximately follows Peek’s law:

Vc∝r⋅δ⋅ln⁡(d/r)V_c \propto r \cdot \delta \cdot \ln(d/r)Vc∝r⋅δ⋅ln(d/r)

Where:

• $\delta$ = air density correction factor

Since $\delta$ depends on temperature and pressure, corona onset voltage decreases slightly with rising temperature.

However, discharge intensity may not increase proportionally due to enhanced recombination at higher temperatures.

---

3.3 Ion Mobility Dependence

Ion mobility:

μ∝1ρ\mu \propto \frac{1}{\rho}μ∝ρ1

Higher temperature → lower density → increased mobility.

But mobility also depends on ion clustering, which is humidity-dependent.

---

3.4 Thermal Ion Recombination

Recombination rate:

R=αn+n−R = \alpha n_+ n_-R=αn+n−

Recombination coefficient $\alpha$ increases with temperature due to higher collision energy.

Thus, although ion mobility increases with temperature, recombination may also increase, reducing net ion availability.

This creates nonlinear behavior.

---

4. Influence of Relative Humidity

4.1 Ion Cluster Formation

Water vapor significantly alters ion chemistry.

In dry air, primary ions include:

• O₂⁺

• N₂⁺

• O₂⁻

In humid air, cluster ions form:

O2−+(H2O)nO_2^- + (H_2O)_nO2−+(H2O)n

Cluster formation increases ion mass and reduces mobility.

Mobility reduction is nonlinear with humidity concentration.

---

4.2 Surface Conductivity Enhancement

Surface conductivity of insulating materials increases exponentially with humidity:

σs∝ek⋅RH\sigma_s \propto e^{k \cdot RH}σs∝ek⋅RH

Thus, at moderate humidity (40–60%), natural charge leakage improves neutralization, reducing ion demand.

At very low humidity (<20%), surface leakage is negligible, requiring higher ion density.

---

4.3 Ozone and Radical Chemistry

Water vapor participates in reactions:

O3+H2O→2OH+O2O_3 + H_2O \rightarrow 2OH + O_2O3+H2O→2OH+O2

Hydroxyl radicals alter ion chemistry and reduce ozone concentration.

At high humidity, ozone formation decreases, but ion clustering increases.

---

4.4 Space Charge Effects

High humidity increases ion mass, reducing drift velocity:

$$v=\mu E$$

Lower mobility causes local ion accumulation, intensifying space charge shielding near emitter tips.

This reduces effective field strength nonlinearly.

---

5. Coupled Temperature–Humidity Effects

Temperature and humidity interact strongly.

Absolute humidity:

$$AH=RH\times \text{saturation vapor pressure}(T)$$

Saturation vapor pressure increases exponentially with temperature.

Thus, at higher temperature, a fixed RH represents significantly higher moisture concentration.

Consequently:

• Ion clustering increases

• Recombination rates change

• Surface conductivity changes

This produces nonlinear coupling behavior.

---

6. Nonlinear Neutralization Behavior

6.1 Low Humidity Regime (<20%)

Characteristics:

• High ion mobility

• Low recombination

• Poor surface conductivity

• High residual charge risk

Neutralization efficiency limited by surface leakage rather than ion availability.

---

6.2 Optimal Humidity Regime (40–60%)

Characteristics:

• Balanced mobility

• Moderate clustering

• Improved surface conductivity

• Stable ion balance

Maximum effective efficiency typically occurs in this range.

---

6.3 High Humidity Regime (>75%)

Characteristics:

• Strong clustering

• Reduced mobility

• Increased recombination

• Space charge accumulation

• Possible condensation

Ion transport efficiency decreases sharply beyond threshold.

Efficiency drops nonlinearly.

---

7. Mathematical Modeling of Nonlinear Effects

Ion density evolution:

dndt=G−αn2−∇⋅(nμE)−∇⋅(nvair)\frac{dn}{dt} = G - \alpha n^2 - \nabla \cdot (n \mu E) - \nabla \cdot (n v_{air})dtdn=G−αn2−∇⋅(nμE)−∇⋅(nvair)

Where:

• $G$ = ion generation rate

• αn2\alpha n^2αn2 = recombination term

Temperature and humidity influence:

• $G$

• $\alpha$

• $\mu$

Because these parameters are nonlinear functions of T and RH, overall efficiency is inherently nonlinear.

---

8. Experimental Observations

Industrial measurements show:

• Neutralization time increases dramatically below 25% RH

• Efficiency plateaus between 40–55% RH

• Ion output decreases above 80% RH

• Ozone concentration drops at high humidity

• Ion balance drifts at extreme temperatures

These observations align with nonlinear modeling predictions.

---

9. Engineering Implications

9.1 Environmental Control

Maintain:

• Temperature: 20–25°C

• Relative humidity: 45–60%

This stabilizes ion chemistry and surface leakage.

---

9.2 Adaptive Voltage Compensation

At low humidity:

• Increase voltage to raise ion density.

At high humidity:

• Adjust pulse timing to reduce recombination.

---

9.3 Airflow Optimization

Higher airflow offsets reduced mobility in humid conditions.

---

9.4 Feedback Ion Monitoring

Closed-loop systems adjust discharge based on measured ion density.

---

10. Impact on Different Industries

Semiconductor Fabrication

Strict humidity control already implemented; ionizer tuning enhances precision.

---

Plastic Film Manufacturing

Low humidity environments common; increased ion density required.

---

Pharmaceutical Packaging

Moderate humidity preferred; avoid condensation.

---

11. Advanced Research Directions

• Real-time environmental compensation algorithms

• Nano-engineered emitters optimized for humid air

• Hybrid plasma-assisted ion systems

• AI-based predictive ion control

• Coupled CFD–electrostatic simulations

---

12. Energy Consumption Considerations

Environmental compensation increases energy demand.

Low humidity → higher voltage → higher power consumption.

High humidity → lower effective transport → longer operating time.

Energy efficiency optimization requires dynamic adaptation.

---

13. Ozone Production Nonlinearity

Ozone generation:

O2+e−→O+OO_2 + e^- \rightarrow O + OO2+e−→O+OO+O2→O3O + O_2 \rightarrow O_3O+O2→O3

Humidity introduces OH radicals, altering ozone equilibrium.

Ozone production decreases sharply above ~60% RH.

---

14. Safety and Stability Concerns

Extreme humidity may cause:

• Condensation on emitter

• Micro-arcing

• Electrical instability

Extreme temperature may cause:

• Thermal drift

• Voltage instability

• Component aging acceleration

---

15. Comprehensive Nonlinear Behavior Summary

The nonlinear relationship arises from simultaneous changes in:

• Gas density

• Ion mobility

• Ion clustering

• Recombination coefficient

• Surface conductivity

• Plasma chemistry

• Space charge shielding

• Airflow transport

Because these factors interact multiplicatively rather than additively, system response exhibits threshold and saturation characteristics.

---

16. Conclusion

Ionization efficiency in air ionizing systems exhibits strong nonlinear dependence on temperature and humidity due to complex multiphysics interactions among plasma discharge, ion transport, gas-phase chemistry, and surface charge dissipation.

Optimal performance typically occurs within moderate temperature (20–25°C) and humidity (40–60%) ranges. Deviation toward extreme dry or humid conditions results in efficiency degradation through different mechanisms.

Understanding and modeling these nonlinear relationships enables:

• Improved system design

• Adaptive environmental compensation

• Enhanced reliability

• Reduced energy consumption

• Stable ion balance control

Future ionization systems will increasingly integrate environmental sensing and intelligent control algorithms to maintain optimal efficiency across varying climatic conditions.
