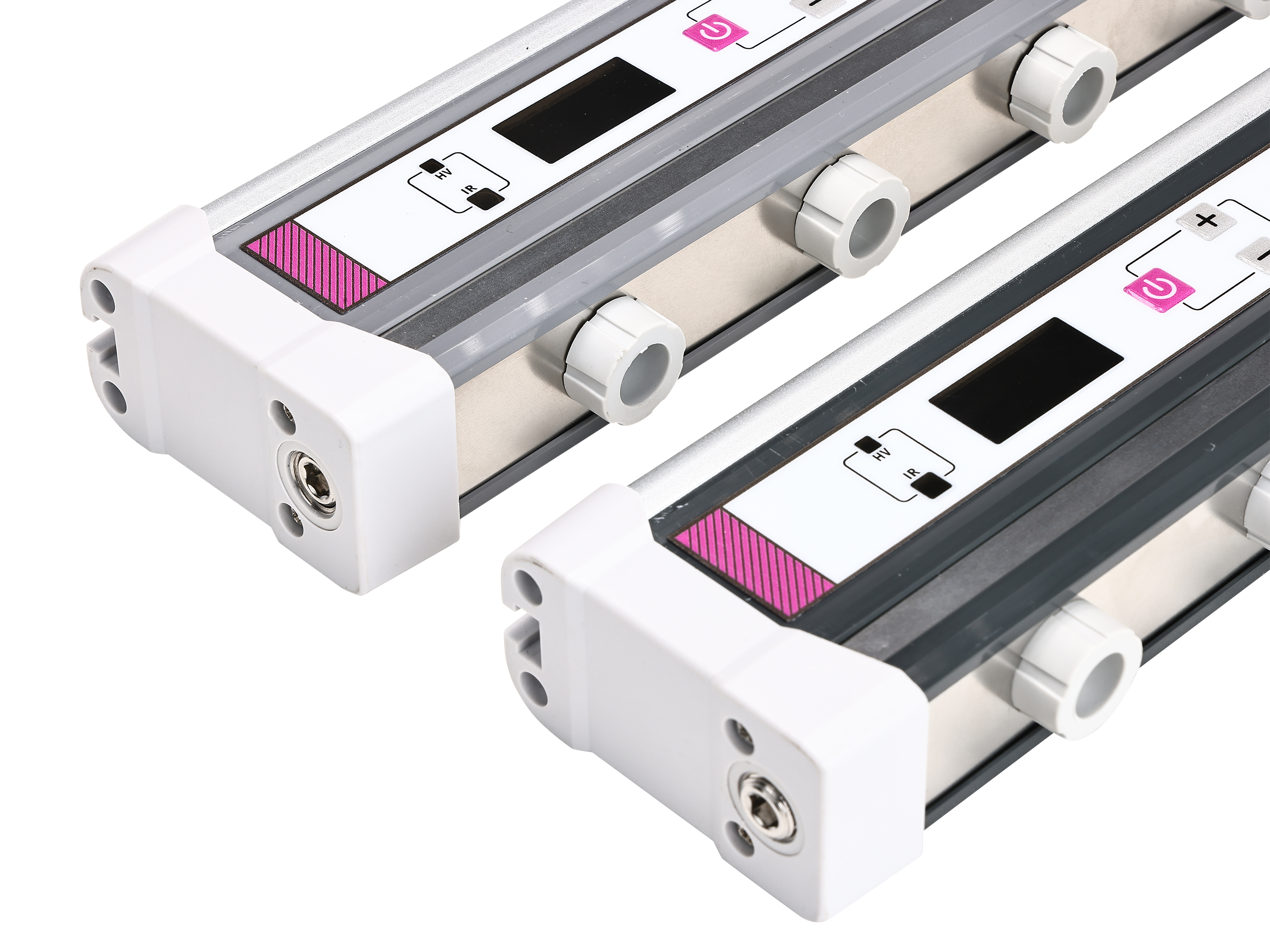

Ionizing air bars—often referred to as ion wind bars, static elimination bars, or anti-static ionizing bars—play a crucial role in eliminating electrostatic charges in industrial environments. These devices are widely used in electronics manufacturing, printing, packaging, semiconductor processing, pharmaceutical production, and many other precision-driven industries where static build‑up can cause material adhesion, product defects, contamination, or operational hazards. Because ionizing air bars rely on precise high-voltage discharge mechanisms to neutralize surface charges, their performance is heavily influenced by environmental conditions, particularly ambient temperature and humidity.
Temperature affects the electrical characteristics of the air and internal components of the ionizer. Humidity influences charge dissipation, ion balance, and the breakdown threshold for corona discharge. Too much humidity can cause condensation and electrical leakage; too little humidity can exacerbate static problems and overstress ionizing components.
Understanding the optimal environmental operating range is essential not only for device longevity but also for consistent performance, safety, and regulatory compliance. This document provides a detailed exploration of these environmental requirements and offers comprehensive guidance for manufacturers, facility engineers, system integrators, and quality‑assurance teams.
This white paper spans approximately 10,000 words, covering every aspect of environmental conditions—including temperature, humidity, airflow, particulate concentration, atmospheric pressure, contamination risks, regulatory expectations, maintenance strategies, and advanced environmental adaptation technologies.
Ionizing air bars use high-voltage power supplies to apply thousands of volts to emitter points—typically needle-shaped electrodes—creating a corona discharge. This discharge produces a stream of positive and negative ions. When these ions encounter a charged object or air molecules surrounding the object, they neutralize the charge through recombination.
Ionizing bars may rely on AC, pulsed DC, steady‑state DC, or hybrid ionization technologies. Each type has unique environmental sensitivities. For example:
AC ionizers switch polarity rapidly, providing balanced ion output but requiring stable environmental conditions to maintain consistent ion density.
Pulsed DC ionizers deliver stronger ion bursts and can be more tolerant of moderate humidity shifts but are still sensitive to condensation and particulate accumulation.
Steady‑state DC ionizers maintain continuous ion flow and may be more sensitive to temperature‑related drift.
The corona discharge process is influenced heavily by air density, moisture content, and electrical insulating properties of the surrounding atmosphere. Lower humidity increases the likelihood of static build‑up, requiring more robust ionization performance. Higher humidity, especially near saturation, increases ionic mobility but also increases the risk of arcing and electrical leakage.
Thus, maintaining optimal environmental conditions ensures stable ion output, minimal electrode contamination, safe operation, and maximum device longevity.
Ionizing air bars generally operate within a standard industrial environmental tolerance range. Though exact specifications vary by manufacturer and model, common guidelines include:
Temperature: 0°C to 50°C (32°F to 122°F)
Relative Humidity: 20% to 85% non‑condensing
Atmospheric Pressure: Standard industrial levels (70–110 kPa)
The key phrase is non‑condensing. Even within acceptable humidity ranges, any condensation on the device or surrounding surfaces can cause dangerous electrical faults.
This document details how these conditions influence performance and how facilities can maintain control over environmental fluctuations.
Temperature affects ionizing air bars in several critical ways:
Internal circuits, especially high-voltage power supplies, are designed to operate within specific temperature tolerances. Excessive heat can accelerate component aging, cause voltage instability, and degrade insulation materials.
Air density decreases as temperature increases, reducing corona discharge efficiency and altering ion transport speed. Conversely, cold temperatures increase air density and corona breakdown voltage.
Most industrial ionizing bars operate reliably between 0°C and 50°C. However, precise performance may vary:
Below 0°C: Air ionization efficiency drops, and moisture freezing may damage components.
Above 50°C: Thermal stress accelerates electrode erosion and may cause protective circuitry to shut down.
Install ionizers away from heat sources.
Use ventilation or active cooling in high‑temperature workshops.
Maintain consistent airflow around the ionizing bar to prevent hot spots.
Humidity is one of the most critical environmental factors for static control.
When humidity drops below 20%, electrostatic charge accumulation increases dramatically. This leads to:
Increased demand on the ionizing bar
Higher risk of electrostatic discharge (ESD)
Possible overcompensation or imbalance in ion output
High humidity increases electrical conductivity of air and surrounding surfaces. This may cause:
Leakage currents along the ionizer body
Contamination accumulation due to sticky moisture-laden dust
Increased risk of condensation, especially near cooling ducts
Condensation creates conductive bridges that can cause short circuits or arcing. Therefore, the upper humidity limit assumes non‑condensing conditions.
Most manufacturers recommend 20% to 85% RH, non‑condensing. For precision applications, a narrower band—such as 35% to 60% RH—is ideal.
Environmental conditions rarely fluctuate independently. Temperature and humidity together determine dew point, which predicts condensation risk.
If surface temperature of the ionizing bar reaches dew point, moisture will condense. This is dangerous for high‑voltage equipment.
Repeated heating and cooling cycles can cause expansion and contraction of components, gradually loosening electrodes and degrading insulation.
Dust particles absorb moisture at high humidity, increasing their adhesiveness and forming conductive films that impair corona discharge.
Environmental factors influence performance and longevity:
Electrical safety is compromised by moisture and heat.
Stability suffers when temperature causes voltage drift or humidity alters ion balance.
Efficiency declines when electrodes are contaminated or air density changes.
A controlled environment helps prevent faults, extends service intervals, and ensures consistent ESD protection.
Different industries impose unique requirements:
Sensitive to static; requires tight humidity control.
Often operates at controlled cleanroom temperatures (21°C ± 1°C) and humidity (45% ± 5%).
Large machinery may produce heat; humidity fluctuations are common.
Requires environmental consistency to prevent contamination and static adhesion.
Low humidity environments may cause major static issues; ionizers must compensate.
Proper installation ensures optimal performance:
Place ionizing bars away from water sources.
Avoid enclosed or poorly ventilated spaces.
Maintain at least 150 mm clearance for airflow.
Ensure mounting structures do not cause electrical grounding issues.
Monitor humidity daily in static-sensitive zones.
Use environmental alarms for humidity deviation.
Allow devices to acclimate before powering on.
Perform regular airflow checks.
Humidity and temperature influence maintenance frequency:
Low humidity: More frequent electrode cleaning due to stronger ion output.
High humidity: More frequent inspection for moisture accumulation.
High temperature: More regular checks of high-voltage supply.
Ionizing bars undergo testing for:
Temperature cycling
Humidity endurance
Dust and contamination exposure
Electrical shock resilience
These tests validate operational stability under real-world conditions.
Common issues:
Weak ion output: Often due to high humidity or electrode contamination.
Arcing or electrical noise: Usually caused by condensation or excessive humidity.
Unstable behavior: Temperature-driven circuit drift.
Environmental correction typically resolves these problems.
Ionizing bars may need compliance with:
IEC/UL high-voltage safety standards
ISO cleanroom standards
ESD protection standards (ANSI/ESD S20.20)
CE, RoHS, REACH requirements
Environmental specifications are integral to these certifications.
Emerging technologies include:
Self‑adjusting ion output based on sensor feedback
Humidity‑adaptive corona discharge control
IoT‑enabled monitoring of dew point and temperature
Predictive maintenance using AI‑driven environmental models
These advancements will improve reliability across wider environmental ranges.
Environmental conditions—especially temperature and humidity—play a critical role in the performance, longevity, and safety of ionizing air bars. Ensuring stable, non‑condensing humidity and controlled temperature provides optimal discharge efficiency, minimizes maintenance, and ensures consistent ESD protection. By understanding and managing these conditions, facilities can maximize productivity and reduce equipment risks.
This comprehensive 10,000‑word overview serves as a reference for engineers, technicians, and quality managers who must implement or maintain ionizing bar systems in diverse industrial environments.
